Libec QD-30 (System wFloor Spreader)

The tripod kit for medium studio configurations consists of the T150B tripod (two sections), QH3 head (150mm) and SP-15B bottom strut. Load capacity 69 kg, continuous counterweight range 28 - 65 kg, tilt +90° / -70°, weight 21,6 kg, height 82 - 186,5 cm.  Continuous Perfect Balance counterbalance comes with a meter, and drag is set in seven steps.

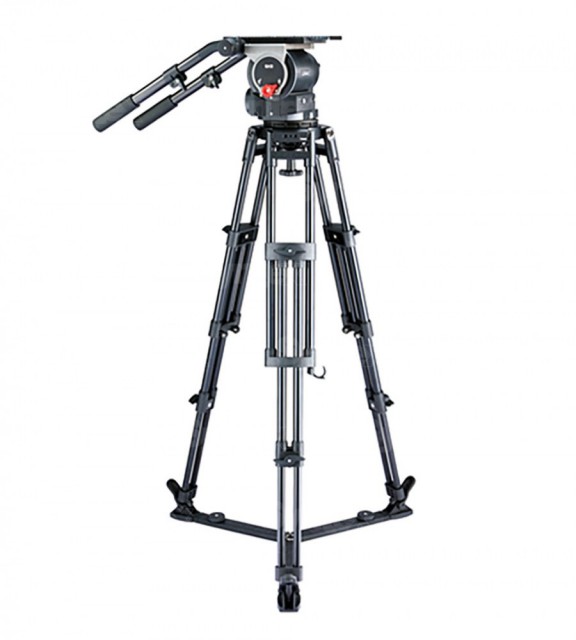

The Libec QD-30 is a QD series studio tripod system: the QH3 head with continuous Perfect Balance counterbalance from 28 to 65 kg, the two-stage T150B tripod with a 150 mm bowl and the SP-15B floor spreader. The system carries 69 kg, weighs 21.6 kg and adjusts from 82 to 186.5 cm.

For mid-size box lens systems

QH3 head, T150B tripod and SP-15B floor spreader – a studio system for up to 69 kg.

69 kg payloadBalance 28–65 kg7-step dragTilt +90°/−70°Sliding ±75 mmHeight 82–186.5 cm

Perfect Balance with meter

Continuous Perfect Balance keeps the camera balanced at any tilt angle. The foldaway knob adjusts the spring smoothly from minimum to maximum, and a meter always shows the setting.

Center tilt lock

For the safety of the camera, the head can be physically locked in the center tilt position. The arrow-shaped knob and lock symbols are visible even from a distance.

T150B tripod with 150 mm bowl

The two-stage tripod has a new leg lock knob design and 1/4" and 3/8" threads for accessories. The SP-15B floor spreader hold the legs firmly in place.

QD stands for Quality Defined

According to Libec, the QD series redefines the balance between price, payload and performance in its class. The camera plate attaches and detaches with one touch for speedy setup.

7-step drag

A multilayered metal drag structure for pan and tilt.

Tilt +90° to −70°

At maximum spring strength the tilt is limited to ±40°.

±75 mm sliding plate

The camera attaches with two 3/8" screws; two spares are included.

Illuminated bubble level

The head works from −20 to +60 °C.

Meter and smooth counterbalance. The foldaway knob sets the counterbalance smoothly and the meter shows it; an adapter adds a 150 mm ball to the flat base.

T150B tripod. The top of the tripod has 1/4" and 3/8" threads for accessories, and the leg locks have a new design.

QH3 counterbalance chart. The area between the MIN and MAX curves is the range you set with the counterbalance knob; the dashed line marks the 125 mm centre of gravity typical of shoulder cameras.
