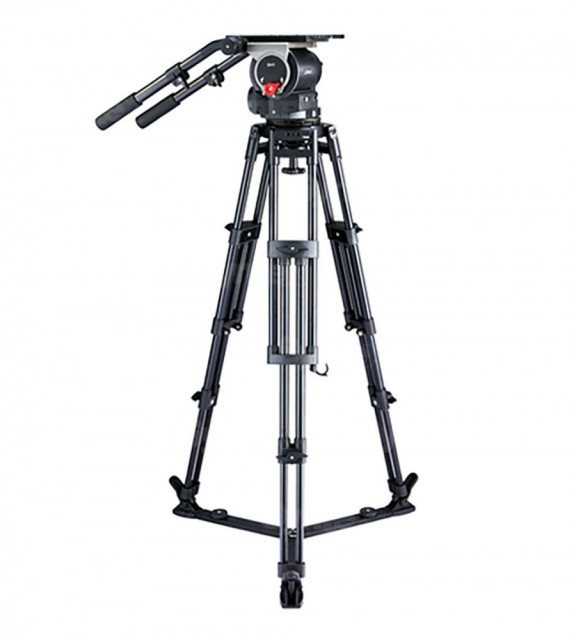

Libec QD-10 (System wFloor Spreader)

The tripod kit for smaller studio configurations consists of the T150B tripod (two sections), QH1 head (150mm) and SP-15B bottom strut. Capacity 40 kg, continuous counterweight range 15 - 35 kg, tilt +90° / -70°, weight 21,6 kg, height 82 - 186,5 cm. Continuous Perfect Balance counterbalance comes with a meter, and drag is set in seven steps.

The Libec QD-10 is a QD series studio tripod system: the QH1 head with continuous Perfect Balance counterbalance from 15 to 35 kg, the two-stage T150B tripod with a 150 mm bowl and the SP-15B floor spreader. The system carries 40 kg, weighs 21.6 kg and adjusts from 82 to 186.5 cm.

For prompters and small box lenses

QH1 head, T150B tripod and SP-15B floor spreader – a studio system for up to 40 kg.

40 kg payloadBalance 15–35 kg7-step dragTilt +90°/−70°Sliding ±75 mmHeight 82–186.5 cm

Perfect Balance with meter

Continuous Perfect Balance keeps the camera balanced at any tilt angle. The foldaway knob adjusts the spring smoothly from minimum to maximum, and a meter always shows the setting.

Center tilt lock

For the safety of the camera, the head can be physically locked in the center tilt position. The arrow-shaped knob and lock symbols are visible even from a distance.

T150B tripod with 150 mm bowl

The two-stage tripod has a new leg lock knob design and 1/4" and 3/8" threads for accessories. The SP-15B floor spreader hold the legs firmly in place.

QD stands for Quality Defined

According to Libec, the QD series redefines the balance between price, payload and performance in its class. The camera plate attaches and detaches with one touch for speedy setup.

7-step drag

A multilayered metal drag structure for pan and tilt.

Tilt +90° to −70°

At maximum spring strength the tilt is limited to ±40°.

±75 mm sliding plate

The camera attaches with two 3/8" screws; two spares are included.

Illuminated bubble level

The head works from −20 to +60 °C.

Center tilt lock. The red arrow-shaped knob locks the head in the center tilt position.

Meter and smooth counterbalance. The foldaway knob sets the counterbalance smoothly and the meter shows it; an adapter adds a 150 mm ball to the flat base.

T150B tripod. The top of the tripod has 1/4" and 3/8" threads for accessories, and the leg locks have a new design.

QH1 counterbalance chart. The area between the MIN and MAX curves is the range you set with the counterbalance knob; the dashed line marks the 125 mm centre of gravity typical of shoulder cameras.
