Lilliput UQ19 Monitor
SKU: UQ19
Lilliput UQ19 is a 18.4″ production monitor with a 10-bit 3840 × 2160 panel and 1,000 cd/m² brightness, readable even in direct sunlight. Four quad-link 12G-SDI inputs and HDMI 2.1 accept signals up to 8K 60p; it also has a 12G SFP+ optical input, HDR, 3D LUTs, quad split and control via LAN, RS422 and GPI.
2 789 € with VAT
2 304.96 € without VAT
Availability
on request
Top accessories for Lilliput UQ19 Monitor
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 2m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.7 €
In stock 4 pcs
Infinitek L-4.5CHWS 2m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
19 €
To be sent > 5 pcs
Lilliput 12 Gb/s Video SFP+ Optical Receiver
The Lilliput 12G-SFP-LC-RX optical receiver is an SFP+ module that accepts an SDI
252 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Lilliput UQ19 is a 18.4″ production monitor with a 10-bit 3840 × 2160 panel and 1,000 cd/m² brightness, readable even in direct sunlight. Four quad-link 12G-SDI inputs and HDMI 2.1 accept signals up to 8K 60p; it also has a 12G SFP+ optical input, HDR, 3D LUTs, quad split and control via LAN, RS422 and GPI.
1,000 nits and 8K over 12G-SDI and HDMI 2.1
Lilliput UQ19 combines 1,000 cd/m² brightness, 10-bit colour and 8K inputs for outdoor shoots, control rooms and post-production.
18.4″10-bit1,000 cd/m²4× 12G-SDIHDMI 2.199% DCI-P3
Readable in sunlight
High brightness together with HDR (HLG and PQ ST 2084 300/1000/10000) shows the director accurate colours even outdoors; the A+ grade panel displays 1.07 billion colours.
Calibrated colour
99% DCI-P3 and 78% BT.2020, switchable BT.709, BT.2020, DCI-P3 and NTSC.
3D LUT
17 default and 6 user LUTs for log footage.

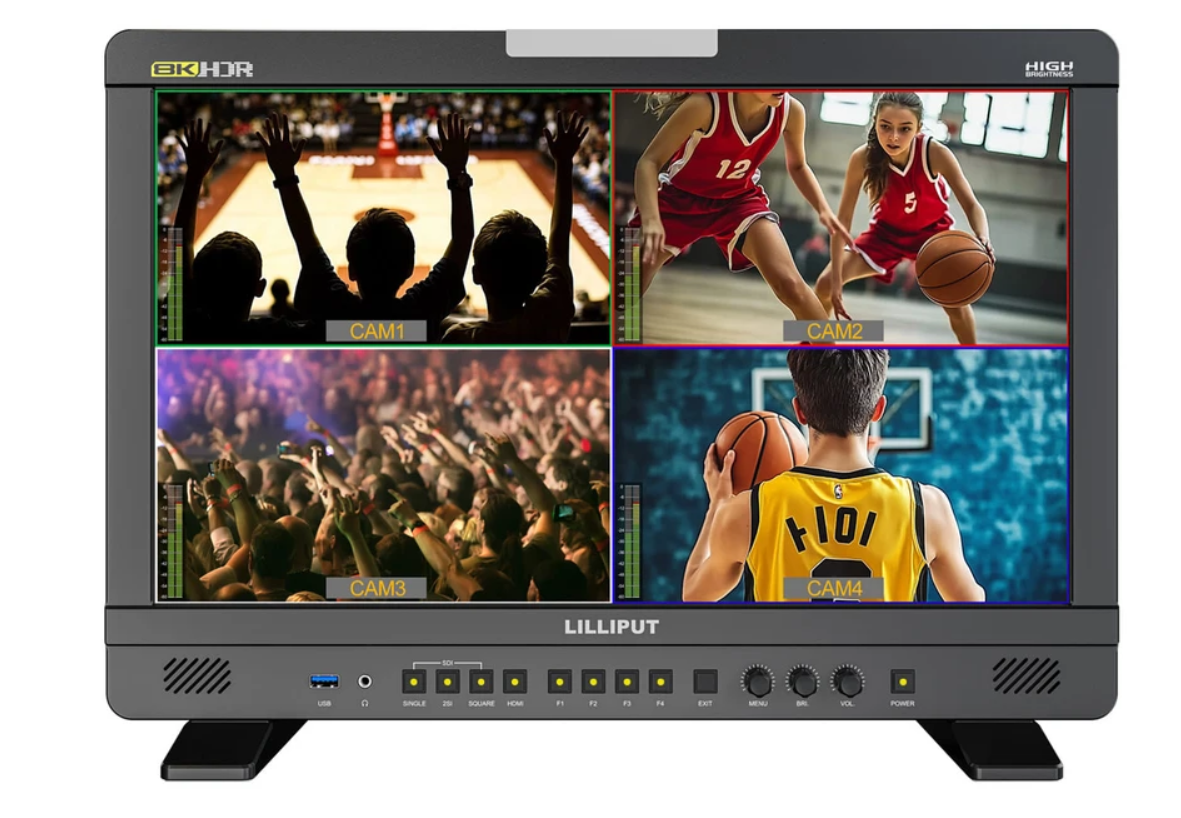

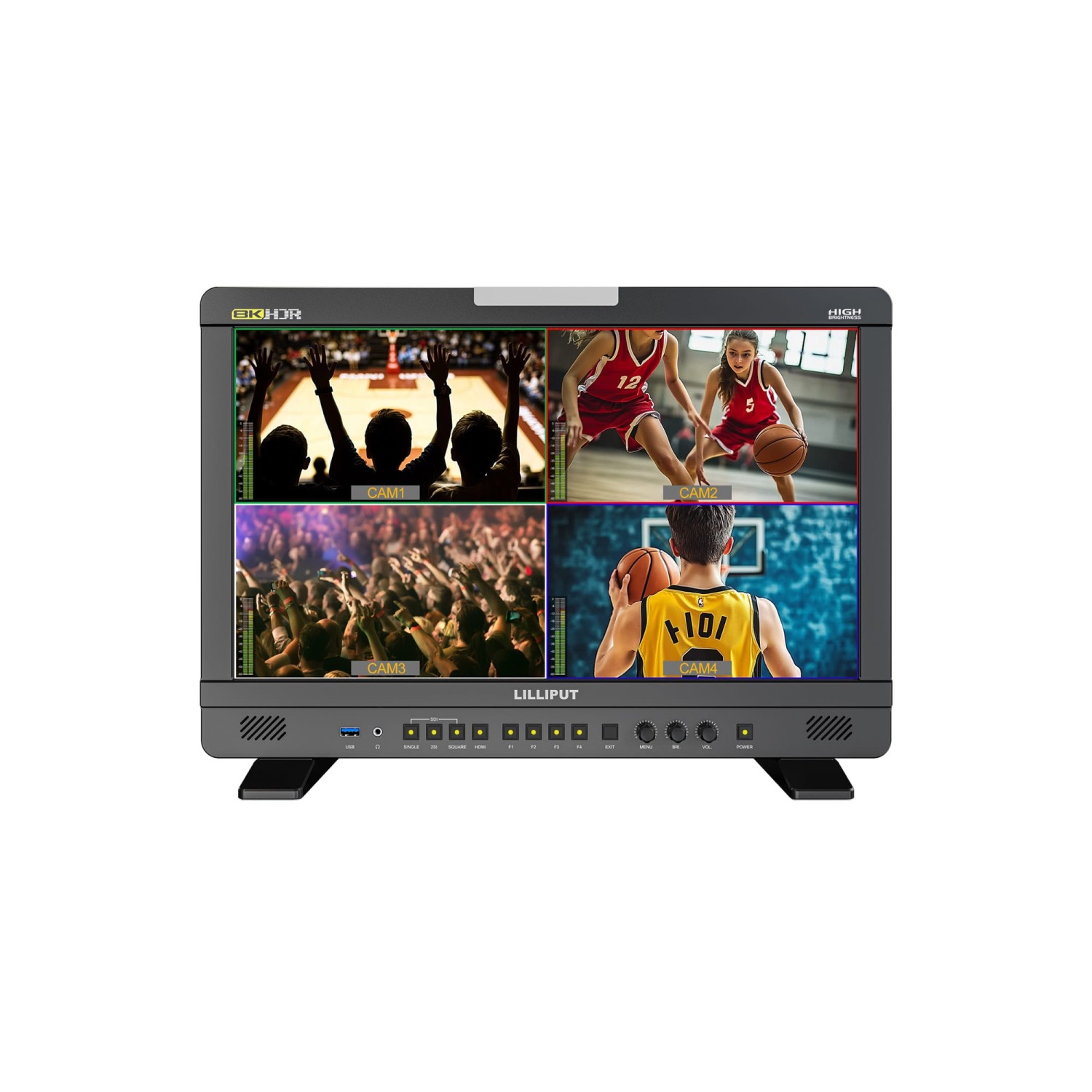

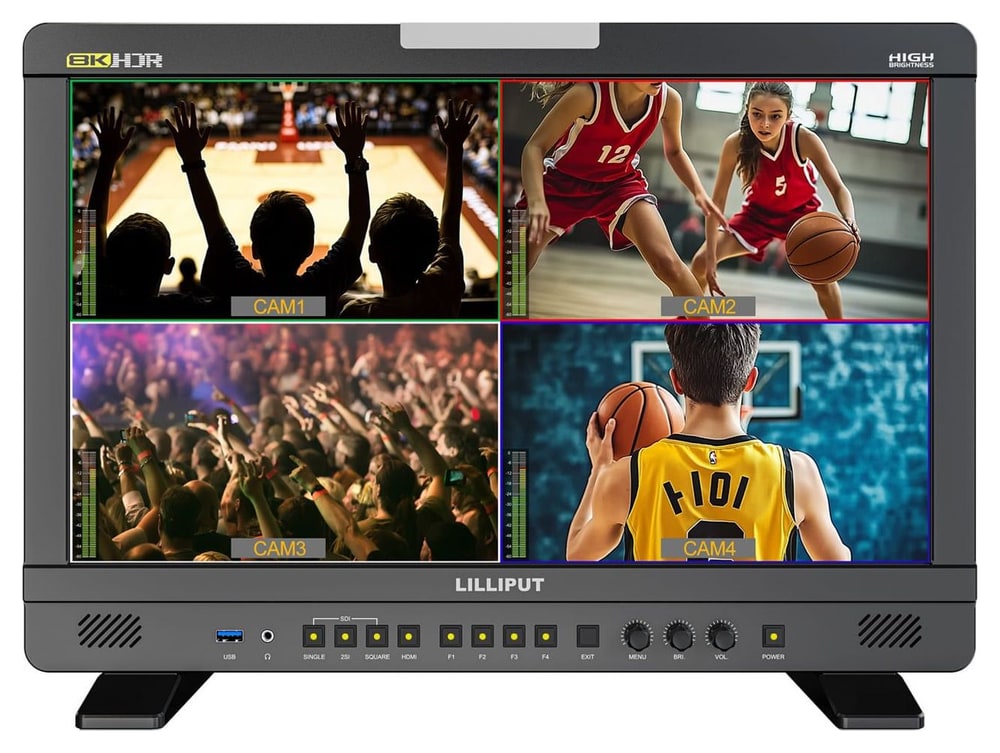

Quad split
Four sources at once, input switching with four buttons.
Remote control
Application via LAN or RS422, GPI input.

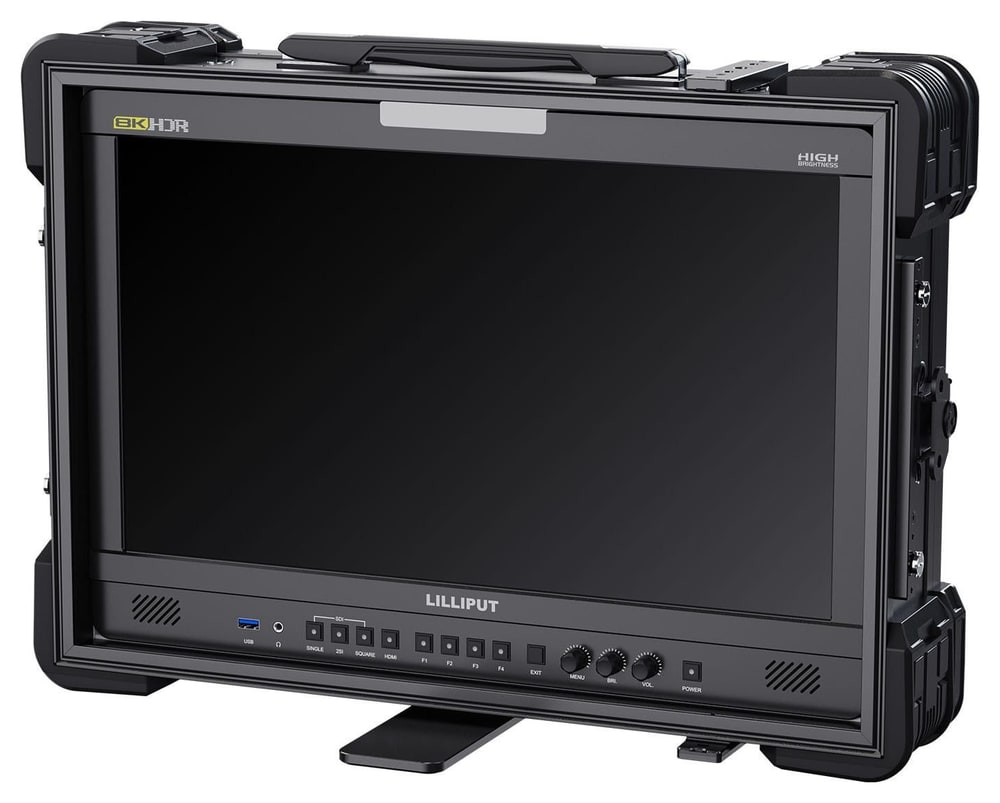

Display readable in sunlight
1,000 cd/m² brightness and an HDR algorithm give accurate colours even in outdoor light, which both the director and post-production appreciate. HDR supports HLG and PQ (ST 2084 300/1000/10000), the 3D LUT section holds 17 default and 6 user tables.

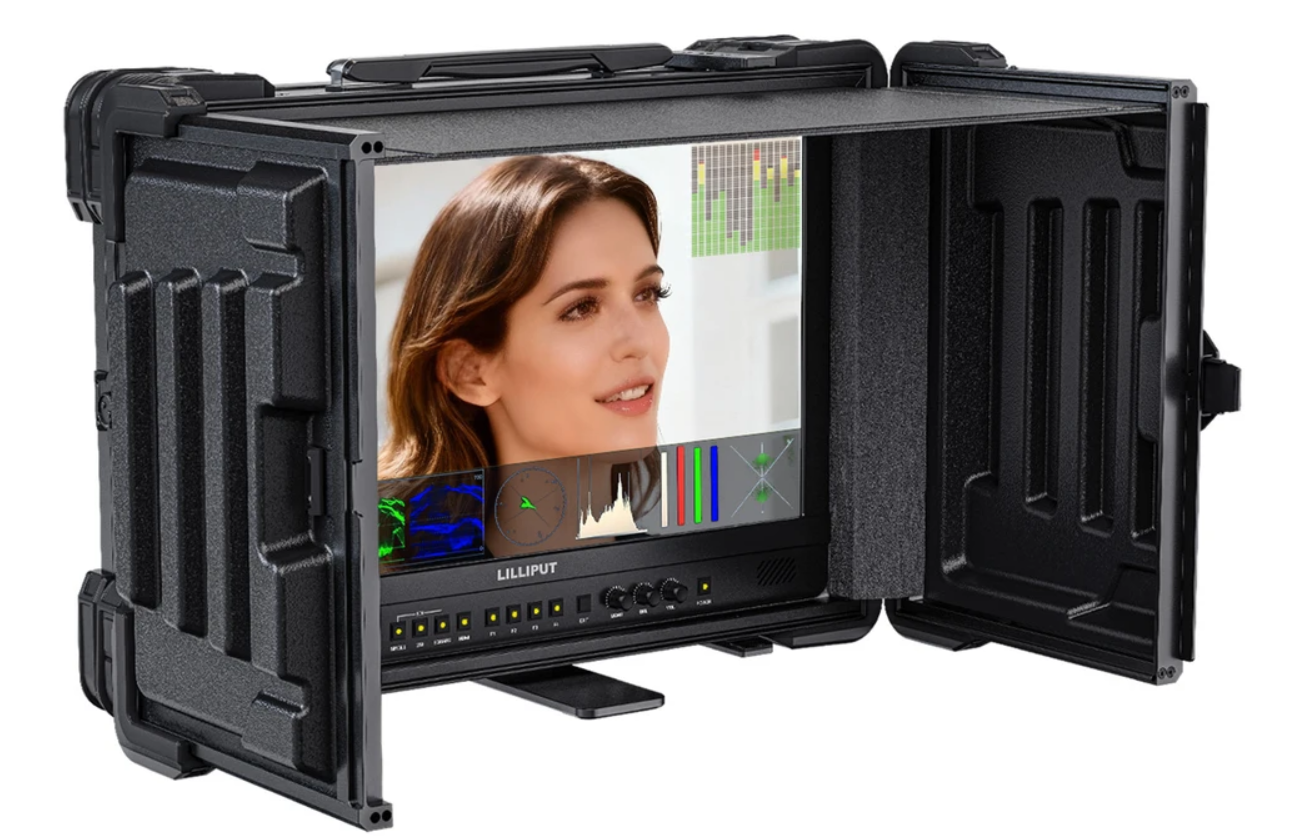

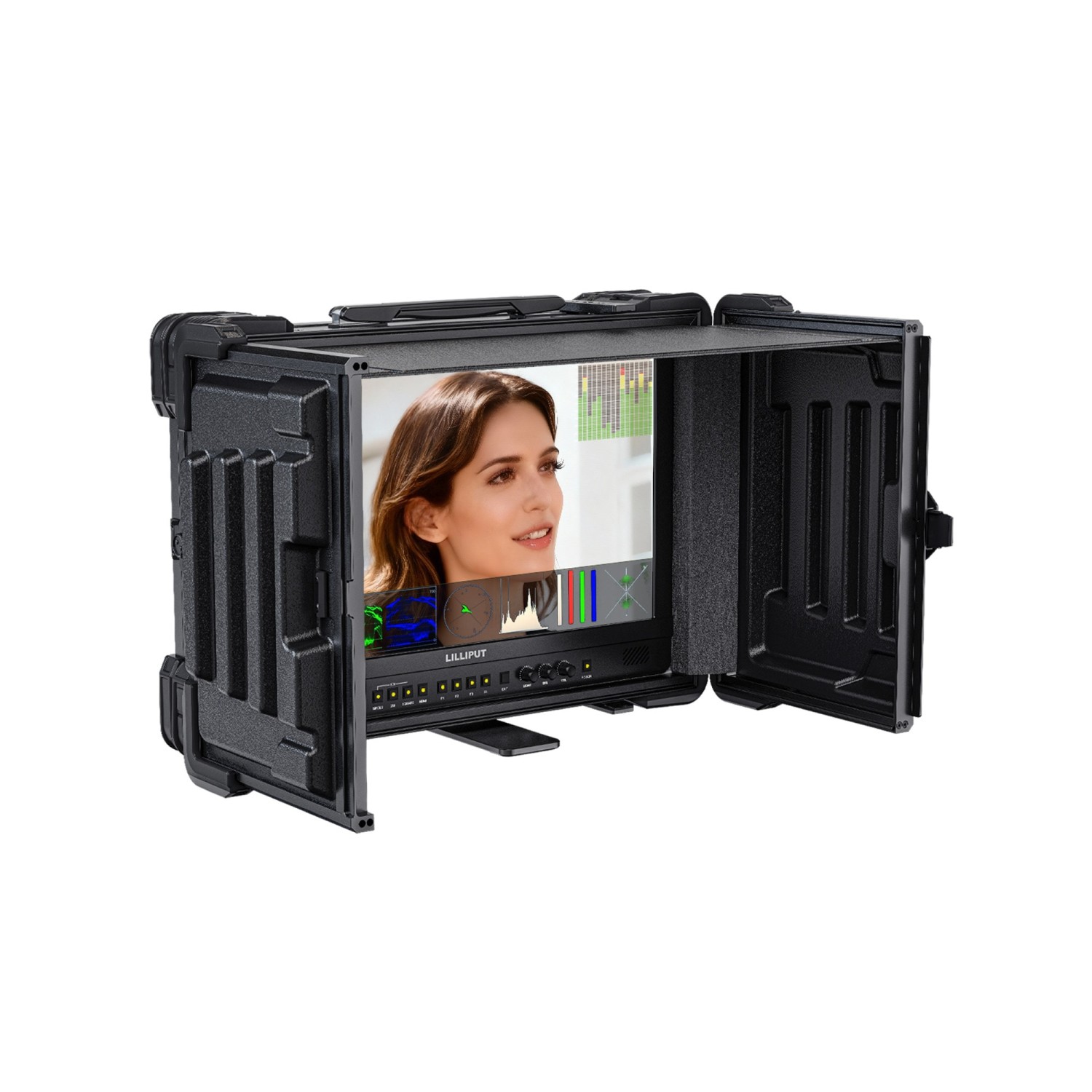

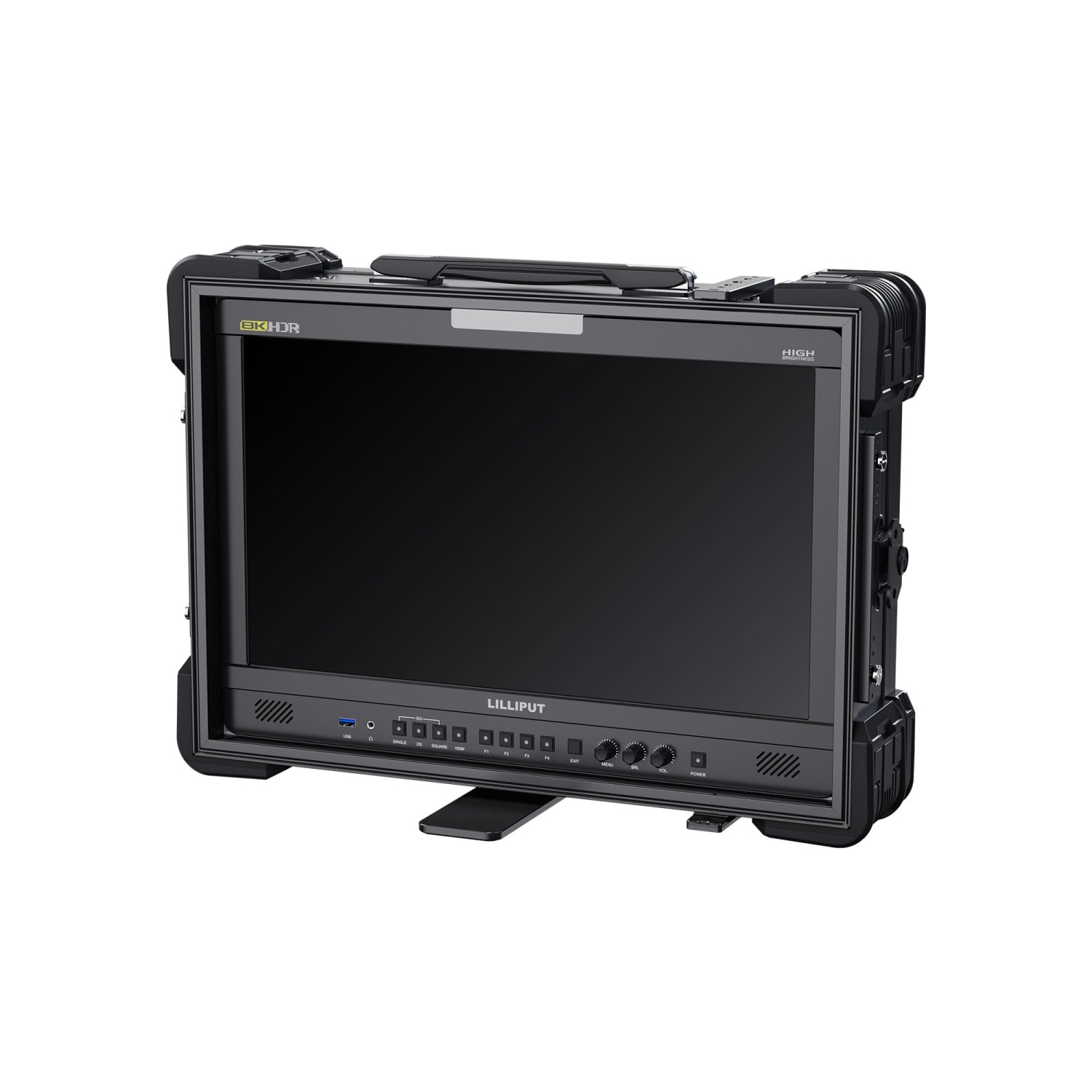

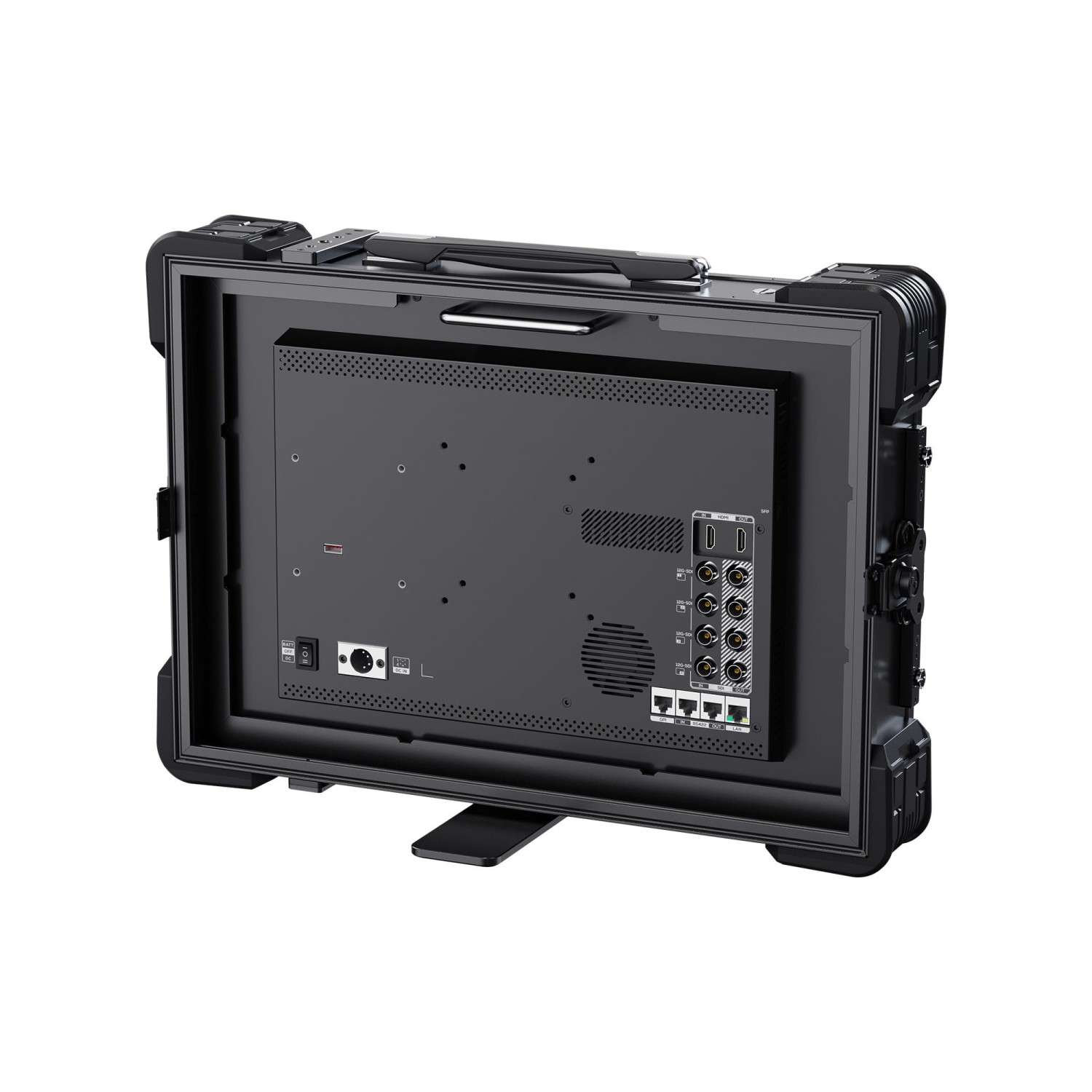

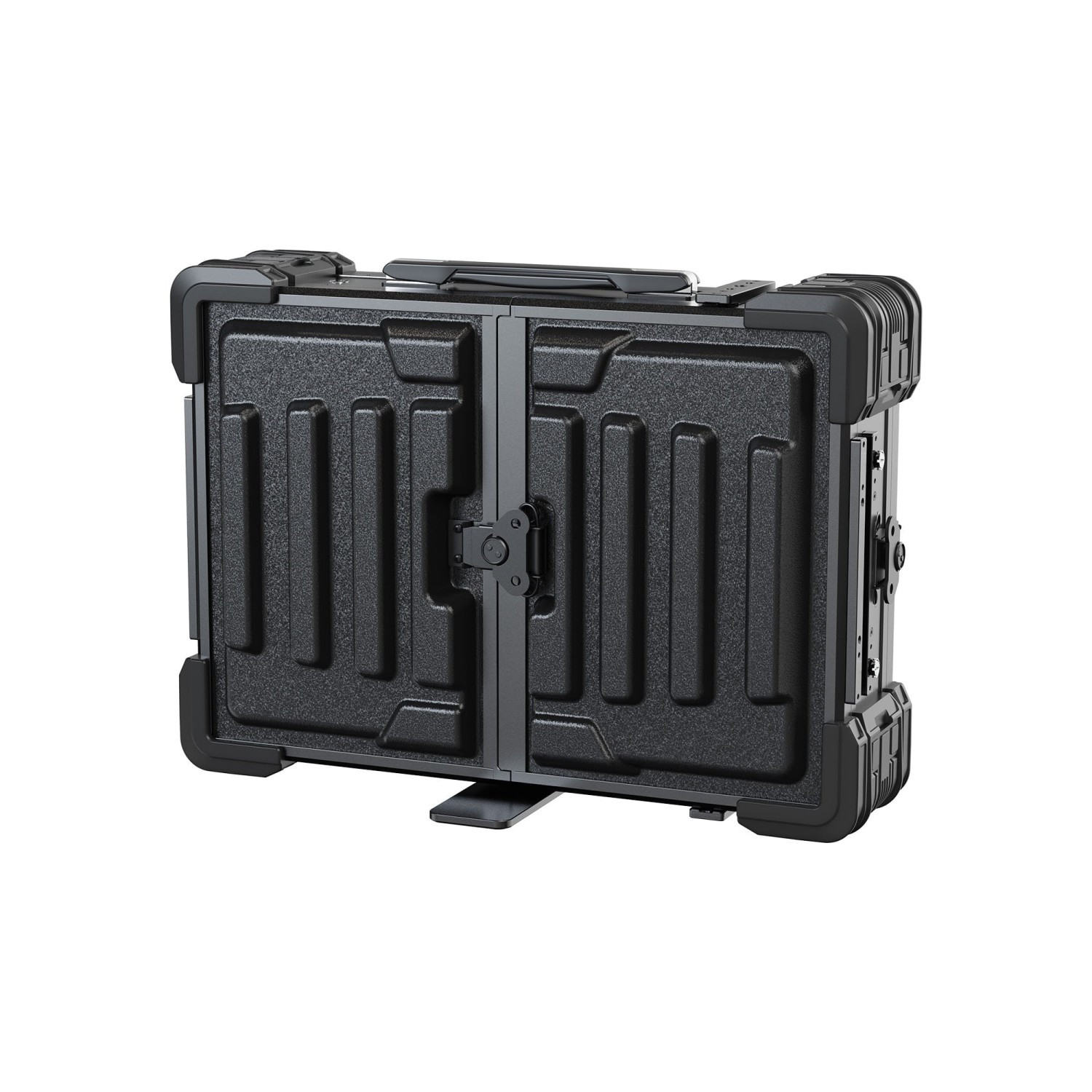

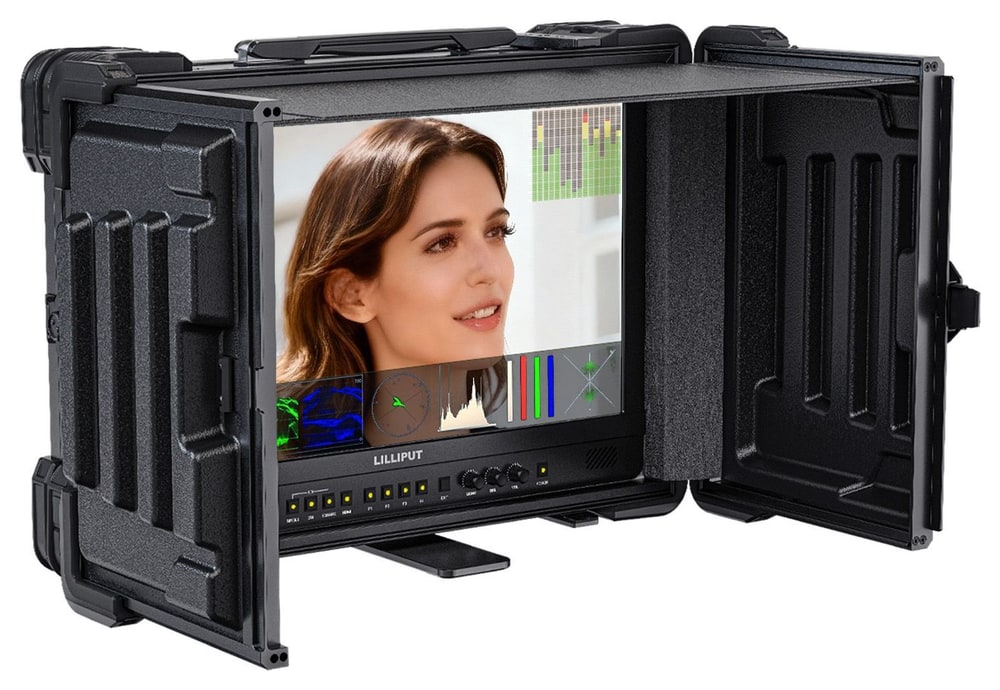

Rugged portable case
The monitor has a matching rugged case with upgraded protection against drops and shocks. It provides 1/4″ and 3/8″ threads for common brackets and a patented folding sunshade that keeps stray light off the screen.

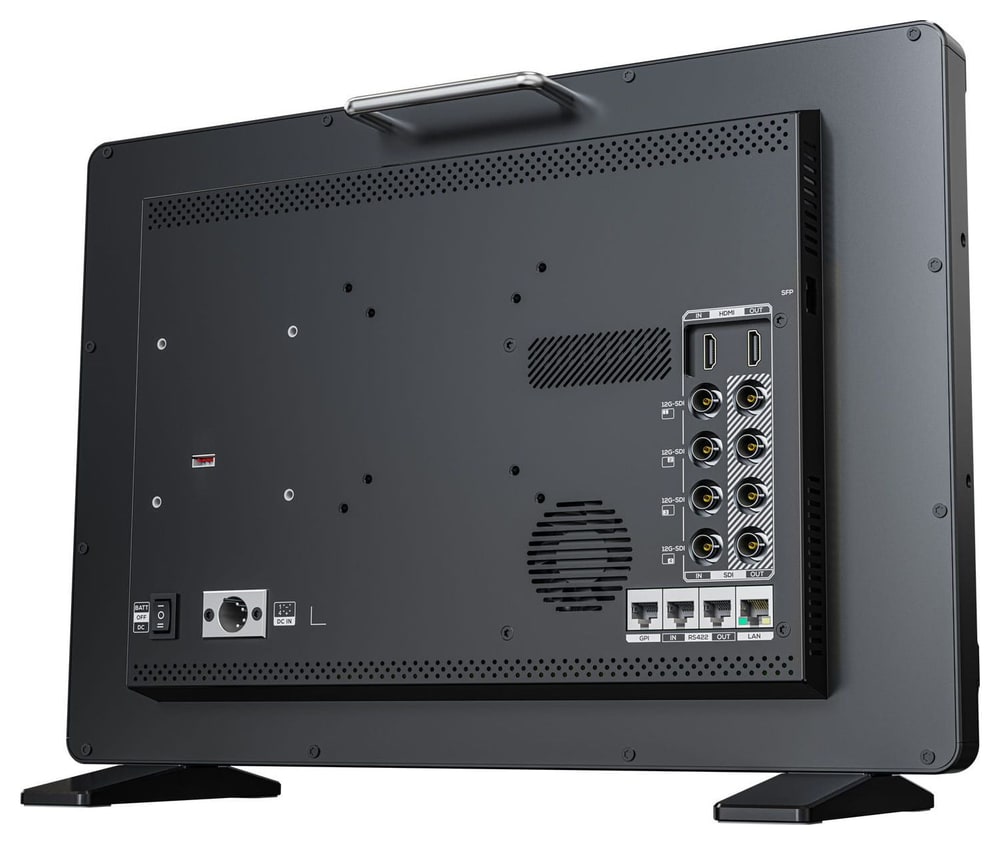

8K signal over 12G-SDI and HDMI 2.1

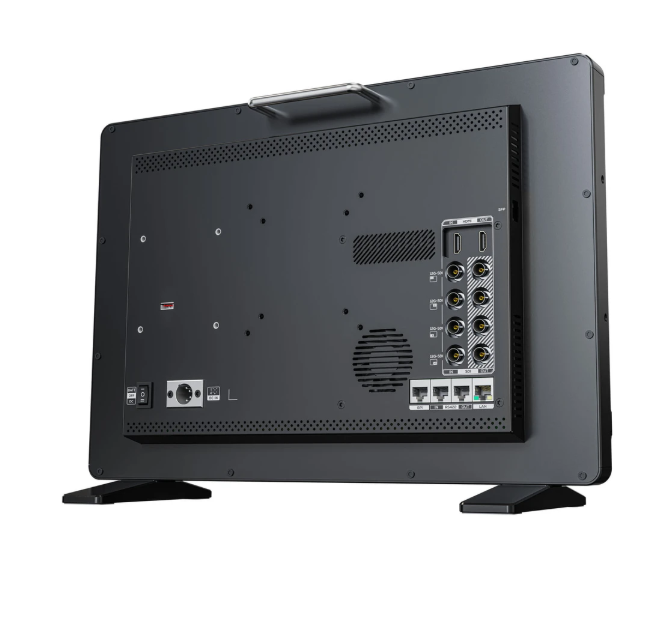

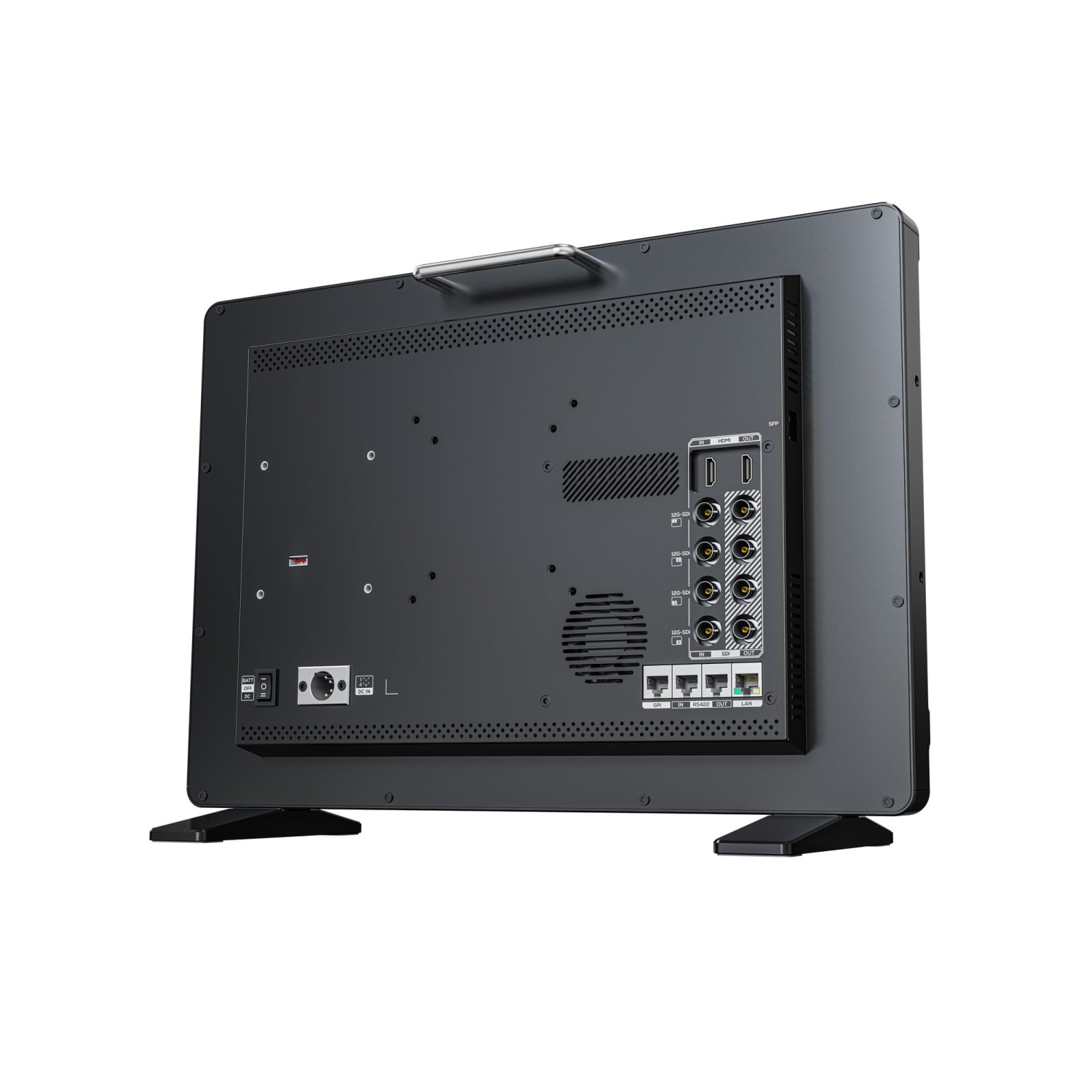

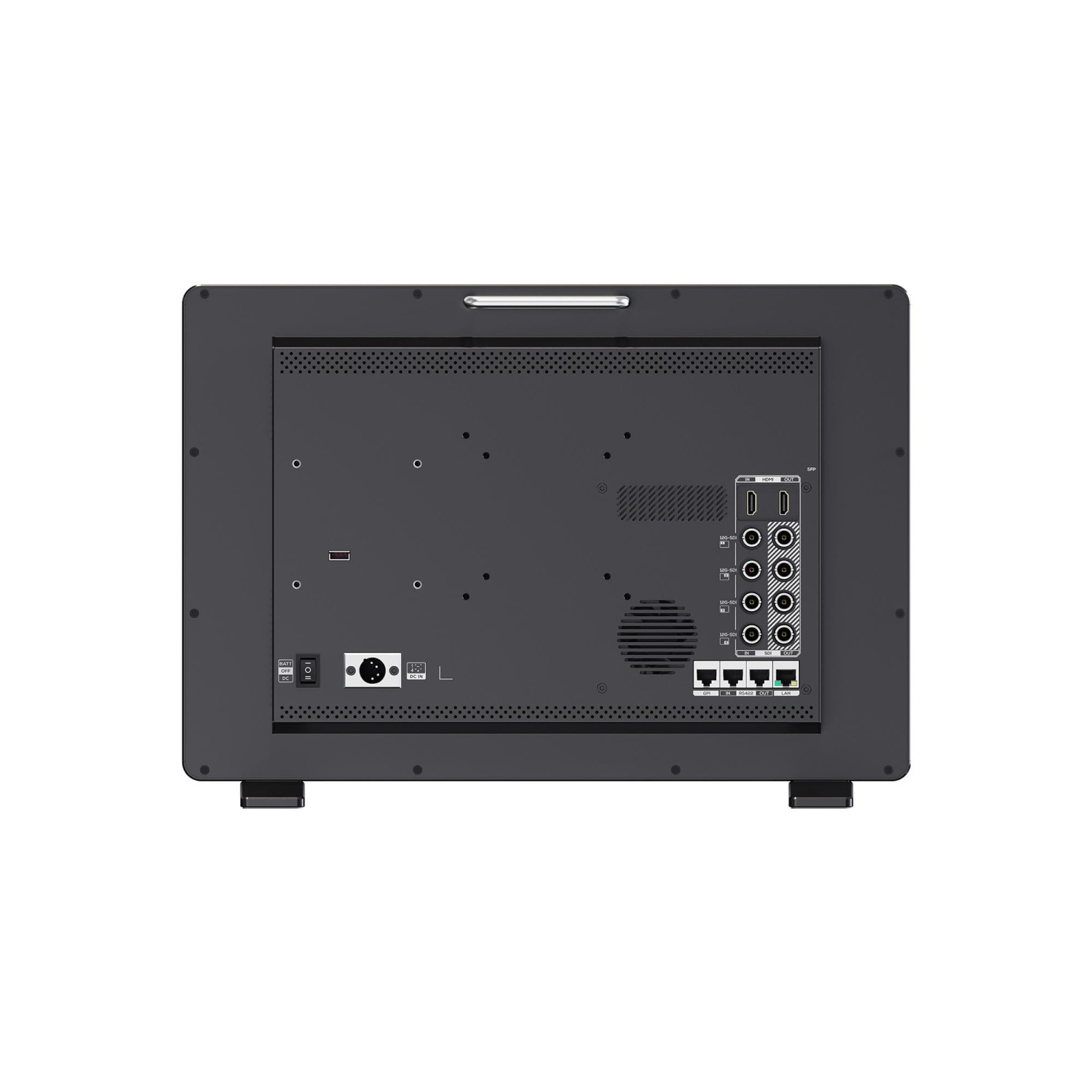

Four 12G-SDI inputs support single link (ST 2082-10) and quad link (ST 2082-12) and accept up to 8K 60p. The 12G SFP+ optical input carries up to 4K 60p, HDMI 2.1 has an input and loop output up to 8K 60p. The monitor is operated with a three-level menu, buttons F1–F4 and dials, or with an application via LAN and RS422.
More information
UQ19 is a professional 4K/8K production monitor with an 18.4″ 1000-nit screen, 12G-SDI and HDMI 2.1 interfaces and advanced features such as HDR, 3D LUT and quad view for broadcast and film production.
It is designed for demanding studios and shoots and offers an exceptionally clean picture and accurate colours. The 18.4″ 10-bit LCD panel has a 3840 × 2160 resolution and 1000 nits of brightness, so it suits both interiors and sunshine. A 170° viewing angle and support for HDR ST 2084 and HLG ensure accurate display in various conditions.
It supports 8K signals over quad-link 12G-SDI and HDMI 2.1, and the SFP+ optical input carries up to 4K 60p. 3D LUTs in .cube format, several gammas and log profiles such as SLog3, CLog and ArriLog allow accurate colour correction. Quad view watches several sources at once and speeds up multi-camera work.
The monitor offers remote control via RS422, GPI and LAN, built-in speakers, a 3.5 mm headphone output and audio vector. Thanks to its robust construction, portable design with an optional case and flexible power it suits both studio and field.
Key features
- 18.4″ 4K UHD 10-bit LCD display with 1000 nits brightness
- 8K signal over quad-link 12G-SDI and HDMI 2.1
- quad view for monitoring several sources
- HDR (ST 2084, HLG) with several brightness levels
- 3D LUT (.cube format) for colour correction
- wide colour gamut: Rec.709, DCI-P3, BT.2020, NTSC
- major log profiles (SLog2/3, CLog, NLog, ArriLog, JLog)
- inputs: 4× 12G-SDI, HDMI 2.1, SFP optical interface
- remote control via RS422, GPI and LAN
- built-in speakers and 3.5 mm headphone output
- robust portable design with optional case
PACKAGE CONTENT
- Lilliput UQ19 monitor
SPECIFICATIONS
- Screen size: 18.4″
- Resolution: 3840 × 2160
- Colour depth: 10-bit (1.07 billion colours)
- Aspect ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing angle: 170°/170° (H/V)
- Colour space: 99% DCI-P3, 78% BT.2020
- HDR: HLG, PQ ST 2084 (300/1000/10000)
- Log profiles: SLog2, SLog3, CLog, NLog, ArriLog, JLog, user
- 3D LUT: 17 default and 6 user, .cube format
- Calibration: BT.709, BT.2020, DCI-P3 and NTSC (calibrated)
- SDI inputs: 4× 12G-SDI (single link 4K 60p, quad link up to 8K 60p)
- SFP: 1× 12G SFP+ (up to 4K 60p, optical module optional)
- HDMI input: 1× HDMI 2.1 (up to 8K 60p)
- SDI loop outputs: 4× 12G-SDI
- HDMI loop output: 1× HDMI 2.1 (up to 8K 60p)
- Audio: SDI 16 channels 48 kHz 24-bit, 3.5 mm headphones, built-in speakers
- Remote control: LAN, RS422 in/out, GPI
- Power: DC 15–24 V
- Power consumption: ≤ 60 W (15 V)
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 60 °C
- Dimensions (L × W × D): 409.7 × 308.3 × 50.5 mm (in case 509.3 × 365.7 × 170 mm)
- Weight: 4.7 kg (with case 12.1 kg)
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 18.4" |
| Monitor inputs | HDMI · SDI · 12G SDI · SFP · LAN · HDMI 2.1 |
| Luminosity | 1000cd/m2 |
| Panel resolution | 3840x2160 |
| Monitor power supply | DC 15–24V |
Other parameters
| Other features | Quad split · HDR · 3D LUT correction |
| High Brightness | Yes |
