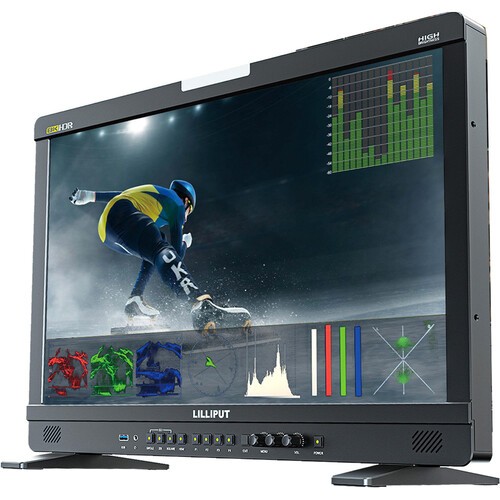

Lilliput UQ23
SKU: UQ23
Lilliput UQ23 is a 23.8″ production monitor with a 10-bit 3840 × 2160 panel and 1,200 cd/m² brightness, readable even in direct sunlight. Four quad-link 12G-SDI inputs and HDMI 2.1 accept signals up to 8K 60p; it also has a 12G SFP+ optical input, HDR, 3D LUTs, quad split and control via LAN, RS422 and GPI.
3 149 € with VAT
2 602.48 € without VAT
Availability
on request
Top accessories for Lilliput UQ23
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 2m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.7 €
In stock 4 pcs
Lilliput 12 Gb/s Video SFP+ Optical Receiver
The Lilliput 12G-SFP-LC-RX optical receiver is an SFP+ module that accepts an SDI
252 €
14-30 days
Lilliput UQ23 Case + Sunshade
A rigid carrying case with a sunshade for the Lilliput UQ23 monitor (23.8″). It keeps
579 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

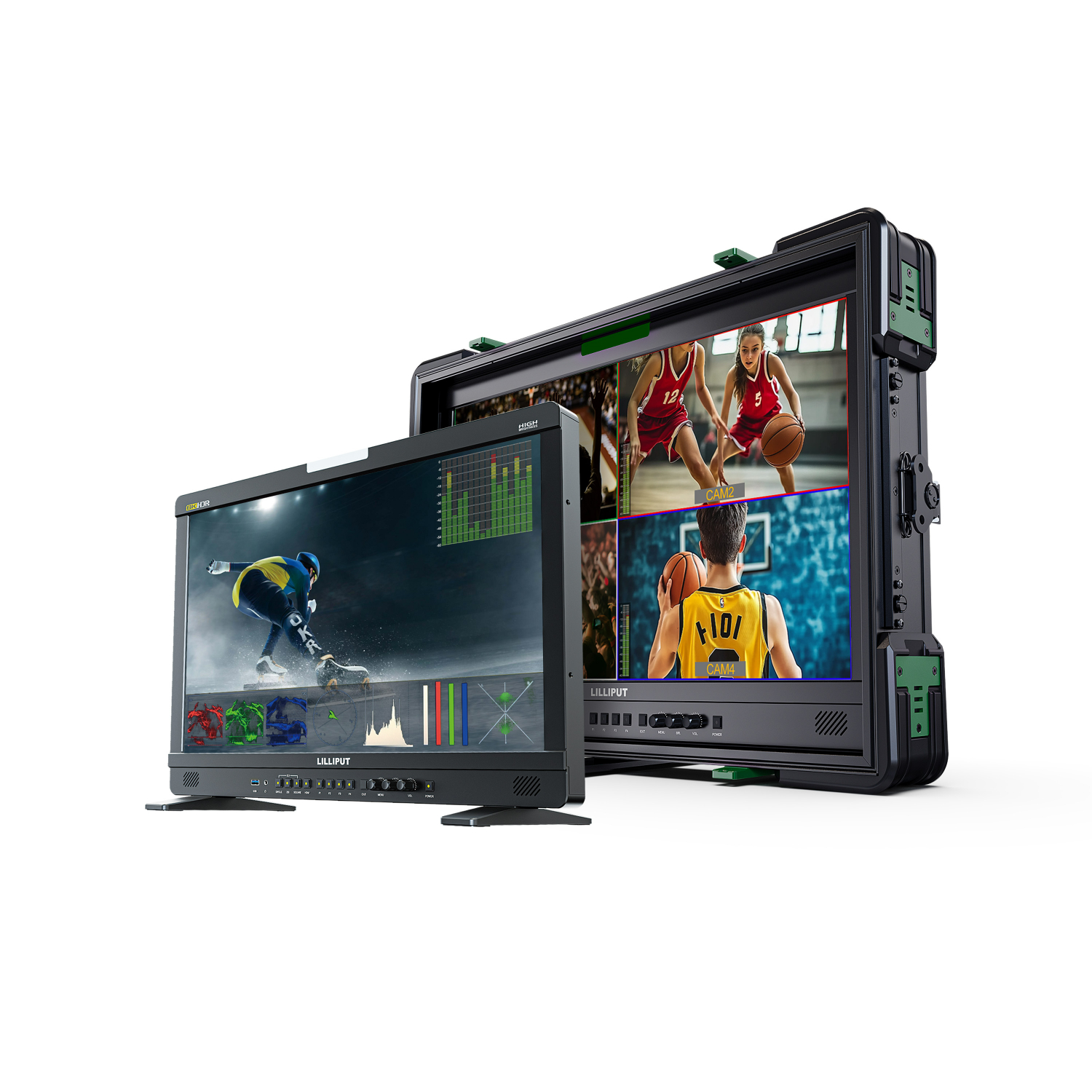

Lilliput UQ23 is a 23.8″ production monitor with a 10-bit 3840 × 2160 panel and 1,200 cd/m² brightness, readable even in direct sunlight. Four quad-link 12G-SDI inputs and HDMI 2.1 accept signals up to 8K 60p; it also has a 12G SFP+ optical input, HDR, 3D LUTs, quad split and control via LAN, RS422 and GPI.
1,200 nits and 8K over 12G-SDI and HDMI 2.1
Lilliput UQ23 combines 1,200 cd/m² brightness, 10-bit colour and 8K inputs for outdoor shoots, control rooms and post-production.
23.8″10-bit1,200 cd/m²4× 12G-SDIHDMI 2.1100% DCI-P3
Readable in sunlight
High brightness together with HDR (HLG and PQ ST 2084 300/1000/10000) shows the director accurate colours even outdoors; the A+ grade panel displays 1.07 billion colours.
Calibrated colour
100% DCI-P3 and 86% BT.2020, switchable BT.709, BT.2020, DCI-P3 and NTSC.
3D LUT
17 default and 6 user LUTs for log footage.

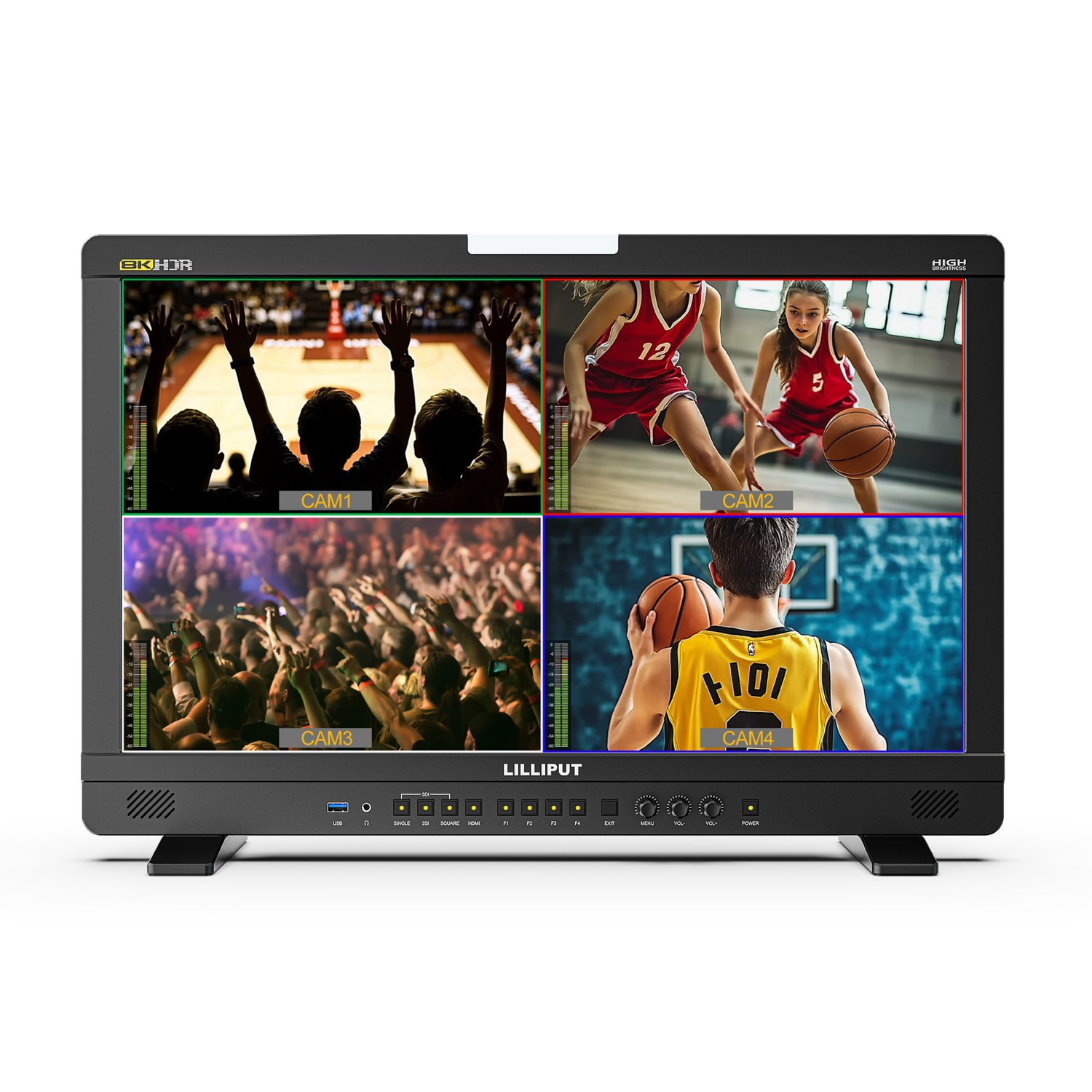

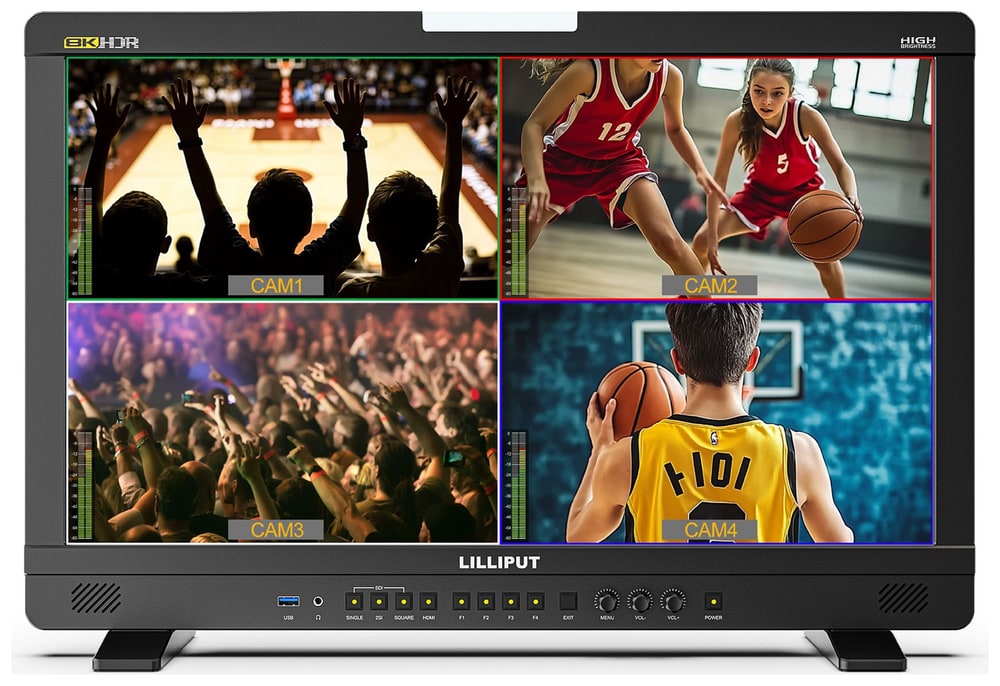

Quad split
Four sources at once, input switching with four buttons.
Remote control
Application via LAN or RS422, GPI input.

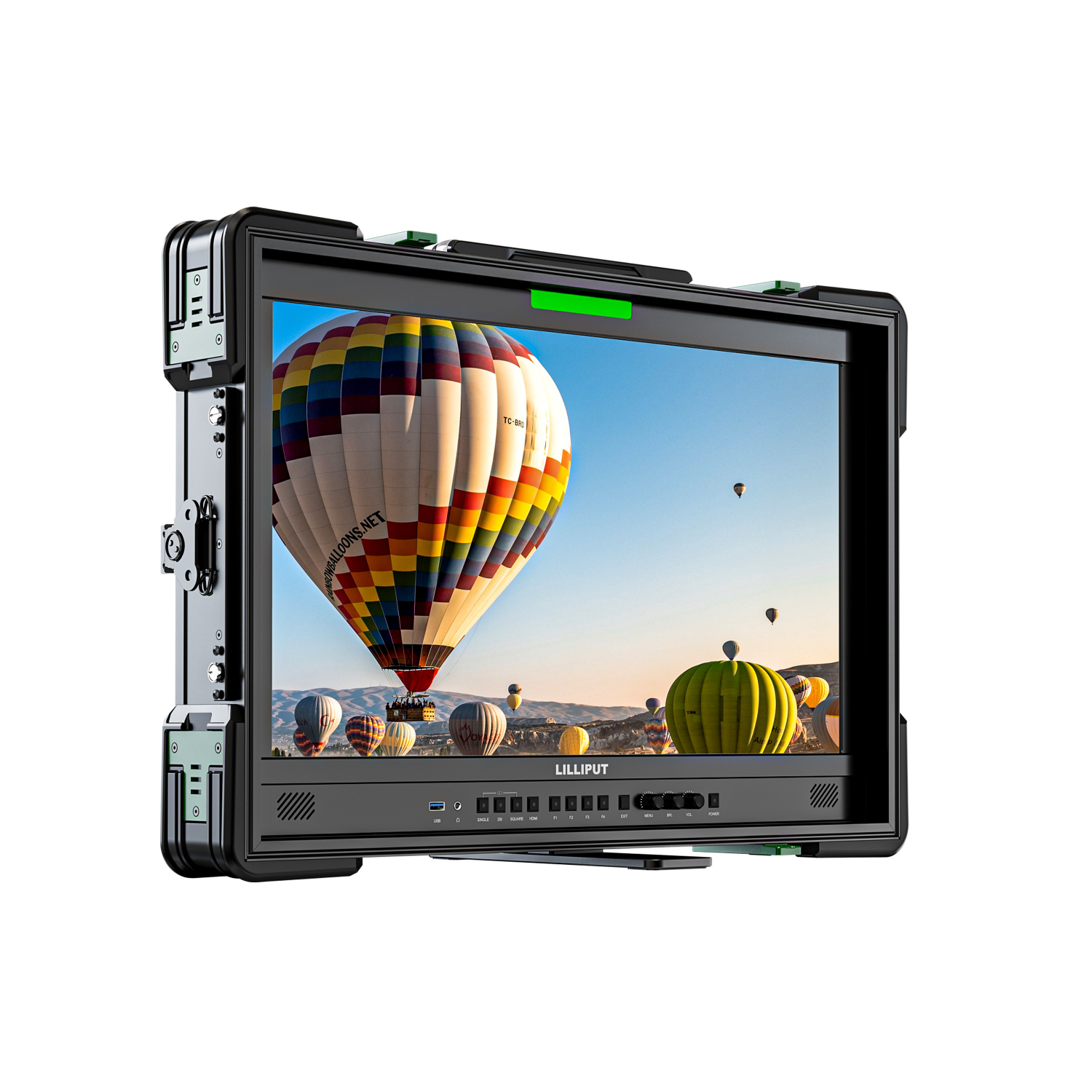

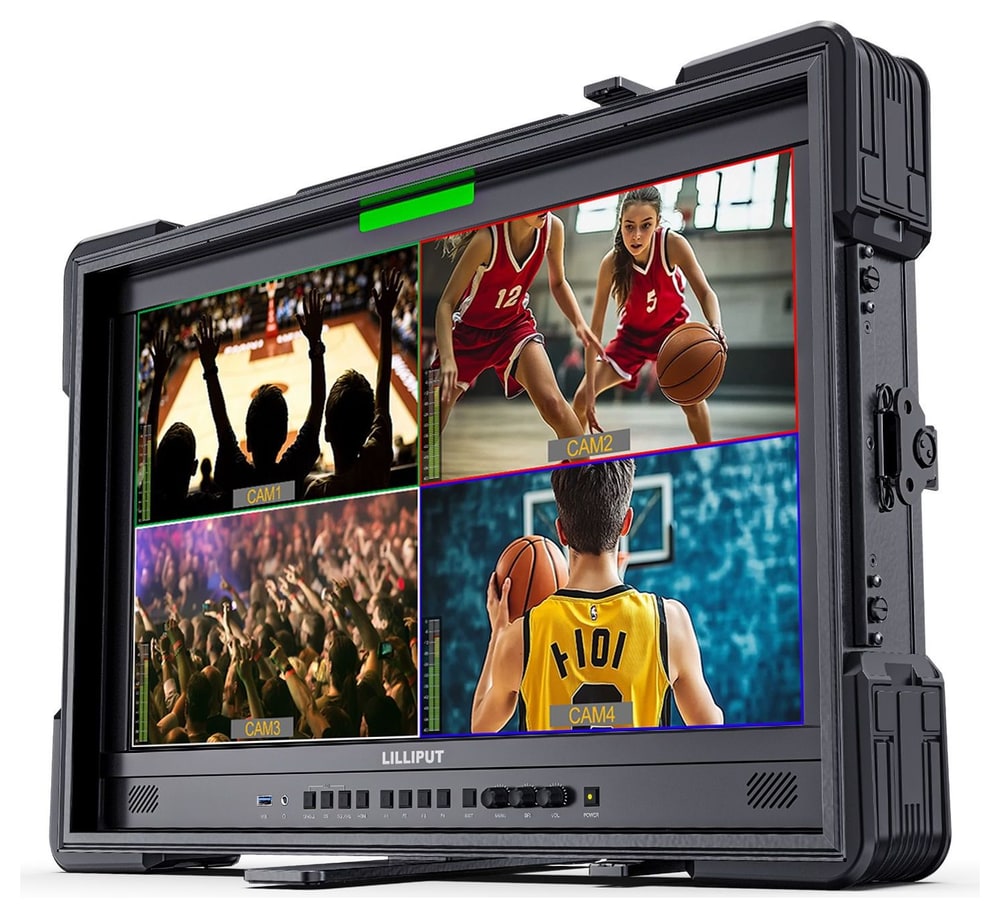

Display readable in sunlight
1,200 cd/m² brightness and an HDR algorithm give accurate colours even in outdoor light, which both the director and post-production appreciate. HDR supports HLG and PQ (ST 2084 300/1000/10000), the 3D LUT section holds 17 default and 6 user tables.

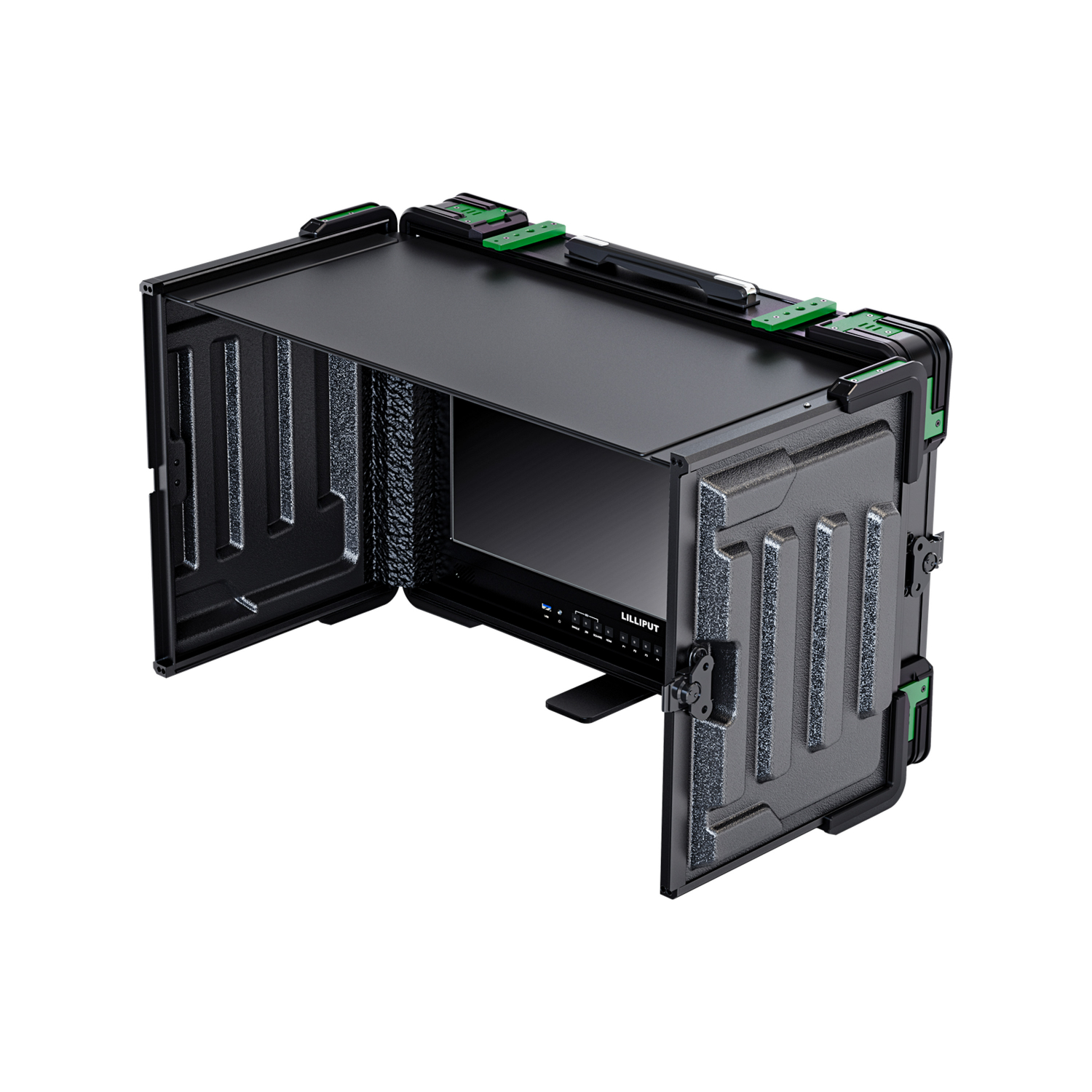

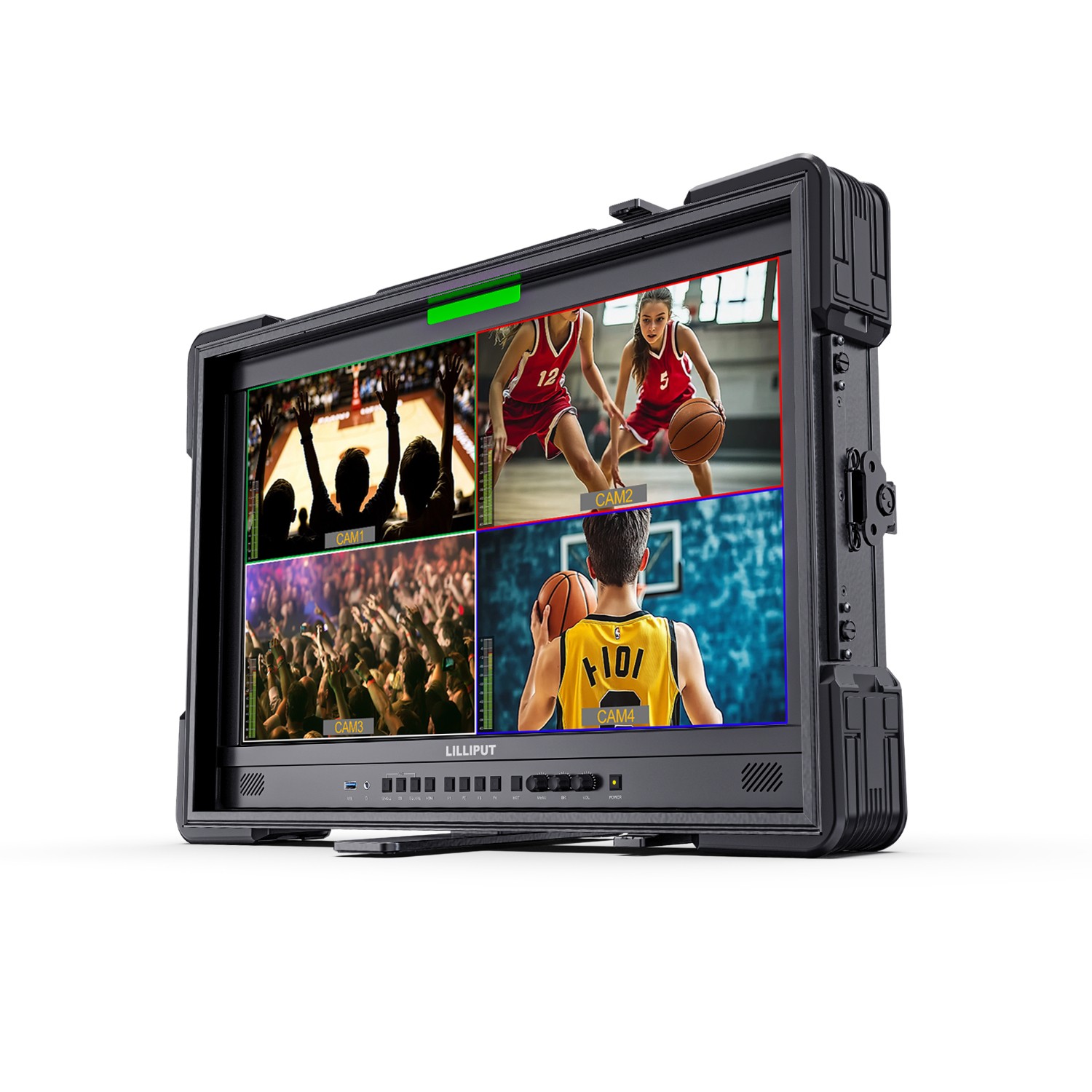

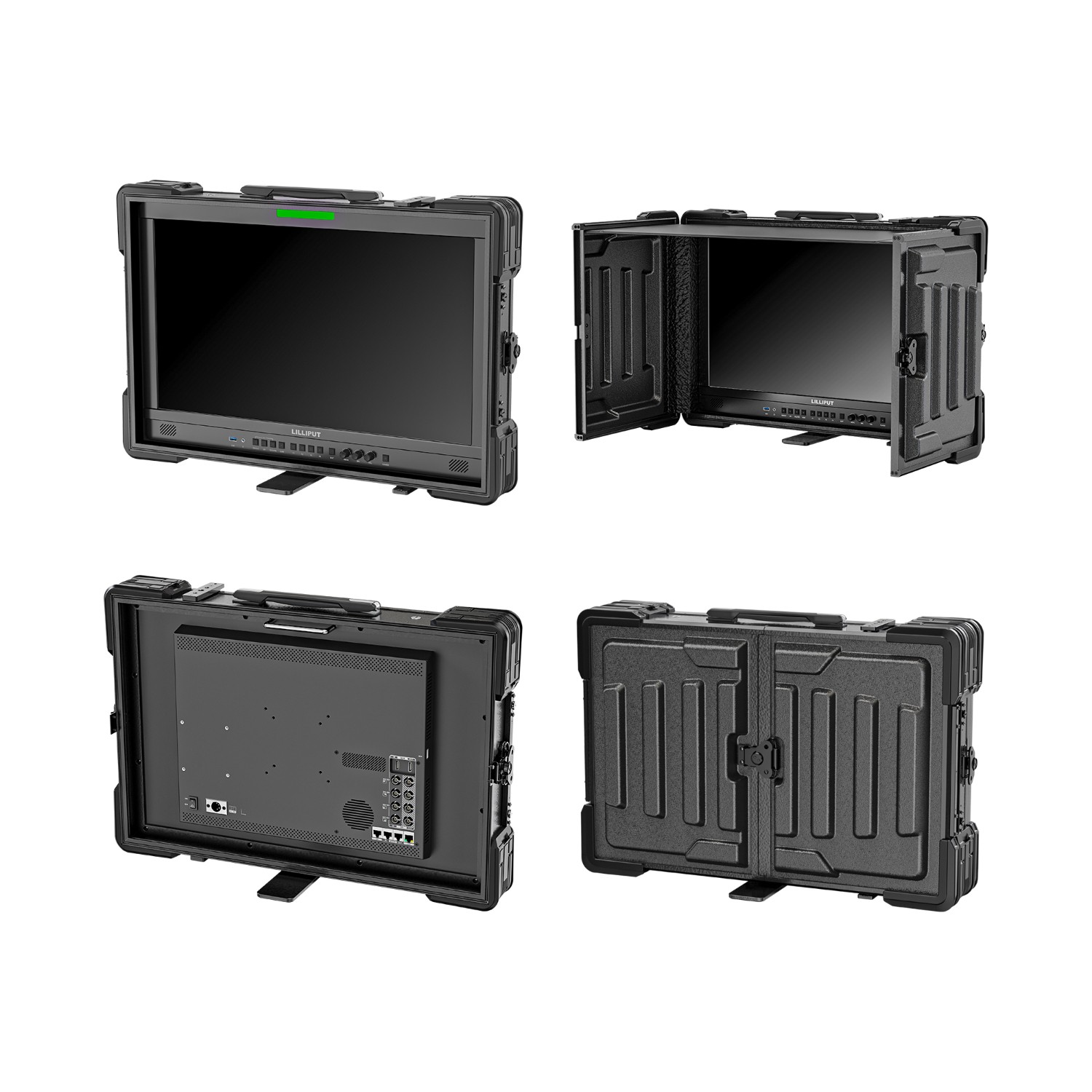

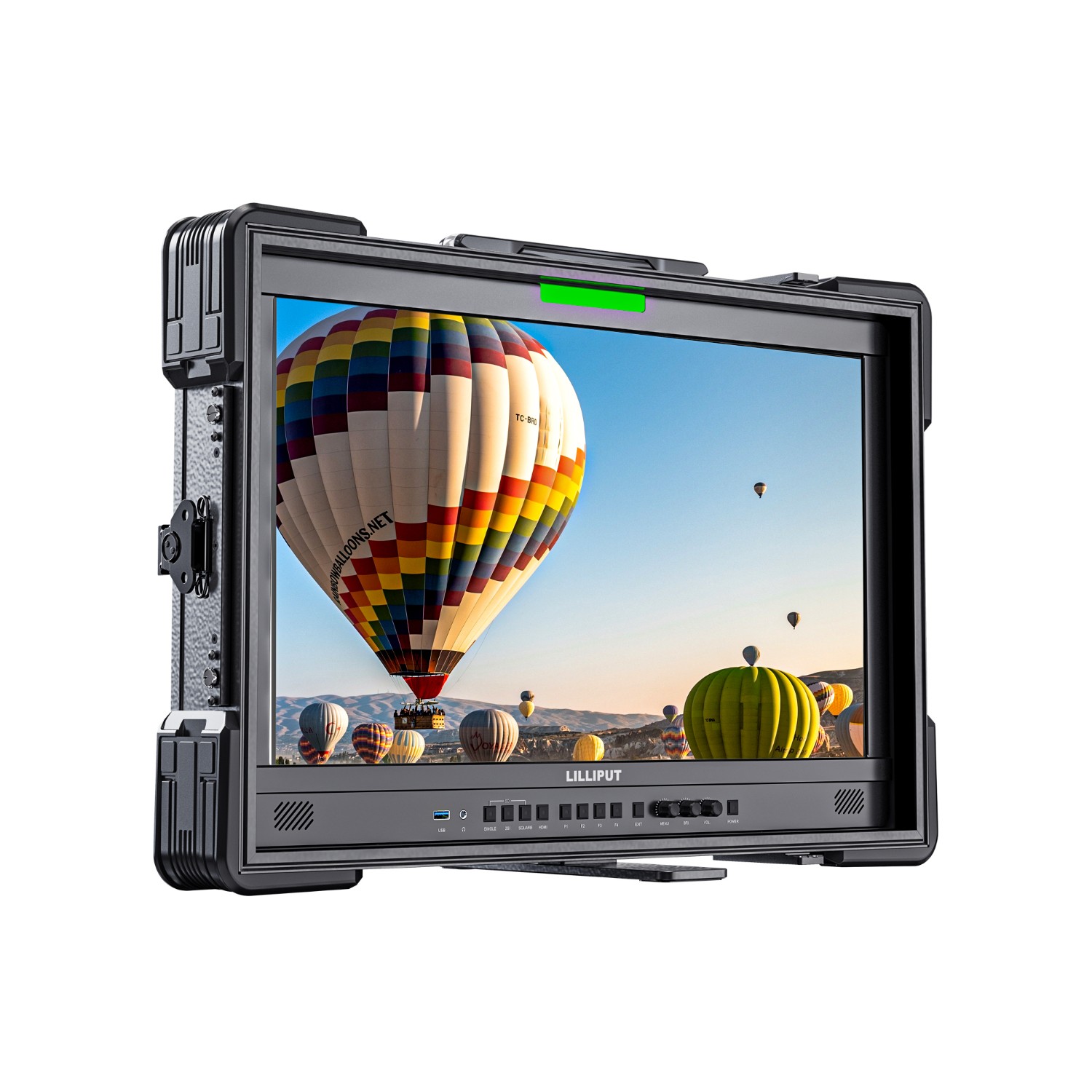

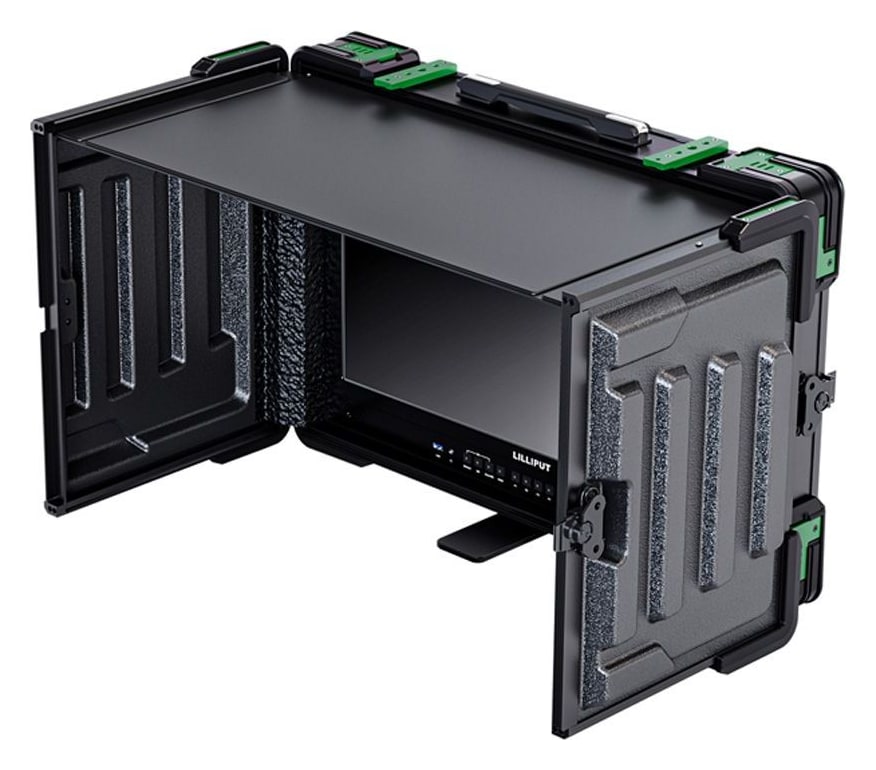

Rugged portable case

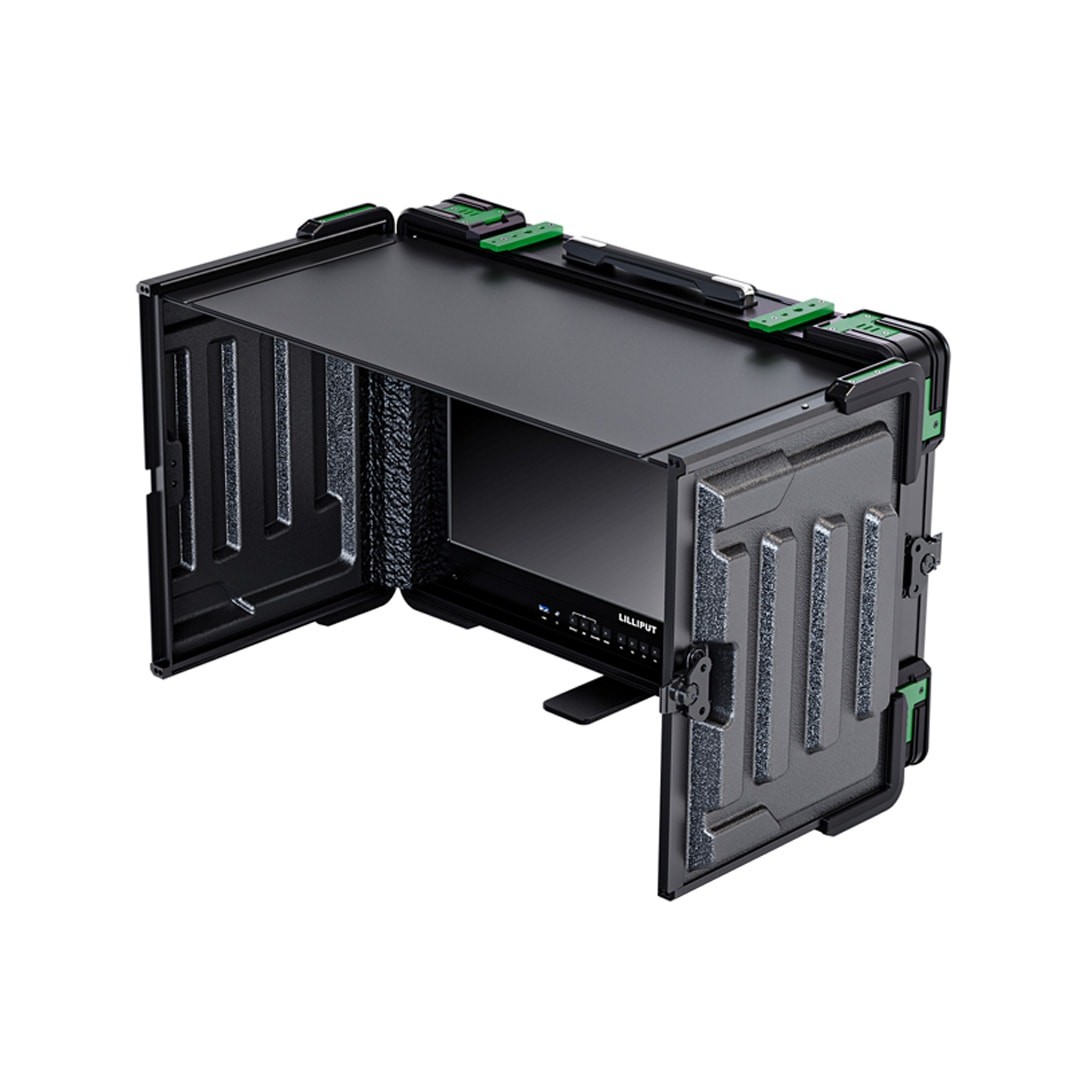

The monitor has a matching rugged case with upgraded protection against drops and shocks. It provides 1/4″ and 3/8″ threads for common brackets and a patented folding sunshade that keeps stray light off the screen.

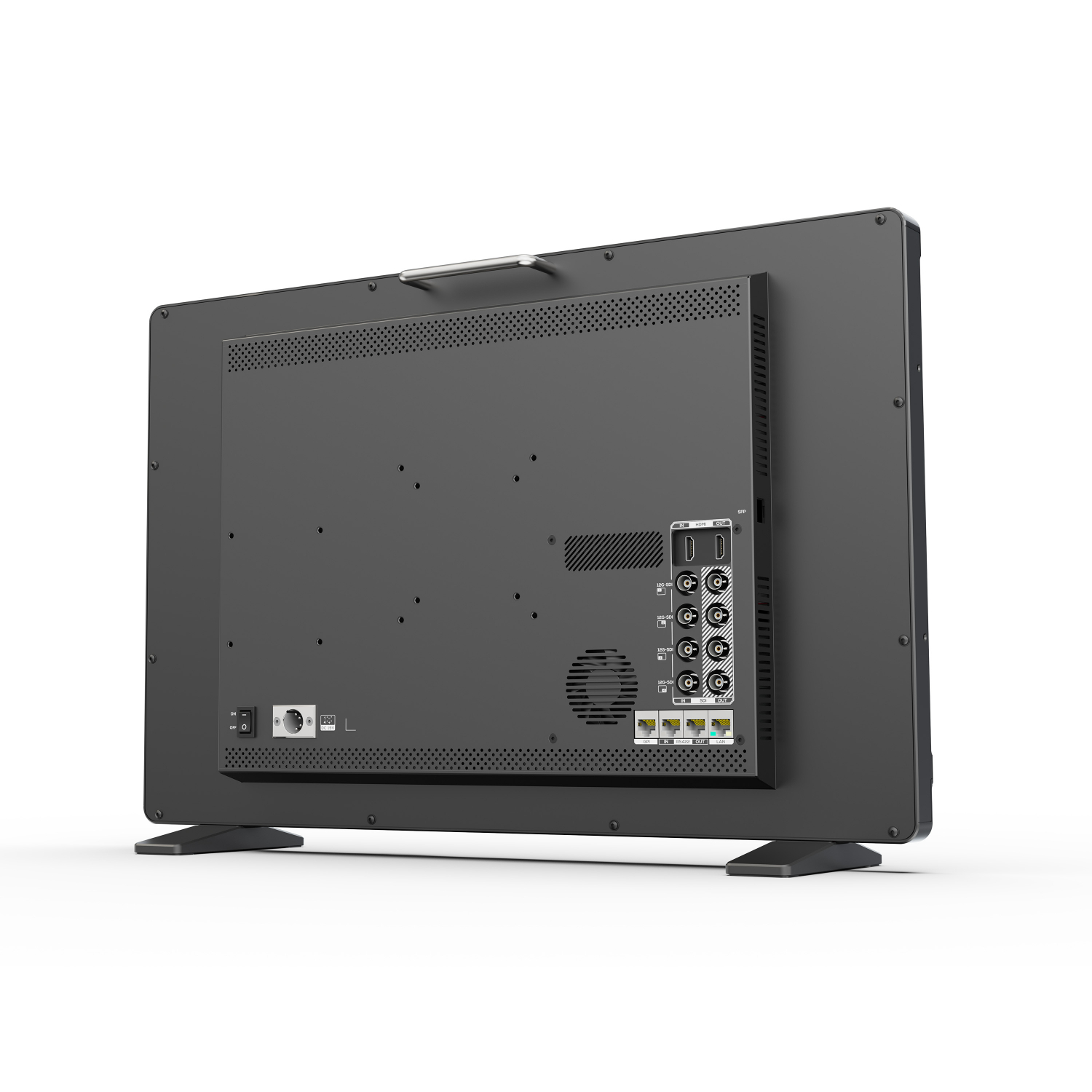

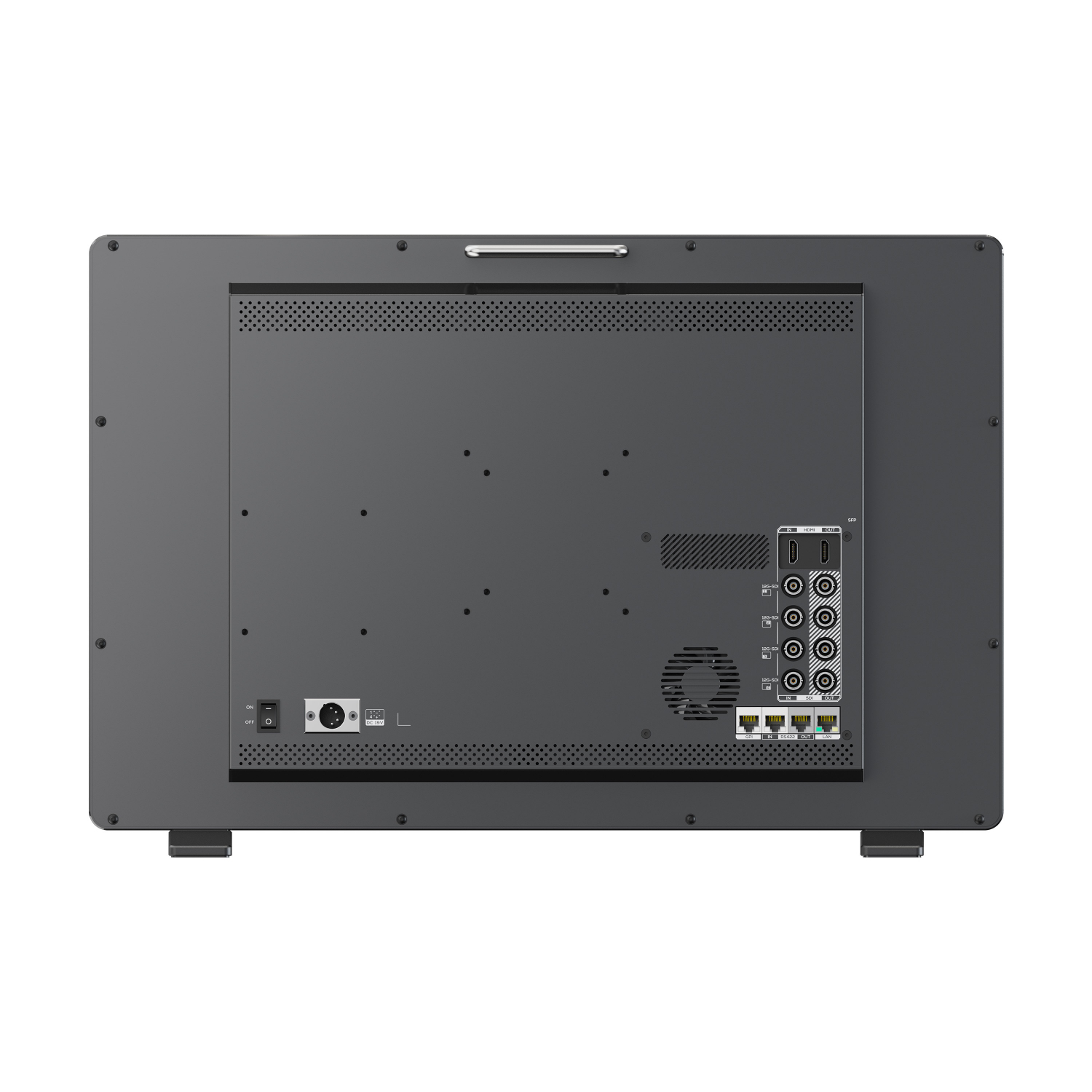

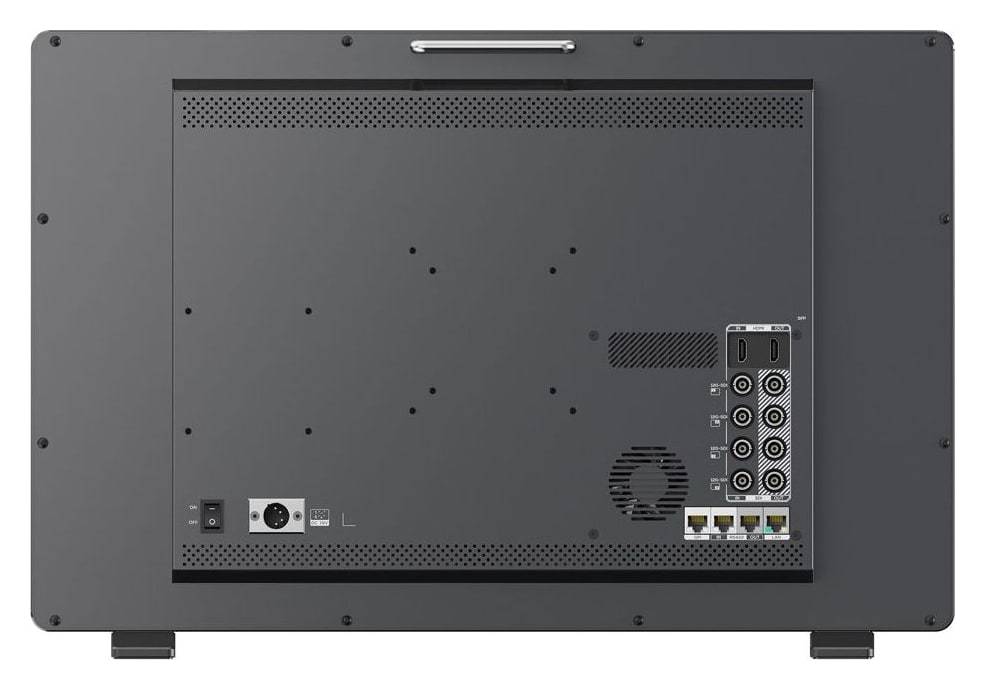

8K signal over 12G-SDI and HDMI 2.1
Four 12G-SDI inputs support single link (ST 2082-10) and quad link (ST 2082-12) and accept up to 8K 60p. The 12G SFP+ optical input carries up to 4K 60p, HDMI 2.1 has an input and loop output up to 8K 60p. The monitor is operated with a three-level menu, buttons F1–F4 and dials, or with an application via LAN and RS422.
More information
Lilliput UQ23 is a portable 4K production monitor with a 23.8″ screen, 1200 nits of brightness and 10-bit colour depth.
The upgraded user interface consists of a three-level menu, buttons F1–F4 and dials with customisable functions. UQ23 can be remote-controlled by an application, and quad split shows several sources at once.
Good readability in sunlight: the 1200-nit display gives the director accurate colours even outdoors, and with HDR it delivers a picture that holds up in post-production. HDR supports both HLG and PQ (ST 2084 300/1000/10000).
Accurate colour reproduction: the A+ grade screen with a colour depth of 1.07 billion colours reproduces colours faithfully.
8K signal over 12G-SDI and HDMI: 4× 12G-SDI (single and quad link) supports ST 2082-10 and ST 2082-12, and quad-link 12G-SDI carries signals up to 8K 60 Hz. The monitor also supports 12G SFP+ and an HDMI 2.1 input and loop output.
Main features
- 23.8″ display 3840 × 2160, 1200 nits brightness
- 10-bit colour depth and 100% DCI-P3 coverage
- 4× 12G-SDI and HDMI 2.1 inputs and loop outputs
- upgraded user interface and new functions
- quad split and remote control
PACKAGE CONTENT
- Lilliput UQ23 monitor
SPECIFICATIONS
- Screen size: 23.8″
- Resolution: 3840 × 2160
- Colour depth: 10-bit (1.07 billion colours)
- Aspect ratio: 16:9
- Brightness: 1200 cd/m²
- Colour space: 100% DCI-P3, 86% BT.2020
- HDR: HLG, PQ ST 2084 (300/1000/10000)
- 3D LUT: 17 default and 6 user, .cube format
- Calibration: BT.709, BT.2020, DCI-P3 and NTSC (calibrated)

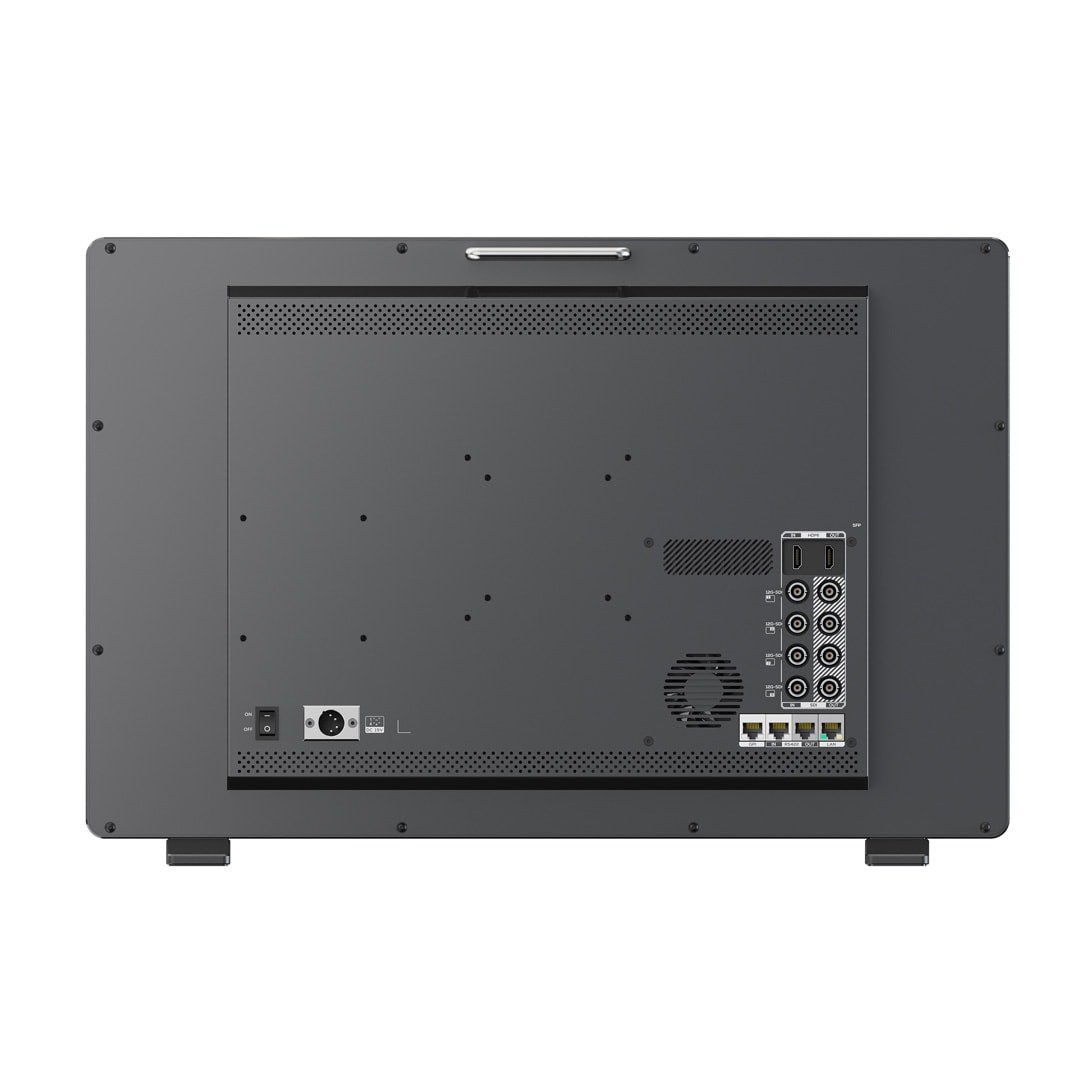

- SDI inputs: 4× 12G-SDI (single link 4K 60p, quad link up to 8K 60p)
- SFP: 1× 12G SFP+ (up to 4K 60p, optical module optional)
- HDMI input: 1× HDMI 2.1 (up to 8K 60p)
- SDI loop outputs: 4× 12G-SDI
- HDMI loop output: 1× HDMI 2.1 (up to 8K 60p)
- Remote control: LAN, RS422 in/out, GPI
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 23.8" |
| Monitor inputs | HDMI · SDI · 12G SDI · SFP · LAN · HDMI 2.1 |
| Luminosity | 1200cd/m2 |
| Panel resolution | 3840x2160 |
Other parameters
| Other features | Quad split · HDR · 3D LUT correction |
| High Brightness | Yes |
ACCESSORIES (5)
ACCESSORIES (5)
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 2m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.7 €
In stock 4 pcs
Lilliput 12 Gb/s Video SFP+ Optical Receiver
The Lilliput 12G-SFP-LC-RX optical receiver is an SFP+ module that accepts an SDI
252 €
14-30 days
Lilliput UQ23 Case + Sunshade
A rigid carrying case with a sunshade for the Lilliput UQ23 monitor (23.8″). It keeps
579 €
on request
Alternative (2)
Alternative (2)
Lilliput UQ31
Lilliput UQ31 is a 31.5″ production monitor with a 10-bit 3840 × 2160 panel and 1,000
4 119 €
on request
Lilliput UQ19 Monitor
Lilliput UQ19 is a 18.4″ production monitor with a 10-bit 3840 × 2160 panel and 1,000
2 789 €
on request
News, training, and discounts from Syntex
Special offers and discounts for subscribers only · Free audio & video workshops · News and tips from the world of filmmaking
- Show all

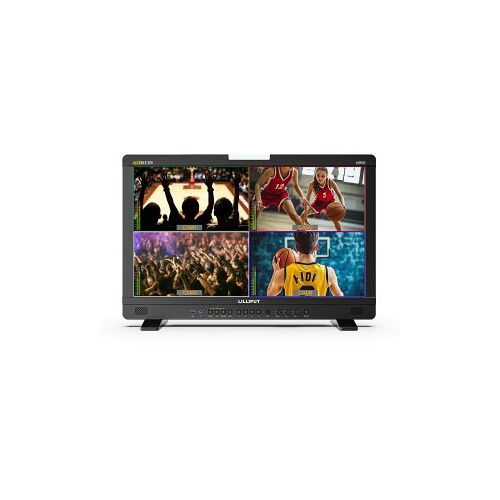

Lilliput UQ23
