Lilliput C20P Full HD PTZ Camera 20× PoE
SKU: C20P
The Lilliput C20P is a Full HD PTZ camera with 20× optical zoom, a 1/2.8″ sensor and 3G-SDI, HDMI and IP outputs. It is powered over the network cable (PoE) or from a 12 V adapter and controlled over IP, RS-232/RS-485, an infrared remote or a joystick controller – ideal for live broadcasts, streaming, churches, education and conference rooms.
1 089 € with VAT
900 € without VAT
Availability
14-30 days
Top accessories for Lilliput C20P Full HD PTZ Camera 20× PoE
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 2m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.7 €
In stock 4 pcs
HDMI 2.0 UHD 4K High Speed + Ethernet Cable, 20m
Propojovací HDMI 2,0 kabel UHD 4K High Speed + Ethernet kabel s integrovaným zes
57 €
To be sent 2 pcs
Lilliput K2 (Without NDI)
The Lilliput K2 is a PTZ camera controller with a 5″ touch screen and a 4D joystick.
669 €
In stock 2 pcs
PremiumCord optical fiber High Speed with Ether. 4K@60Hz cable 25m, M/M, gold plated connectors
Optical HDMI 2.0 Ultra High Speed 4K@60Hz cable is used to connect two audio/video
58 €
In stock 1 pcs
PremiumCord CAT6 UTP patch cable RJ45-RJ45, 10 m, green
A category 6 UTP network patch cable with RJ45 connectors at both ends and straight-through
5.5 €
In stock 1 pcs
Lilliput K1 PTZ Camera Controller with Joystick
The Lilliput K1 is a professional PTZ camera controller with a joystick and an aluminium
499 €
14-30 days
Lilliput K2-N (With NDI)
The Lilliput K2-N is a PTZ camera controller with a 5″ touch screen and a 4D joystick.
729 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput C20P is a Full HD PTZ camera with 20× optical zoom, a 1/2.8″ sensor and 3G-SDI, HDMI and IP outputs. It is powered over the network cable (PoE) or from a 12 V adapter and controlled over IP, RS-232/RS-485, an infrared remote or a joystick controller – ideal for live broadcasts, streaming, churches, education and conference rooms.
20× zoom and three outputs at once
Full HD video up to 1080p60 goes to 3G-SDI, HDMI and the network at the same time as RTSP, RTMP or SRT. A single LAN cable carries video, control and PoE power.
20× optical zoom1080p60SDI · HDMI · IPPoE255 presets
One cable for video, control and power
The LAN port supports PoE, so a camera on the ceiling or wall needs just one network cable. It also carries the stream and VISCA over IP or ONVIF control.
20× optical zoom
A 5.5–110 mm lens with an F1.6–F3.5 aperture, plus 10× digital zoom for close-ups and wide shots.
Control your way
IP (ONVIF, VISCA over IP), serial RS-232/RS-485 (VISCA, Pelco-D/P), the infrared remote or the web interface.
255 presets
Pan ±170°, tilt −30° to +90° and speeds up to 180°/s; ten presets can be recalled straight from the remote.
Mount it anywhere
On a tripod via the 1/4" thread, or on a wall or ceiling with an optional bracket; the image can be flipped for upside-down mounting.

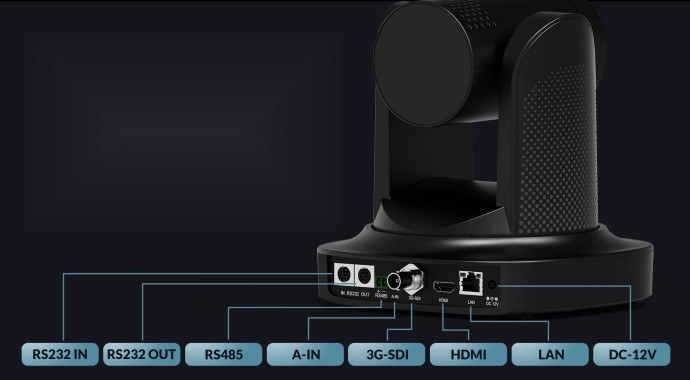

Rear connectors
RS-232 IN and OUT, RS-485, 3.5 mm line audio input, 3G-SDI, HDMI, LAN with PoE and 12 V DC power.
Optical zoom
The C20 series has 20× zoom and the C30 series 30× – this C20P has 20× optical zoom.

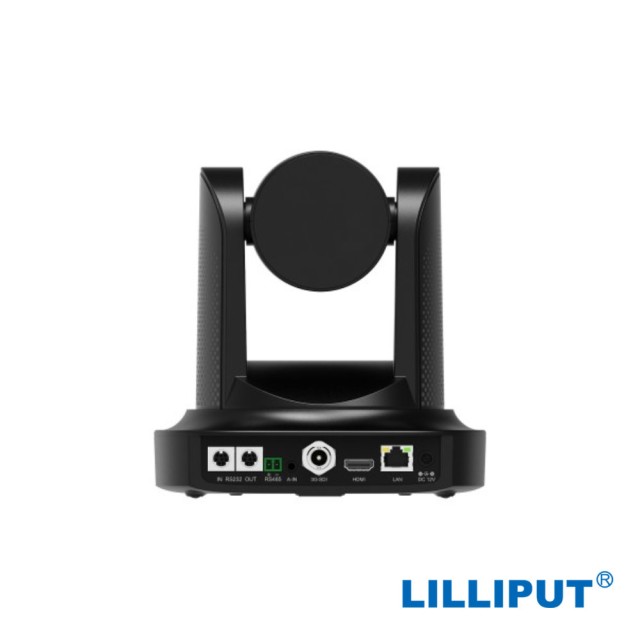

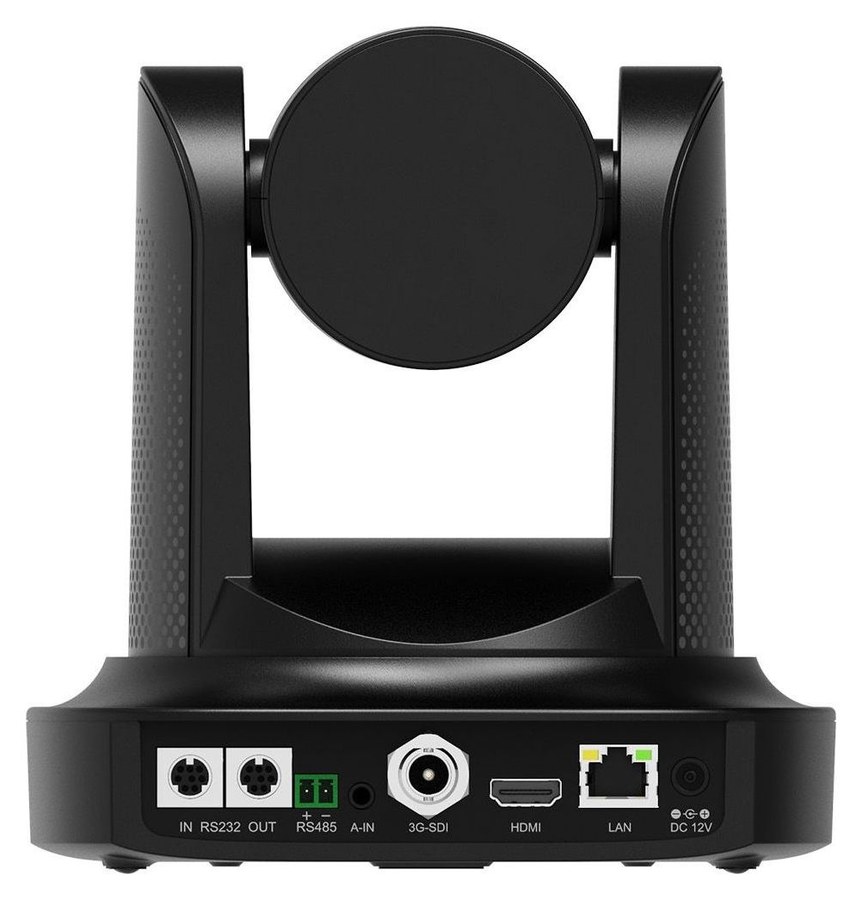

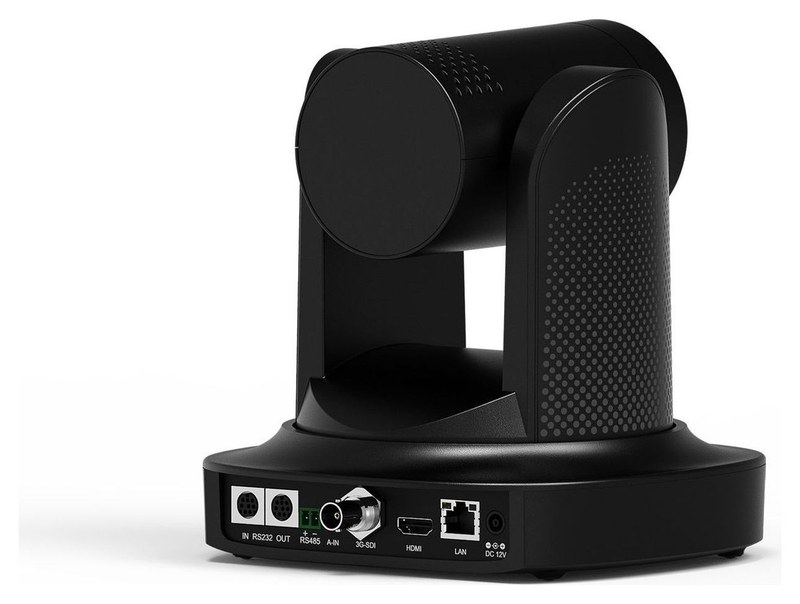

Rear view
All connectors are laid out in one row on the back of the base.

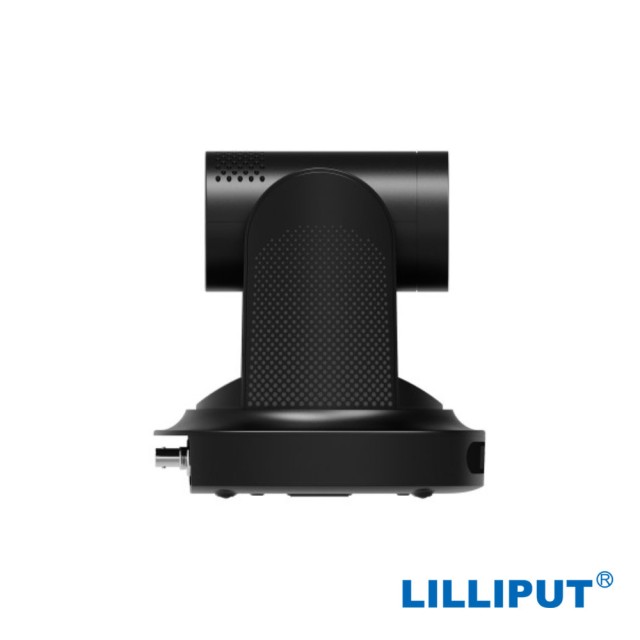

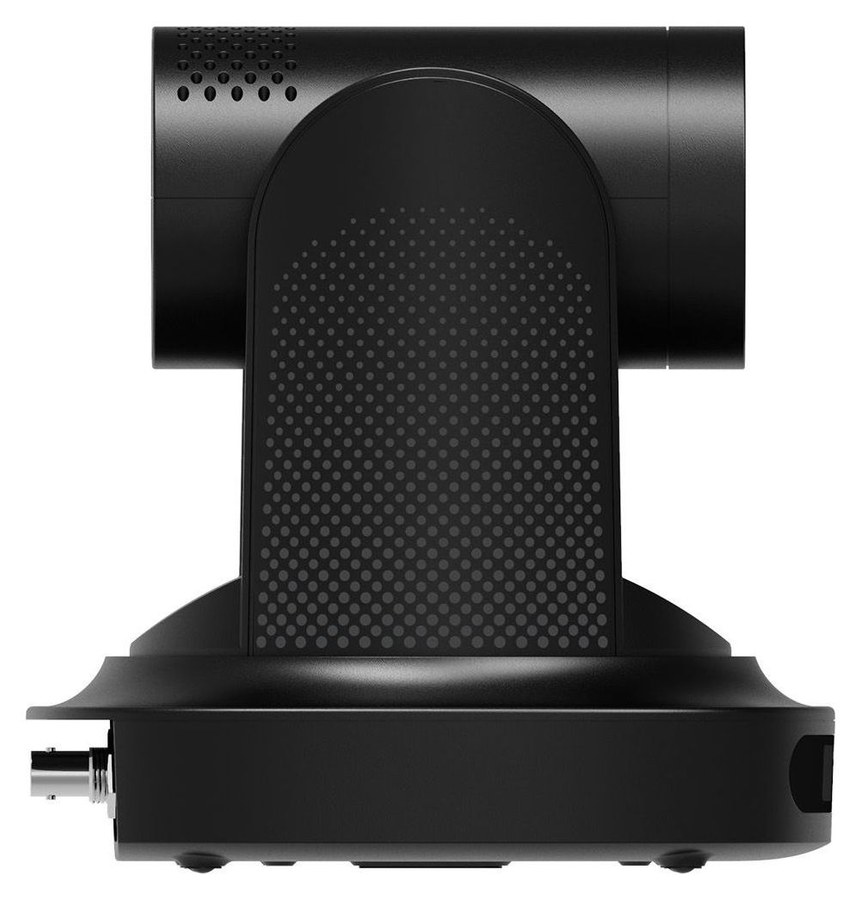

Side view
A compact 170 × 170 × 180 mm body with a rotating head and ventilation openings.

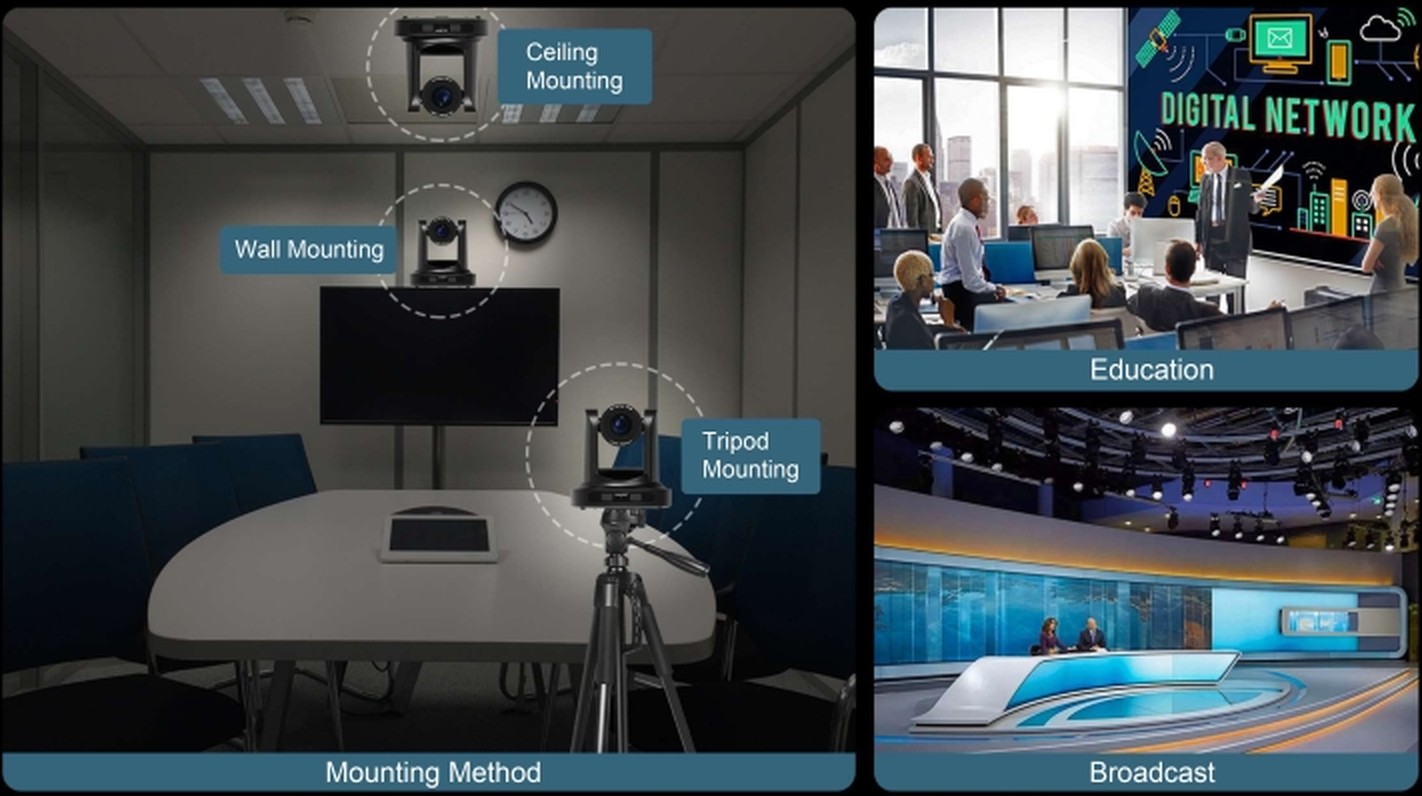

Mounting options
The camera stands on a desk or tripod, and with an optional bracket it can be fixed to a wall or ceiling. It suits schools, conference rooms, churches and broadcast studios.
More information
About the product
The Lilliput C20P camera is a fully featured HD pan-tilt-zoom (PTZ) camera designed for live broadcasting and video presentation on YouTube and other online platforms.
The series comes in several configurations: the C20P has a 1/2.8" HD CMOS sensor, 20× optical zoom, HDMI and 3G-SDI outputs and PoE (Power over Ethernet). The C30P has the same feature set with 30× optical zoom. The C20N and C30N share the specifications of the C20P and C30P and add NDI|HX – the camera joins the network and video travels over the same LAN cable that also powers it via PoE.
Key features: 1/2.8" HD CMOS sensor and 20× optical zoom; HDMI and 3G-SDI outputs, PoE power; RS-232/RS-485 serial control and cascading; RTSP, RTMP and SRT streaming; ONVIF, VISCA over IP, VISCA and Pelco-D/P control protocols; tripod, wall and ceiling mounting.
PACKAGE CONTENT
- Lilliput C20P PTZ camera
- power supply
- RS-232 control cable
- remote control
- user manual
SPECIFICATIONS
- Brand: Lilliput
- Model: C20P
- Type: Full HD PTZ camera
- Sensor: 1/2.8" HD CMOS
- Effective pixels: 2.07 MP (16:9)
- Optical zoom: 20×
- Digital zoom: 10×
- Focal length: 5.5–110 mm
- Aperture: F1.6–F3.5
- Angle of view: 54.7° – 3.3° (wide – tele)
- Minimum illumination: 0.5 lux (F1.8, AGC on)
- Noise reduction: 2D & 3D DNR
- Signal-to-noise ratio: > 55 dB
- White balance: auto, manual, one push, 3000–7000 K in 500 K steps
- WDR: off / dynamic level adjustment
- Picture adjustment: brightness, colour, saturation, contrast, sharpness, B/W mode, gamma curve
- Automatic functions: auto focus, auto iris, auto electronic shutter, BLC
- Video outputs: 3G-SDI, HDMI, IP stream
- Video format: up to 1080p60
- LAN port: RJ45 with PoE
- Streaming protocols: RTSP, RTMP, SRT
- Audio input: 3.5 mm, line level
- Control interface: RS-232 in and out, RS-485 in, IP
- Control protocols: ONVIF, VISCA over IP, VISCA, Pelco-D/P
- Rotation range: pan ±170°, tilt −30° to +90°
- Rotation speed: pan 0.1–180°/s, tilt 0.1–80°/s
- Presets: 255 (10 from the remote)
- Power: 12 V DC ±10% (1 A max) or PoE
- Power consumption: 12 W max
- Operating temperature: −10 to 50 °C
- Storage temperature: −10 to 60 °C
- Humidity: operating 20–80% RH, storage 20–95% RH (non-condensing)
- Dimensions: 170 × 170 × 180.3 mm
- Weight: 1.25 kg (2.1 kg packed)
- Mounting: 1/4" tripod thread, optional wall or ceiling bracket
WE RECOMMEND
Recommended for the Lilliput C20P Full HD PTZ Camera 20× PoE:
Controllers – a joystick controller for IP and serial camera control
Cables – SDI, HDMI and a network cable for PoE
- HDMI 2.0 UHD 4K High Speed + Ethernet Cable, 20m
- PremiumCord optical fiber High Speed with Ether. 4K@60Hz cable 25m, M/M, gold plated connectors
- PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 2m metallic gold plated connectors
- Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
- PremiumCord CAT6 UTP patch cable RJ45-RJ45, 10 m, green
Parameters
| Manufacturer: | Lilliput |
| Category: | PTZ |
Main parameters
| Camera Sensor size | 1/2,8" |
| Resolution | Full HD |
| Zoom | 20x |
| Type of bayonet | integrated lens |
| Output | HDMI · 3G SDI |
| Maximum video resolution | Full HD |
| Optical zoom | 20× |
| Video outputs | HDMI · SDI · Ethernet / IP |
| Network protocols | SRT · RTMP / RTMPS · RTSP / RTP |
Other parameters
| Weight | 1.3kg |
| Digital zoom | 10× |
| Number of preset positions | 255 |
| Version | PTZ |
| FPS | 1080P 60fps |
| Lens lens aperture | 1.6f |
| Min. focal length | 5.5mm |
| Max. focal length | 110mm |
| Other features | PTZ · PoE |
| Control protocol | Pelco-P · Pelco-D · VISCA · ONVIF |
