The Lilliput K2 is a PTZ camera controller with a 5″ touch screen and a 4D joystick. It drives up to 100 cameras in ten groups over IP, RS-232 and four RS-422/485 ports with VISCA, VISCA over IP, ONVIF and Pelco-D/P. It runs on PoE/PoE+ or a 7–24 V DC supply and syncs with a switcher through its tally output.
The Lilliput K2 is a PTZ camera controller with a 5″ touch screen and a 4D joystick. It drives up to 100 cameras in ten groups over IP, RS-232 and four RS-422/485 ports with VISCA, VISCA over IP, ONVIF and Pelco-D/P. It runs on PoE/PoE+ or a 7–24 V DC supply and syncs with a switcher through its tally output.

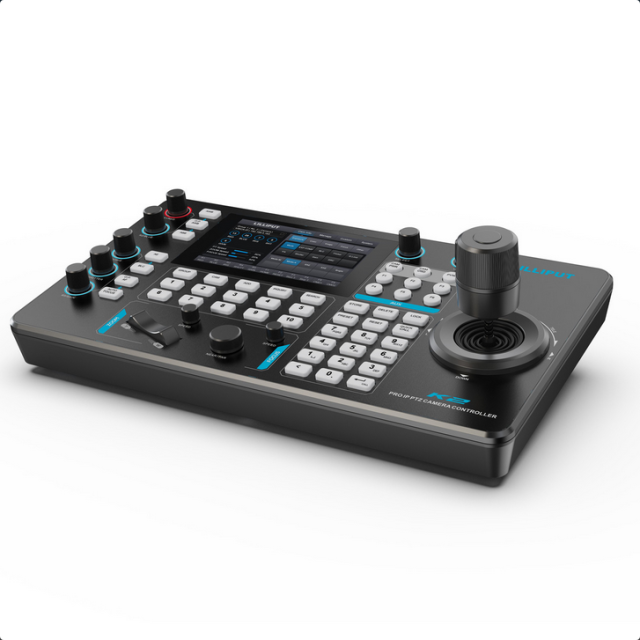

A 5" screen with a touch menu, quick knobs for iris, shutter, gain, exposure and white balance, and a 4D joystick. NDI can be added as an optional upgrade; the K2-N comes with NDI built in.

The controller decodes RTSP or ONVIF (NDI optional) streams and shows the selected camera on its 5" screen – you can frame the shot without looking up at a monitor.
The controller records a camera path (pan, tilt, zoom) and replays it precisely whenever needed, without manual control.
Via tally/GPIO the controller links to the switcher: cutting to a camera also selects it for control.
1× RS-232 and 4× RS-422/485, up to 7 cameras per port with VISCA; Pelco-D and Pelco-P as well.
Gigabit LAN with PoE/PoE+ (IEEE 802.3af/at) or a 7–24 V DC supply, drawing under 8 W.

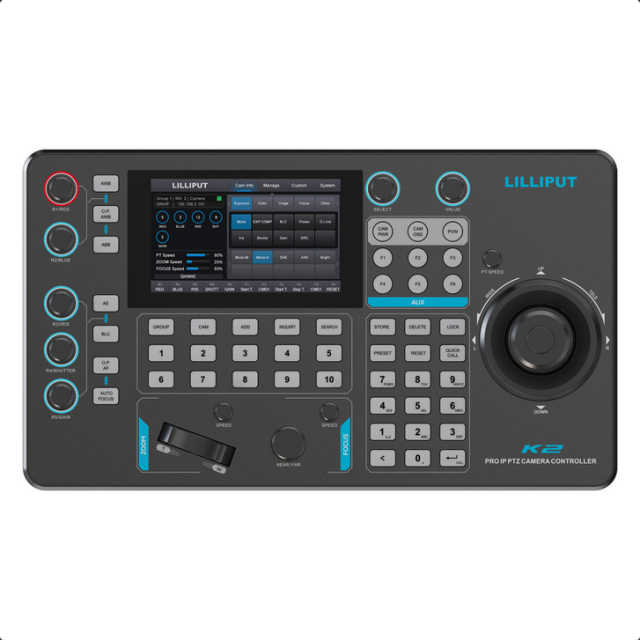

5" touch screen, rotary knobs, six assignable keys, keypad, camera and preset selection and the 4D joystick.

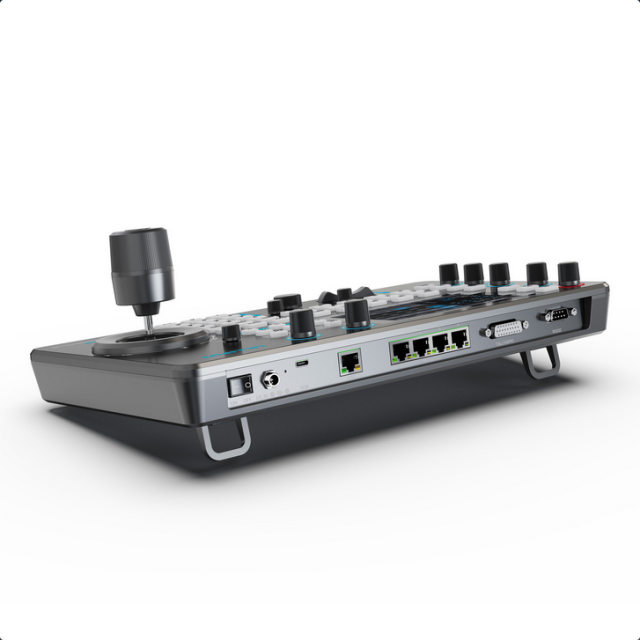

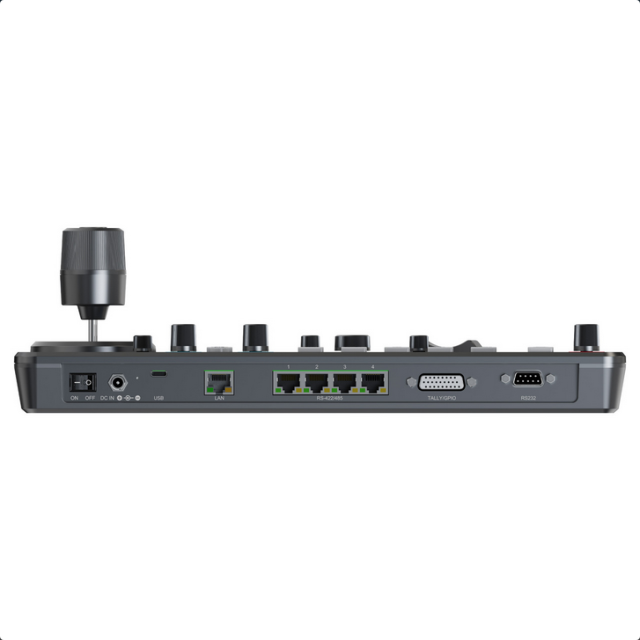

Power switch, DC input, USB-C for updates, LAN with PoE, four RS-422/485 ports, tally/GPIO and RS-232.

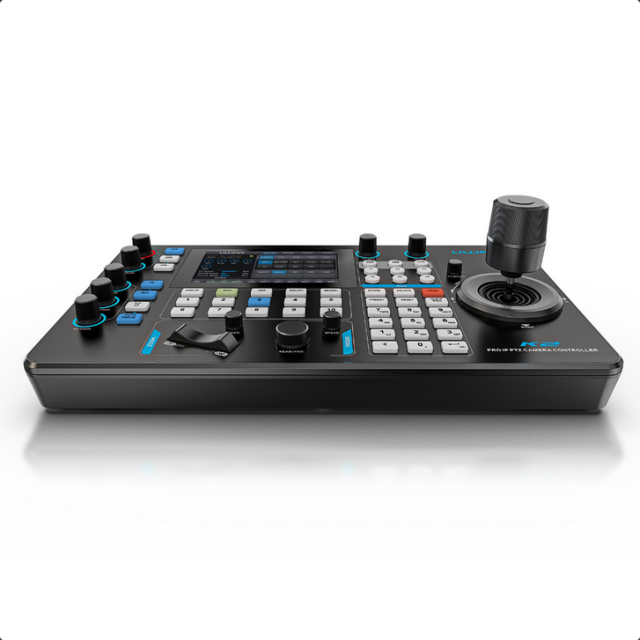

The stand tilts the controller towards the operator so the screen is easy to see.

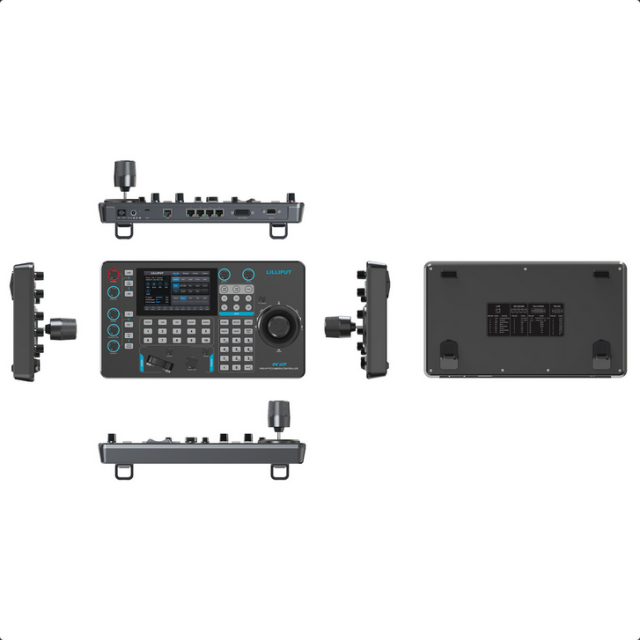

340 × 195 × 49.5 mm, 110.2 mm tall with the joystick.
RS-232, RS-422 and RS-485 support Pelco-D, Pelco-P and VISCA; each serial port can connect up to 7 cameras with VISCA. IP control supports ONVIF, VISCA over IP and optional NDI, finds cameras on the network by itself and assigns IP addresses – up to 100 cameras.
Cameras, switcher, recorder and computer linked through a PoE switch: video runs over HDMI/SDI to the switcher, control over LAN from the controller. Cameras can be driven over RS-232, RS-422, RS-485 and IP (RJ45), up to 100 in total.
The Lilliput K2 (without NDI) is a professional camera control unit designed to manage multiple IP cameras efficiently. With VISCA, VISCA over IP, Pelco-D/P and ONVIF support it works with a wide range of camera systems, and control can run over IP, RS-422, RS-485 or RS-232.
The K2 handles up to 100 IP cameras on one network, which simplifies managing large setups. It offers a real-time camera preview on its screen, automatic IP address assignment, six user-assignable keys for quick access to frequently used functions and dedicated buttons for exposure, iris, focus, pan and tilt.
This version does not include NDI; an optional NDI upgrade is available for users who need it, or choose the K2-N with NDI built in. Running on PoE or a DC supply, it suits churches, concerts, sports broadcasts and interviews.
| Manufacturer: | Lilliput |
| Category: | Control panels |
| Camera capacity | 100 |
| Display | 5" touchscreen |
| Control protocols | ONVIF · Pelco-D · Pelco-P · VISCA · VISCA over IP |
| Interface | GPIO · LAN · RS-232 · RS-422 · RS-485 · USB |
| Controls | 4D joystick · programmable buttons |
| Power | 12 V DC · PoE |
