Libec LX-7R

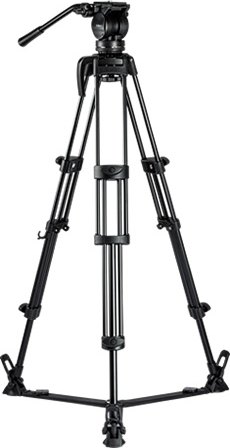

The LX-7R tripod kit consists of the innovative RT30RB tripod legs, LX7 video head, PH-5B handle, and SP-2B bottom spreader. The package also includes an RC-20 carrying bag. The system carries cameras up to 8 kg, weighs 5.6 kg and adjusts from 56 to 166 cm. The LX7 head has fixed counterbalance and drag, a +90° to −80° tilt range and a sliding plate with ±40 mm travel.

The Libec LX-7R is a tripod system for video cameras up to 8 kg: the LX7 head with fixed counterbalance and a sliding plate, the aluminium RT30RB tripod with a carrying handle, and the SP-2B floor spreader. The system weighs 5.6 kg, adjusts from 56 to 166 cm and comes with the RC-20 carrying case.

A light system for cameras up to 8 kg

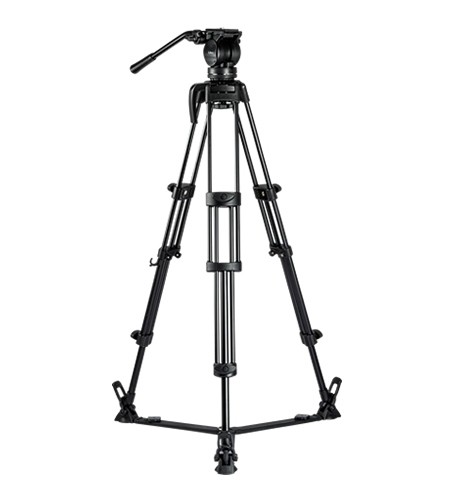

LX7 head with PH-5B pan handle, RT30RB tripod, SP-2B floor spreader and RC-20 case in one package.

8 kg payloadHeight 56–166 cm75 mm ballTilt +90°/−80°Sliding ±40 mmWeight 5.6 kg

For small cameras with rigs

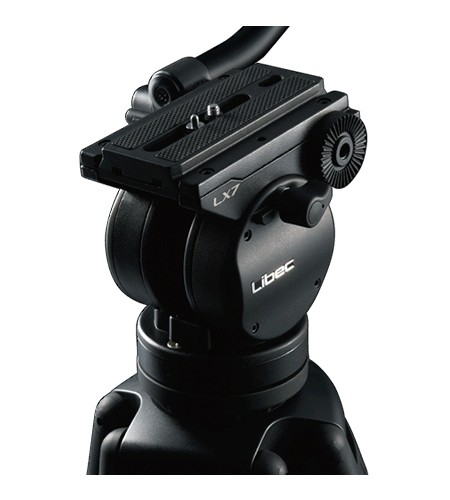

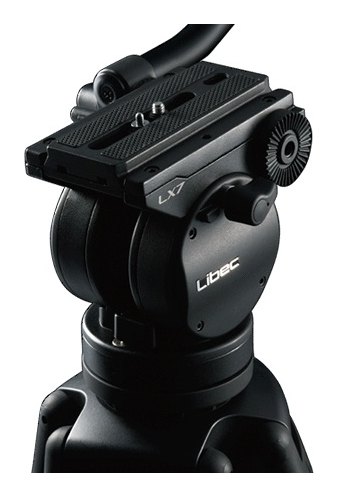

Libec designed the LX7 series for small cameras fitted with monitors and rigs. The LX7 head has fixed counterbalance and drag, so it is ready to work as soon as the camera is mounted.

Solid locks, safe legs

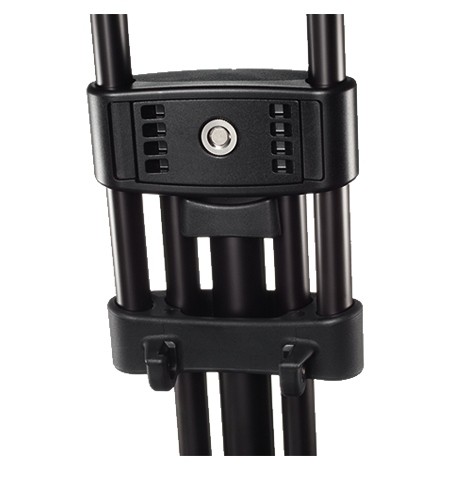

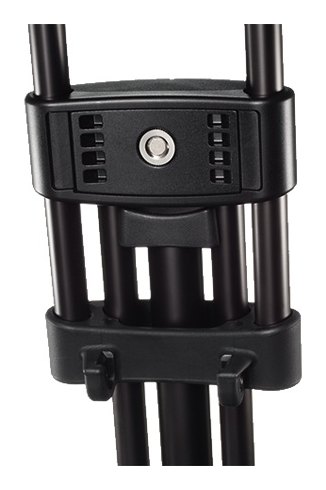

The upper leg locks of the RT30RB tripod are made of die-cast aluminium for a firm, reliable hold. A gap between the legs protects your fingers when collapsing the tripod.

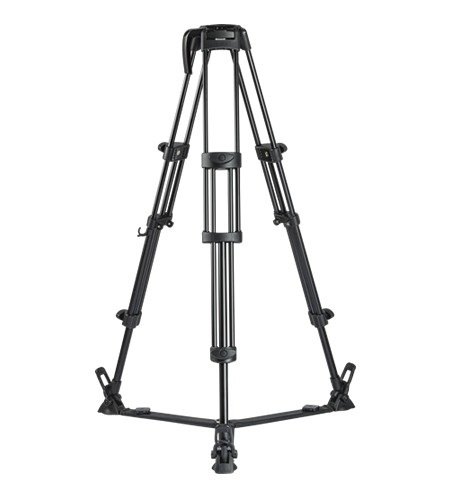

SP-2B floor spreader

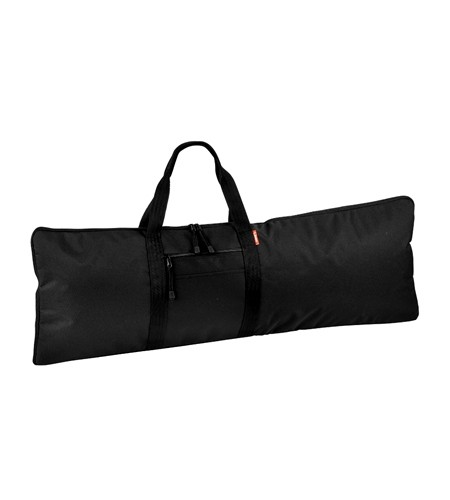

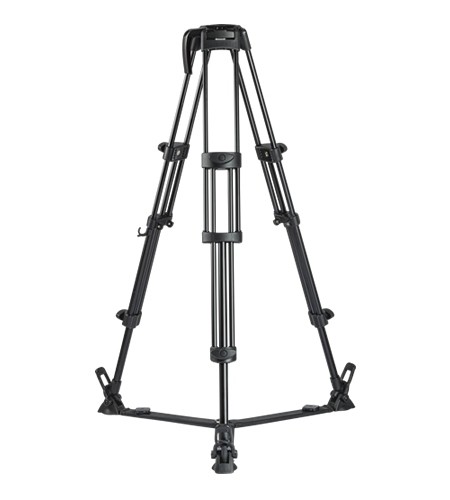

The ground-level spreader holds the legs firmly in place and lets the tripod go as low as 56 cm. The whole system fits into the supplied RC-20 case.

A handle for quick moves

The removable carrying handle comes as standard and makes the tripod easy to carry during run-and-gun shooting. The base below the head offers three sets of 1/4" and 3/8" threads for a monitor or light.

Tilt +90° to −80°

The head works from −20 to +60 °C and has a bubble level.

Layered drag unit

Metal layers with fine silicone grease give smooth starts and stops.

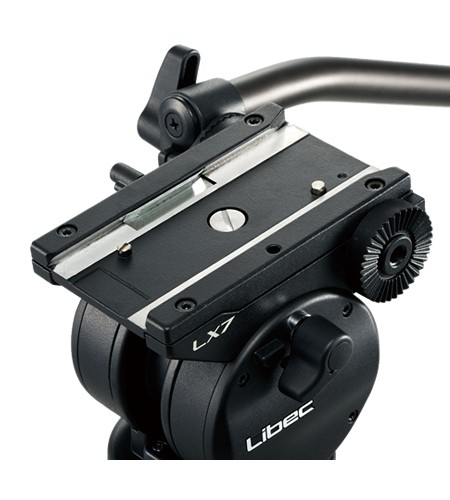

Sliding plate

The ±40 mm sliding plate attaches with a 1/4" screw and video pin.

75 mm ball

The head also fits any other tripod with a 75 mm bowl.

The kit provides three sets of accessory ports and a carrying handle, which greatly facilitates transporting the tripod and makes it ideal for quick, flexible shooting (run-and-gun).

Accessory port for added convenience. The tripod head mounting base is equipped with three sets of 1/4" and 3/8" threaded connection ports, allowing for more stable and convenient attachment of accessories such as monitors or lights.

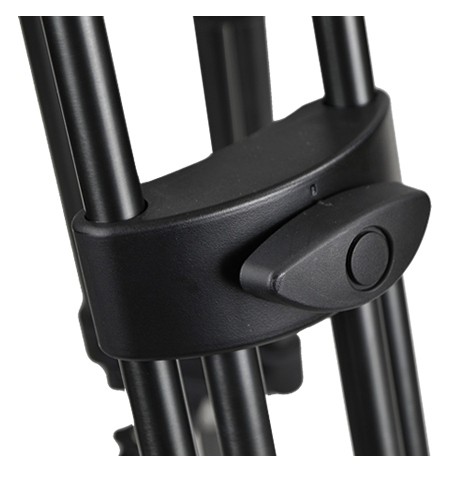

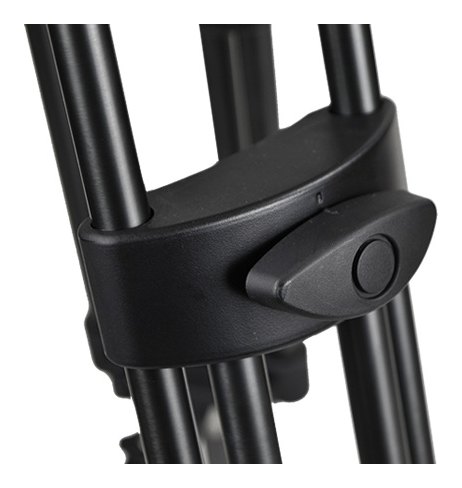

Sturdy leg lock construction. The main parts of the upper leg locks are made of die-cast aluminum, which ensures a solid and durable lock.

Practical carrying handle. A transport handle is included, which significantly improves mobility and is ideal for quick, flexible filming (run-and-gun filming). The handle comes as standard equipment and can also be removed if necessary.

Safety design. With safety in mind, the tripod legs are carefully designed with a gap that prevents fingers from getting pinched when folding the tripod intentionally or unintentionally.

Smooth drag unit. The layered metal unit in the drag system ensures easy operation, long life, and reliability. Thanks to a fine silicone lubricant, the drag system provides smoother start-up and overall better reverse control.

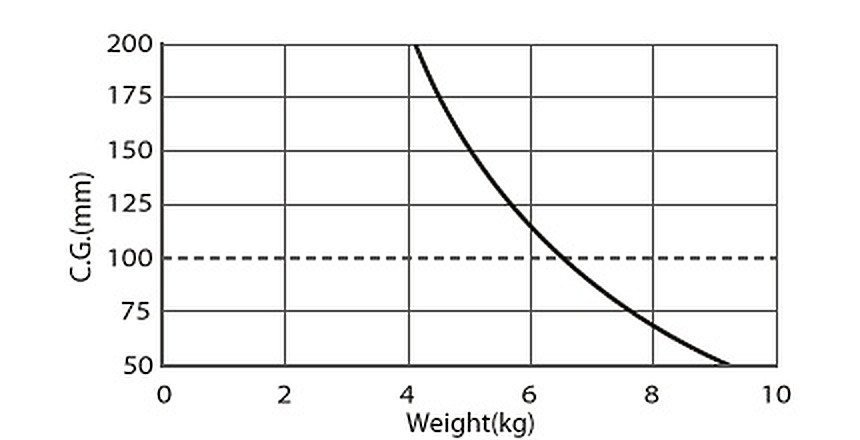

LX7 head counterbalance chart. The vertical axis shows the height of the camera's centre of gravity above the plate, the horizontal axis the total weight of camera and accessories; the dashed line marks a 100 mm centre of gravity.
