Libec ALX S4

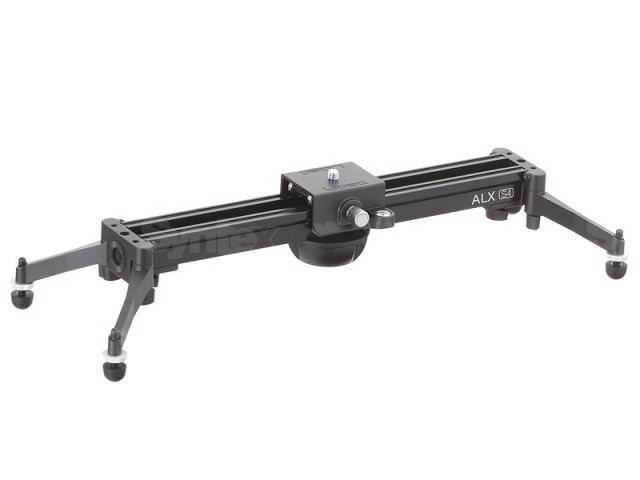

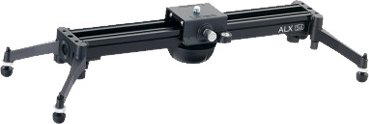

The Libec ALX S4 is a slider with an 400 mm rail and 308 mm of travel. The platform runs on eight ball bearings without wobble, carries 15 kg and takes a head on a 3/8" screw. The legs fold through 180°, and with the supplied adapter the slider also mounts on a tripod with a 75 mm bowl. It weighs 1.4 kg and comes with a padded carrying case.

The Libec ALX S4 is a slider with an 400 mm rail and 308 mm of travel. The platform runs on eight ball bearings and carries 15 kg, and the slider works on its own legs or mounted on a tripod with a 75 mm bowl. It weighs 1.4 kg without the tripod mount.

Smooth travel over 308 mm

An 400 mm rail, eight bearings and folding legs – a slider for the floor, a table or a tripod.

400 mm rail308 mm travel15 kg payloadWeight 1.4 kg3/8" screwFits 75 mm bowl

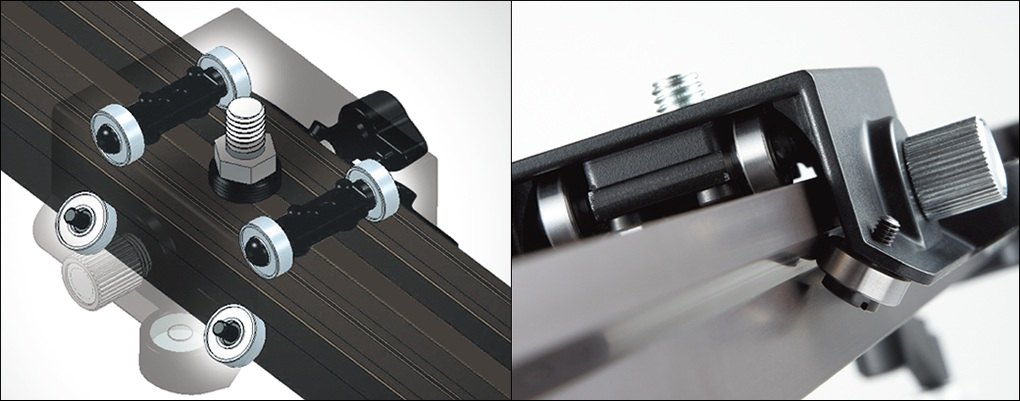

Eight bearings, no wobble

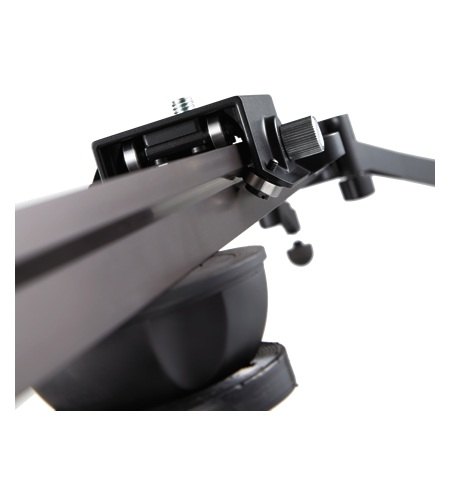

The platform runs on eight high-performance ball bearings with special grease. They sandwich the rail from the top and at an angle from below, preventing wobble during moves.

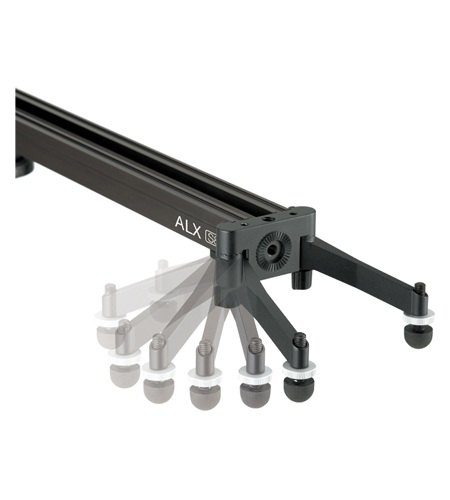

Legs that fold 180°

The legs open and close through 180°, so the slider goes into its case with the legs attached. The rail is released with the leg lock knob and is easy to replace.

On a tripod or head

The supplied tripod mount adapter and bowl clamp fit the slider to any 75 mm bowl tripod. The head attaches to the platform with a 3/8" screw.

Drag matched to the load

A spring-loaded friction knob fine-tunes the slide to the camera weight. Bearing pressure against the rail is adjusted with the supplied hex wrench.

15 kg payload

Applies with the slider standing on its own legs.

Threads on the rail

The underside of the rail has 1/4" and 3/8" holes.

Maintenance

A rail cleaning brush and a 2.5 mm hex wrench are included.

Three lengths

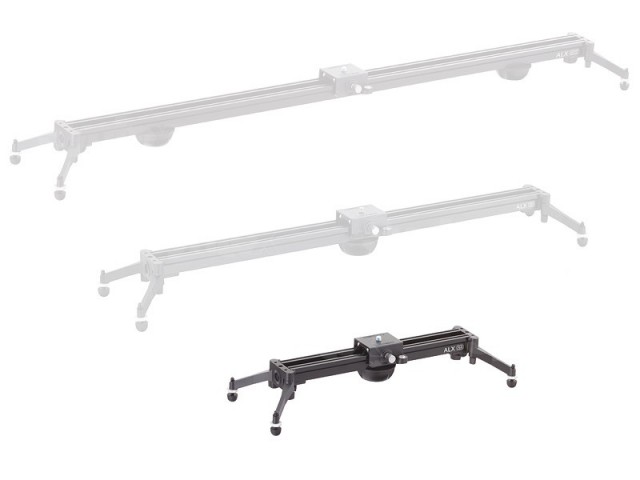

The ALX S line comes as S4 (400 mm), S8 (800 mm) and S12 (1200 mm).

The Libec ALX S is a slider that can be used independently or mounted on a tripod or video head. Perfect motion control, adjustable feet, vertical and horizontal use, compact size and light weight. The Libec ALX is a new tripod system series that provides expanded application options than before, combining several separate products into one complete system.

The Libec ALX system includes the following components:

• 75mm video head ALX H (1pc)
• aLX T tripod with 75mm bowl
• aLX S slider (depending on version)


The redesigned ALX H head not only has better features than the previous generation, but can also be easily attached to a tripod with a 75mm bowl, to a tripod with a flat base and to the ALX S slider. The Libec ALX system is a truly flexible and complete system suitable for a wide variety of projects.

Basic features of the Libec ALX S slider:

• the slider legs can be opened and closed at 180°, allowing easy and stable unfolding or folding into a transport bag
• thanks to the rotary knob, precise adjustment of the slider for the desired weight of the technician is possible
• possibility to adjust the pressure or resistance of the trolley against the rail for better control of movement
• attachment to tripod and 75mm tray included

Wide range of control options

Ideal slider for capturing soft and smooth shots. Smoothness and fluidity of movement is achieved by high quality bearings with special lubricant. The wheels are effectively positioned on top and diagonally on the side of the slider, encircling the slider on each side and preventing the moving part from wobbling when moving.

Technical specifications of the 800mm Libec ALX S slider:

• Load capacity: up to 15 kg
• Head attachment: 3/8" bolt
• Thread on the back of the slider: 1/4" and 3/8" threaded holes
• S4 track length: 400 mm
• Track length S8:800 mm
• Track length S12: 1200 mm
• Slider length S4: 308 mm
• Track length S8: 708 mm
• Track length S12: 1108 mm

Unlimited combinations

Combine the ALX S KIT with the ALX H video head alone and you have a kit that can create truly diverse footage in a variety of situations.

Watch the video introducing Libec ALX products:

For more videos on ALX products, visit our blog:

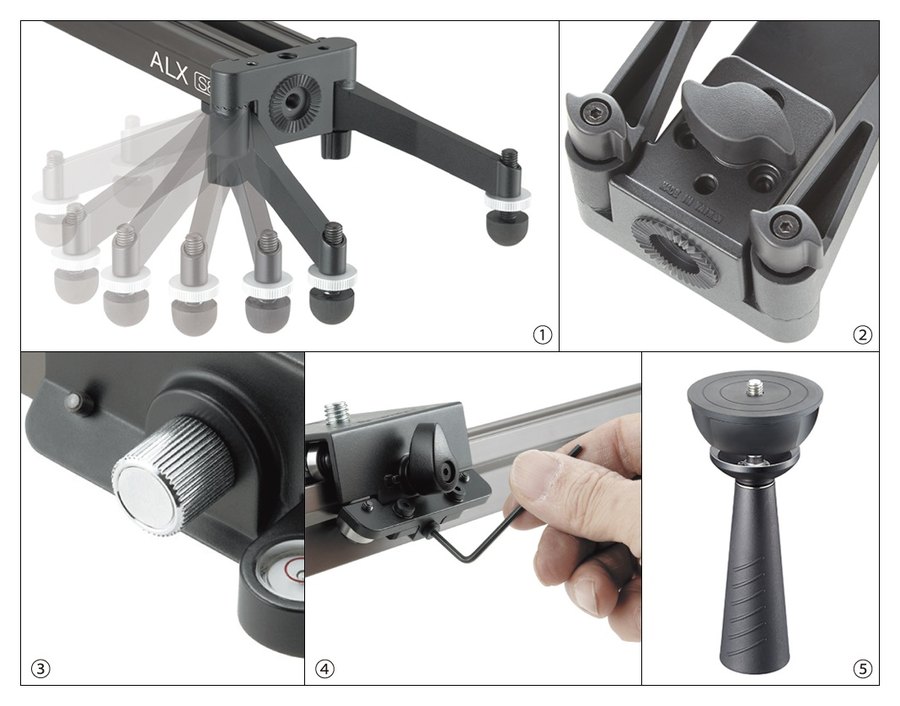

Thoughtful details. Folding legs, platform brake, friction knob, bearing adjustment with a hex wrench and the 75 mm bowl clamp at a glance.

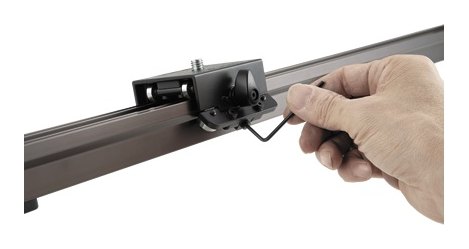

Bearing adjustment. Use the supplied hex wrench to set the bearing pressure against the rail for a smooth slide.

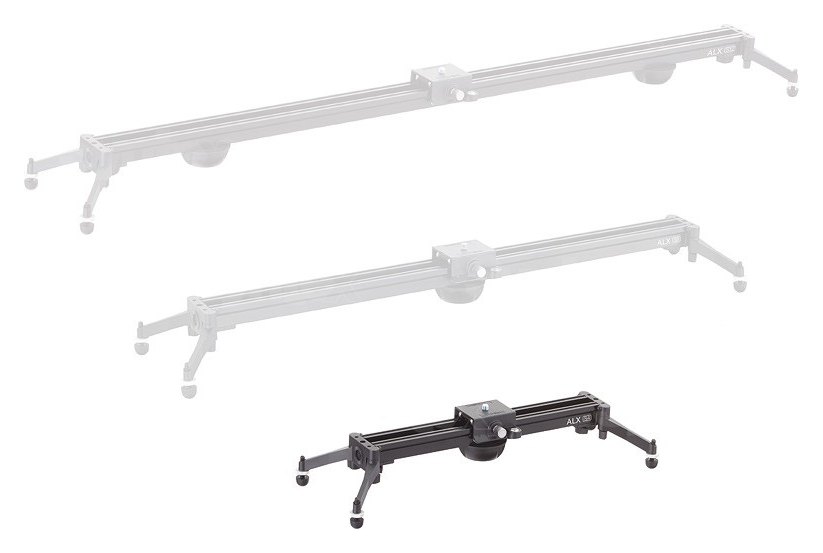

Three rail lengths. The ALX S4, S8 and S12 sliders differ in rail length: 400, 800 and 1200 mm.
