Libec ALX S12

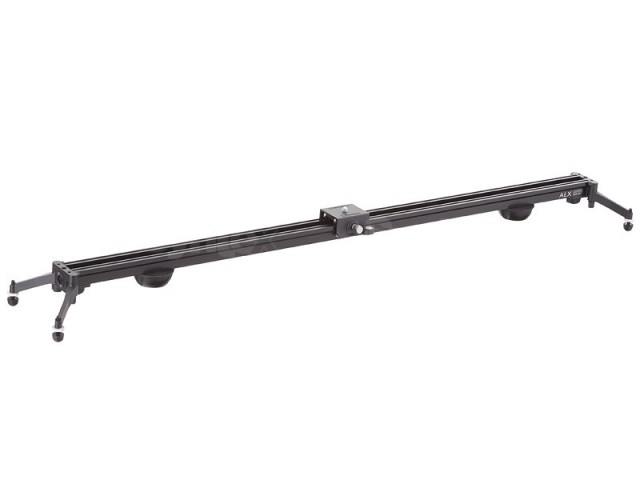

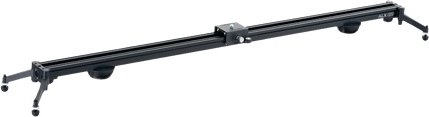

The Libec ALX S12 is a slider with an 1200 mm rail and 1108 mm of travel. The platform runs on eight ball bearings without wobble, carries 15 kg and takes a head on a 3/8" screw. The legs fold through 180°, and with the supplied adapter the slider also mounts on a tripod with a 75 mm bowl. It weighs 2.5 kg and comes with a padded carrying case.

The Libec ALX S12 is a slider with an 1200 mm rail and 1108 mm of travel. The platform runs on eight ball bearings and carries 15 kg, and the slider works on its own legs or mounted on a tripod with a 75 mm bowl. It weighs 2.5 kg without the tripod mount.

Smooth travel over 1108 mm

An 1200 mm rail, eight bearings and folding legs – a slider for the floor, a table or a tripod.

1200 mm rail1108 mm travel15 kg payloadWeight 2.5 kg3/8" screwFits 75 mm bowl

Eight bearings, no wobble

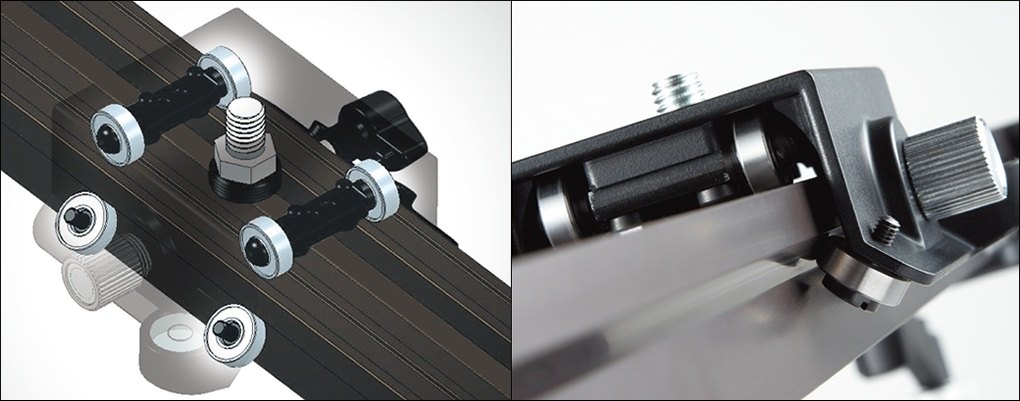

The platform runs on eight high-performance ball bearings with special grease. They sandwich the rail from the top and at an angle from below, preventing wobble during moves.

Legs that fold 180°

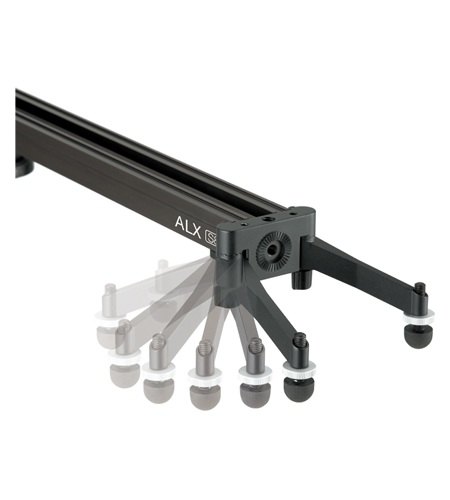

The legs open and close through 180°, so the slider goes into its case with the legs attached. The rail is released with the leg lock knob and is easy to replace.

On a tripod or head

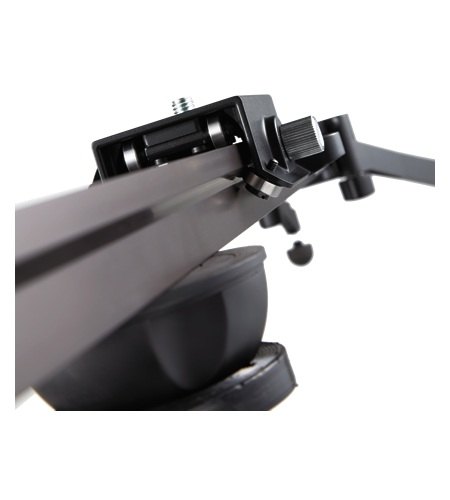

The supplied tripod mount adapter and bowl clamp fit the slider to any 75 mm bowl tripod. The head attaches to the platform with a 3/8" screw.

Drag matched to the load

A spring-loaded friction knob fine-tunes the slide to the camera weight. Bearing pressure against the rail is adjusted with the supplied hex wrench.

15 kg payload

Applies with the slider standing on its own legs.

Threads on the rail

The underside of the rail has 1/4" and 3/8" holes.

Maintenance

A rail cleaning brush and a 2.5 mm hex wrench are included.

Three lengths

The ALX S line comes as S4 (400 mm), S8 (800 mm) and S12 (1200 mm).

Libec ALX S is a slider that can be used independently or mounted on a tripod or video head. Perfect motion control, adjustable feet, vertical and horizontal use, compact size and light weight. Libec ALX is a new series of tripod system that provides extended usability than before and combines several stand-alone products into one complete system.

The redesigned ALX H head not only has better features than the previous generation, but can also be mounted seamlessly on a tripod with a 75mm bowl, on a tripod with a flat base as well as on the ALX S slider. The ALX S slider can also be mounted seamlessly on any tripod with a 75mm bowl thanks to the mounting bracket that comes as standard. The Libec ALX

system provides a truly flexible and complete system suitable for a wide variety of projects.

Basic features of the Libec ALX S slider:

• the slider legs can be opened and closed at 180°, allowing easy and stable unfolding or folding into a transport bag
• thanks to the rotary knob, precise adjustment of the slider for the desired weight of the technician is possible
• possibility of adjusting the pressure or resistance of the trolley against the rail for better control of the movement
• attachment to tripod and 75mm bowl included

Wide control options

The perfect slider for shooting smooth and fluid shots. Smoothness and smoothness of movement is achieved by high quality bearings with special lubricant. The wheels are positioned effectively on top and at an angle on the side of the slider, thus encircling the slider on each side and preventing the moving part from wobbling as it moves.

Unlimited combinations

By combining the ALX S KIT and the ALX H

video head alone, you get a kit with which you can create truly diverse shots in a wide variety of situations.

Watch the video introducing Libec ALX

products:

More videos about ALX

products can be found on our blog:

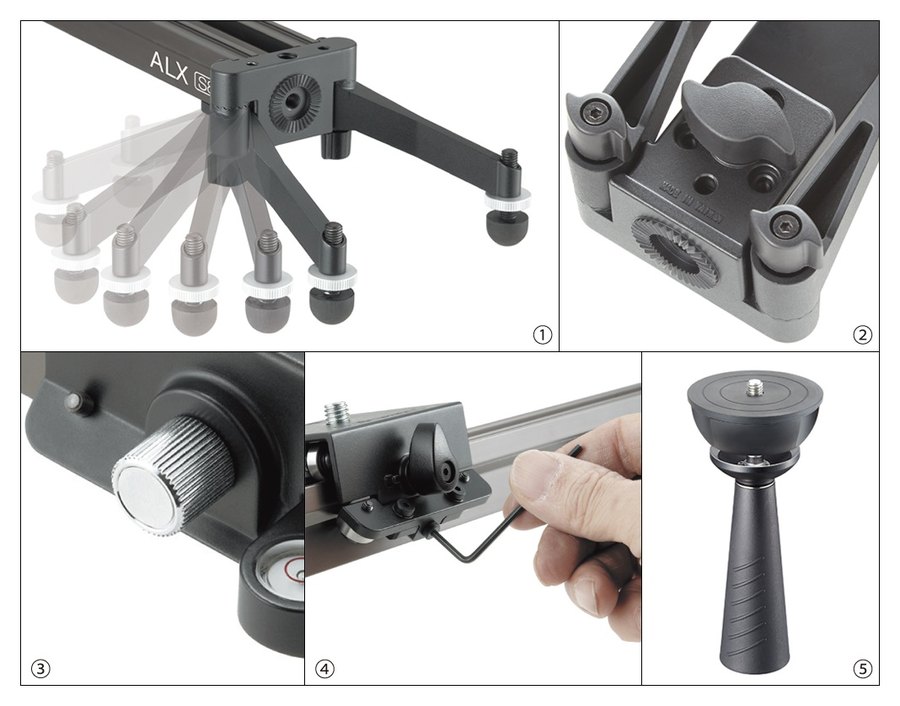

Thoughtful details. Folding legs, platform brake, friction knob, bearing adjustment with a hex wrench and the 75 mm bowl clamp at a glance.

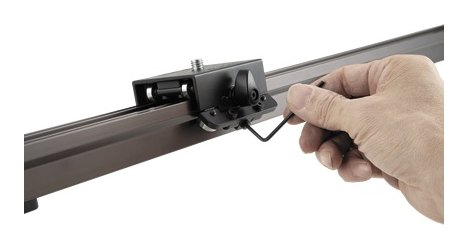

Bearing adjustment. Use the supplied hex wrench to set the bearing pressure against the rail for a smooth slide.

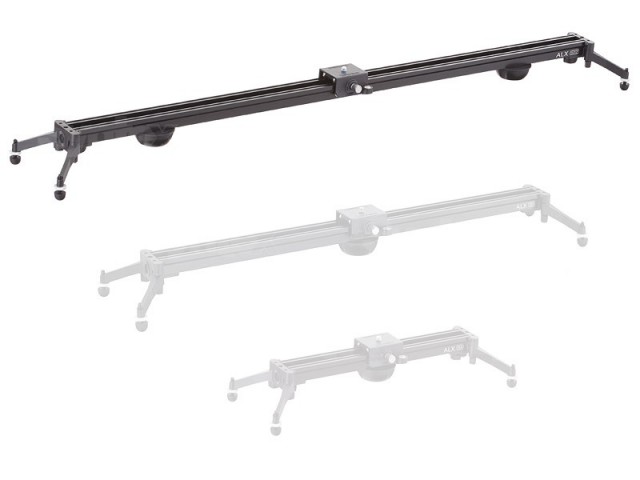

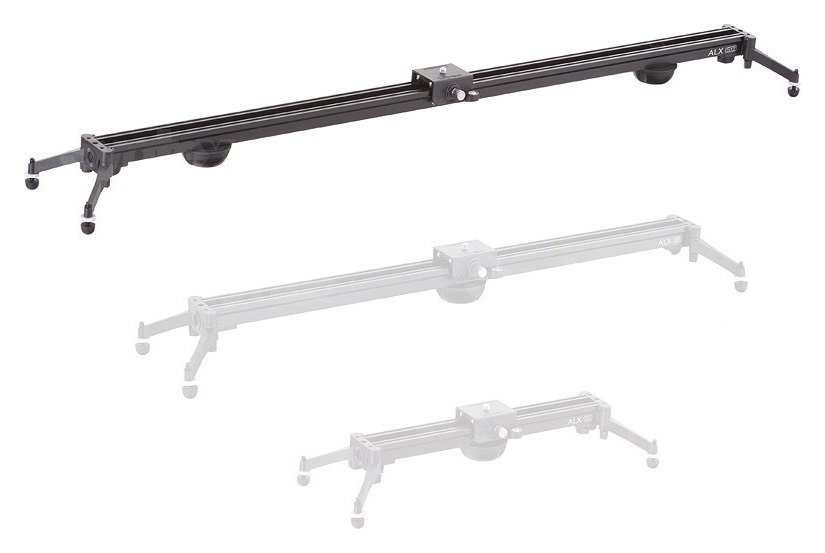

Three rail lengths. The ALX S4, S8 and S12 sliders differ in rail length: 400, 800 and 1200 mm.
