Blackmagic Design Cloud Dock 4

  • Free transport
SKU: DWCLDB/DOCK04

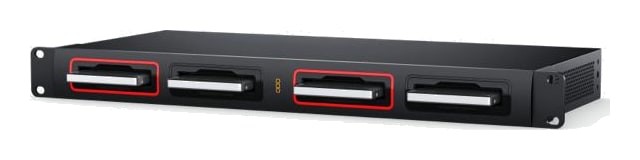

The Blackmagic Cloud Dock 4 is a 1RU rack network dock for four separate 2.5″ SATA or U.2 SSD disks. Four 10G Ethernet ports give up to four workstations access to the media, the HDMI output shows the storage status and sync with Blackmagic Cloud connects remote locations. The integrated power supply simplifies installation. Disks are not included.

More information

1 519 € with VAT 1 255.37 € without VAT
Add to Compare Price history
Availability
on request
SKU:
DWCLDB/DOCK04
Add to Compare Price history

Blackmagic Design Cloud Dock 2

769 €without VAT 635.54 €

Top accessories for Blackmagic Design Cloud Dock 4

Blackmagic Design DaVinci Resolve Studio - download only

  • -20 %
Promotion: -20%
DaVinci Resolve Studio by Blackmagic Design is a professional application for editing,
246.84 €
308.55 €
In stock 3 pcs

Exascend SE4 Series 2,5'' SATA 6GB/s SSD

TheExascend SSD SE4 SATA3 3D TLC 2.5" 240GB has a 2.5" (7 mm) form factor and a capacity
120 €
In stock 3 pcs

Accsoon HDMI Cable (A-A)

Accsoon HDMI Cable (A-A) is a 50 cm male-to-male cable connecting cameras, external
12 €
Backordered 1 pcs

Blackmagic Design SSD Case

The Blackmagic SSD Case is a protective plastic case in the style of broadcast tape
85 €
on request
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

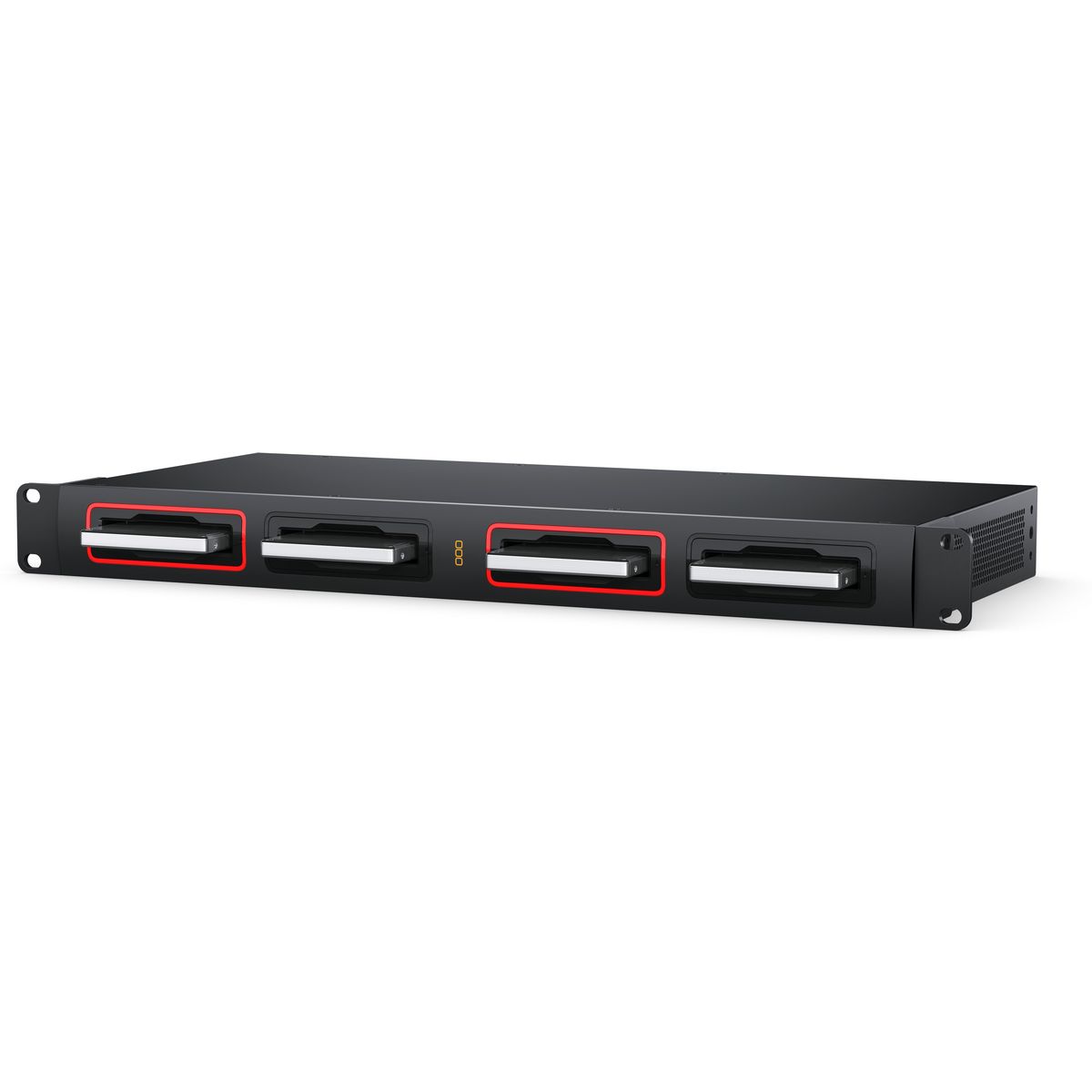

The Blackmagic Cloud Dock 4 is a 1RU rack network dock for four separate 2.5″ SATA or U.2 SSD disks. Four 10G Ethernet ports give up to four workstations access to the media, the HDMI output shows the storage status and sync with Blackmagic Cloud connects remote locations. The integrated power supply simplifies installation. Disks are not included.

Four disks and four 10G Ethernet ports in one rack

A compact 1RU dock with an integrated power supply for four removable disks shared over the network.

4× 2.5″ SATA / U.24× 10G Ethernet1RU rackBlackmagic Cloud

In a studio rack or on a DIT cart

The dock fits a rack next to other network equipment and a DIT cart, where it makes camera files instantly available to editors and colorists.

Sync with Blackmagic Cloud

Selected folders sync with Blackmagic Cloud. Every location works with a local copy of the files and does not wait for transfers over the internet.

Storage status on a monitor

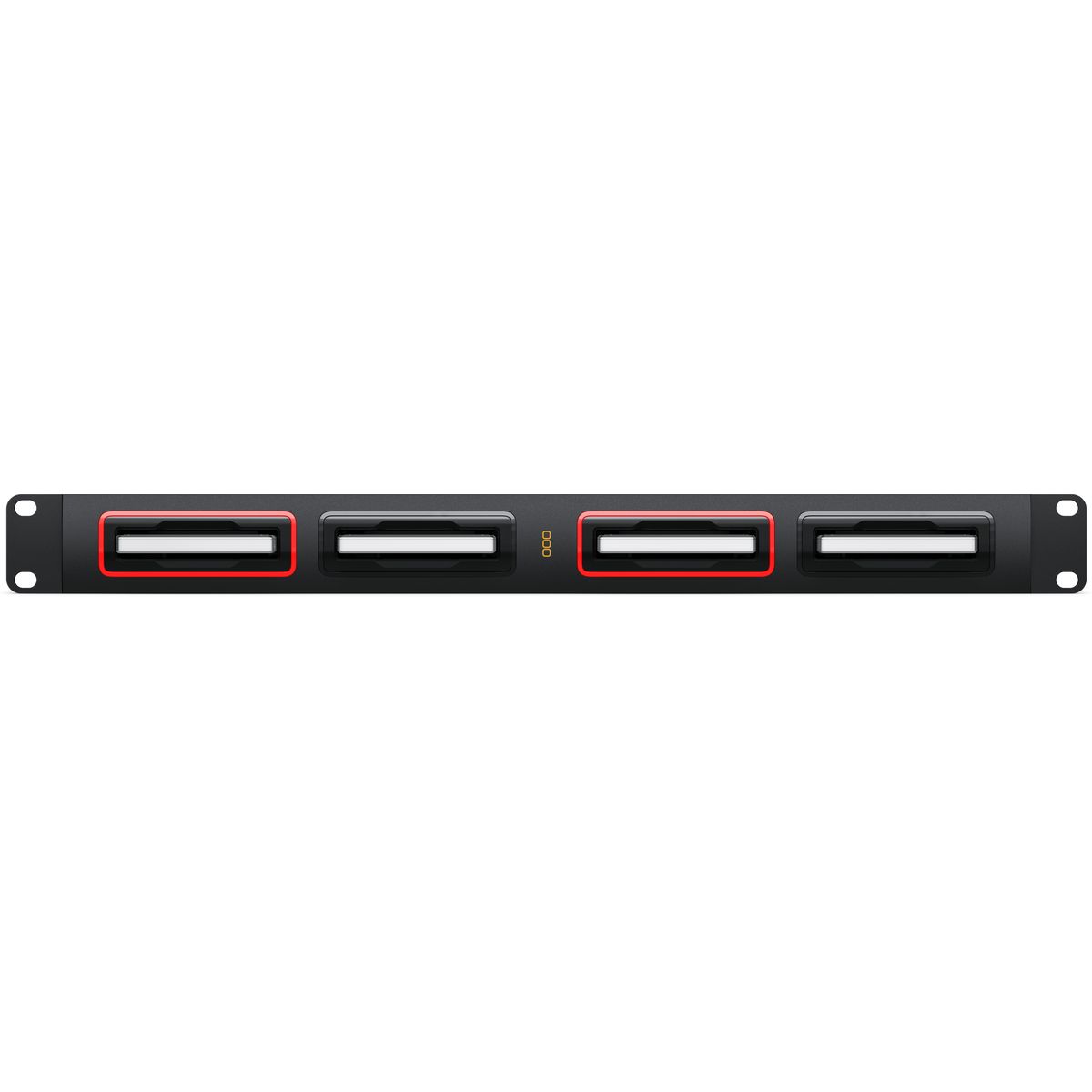

The HDMI output shows capacity, users, sync and network graphs, and the LED bezels around the bays show disk activity.

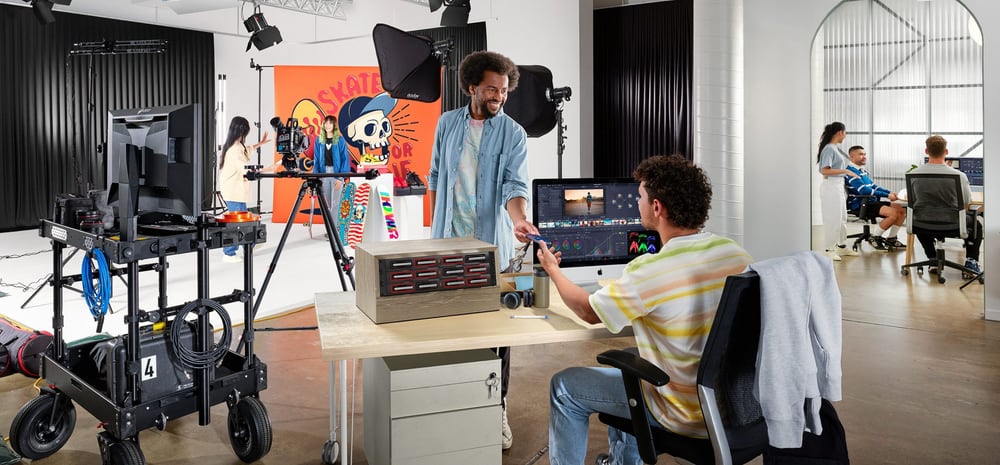

For film and television

Record to SSDs, including fast U.2 NVMe, and then turn them into network storage for multiple editors and colorists with the dock. Four independent bays share up to four different disks at the same time.

Blackmagic Design Cloud Dock 4 – For film and television

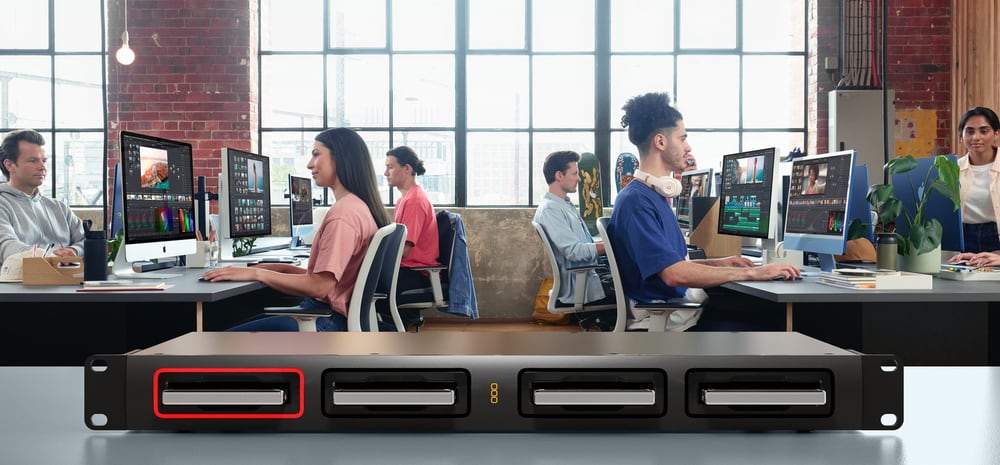

Compact rack design

Four disk bays, four 10G Ethernet ports, an HDMI output and LED status lights at every bay in a single 1RU chassis. Every bay has its own board, so the dock is easy to repair.

Blackmagic Design Cloud Dock 4 – Compact rack design

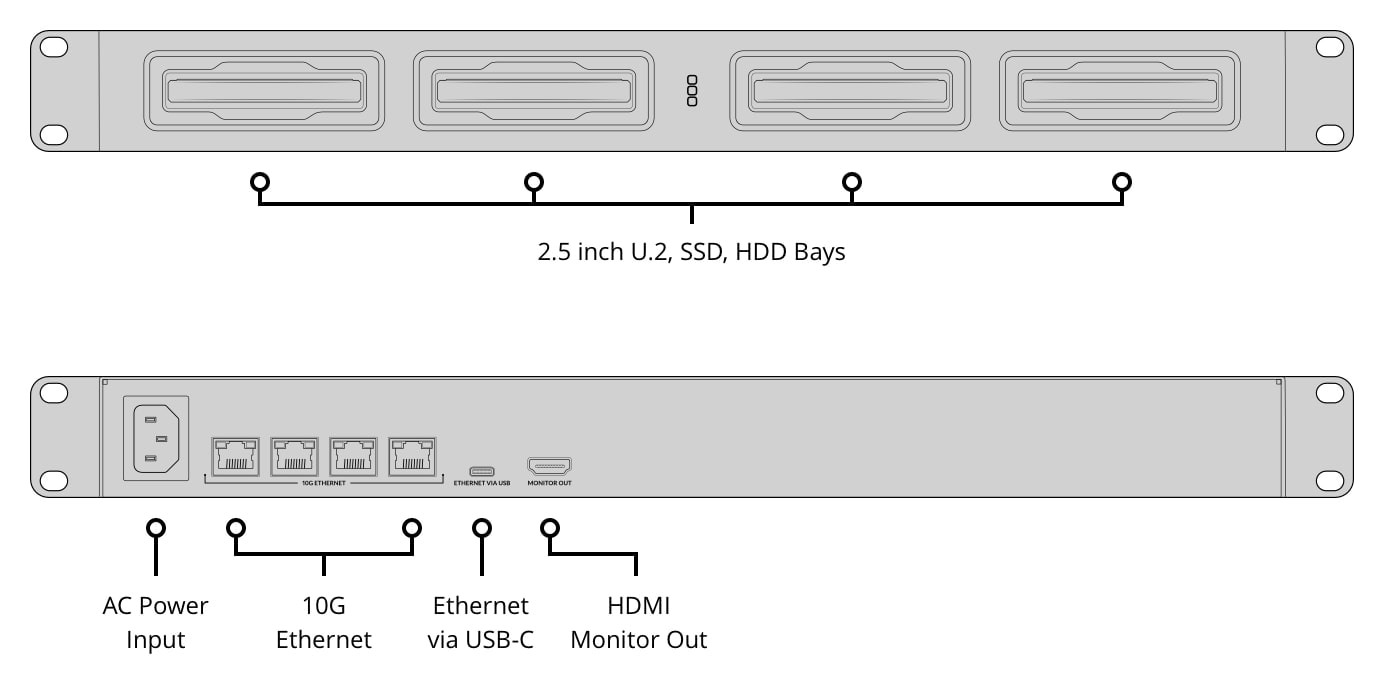

Bays and connections

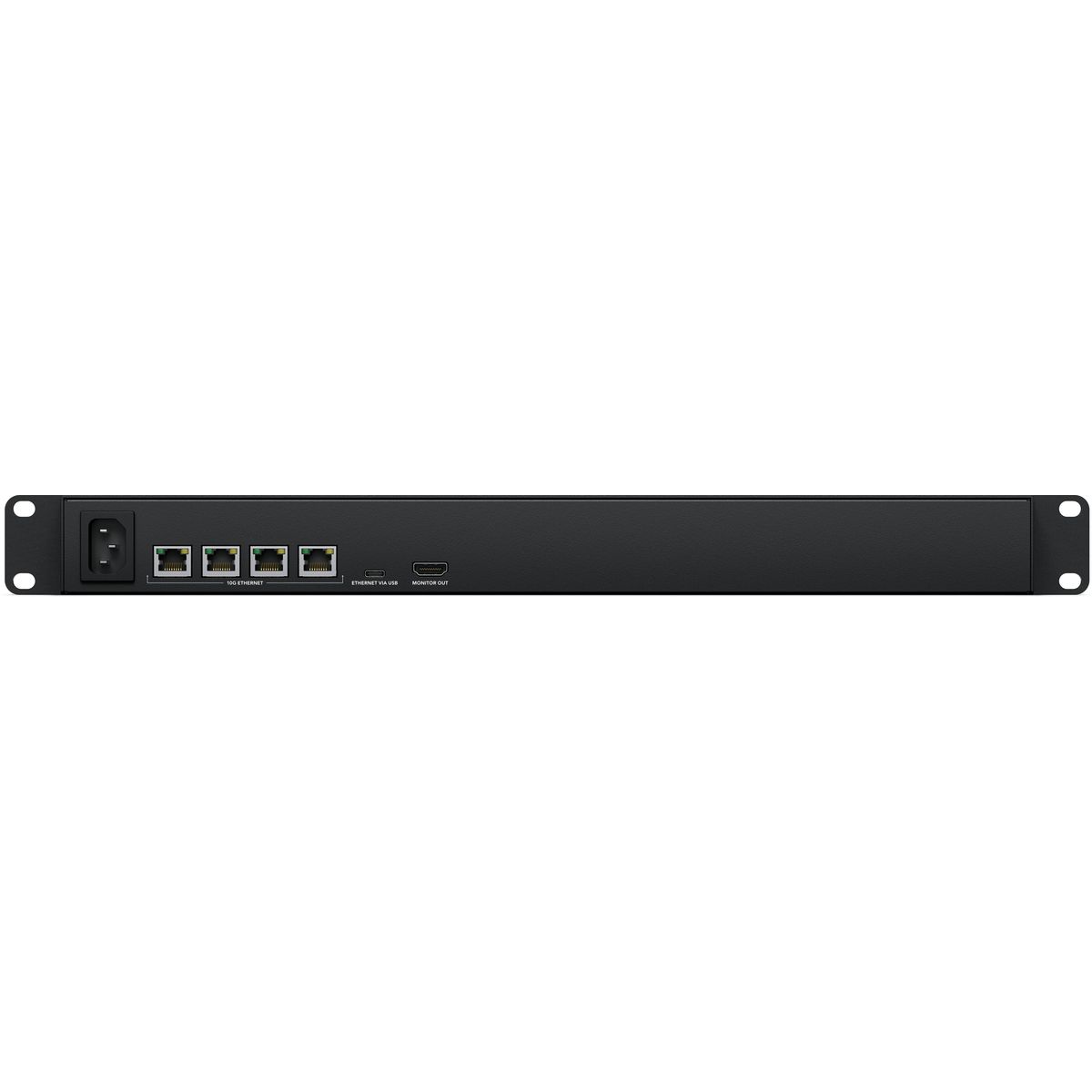

The diagram shows the disk bays, the power input, the four 10G Ethernet ports, Ethernet via USB-C and the HDMI output for a monitor.

Blackmagic Design Cloud Dock 4 – Bays and connections

PACKAGE CONTENT

  • Blackmagic Cloud Dock 4
  • Welcome wallet with QR code for software download

SPECIFICATIONS

  • Type: network dock for disks, 1RU rack
  • Disk bays: 4× removable hot-swappable for 2.5″ U.2 SSD or SATA, disk height max. 11 mm
  • Storage: your own disks (not included)
  • Network: 4× 10G BASE-T
  • USB-C port: 1× USB 3.0 (up to 5 Gb/s), supports Ethernet over USB
  • Monitor output: 1× HDMI, 1080p50/59.94/60
  • File sharing: SMB, NFS (HFS+ formatted disks only)
  • Connected computers: up to 200
  • Cloud synchronization: Blackmagic Cloud, Amazon Web Services S3
  • Disk format: ExFAT (Windows/Mac) or HFS+ (Mac)
  • Indicator: LED bezel around the disk bays
  • Power: internal 100–240 V AC, 50/60 Hz, IEC C14
  • Power usage: 60 W without SSDs
  • Software included: Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite
  • Supported systems: macOS 15 Sequoia, macOS 26 Tahoe or later, Windows 10 (64-bit) and Windows 11
  • Dimensions (W × D × H): 19 × 8.07 × 1.81″ (483 × 205 × 46 mm)
  • Weight: 4.5 lb (2.04 kg)
  • Operating temperature: 0 to 40 °C
  • Storage temperature: −20 to 60 °C
  • Relative humidity: 0 to 90 % non-condensing
  • Warranty: 1 year limited manufacturer’s warranty
