Blackmagic Design MultiDock 10G

SKU: DISKMDOCK4/U10G

New rack mount USB-C disk dock with elegant all metal design that lets customers access and move SSD media disks between cameras, HyperDecks and computers by rapid docking!

More information

669 € with VAT 552.89 € without VAT
Add to Compare Price history
Availability
on request
SKU:
DISKMDOCK4/U10G
Add to Compare Price history

Top accessories for Blackmagic Design MultiDock 10G

Exascend SE4 Series 2,5'' SATA 6GB/s SSD

TheExascend SSD SE4 SATA3 3D TLC 2.5" 240GB has a 2.5" (7 mm) form factor and a capacity
120 €
In stock 3 pcs

Blackmagic Design HyperDeck Extreme 8K HDR

  • Free transport
Flagship 8K broadcast recorder and player with quad-link 12G-SDI, recording up to
5 999 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

New rack mount USB-C disk dock with elegant all metal design that lets customers access and move SSD media disks between cameras, HyperDecks and computers by rapid docking!

Four SSDs Right in the Editing Suite

The rack-mount dock provides access to four 2.5-inch SATA SSDs via a pair of high-speed 10 Gb/s USB-C ports. Each bay has its own controller, and the drives can be distributed between two computers.

4× 2.5″SSDs, 2×USB-C 10 Gb/s

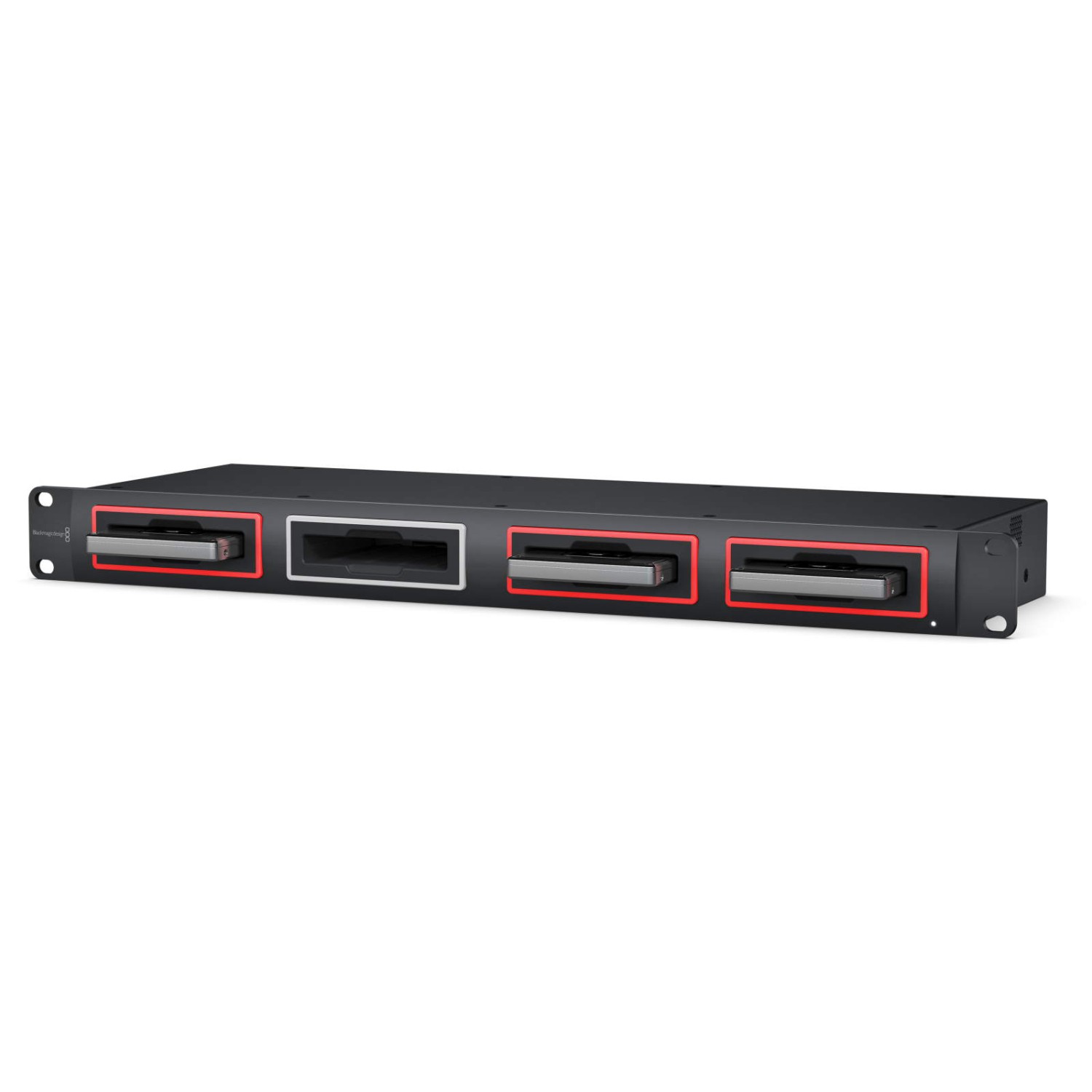

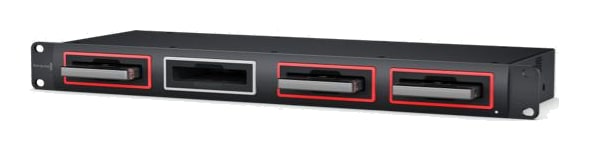

Blackmagic Design MultiDock 10G

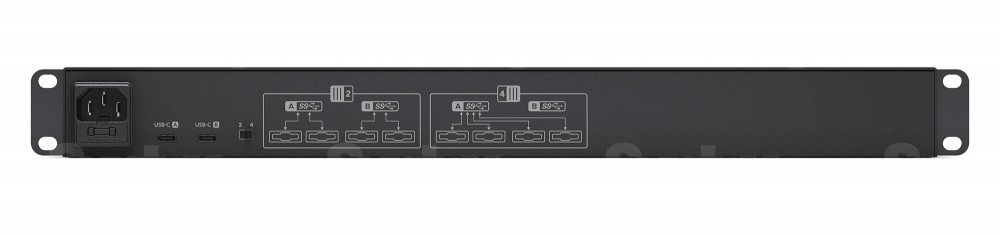

Zadní panel Blackmagic Design MultiDock 10G

One or Two Host Systems

All four bays can work with a single computer, or they can be divided into two independent pairs. This is useful for parallel ingest, reviewing footage, and transferring media between workstations.

Quick SSD swapping without unnecessary copying

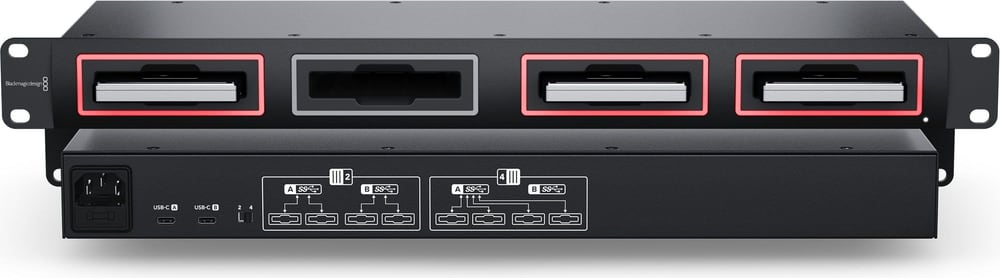

The Blackmagic MultiDock 10G is a professional docking station for four 2.5-inch SSDs with a fast 10 Gb/s USB-C interface. The 1 RU metal chassis is designed for permanent installation in a studio, post-production facility, or broadcast van.

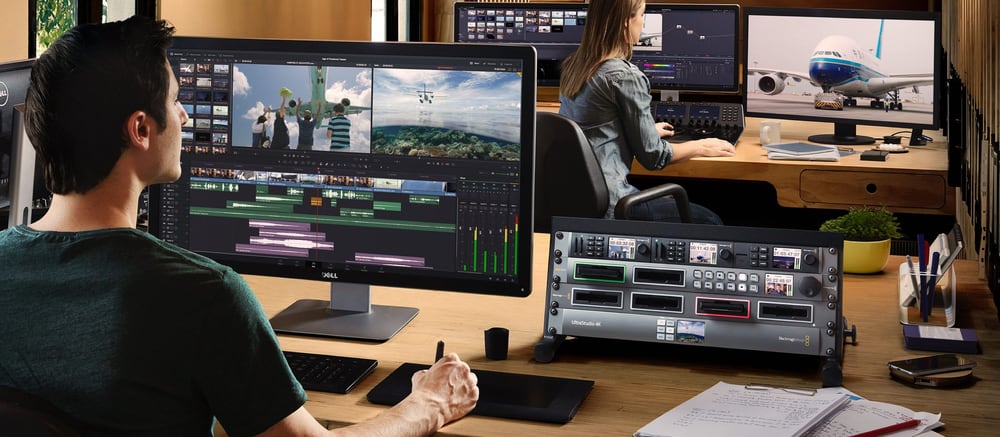

Independent controllers: Each drive has its own SATA controller for maximum throughput. You can edit footage directly from the inserted SSDs and work with even the most demanding video formats without first copying them to internal storage.

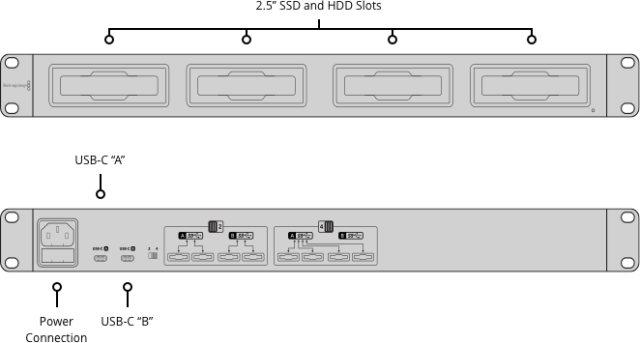

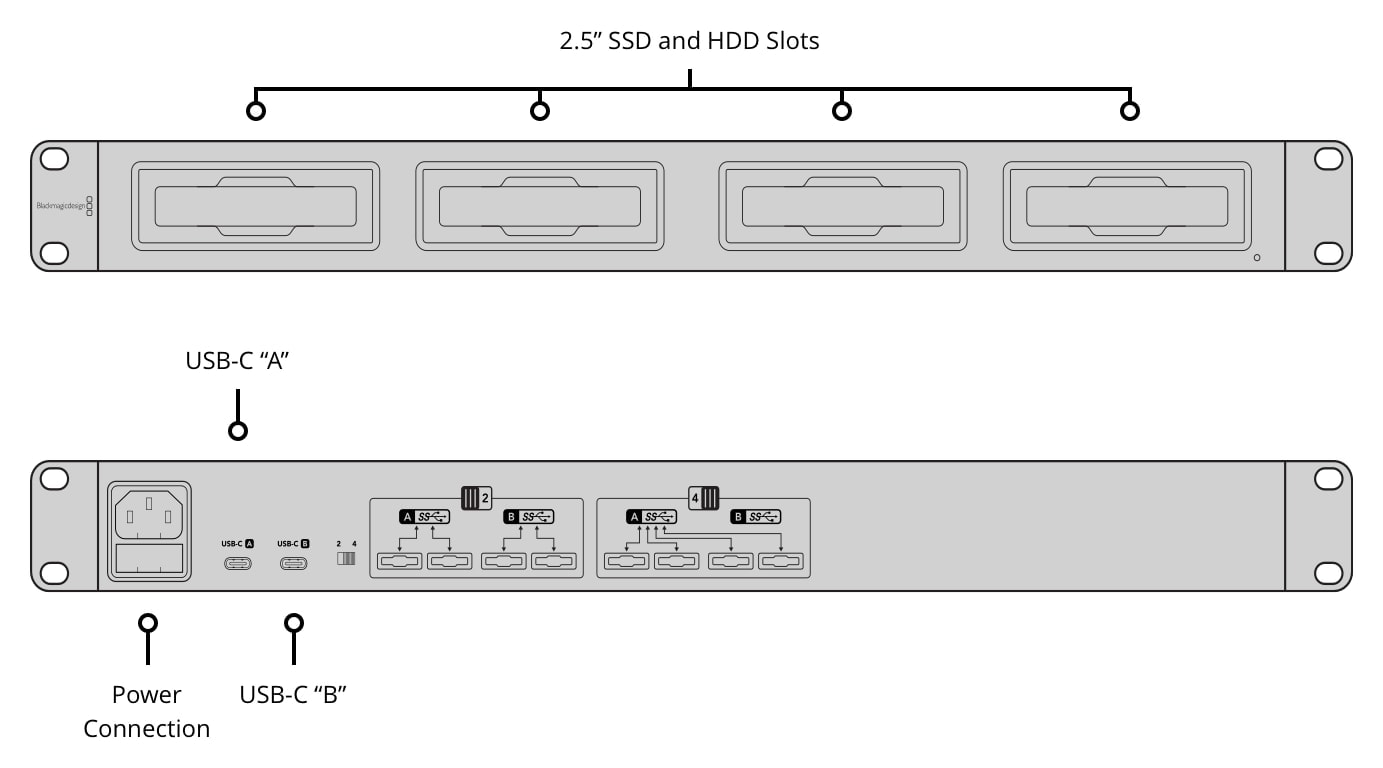

A rear switch allows you to connect all four drives to a single computer or split the bays into two pairs served by two separate 10 Gb/s USB-C buses. This enables two users to work with different media simultaneously.

LEDs on the front panel indicate the activity of individual drives. Removable SSDs from cameras, HyperDeck recorders, or field data stations can be inserted without additional frames or adapters.

The built-in network power supply ensures a stable power supply to all four drives simultaneously, including workflows that use multiple media at once.

PACKAGE CONTENT

  • Blackmagic Design MultiDock 10G
  • Power cable

SPECIFICATIONS

  • Drive bays: 4× 2.5″ SATA SSD
  • Drive interface: SATA 3, 6 Gb/s per bay
  • Computer interface: 2× USB-C 3.1 Gen 2, up to 10 Gb/s
  • Connection modes: 4 drives to one host or 2 + 2 drives to two hosts
  • Indicators: separate activity LED for each bay

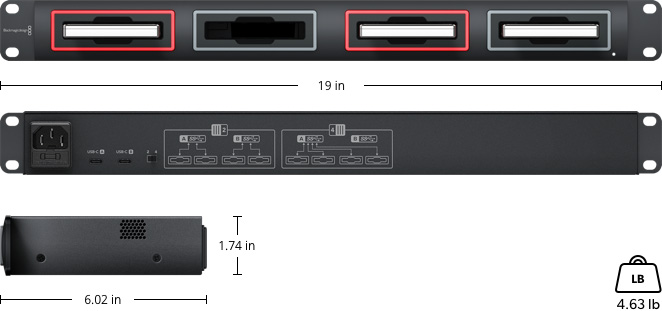

  • Mounting: 1 RU, 19″ wide
  • Power supply: internal 100–240 V AC power supply
  • Platforms: macOS and Windows
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Disk arrays

Main parameters

InterfaceUSB-C
Operating systemWindows · MacOS
