FeelWorld 1080p USB 2.0 PTZ Camera with 10x Optical Zoom

Do you want clear and smooth video conferencing? Can you control the image freely during the live streaming? Or record your course and spread it to more people? Here is a suggestion for you--FEELWORLD USB10X, a ideal choice for conference rooms, classrooms, auditoriums and medical facilities.

More information

340.74 € with VAT 281.6 € without VAT
-+
Availability
Prague > 5 pcs
Manufacturer
Free transport When purchasing this product
SKU:
USB10X
Add to Compare
Product description

Product description

Do you want clear and smooth video conferencing? Can you control the image freely during the live streaming? Or record your course and spread it to more people? Here is a suggestion for you--FEELWORLD USB10X, a ideal choice for conference rooms, classrooms, auditoriums and medical facilities.

USB plug-and-play connectivity makes USB10X a breeze to deploy and use. Simply connect USB10X to the computer or your laptop through USB, and you’re good to go! With no need for device drivers.

The high resolution 1080P, outstanding color reproduction and 10X zoom delivers premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away. USB10X is obviously a smart choice.

Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking choice.

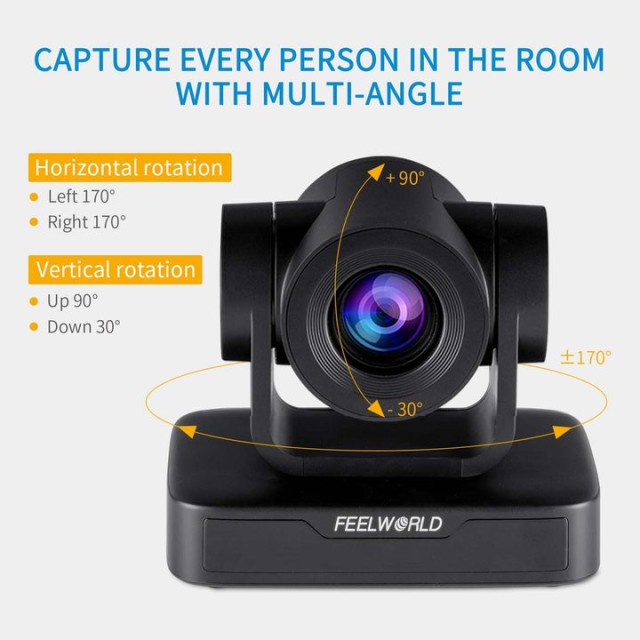

Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°~+90°).

Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

10 preset positions by IR remote controller,that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via VISCA

The USB10X works with most video conference applicatons, such as Zoom, Micro Lync, Skype for Business, ect. Convenient for you to make a video conference with your team anywhere and it can also help you to achieve customers with a face to face full HD video conference.

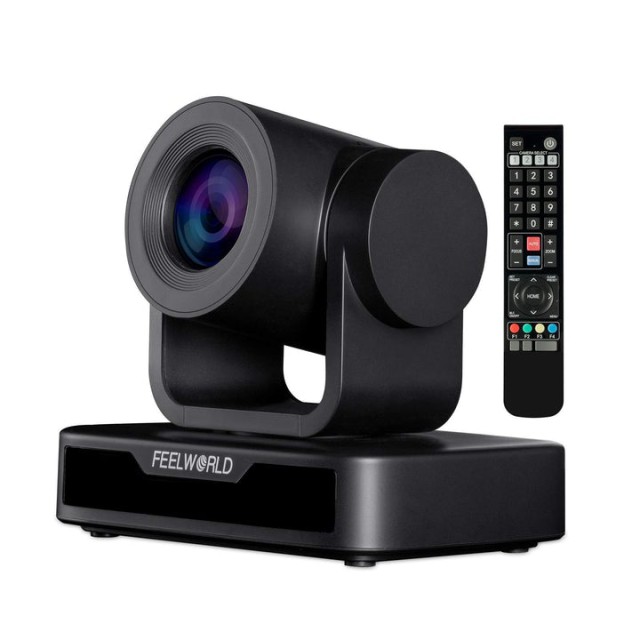

You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. Plus, you can also operate it by VISCA Pelco D/P controller keyboard.

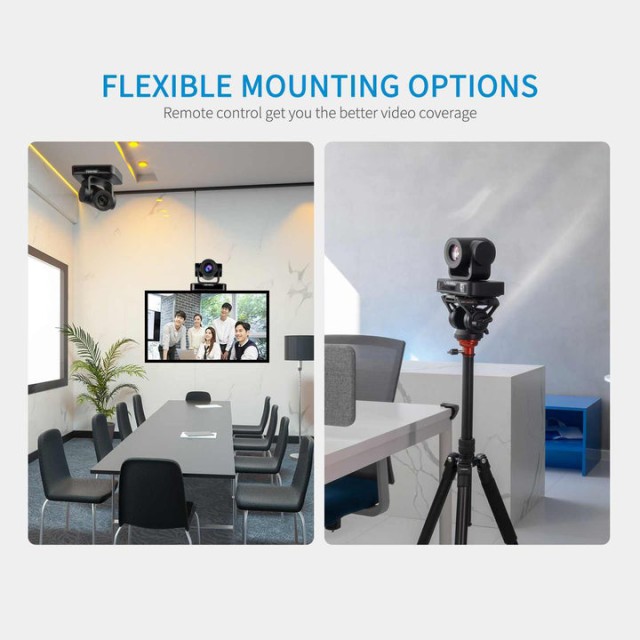

Included mounting hardware screw hole and standard tripod thread at the bottom of USB10X , get you the best video coverage.

USB10X is widely use for video conference, live streaming, medical seminar, online education, ect.

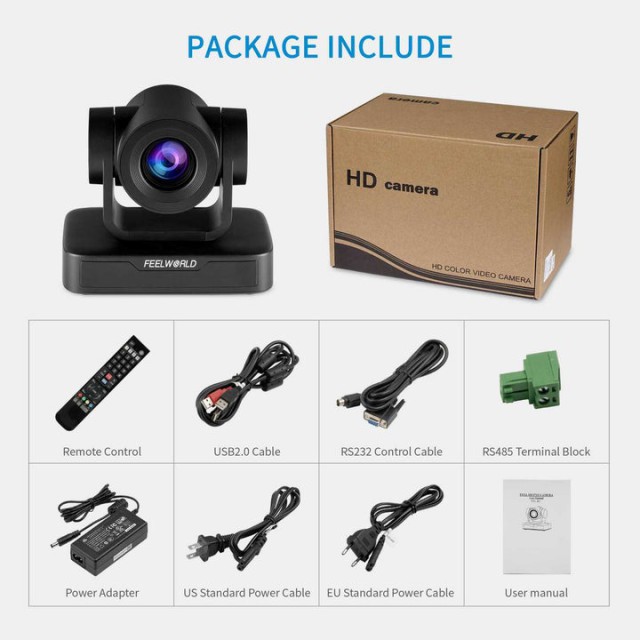

PACKAGE CONTENT

  • 1× Video Camera
  • 1× Remote Control
  • 1× USB2.0 Cable
  • 1× RS232 Control Cable
  • 1× RS485 Terminal Block
  • 1× Power Adapter
  • 1× EU Standard Power Cable
  • 1× US Standard Power Cable
  • 1× Manual

SPECIFICATIONS

Camera Parameters

  • Model USB10X
  • Sensor 1/2.9 inch high quality CMOS sensor
  • Effective Pixels 2.07 megapixel, 16:9
  • Video Format 1920×1080P@30 fps/25fps;1280×720P@30fps/25fps;1024×576P@30fps/25fps
  • 960×540P@30fps/25fps;800×448P@30fps/25fps;640×360P@30fps/25fps;320×176P@30fps/25fps,etc
  • View Angle 8.8°~ 70°
  • Focus Length f=4.34mm~41.66mm
  • AV F1.85 – F2.43
  • Optical Zoom 10X
  • Minimum Illumination 0.5 lux (F1.8, AGC ON)
  • DNR 2D & 3D
  • White Balance Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
  • Focus Auto / Manual/ One Push Focus
  • Exposure Auto / Manual
  • BLC On/Off
  • Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve SNR >55dB

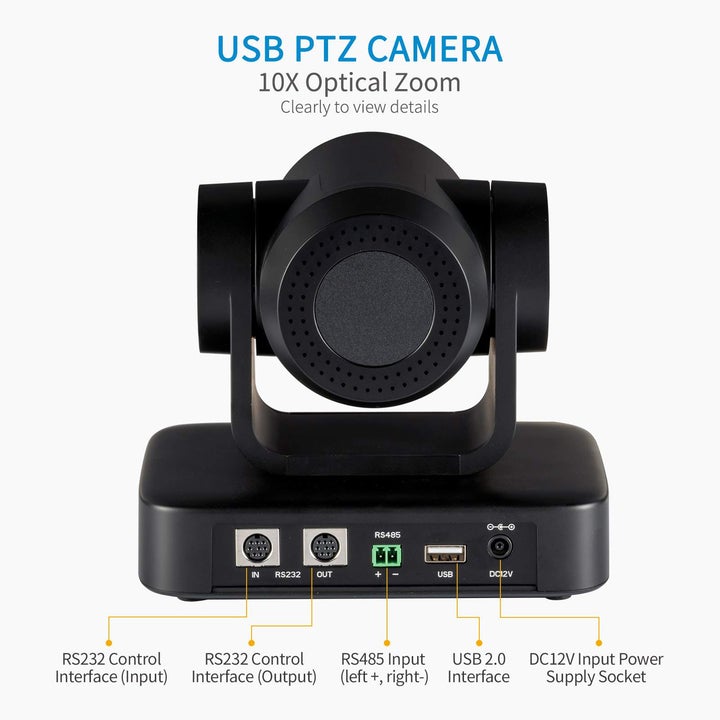

Input/output Interface

  • Video Output USB2.0, A Type Interface
  • Video Compression Format MJPG, H.264, H.265
  • Control Interface RS232 (IN/OUT), RS485
  • Control Protocol VISCA/Pelco-D/Pelco-P
  • Power Interface HEC3800 outlet (DC12V)

USB Feature

  • Operation Systems Windows 7, Windows8, Windows10, Mac osx, Linux, etc
  • Video Compression Format MJPG, H.264, H.265
  • USB Communication Protocol UVC

PTZ Parameters

  • Pan Rotation -170°~+170°
  • Tilt Rotation -30°~+90°
  • Pan Control Speed 0.1 ~60°/sec
  • Tilt Control Speed 0.1~30°/sec
  • Preset Speed Pan: 60°/sec, Tilt: 30°/sec
  • Preset Number 255 presets (10 presets via remote control)

Other Parameters

  • Input Voltage 12V/0.5A
  • Power Consumption Maximum: 2.5W
  • Stored Temperature -40℃~+70℃
  • Storage Humidity 20%~90%
  • Working Temperature -10℃~+50℃
  • Working Humidity 20%~80%
  • Dimension (W*H*D) 156.8mm×112.6mm×139.5mm
  • Unit Weight 1kg
  • Outer Carton QTY 4pcs
  • Outer Carton Size 52.5*37*40cm
  • Gross Weight 9.6kgs
Parameters

Parameters

Manufacturer: Feelworld
Category: PTZ

Main parameters

Zoom10x
