DZOFILM Arcana 32/45/75mm T2.1 1.5× Anamorphic PL Set (Metric)

ARCANA · PL · METRIC

32 mm · 45 mm · 75 mm

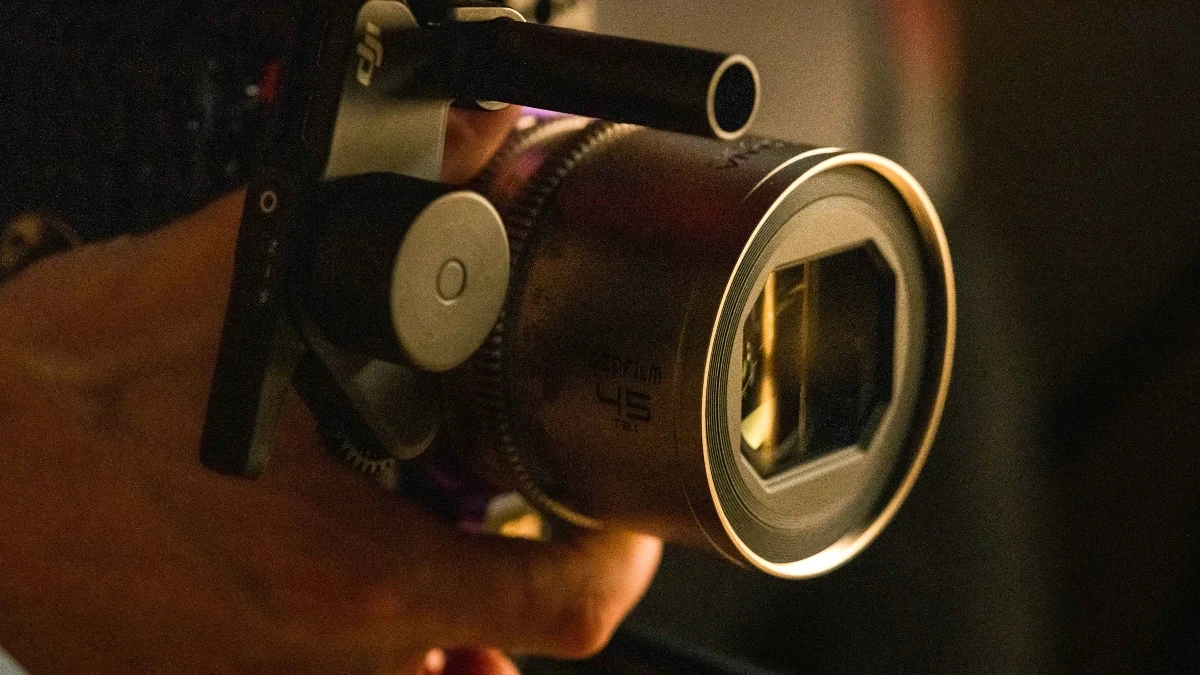

OFFICIAL ARCANA SERIES MATERIAL

This manufacturer image shows the Arcana series in a cinema setup and provides context for its compact form and on-set workflow.

OFFICIAL SERIES EXAMPLE

Official manufacturer footage presents the Arcana series character. Individual frames are not assigned to a specific focal length, so they are shown as examples of the full series.

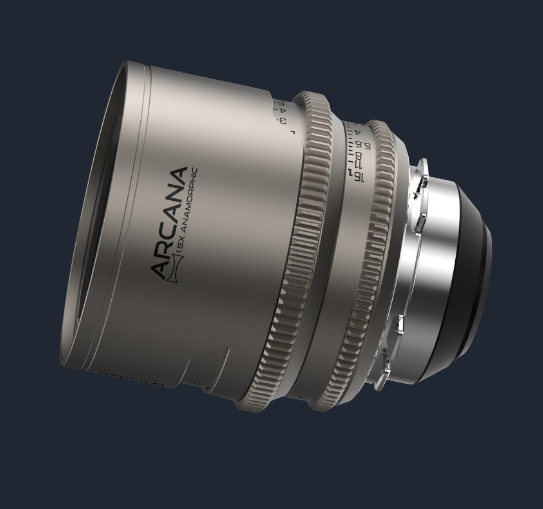

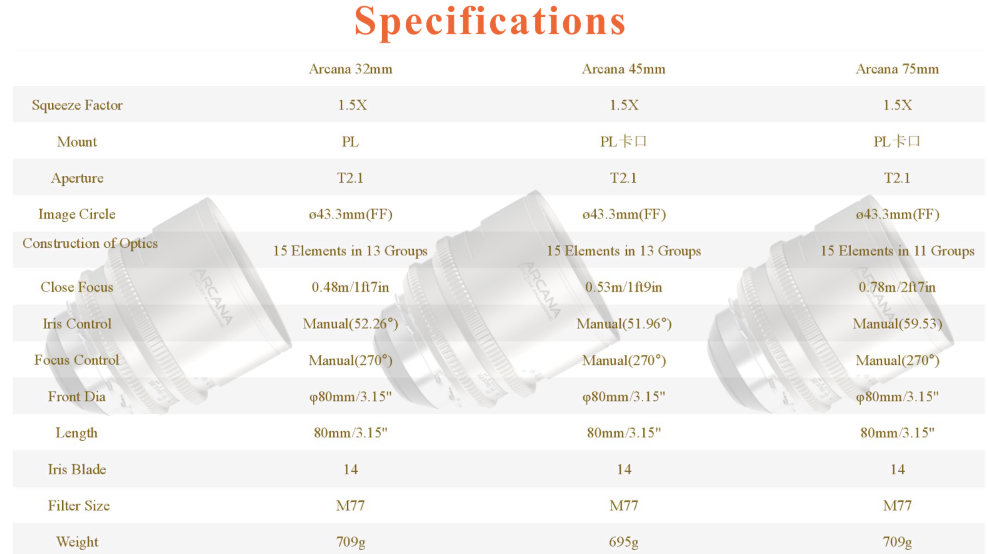

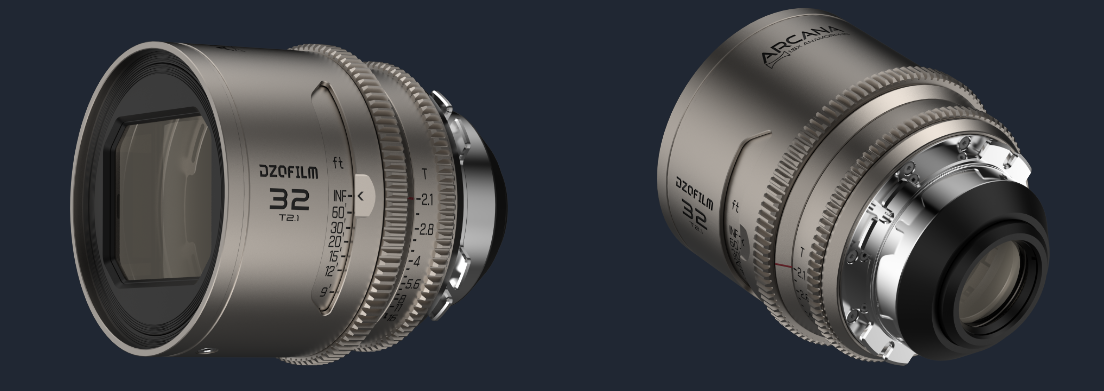

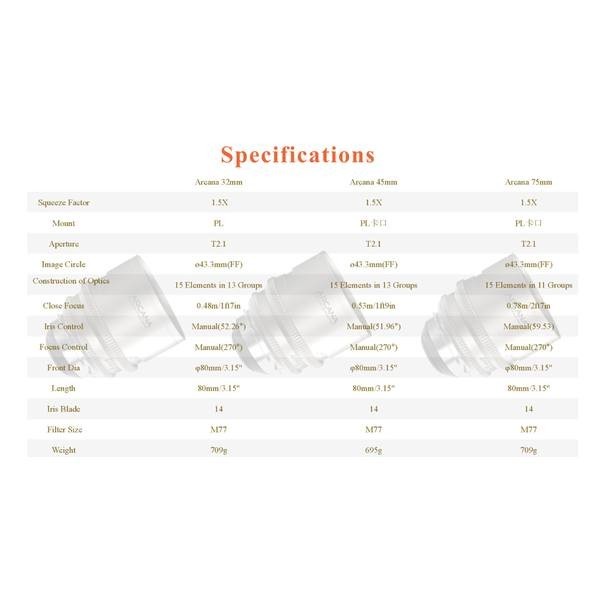

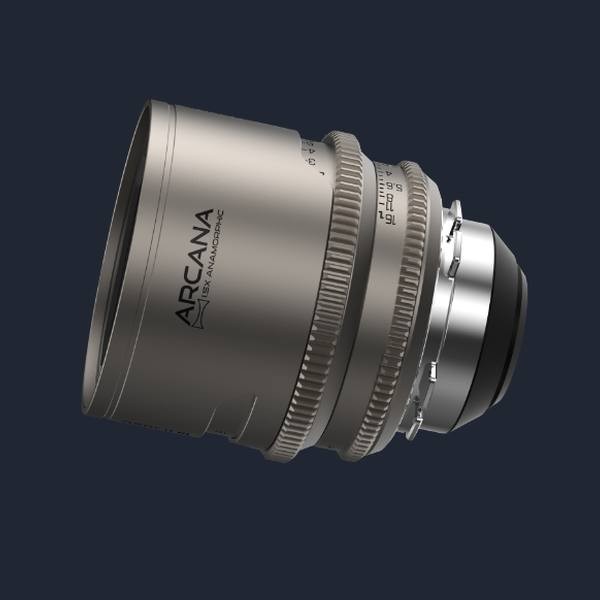

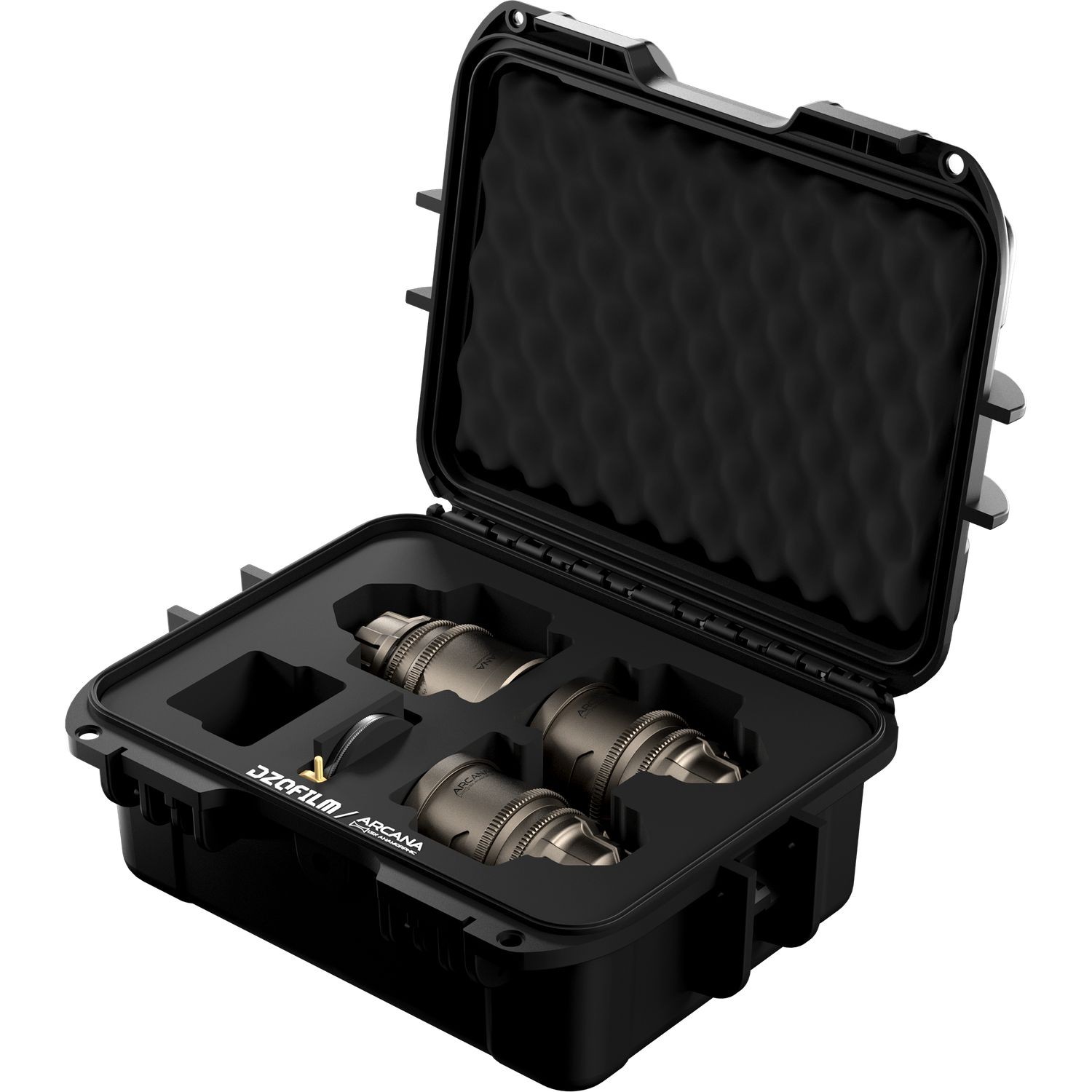

The DZOFILM Arcana 32/45/75mm T2.1 Full-frame 1.5X Hybrid Anamorphic Prime 3-Lens Set (PL mount) from DZOFILM is a premium anamorphic prime lens set crafted for professional cinematography, virtual production, and high-end filmmaking. The set includes three focal lengths—32mm, 45mm, and 75mm—each engineered with a consistent T2.1 aperture and full-frame coverage with a 43.3mm image circle, ensuring compatibility with a wide range of cinema cameras.

Featuring a 1.5× anamorphic squeeze factor, these lenses produce a distinctive cinematic aesthetic, including oval-shaped bokeh and characteristic horizontal lens flares that respond naturally to light sources thanks to the specialized coating design. This makes them ideal for achieving a classic anamorphic look without the extreme squeeze of 2× systems, while maintaining practical usability in modern production workflows.

Optically, the Arcana series is built with advanced multi-element designs incorporating cylindrical, ED, and high-refractive index elements. This configuration delivers a balanced performance with sharp center resolution and controlled edge sharpness, along with minimal chromatic aberration and distortion. The lenses maintain consistent rendering across the set, ensuring seamless cuts between focal lengths.

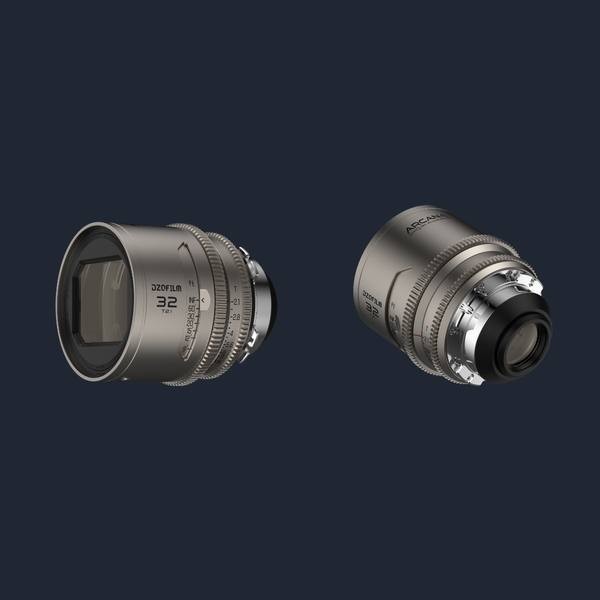

Mechanically, all lenses in the series share a unified compact form factor with identical dimensions, 80mm front diameter, M77 filter thread, and similar weight (~690–710g). This consistency allows for efficient rigging, gimbal use, and lens swaps without the need for rebalancing. The robust construction includes a titanium finish for durability and a refined professional appearance.

Each lens offers manual focus with a 270° focus throw for precise control, manual iris operation, and close focusing distances suited for a variety of shooting scenarios. The PL mount ensures compatibility with professional cinema cameras, making this lens set a versatile tool for narrative films, commercials, music videos, and high-end content production.

Key Features

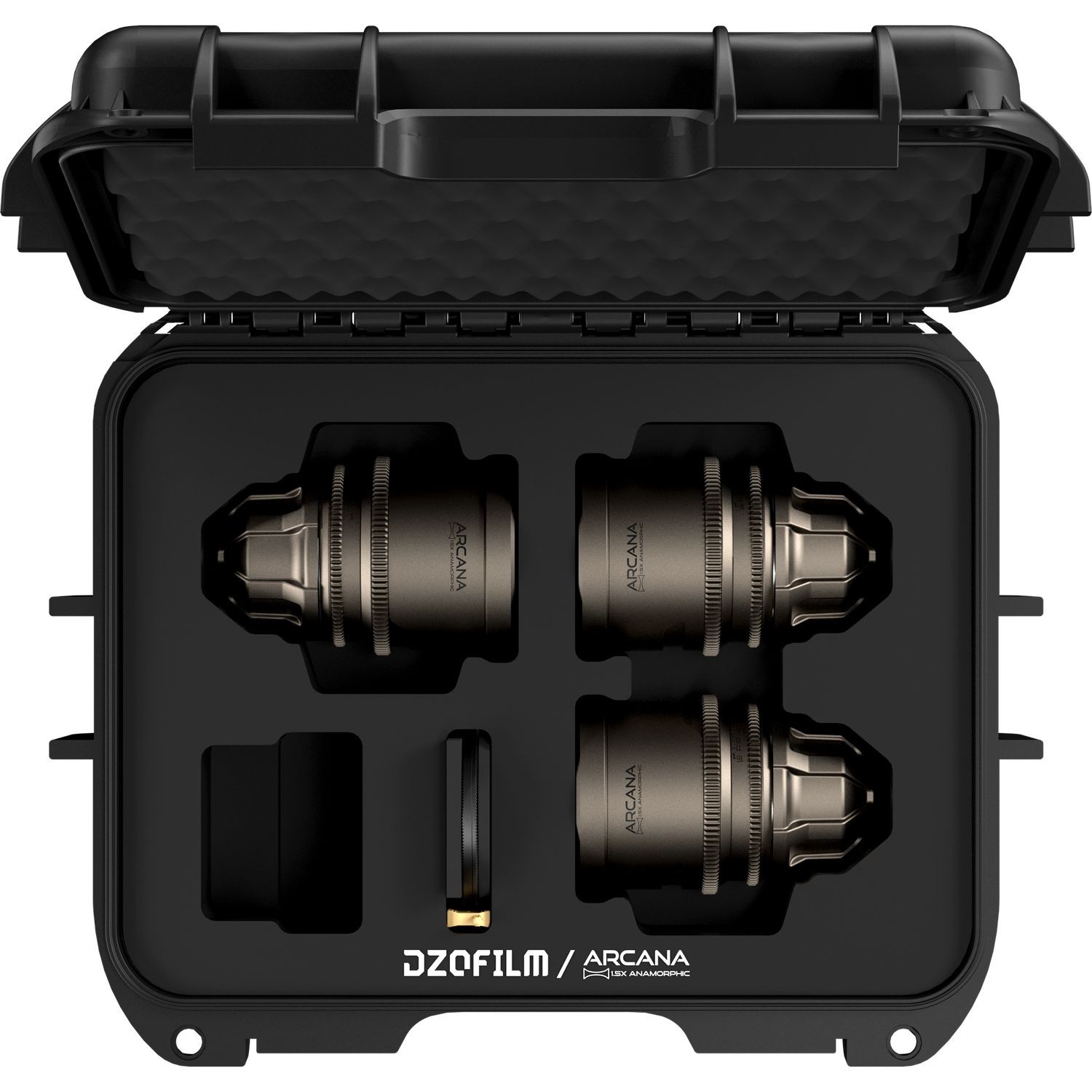

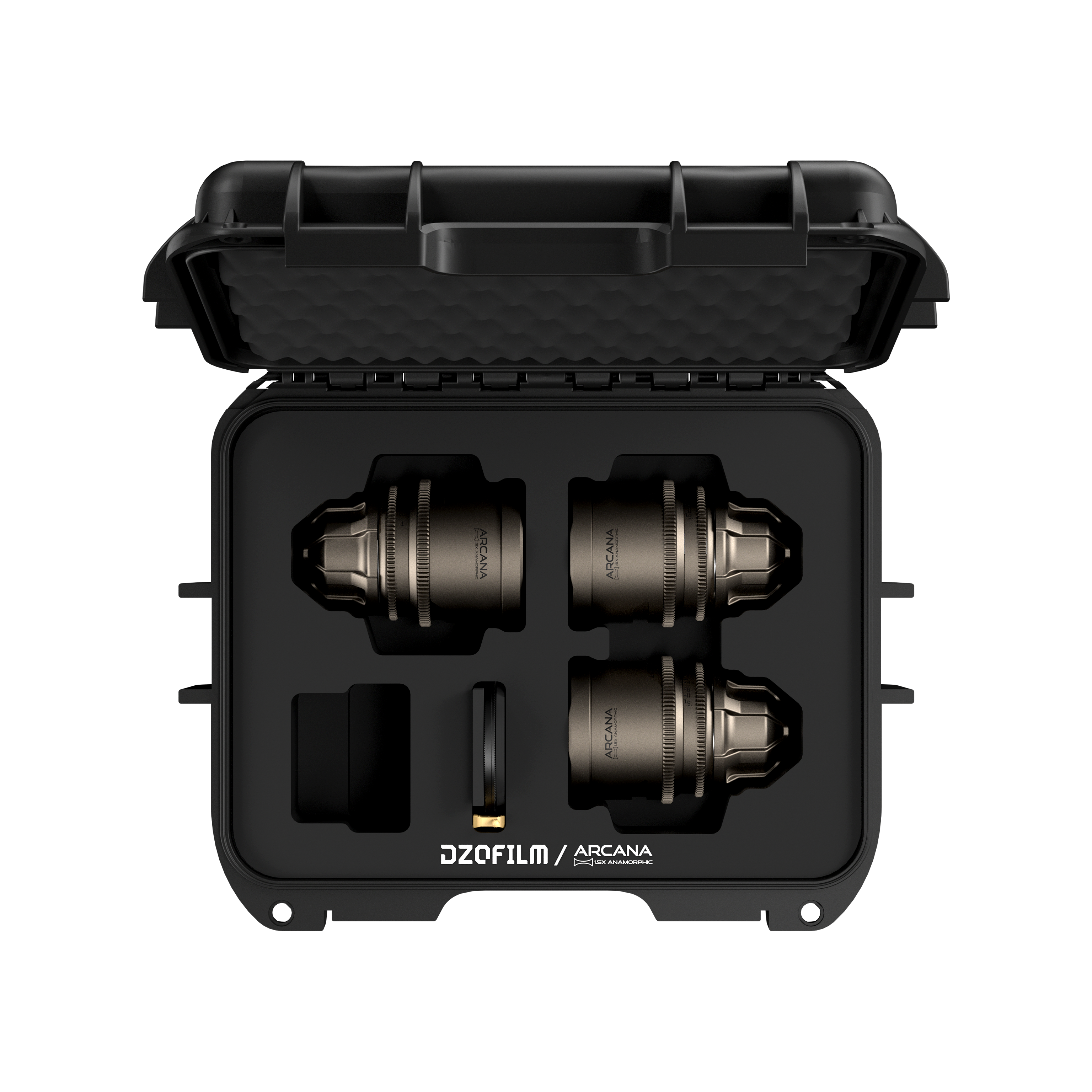

• 3-lens anamorphic prime set: 32mm, 45mm, 75mm
• Full-frame coverage with 43.3mm image circle
• 1.5× anamorphic squeeze for cinematic oval bokeh
• T2.1 constant aperture across all lenses
• Characteristic anamorphic flares with natural color response
• Unified compact design for easy gimbal use
• Consistent size, weight, and 77mm filter thread across set
• 270° focus rotation for precise manual control
• PL mount for professional cinema cameras
• Titanium finish with durable construction
