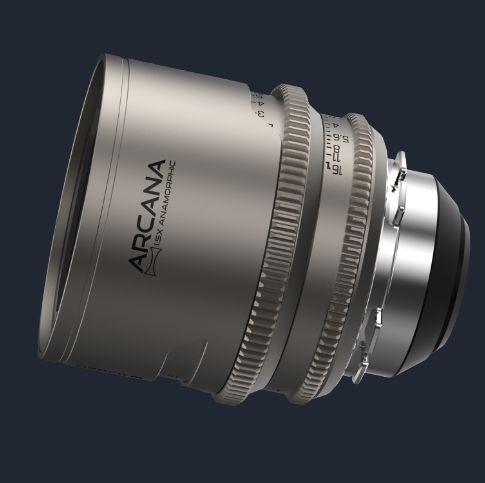

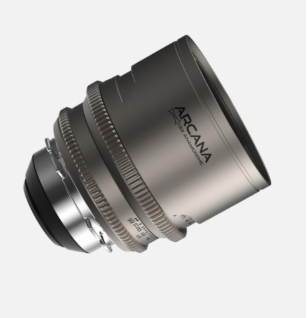

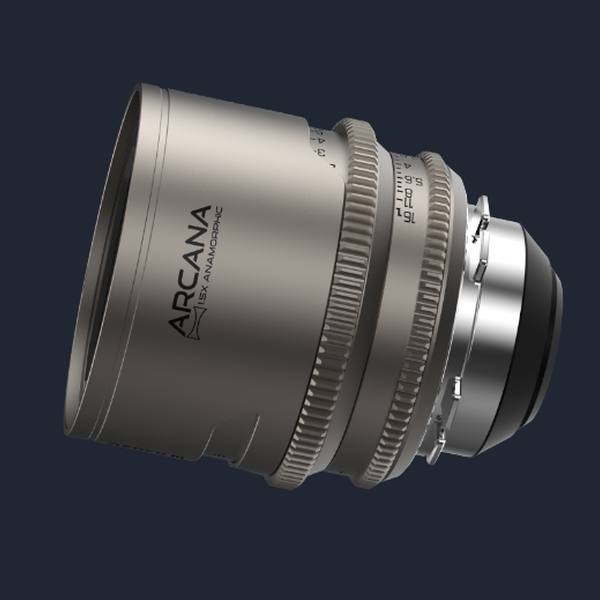

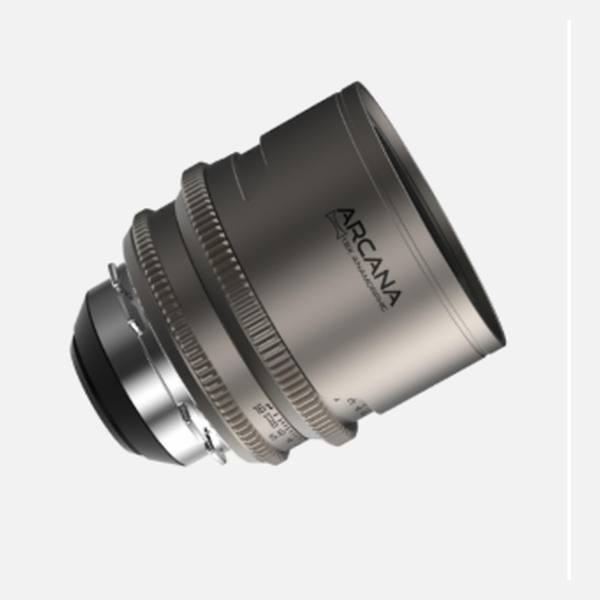

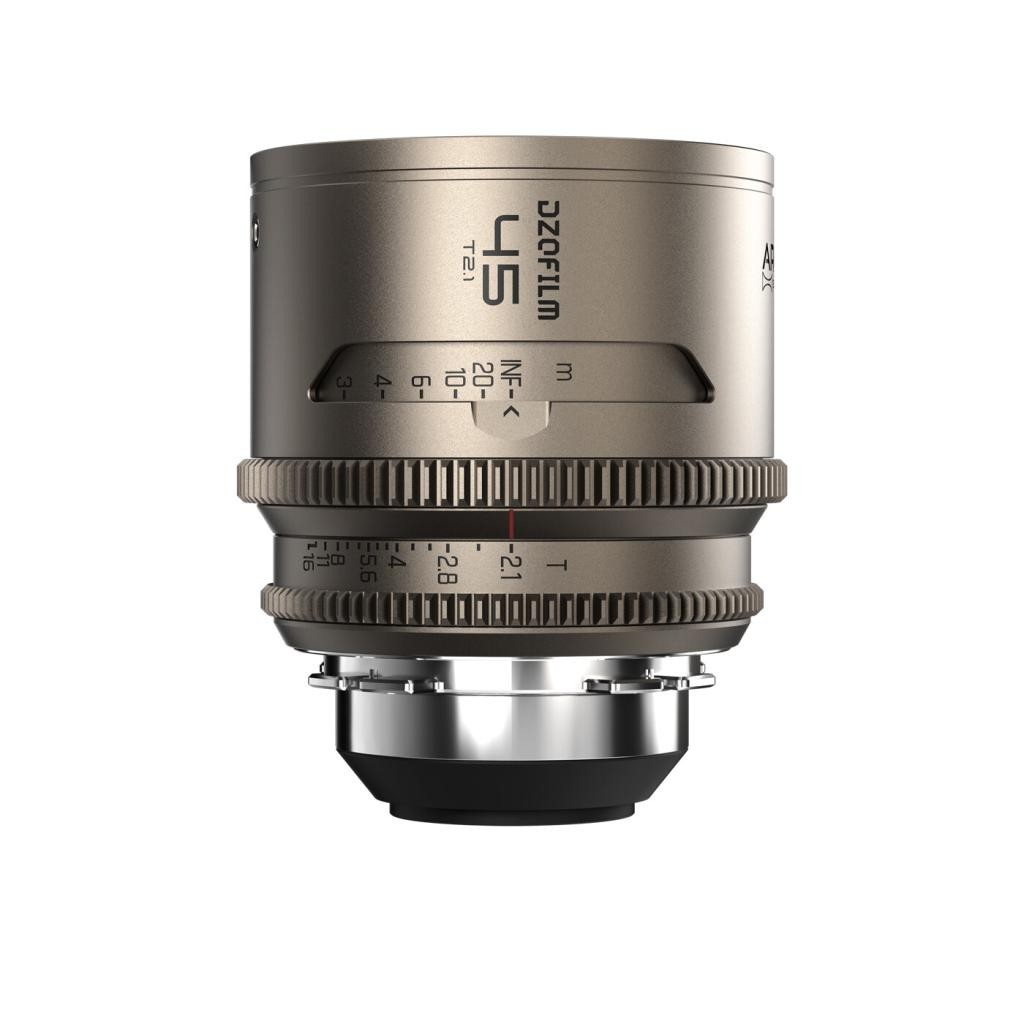

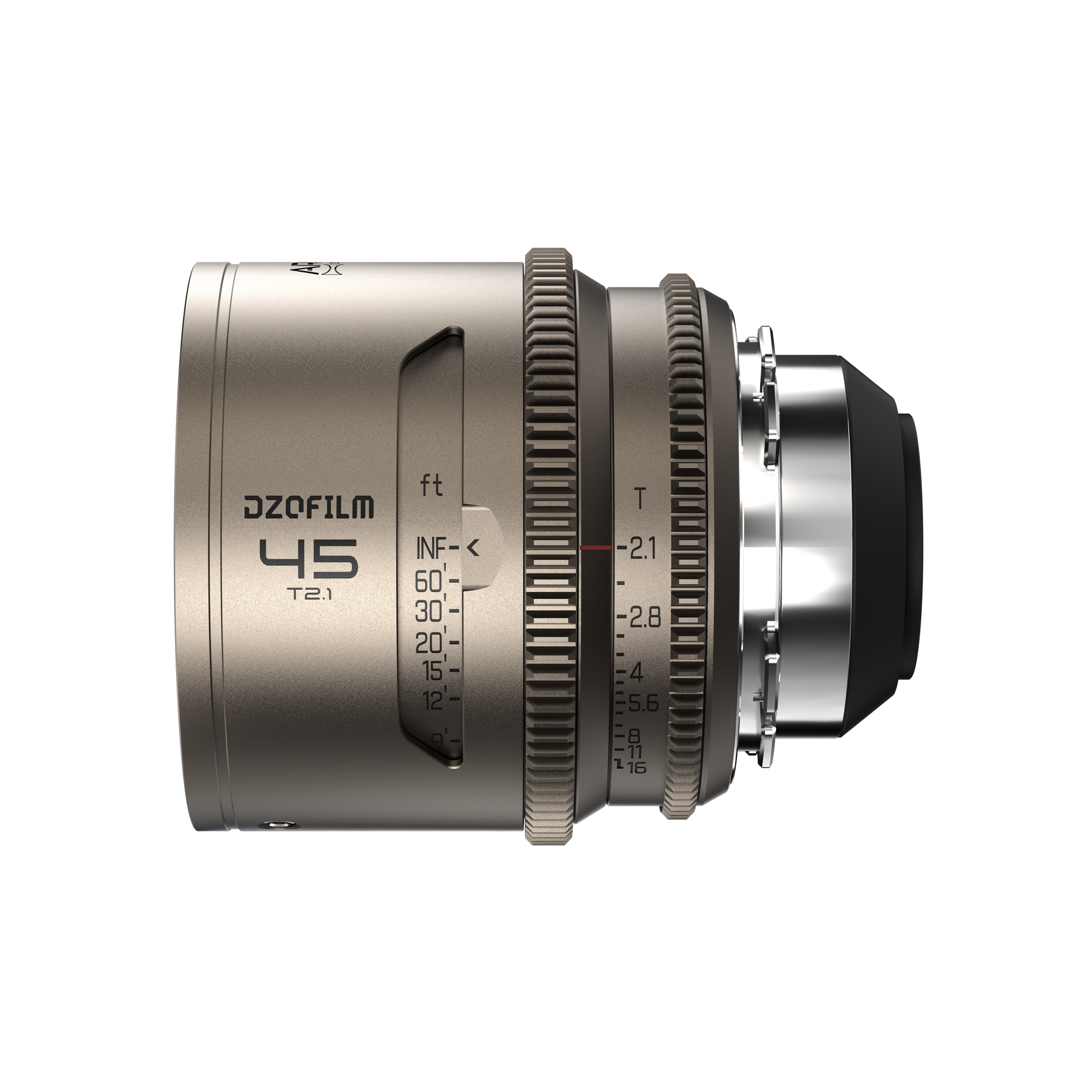

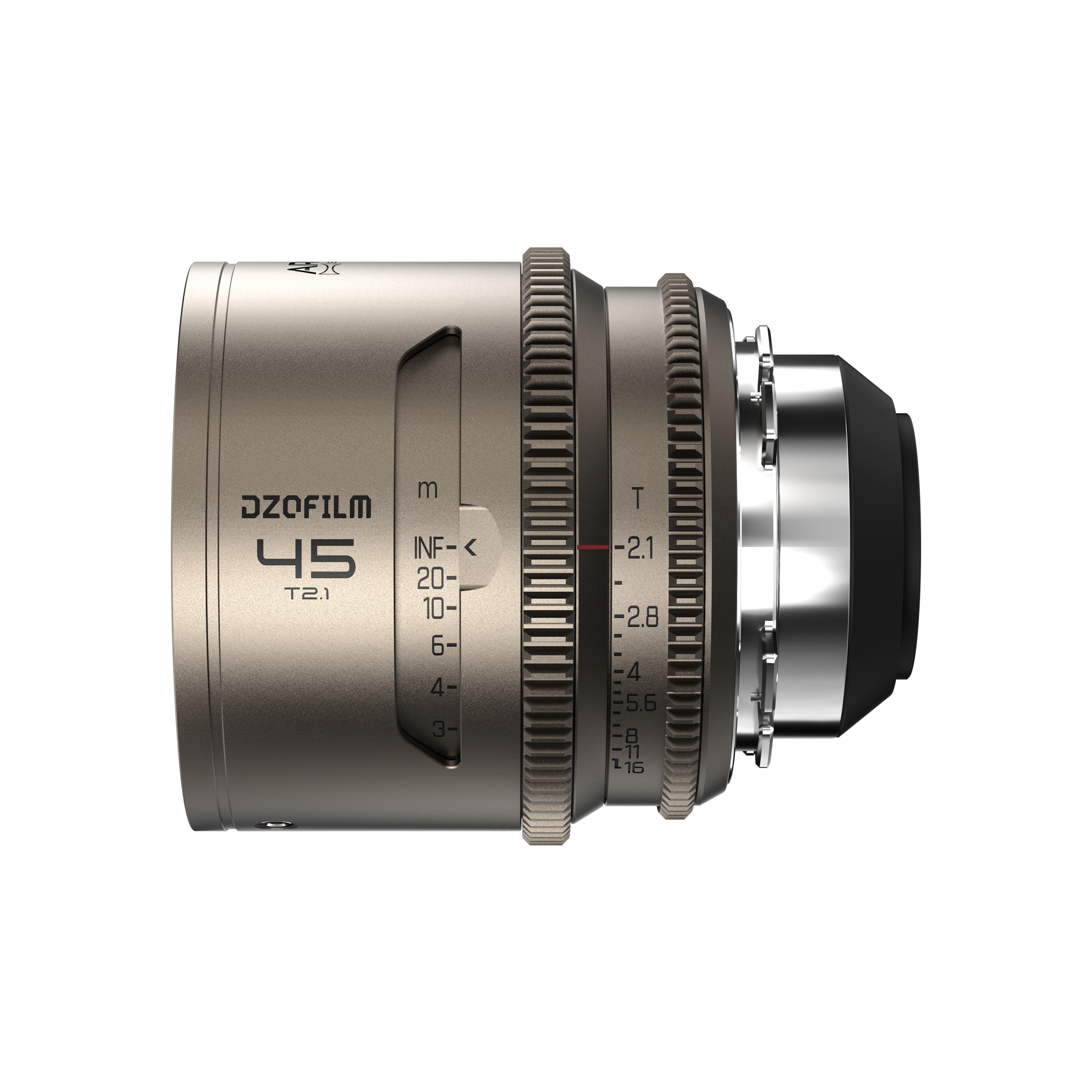

DZOFILM Arcana 45 mm T2.1 1.5× Anamorphic PL Lens (Metric)

ARCANA · 45 mm · PL

ANAMORPHIC NATURAL PERSPECTIVE

Arcana 45 mm pairs a 1.5× anamorphic look with an 80 mm compact length and 695 g weight—for full-frame coverage, handheld work and a balanced gimbal.

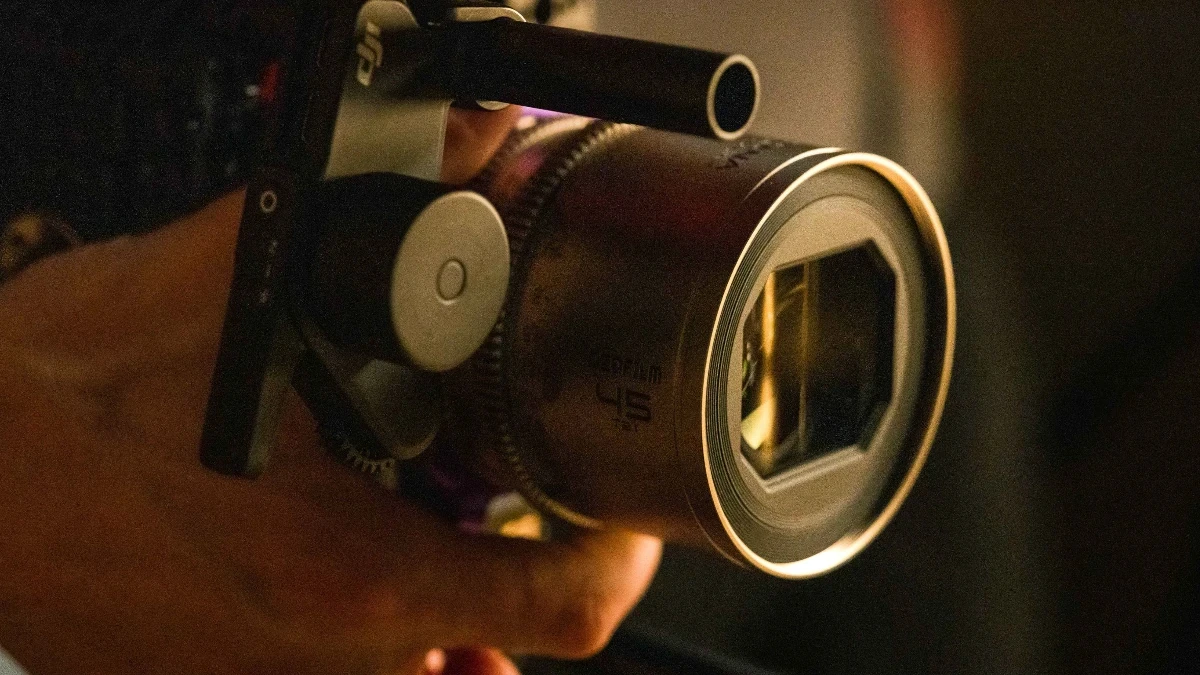

OFFICIAL ARCANA SERIES MATERIAL

This manufacturer image shows the Arcana series in a cinema setup and provides context for its compact form and on-set workflow.

OFFICIAL SERIES EXAMPLE

Official manufacturer footage presents the Arcana series character. Individual frames are not assigned to a specific focal length, so they are shown as examples of the full series.

The DZOFILM Arcana 45mm T2.1 Full-Frame 1.5× Hybrid Anamorphic Prime Lens is engineered for filmmakers seeking a perfect balance between cinematic character and modern optical performance. With its 1.5× anamorphic squeeze, the lens produces signature oval bokeh and a widescreen look comparable to traditional 2.0× anamorphic lenses, while remaining more practical for contemporary production workflows.

Its sophisticated optical construction of 15 elements in 13 groups—including cylindrical, ED, and high-refractive elements—ensures exceptional center sharpness and consistent edge-to-edge clarity. The distinctive coating design enhances flare behavior, allowing highlights to naturally adopt the color of the light source, adding artistic depth and realism to every shot.

The versatile 45 mm focal length makes this lens ideal for a wide range of scenes—from interviews to narrative filmmaking—offering a natural perspective with cinematic depth. With a close focusing distance of 0.53 m, it also supports more intimate compositions.

Designed for full-frame cameras with a ø43.3 mm image circle, the Arcana 45mm maintains a compact 80 mm length and lightweight 695 g build, ensuring seamless integration with gimbals and rigs without the need for rebalancing. The standardized 77 mm filter thread across the Arcana series simplifies accessory use on set.

Manual focus with a 270° rotation and smooth iris control provide precise, reliable handling for professional cinematography. Finished with a premium titanium coating, the lens combines durability with a refined aesthetic.

Key Features

• 1.5× anamorphic squeeze for cinematic widescreen imagery
• Signature oval bokeh and natural, color-reactive flares
• Full-frame coverage (ø43.3 mm image circle)
• Versatile 45 mm focal length for natural perspective
• Advanced optical design for high resolution and clarity
• Fast T2.1 aperture for low-light performance
• Compact, lightweight design ideal for gimbal setups
• Standardized 77 mm filter thread
• Smooth manual focus (270° rotation) and iris control
• Premium titanium finish
