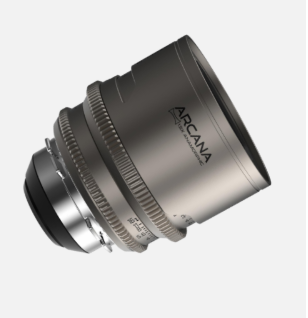

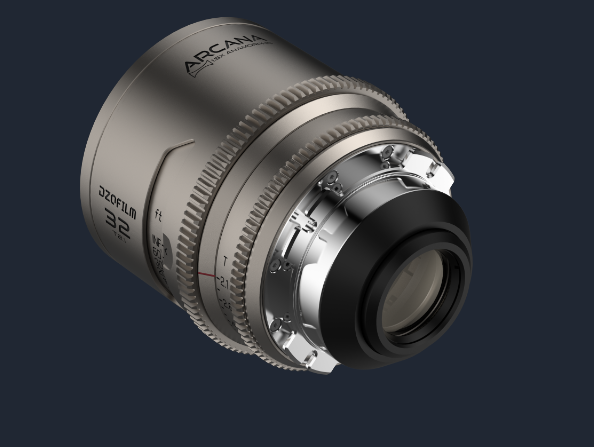

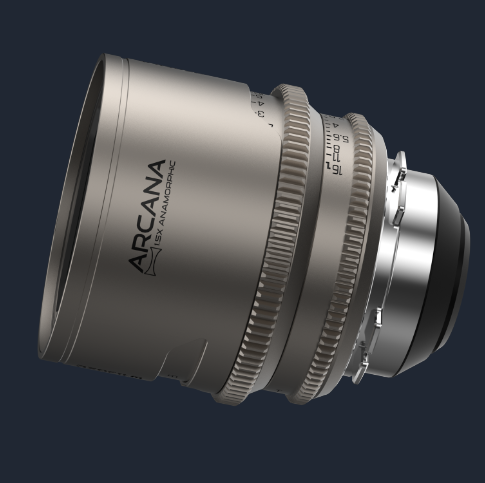

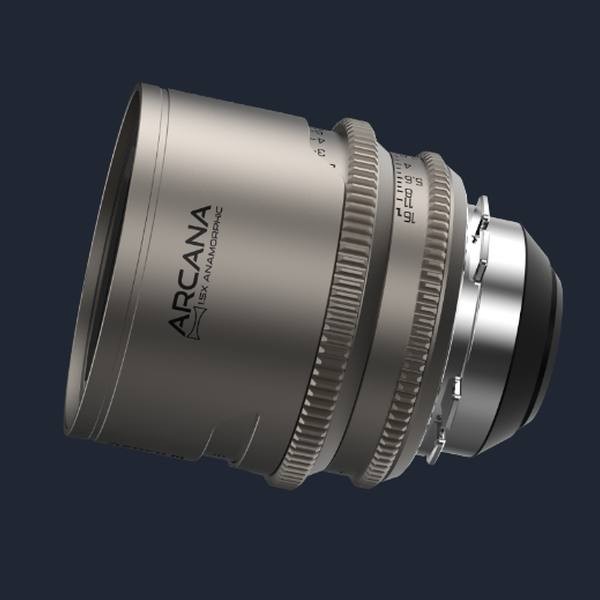

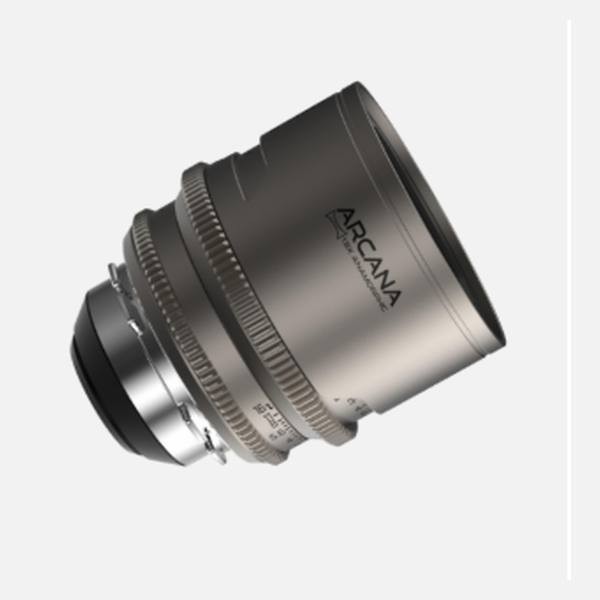

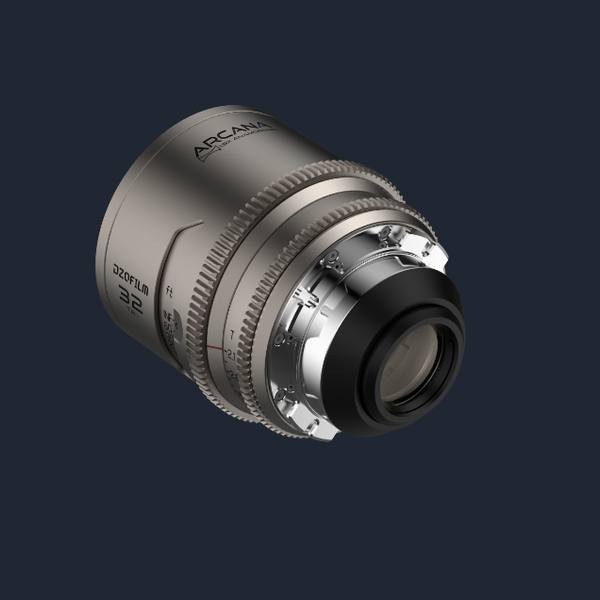

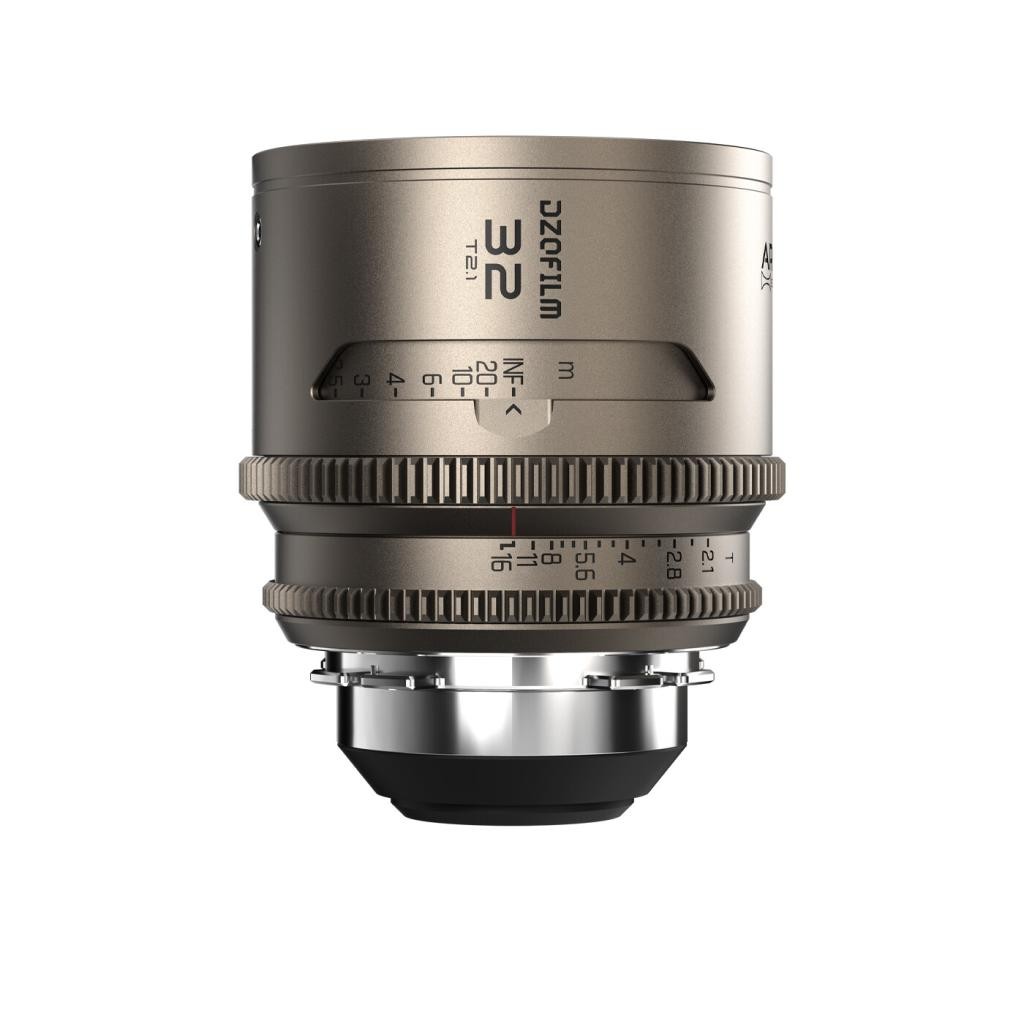

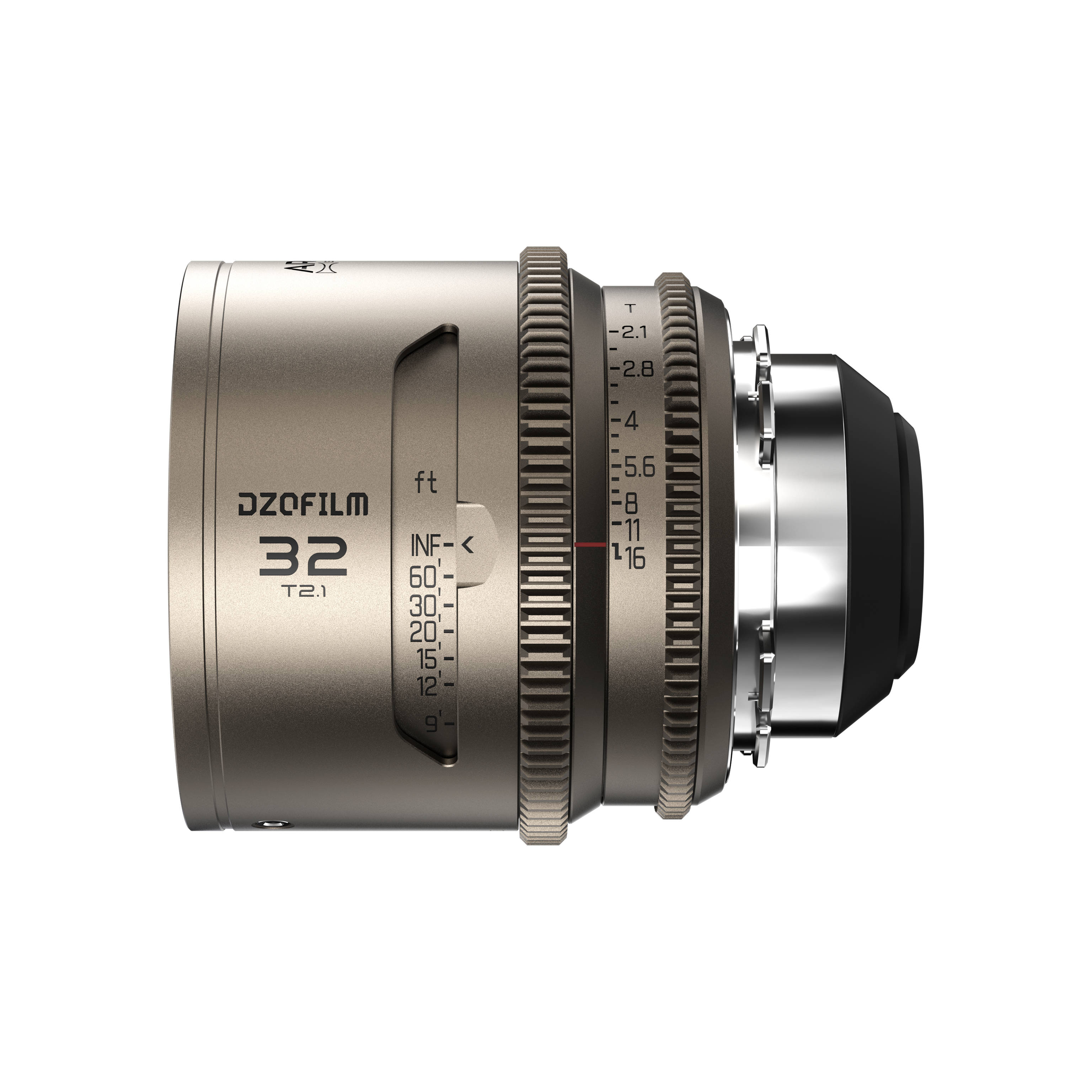

DZOFILM Arcana 32 mm T2.1 1.5× Anamorphic PL Lens (Metric)

DZOFILM Arcana 32 mm

The widest focal length in the Arcana series, for interiors, wide shots and handheld work. 80 mm long, 709 g, focuses down to 0.48 m.

ARCANA · 32 mm · PL · T2.1 · 1.5× · FULL FRAME

Anamorphic image

The 1.5× squeeze gives a wide cinematic frame with oval bokeh, and T2.1 copes with low light.

Compact build

The light body balances easily on a gimbal, and the whole Arcana series shares the same 77 mm filter thread.

COMPACT AND LIGHT

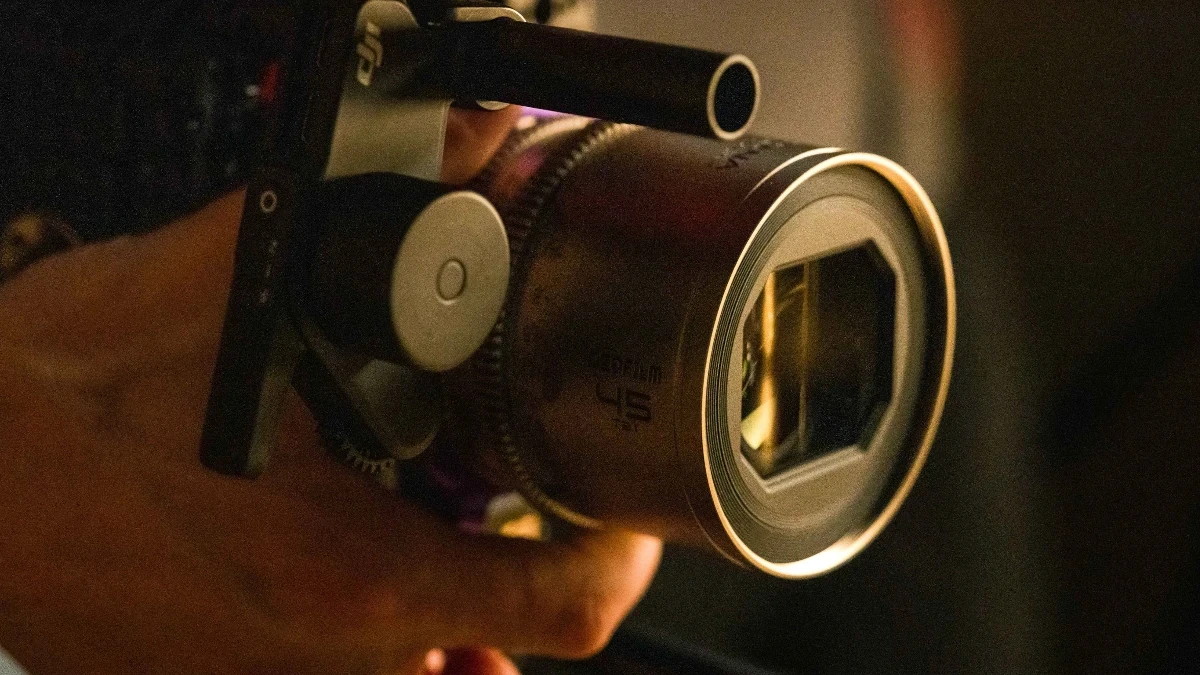

The all-aluminium body in a titanium-tone finish weighs about 700 g and is 80 mm long, so Arcana works handheld, on a gimbal and on the DJI Ronin 4D.

2× ANAMORPHIC-STYLE BOKEH

A 1.5× squeeze combined with an oval aperture gives the stretched bokeh of 2× anamorphics with less distortion. At T2.1 the subject separates cleanly from the background.

The DZOFILM Arcana 32mm T2.1 Full-Frame 1.5× Hybrid Anamorphic Prime Lens is designed for filmmakers who want a cinematic look with modern optical performance in a compact form factor. Featuring a 1.5× anamorphic squeeze, it produces the signature oval bokeh and widescreen aesthetic associated with classic anamorphic lenses, while remaining easier to integrate into contemporary workflows.

Its advanced optical construction of 15 elements in 13 groups—including cylindrical, ED, and high-refractive elements—ensures outstanding center resolution and consistent sharpness across the frame. The unique lens coating enhances flare behavior, allowing highlights to naturally reflect the color of the light source, adding character and depth to your footage.

With a wide 32mm focal length and close focusing distance of just 0.48 m, this lens is perfect for environmental shots, storytelling, and immersive compositions. The full-frame image circle (ø43.3 mm) ensures compatibility with modern cinema cameras, while the lightweight 709 g design and uniform 80 mm length make it ideal for gimbal setups without rebalancing.

Precision manual controls—including a 270° focus throw and smooth iris adjustment—provide filmmakers with accurate and reliable operation. Finished in a premium titanium coating, the Arcana 32mm combines durability with a refined, professional appearance.

Key Features

• 1.5× anamorphic squeeze for cinematic widescreen imagery
• Signature oval bokeh and expressive flare characteristics
• Full-frame coverage (ø43.3 mm image circle)
• Wide 32 mm focal length for immersive shots
• Advanced optical design for high resolution and edge clarity
• T2.1 fast aperture for low-light performance
• Compact, lightweight design ideal for gimbals
• Standard 77 mm filter thread across the Arcana series
• Smooth manual focus (270°) and iris control
• Premium titanium finish
