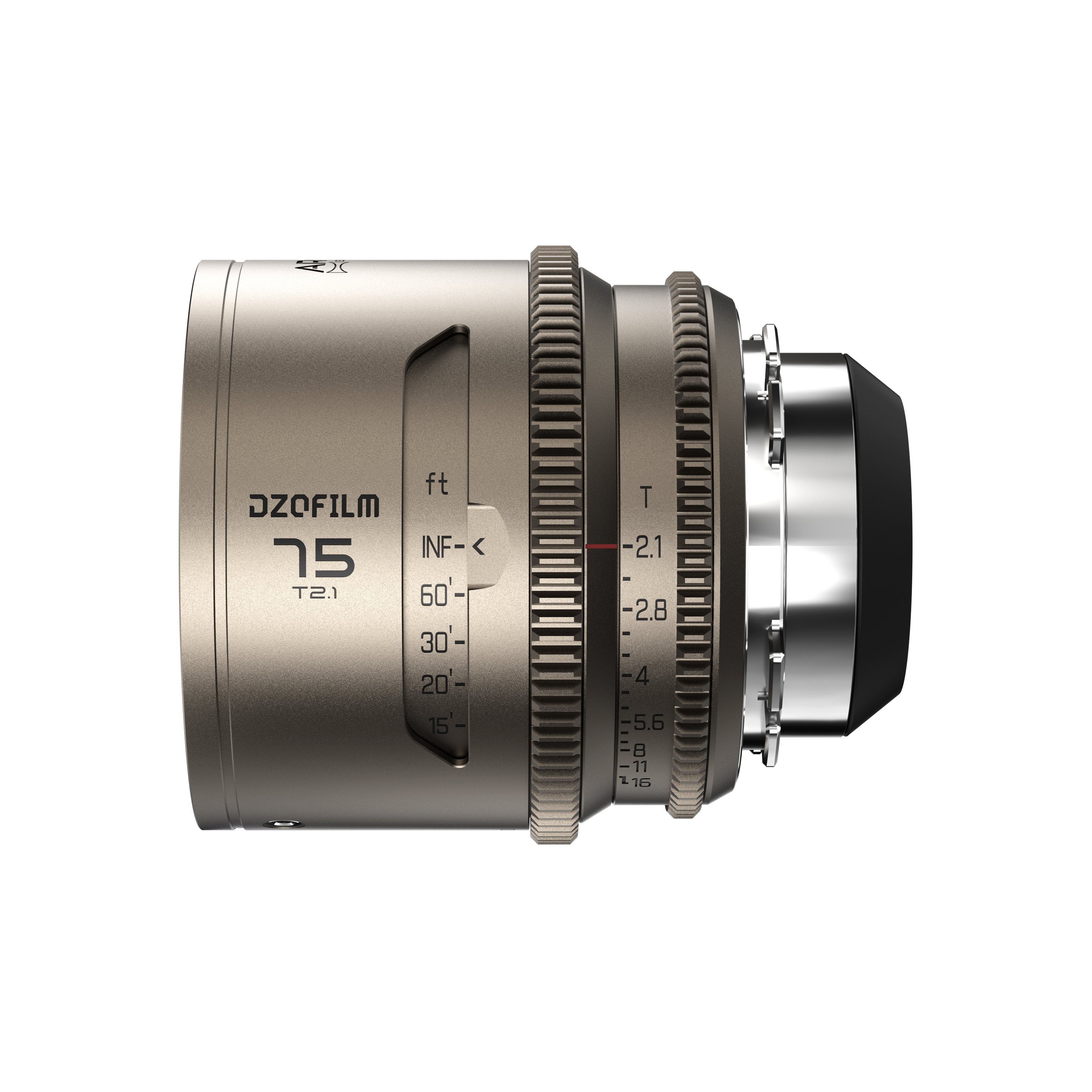

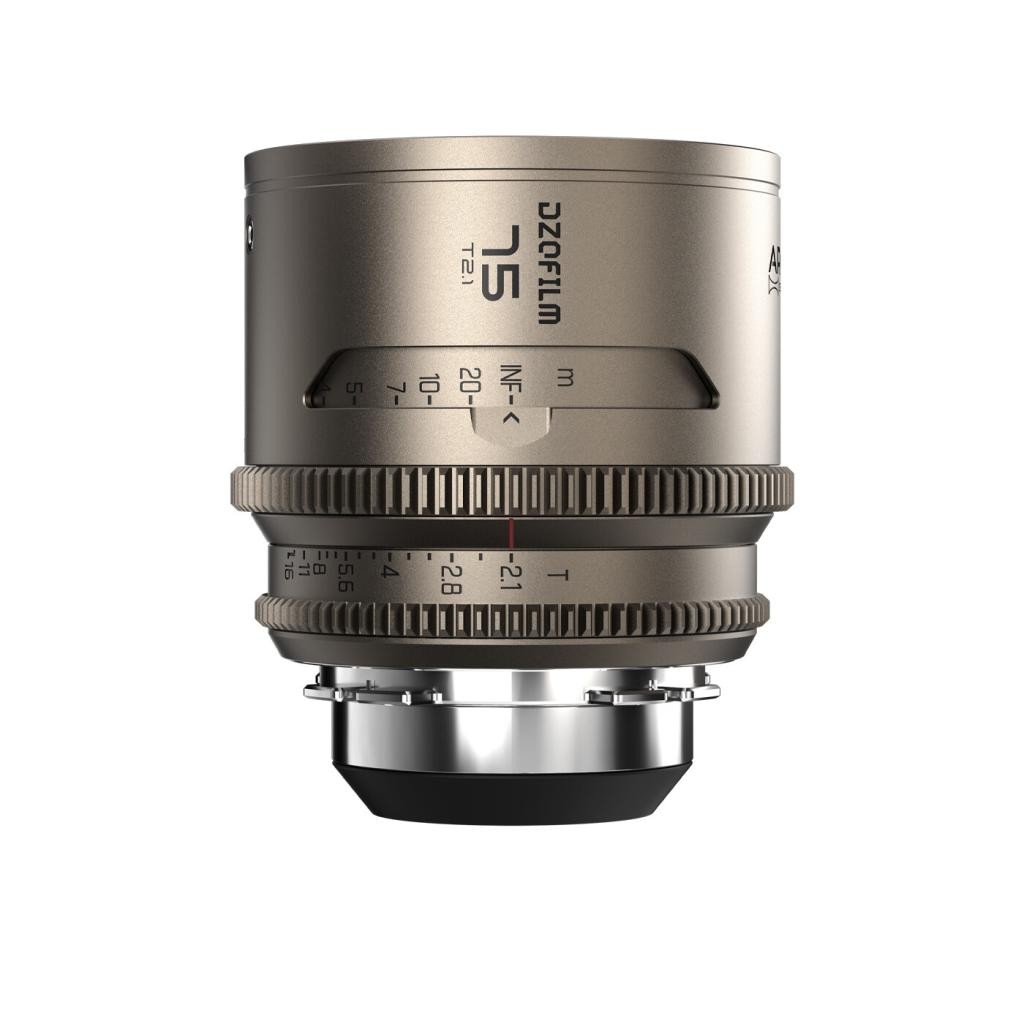

DZOFILM Arcana 75 mm T2.1 1.5× Anamorphic PL Lens (Metric)

ARCANA · 75 mm · PL

1.5× ANAMORPHIC · FULL FRAME

OFFICIAL ARCANA SERIES MATERIAL

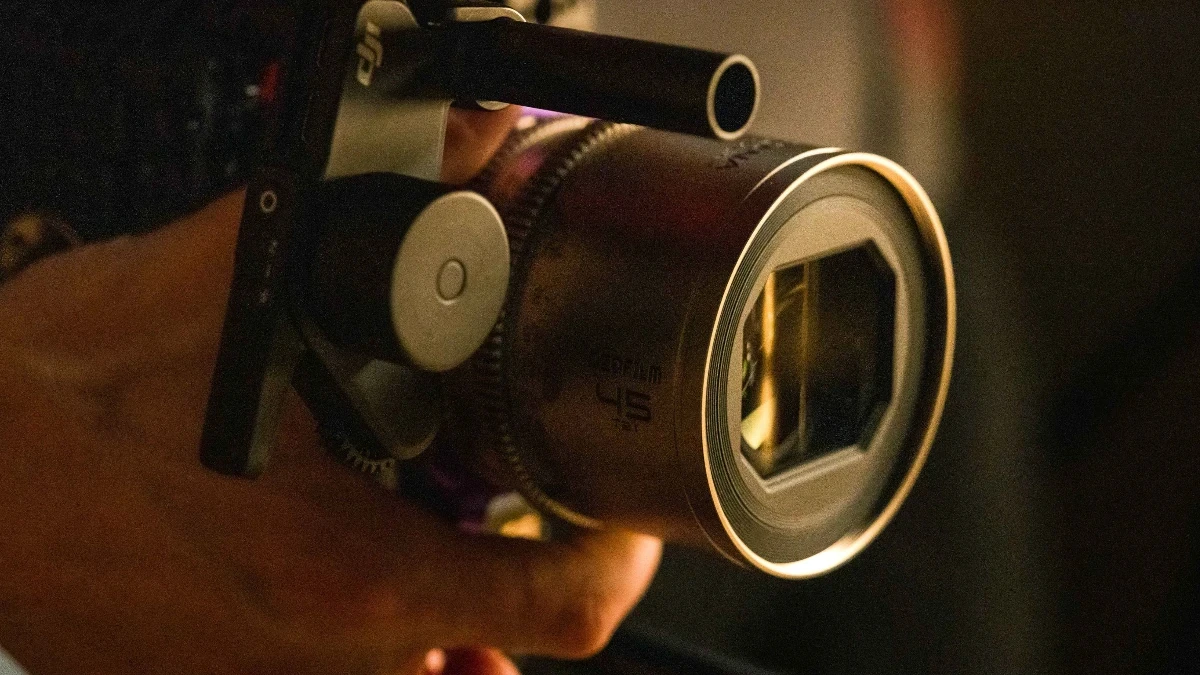

This manufacturer image shows the Arcana series in a cinema setup and provides context for its compact form and on-set workflow.

OFFICIAL SERIES EXAMPLE

Official manufacturer footage presents the Arcana series character. Individual frames are not assigned to a specific focal length, so they are shown as examples of the full series.

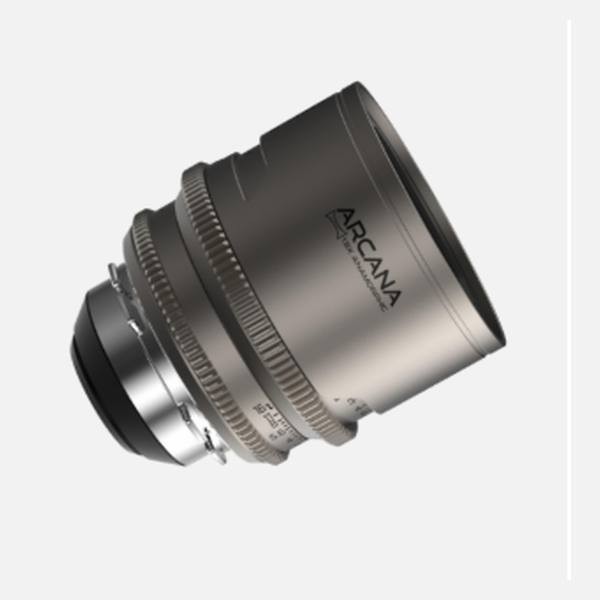

The DZOFILM Arcana 75mm T2.1 Full-Frame 1.5× Hybrid Anamorphic Prime Lens is crafted for filmmakers seeking a cinematic look with modern optical precision. Featuring a 1.5× anamorphic squeeze, this lens produces signature oval bokeh and immersive widescreen imagery, closely resembling the aesthetic of traditional 2.0× anamorphic lenses while maintaining easier workflow compatibility.

Its advanced optical design—comprising 15 elements in 11 groups, including cylindrical, ED, and high-refractive elements—ensures excellent center sharpness with consistent edge-to-edge clarity. The lens also features a unique coating that allows light sources to produce natural, color-rich flares, enhancing the visual storytelling experience.

Designed for full-frame coverage with a 43.3 mm image circle, the Arcana 75mm is both compact and lightweight at just 709 g, making it ideal for handheld shooting and gimbal setups without requiring rebalancing. The unified 77 mm filter thread and consistent physical dimensions across the Arcana series streamline workflow on set.

With precise manual control, including a 270° focus rotation and smooth iris adjustment, this lens offers the control and reliability demanded in professional cinema production. Its premium titanium finish adds durability and a refined aesthetic, making it as robust as it is visually striking.

Key Features

• 1.5× anamorphic squeeze for cinematic widescreen look
• Produces oval bokeh and expressive, natural flares
• Full-frame coverage with ø43.3 mm image circle
• Advanced optical design for high sharpness and clarity
• T2.1 fast aperture for low-light performance
• Compact, lightweight design ideal for gimbals
• Standardized 77 mm filter thread
• Smooth manual focus (270°) and iris control
• Durable, premium titanium finish
