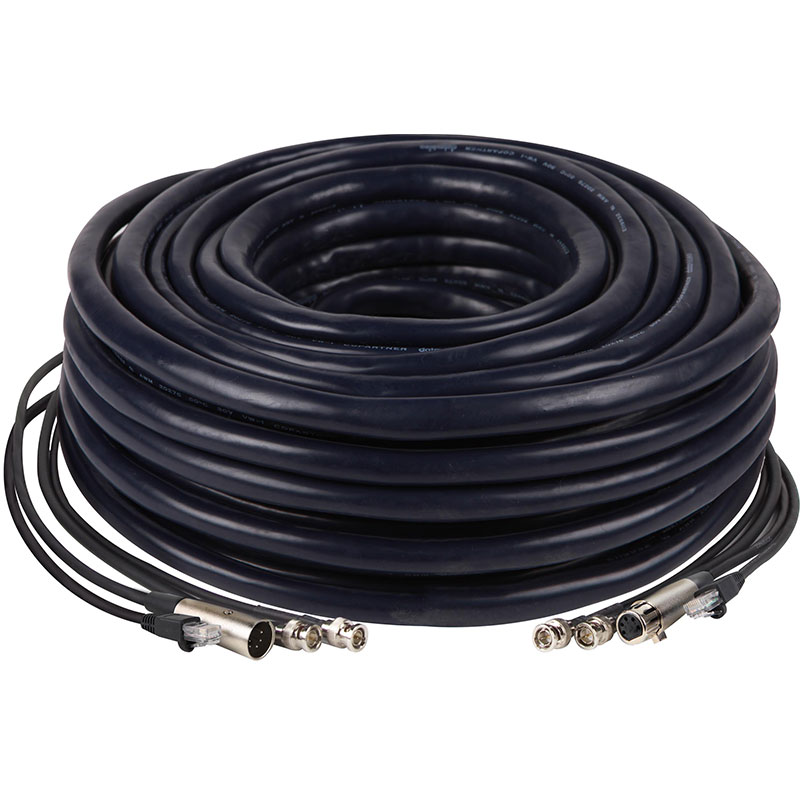

Datavideo CB-30 30m 4-in-1 Multi-Camera Control Cable

The Datavideo CB-30 is a 30 m, 4-in-1 cable for multi-camera production. One jacket contains a 75 Ω BNC line for HD/SD-SDI video, a second 75 Ω BNC line for composite CV return video, CAT-5 camera control with an RJ45 connector, and a 5-pin XLR line for intercom and tally. The RJ45 connection supports RMC-180 or Ethernet control. The CB-30 is compatible with EFP multi-camera workflows and mobile video studios, carrying HD/SD-SDI video up to 1080i. It does not carry power, so the camera and other equipment must be powered separately. Routing picture, return video, camera control and intercom/tally through one 30 m cable keeps the camera run organized between the production position and the studio floor.

Multi-camera system cable · 30 m

FOUR SIGNAL PATHS. ONE CABLE.

Carry camera video, return video, camera control and intercom/tally through one 30 m cable. Connected equipment needs separate power.

30 mHD/SD-SDI up to 1080i

ONE CAMERA RUN FOR THE STUDIO

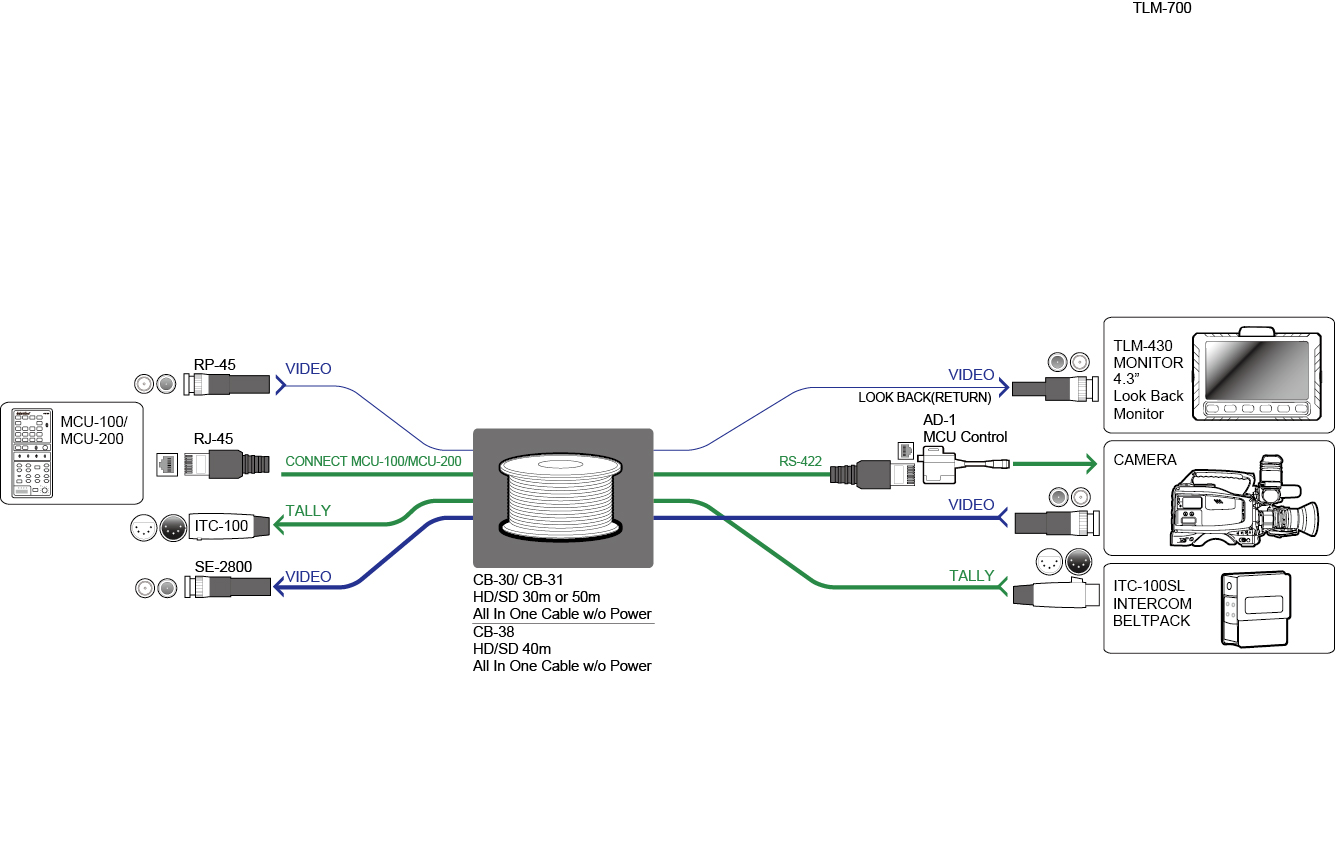

The diagram shows four signal paths between the camera and the production position.

HD/SD-SDI: camera videoComposite CV: return videoCAT-5 / RJ45: camera control5-pin XLR: intercom and tally
