Datavideo CB-31 50 m 4-in-1 multi-camera control cable

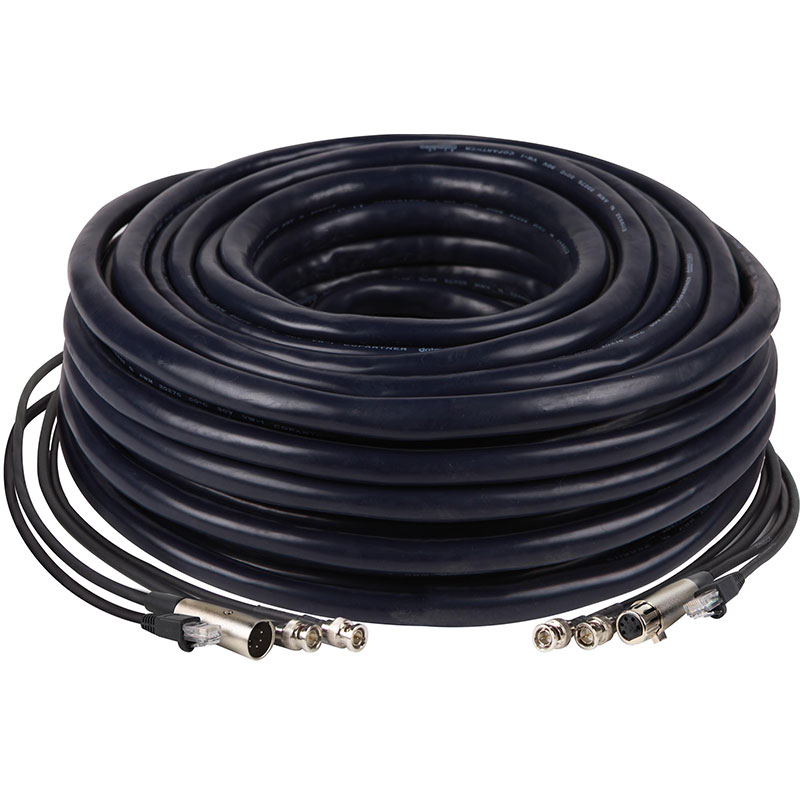

The Datavideo CB-31 is a 50 m 4-in-1 cable for multi-camera production. One cable assembly carries HD/SD-SDI video over 75Ω BNC, composite CV return video over a second 75Ω BNC, camera control over CAT-5 with an RJ45 connector, and intercom/tally over 5-pin XLR. The RJ45 connection works with the RMC-180 or Ethernet camera control. CB-31 is suitable for EFP multi-camera operation and mobile video studios, with HD/SD-SDI transmission up to 1080i. The cable does not carry power, so connected equipment needs separate power. One 50 m run keeps the four signal paths together between the camera and production position.

Datavideo · 50 m · 4-in-1 cable

FOUR SIGNALS. ONE 50 M CABLE.

Connect the camera to the production position with one 50 m cable for video, return video, camera control and intercom/tally. Suitable for EFP multi-camera operation and mobile video studios. Connected equipment needs separate power.

50 mHD/SD-SDI up to 1080i

CAMERA TO PRODUCTION

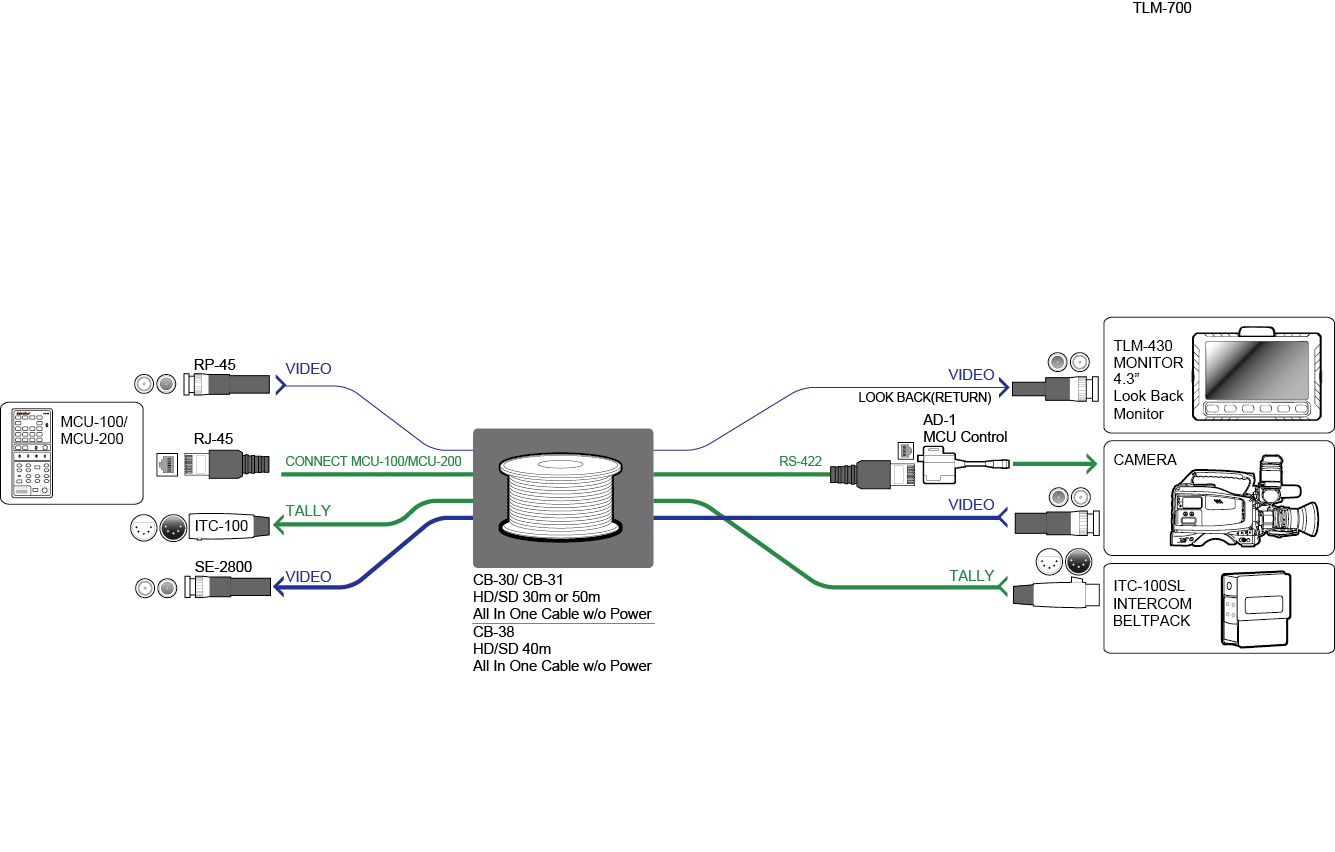

The diagram shows four signal paths between the camera and production position; the key explains its labels.

HD/SD-SDI: camera videoCV: return videoCAT-5 / RJ45: camera control5-pin XLR: intercom and tally
