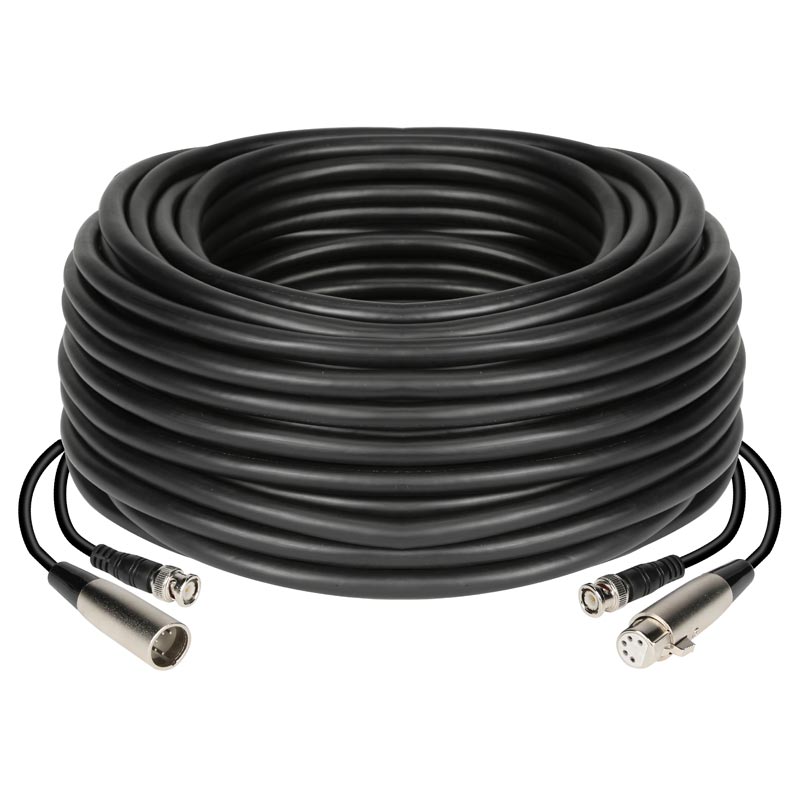

Datavideo CB-46 HD/SD 30 m 2-in-1 Cable (HD-SDI/ITC)

Datavideo CB-46 is a 30 m combined cable for connecting a camera position to a compatible Datavideo mobile or portable video studio. Its two integrated lines carry HD/SD-SDI video through a 75 Ω BNC connection and intercom/tally through a 5-pin XLR, reducing the separate cable runs needed between camera and production desk. It supports video transmission up to 1080i; for 1.5G SDI transmission, use a compatible Datavideo repeater such as VP-633, VP-634 or VP-781.

Two signal paths in one cable

CB-46 connects a camera position to a compatible Datavideo mobile or portable video studio. One 30 m cable carries HD/SD-SDI video over BNC and intercom with tally over 5-pin XLR.

Two dedicated lines reduce the separate cable runs between camera and production desk.

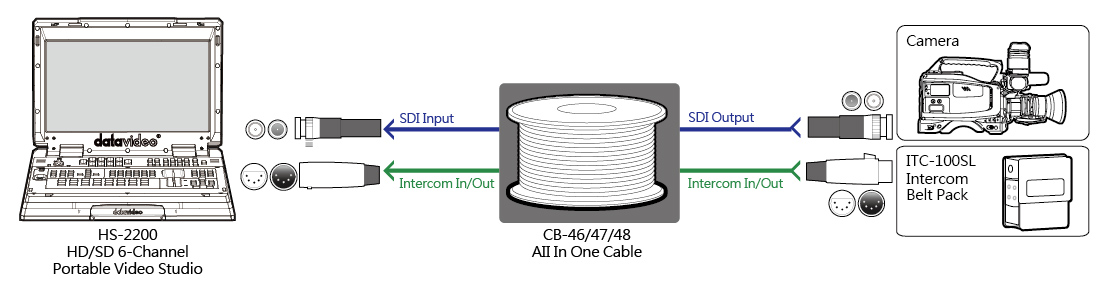

Camera-position connection

The diagram shows the video and intercom/tally paths between a camera and the production position. CB-46 carries HD/SD-SDI up to 1080i. For 1.5G SDI transmission, a compatible Datavideo VP-633, VP-634 or VP-781 repeater is required.

Main video: HD/SD-SDI · 75 Ω BNCIntercom and tally: 5-pin XLRUp to 1080i · 1.5G SDI with repeater
