Blackmagic StudioBridge 100G

  • Free transport
SKU: CONVNVIPR/SBD100X2

The Blackmagic Design StudioBridge 100G is a 1RU IP video bridge designed to integrate one or two high-bandwidth camera signals into a redundant 100G broadcast infrastructure.

More information

2 739 € with VAT 2 263.64 € without VAT
Add to Compare Price history
Availability
on request
SKU:
CONVNVIPR/SBD100X2
Add to Compare Price history

Blackmagic StudioBridge 10G PWR

2 739 €without VAT 2 263.64 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Blackmagic Design StudioBridge 100G is a 1RU IP video bridge designed to integrate one or two high-bandwidth camera signals into a redundant 100G broadcast infrastructure.

SMPTE 2110 · 100GbE bridge

Redundant 100G backbone for one or two camera streams

StudioBridge 100G connects high-capacity IP camera outputs to a redundant 100GbE broadcast network. It consolidates 4K60 SMPTE 2110, SMPTE 2022-7 redundancy, and convenient front-panel monitoring into a single rack space.

2× 100GbEQSFP28 SMPTE 2022-7

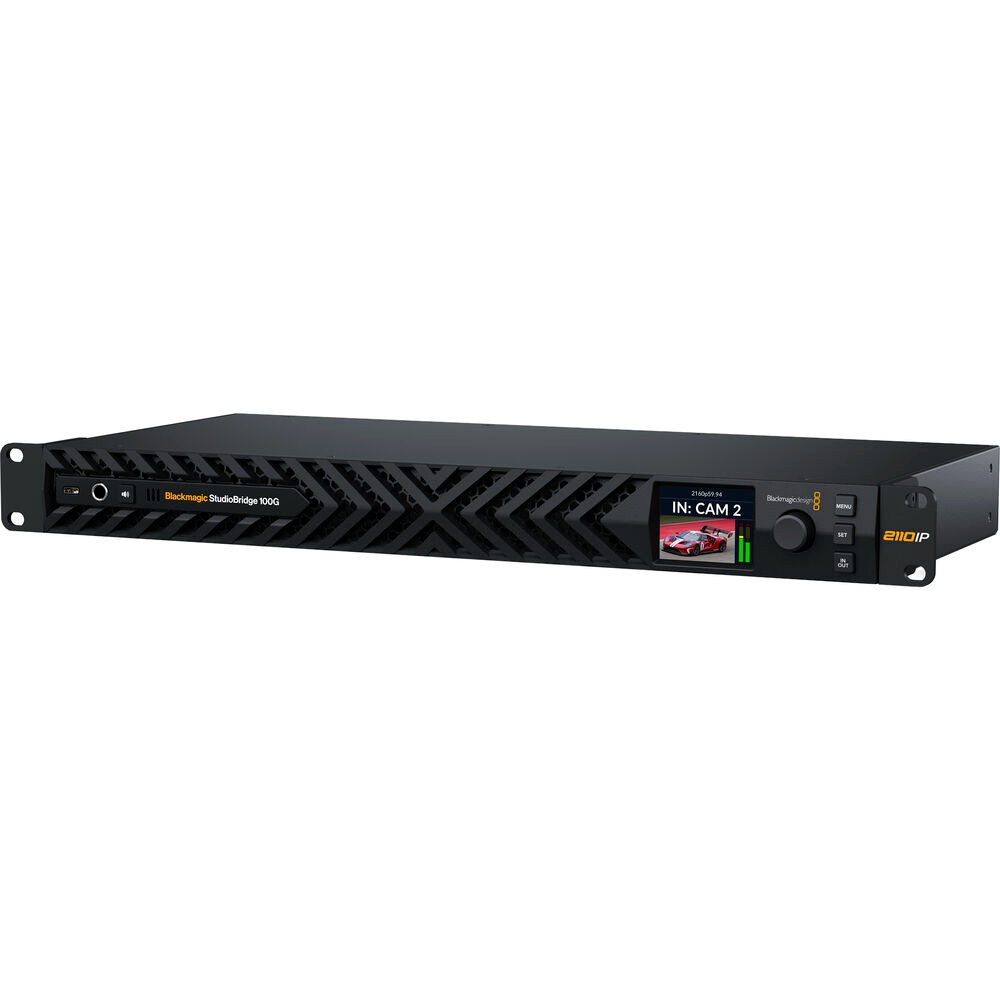

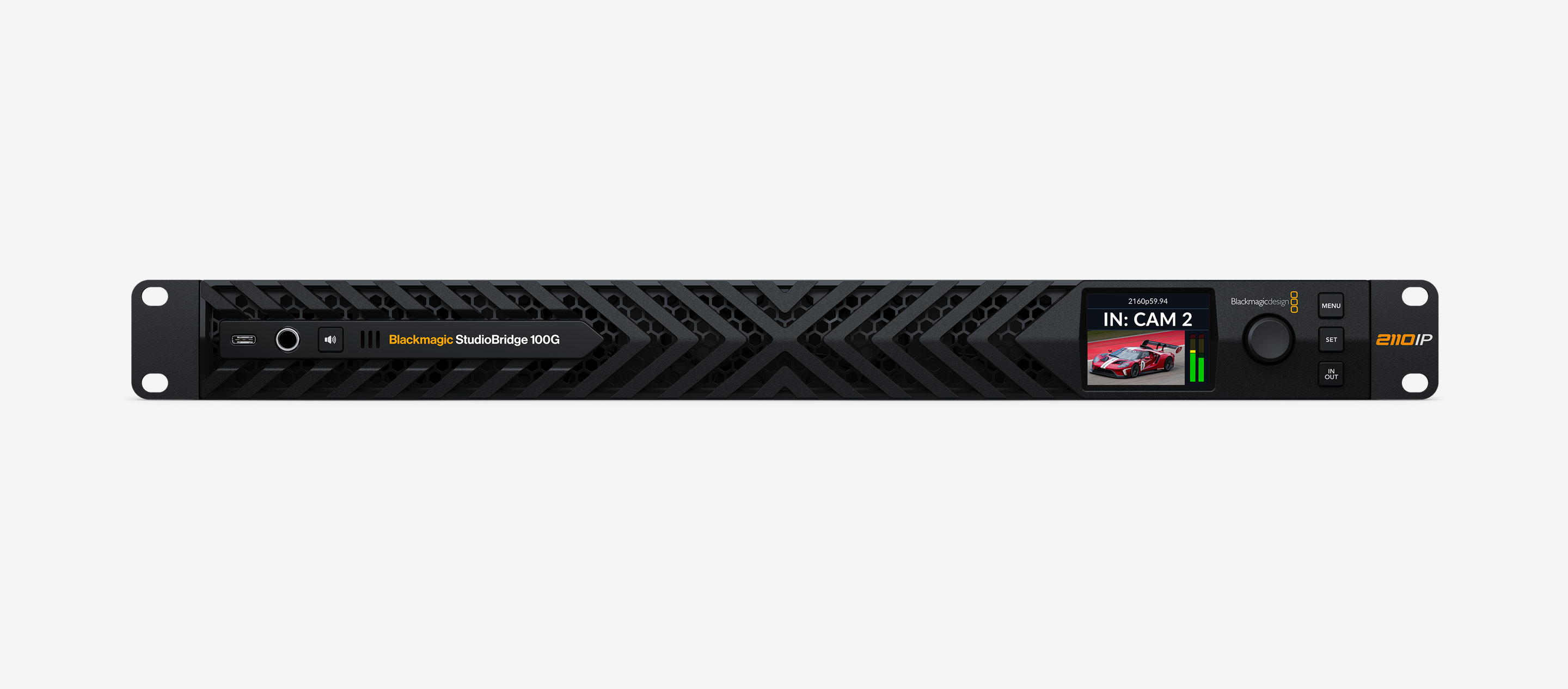

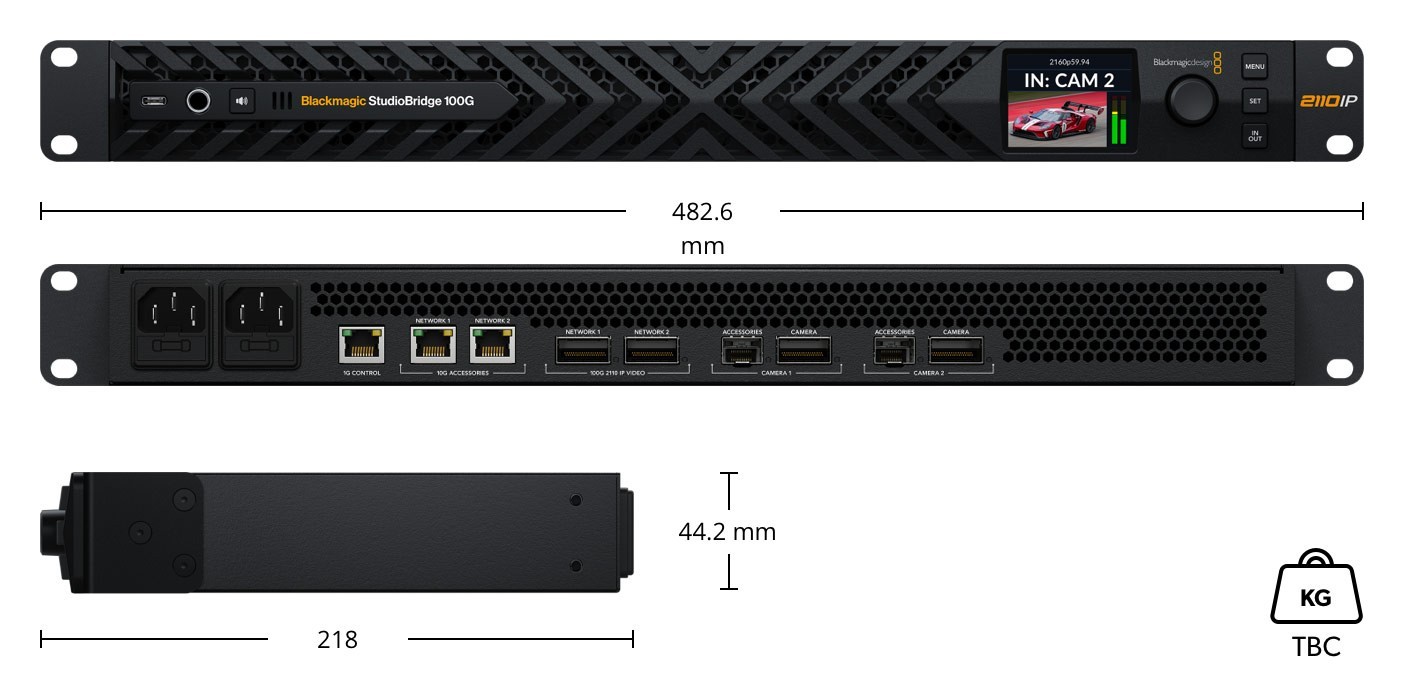

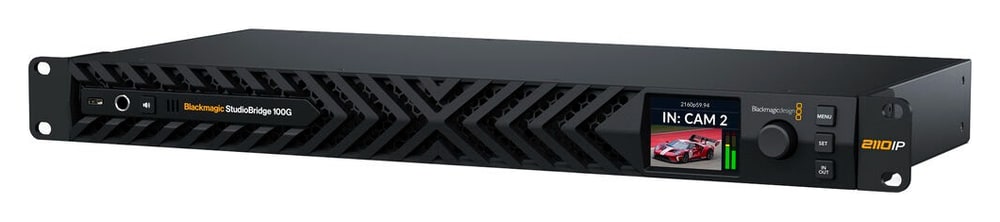

Blackmagic StudioBridge 100G – front view

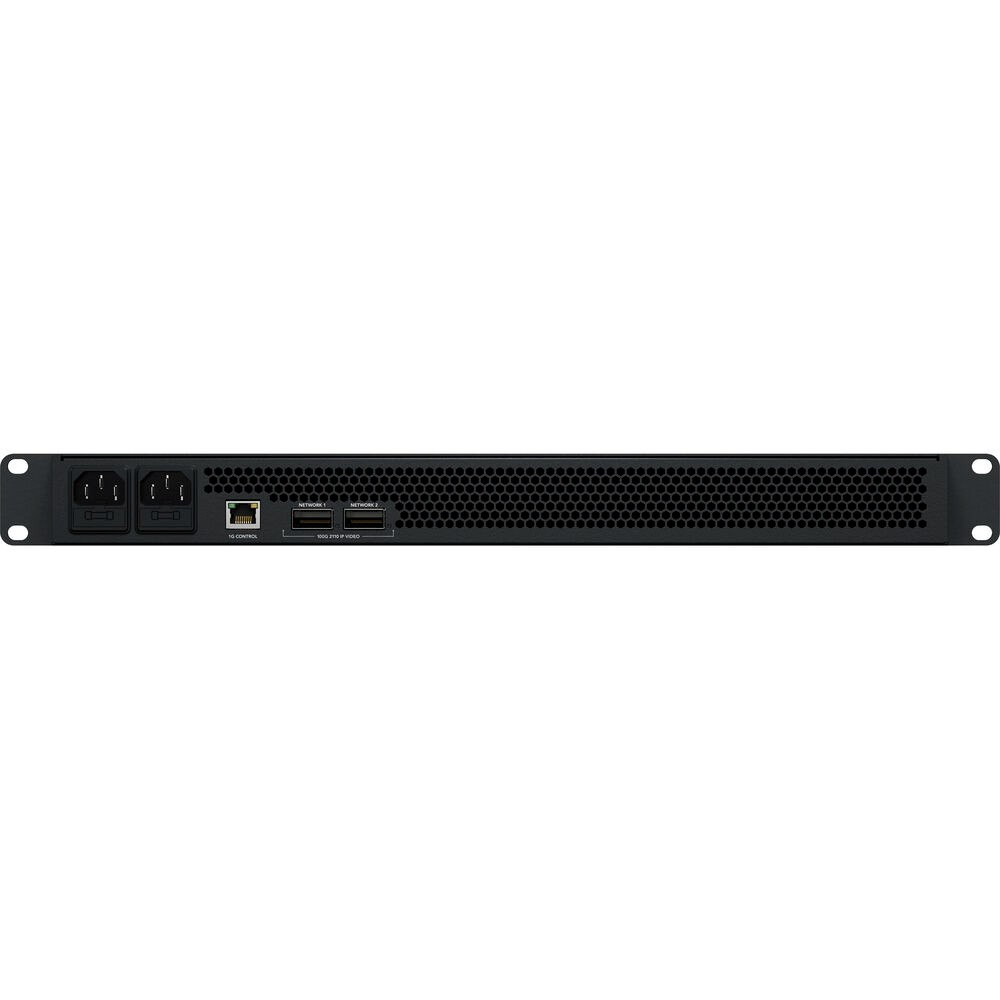

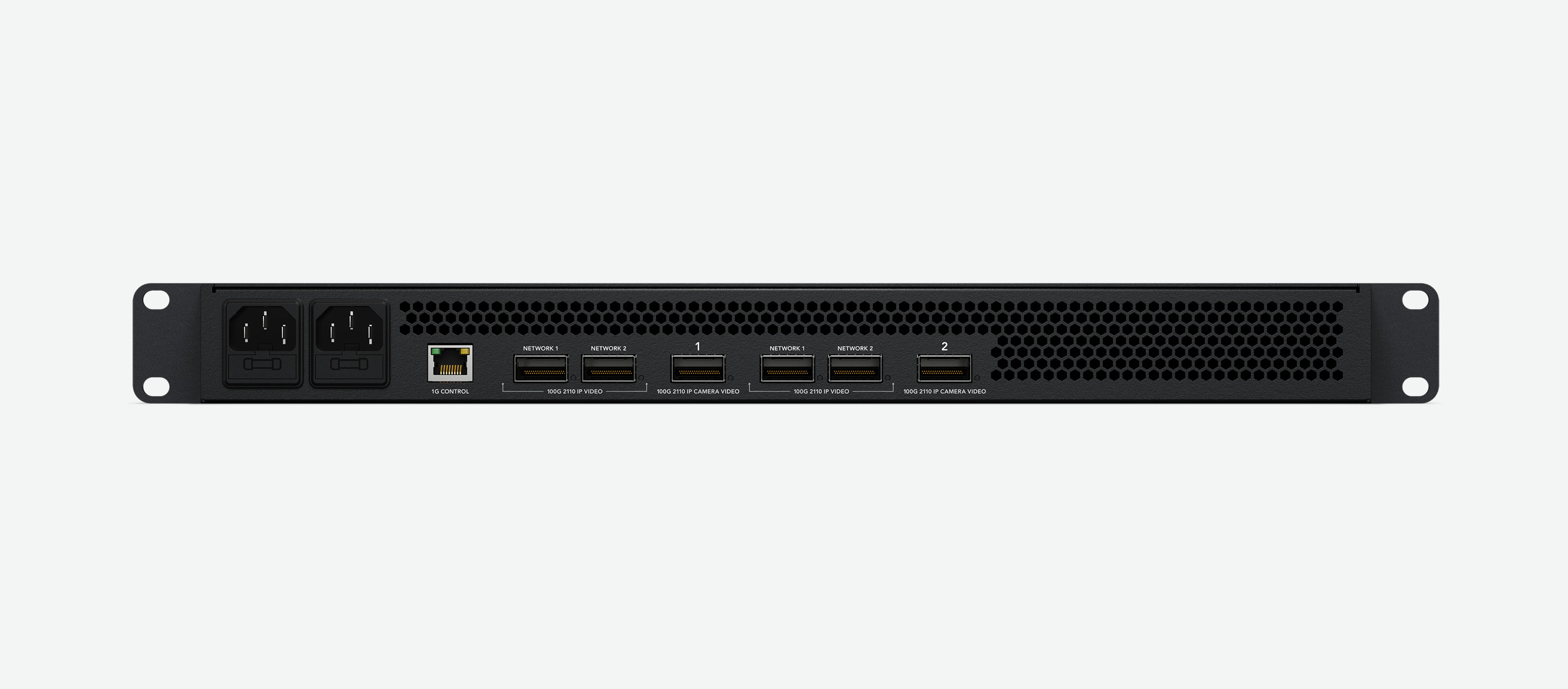

Blackmagic StudioBridge 100G – rear view

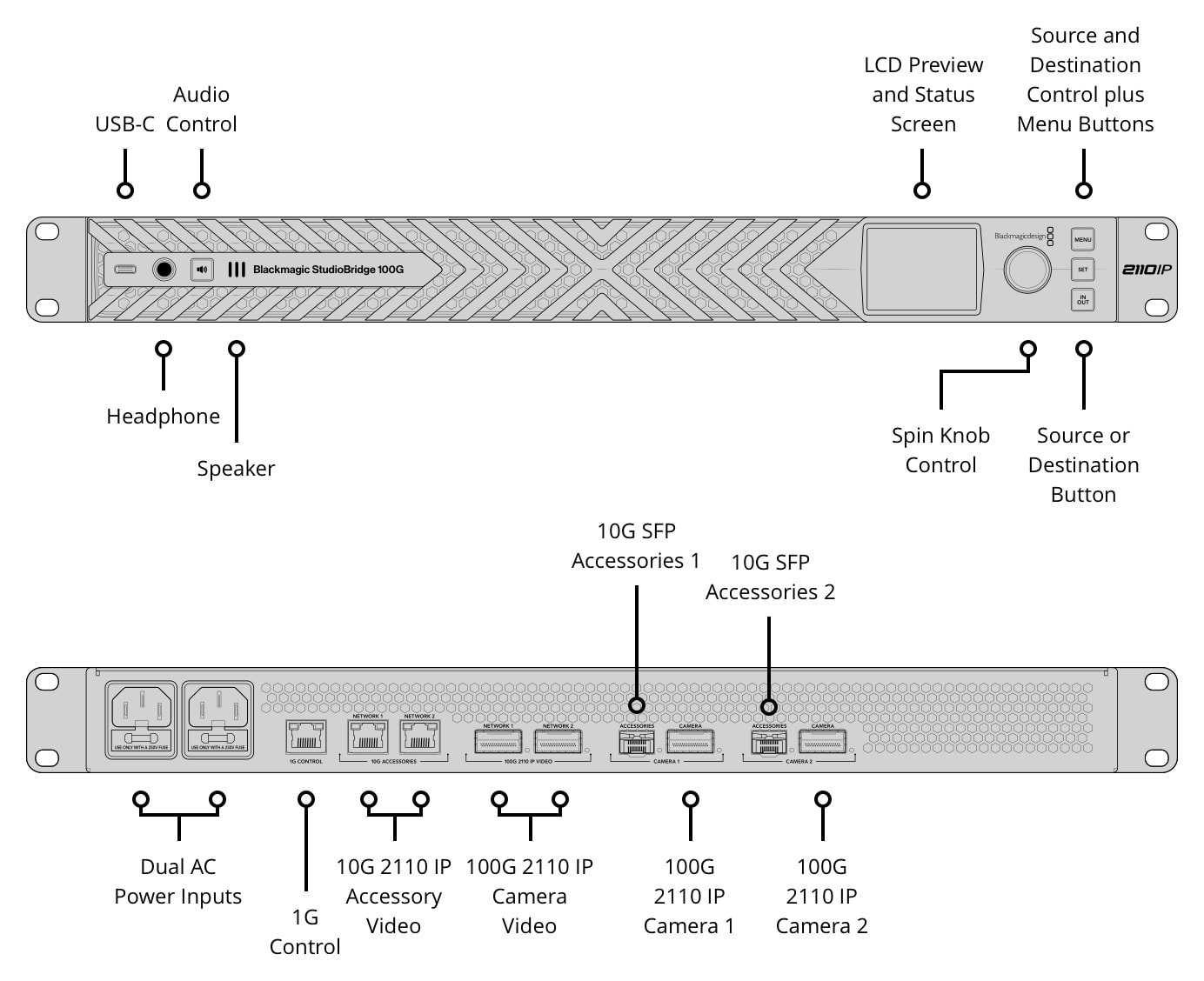

Connecting Cameras and Infrastructure

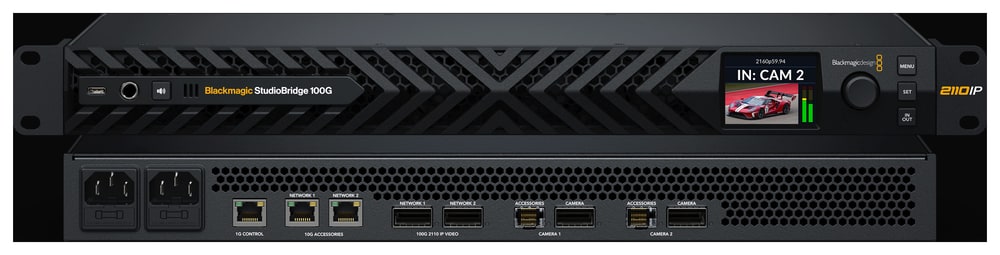

Two channels, one resilient transmission chain

The device processes a single 100GbE IP stream or two streams with a total bandwidth of less than 100 Gb/s and forwards them to a pair of redundant 100GbE outputs. Dedicated 10G ports for accessories, NMOS control, and redundant network power facilitate deployment in studios and OB vans.

Control and Reliability for Critical IP Traffic

It supports up to two SMPTE 2110 video channels at resolutions up to 4K60 and converts a single 100GbE IP video stream or two IP video streams with a combined bandwidth of less than 100 Gb/s to dual 100GbE QSFP28 outputs with SMPTE 2022-7 for uninterrupted signal delivery. Each input supports automatic format detection across HD and Ultra HD standards and up to 16 channels of embedded audio per stream.

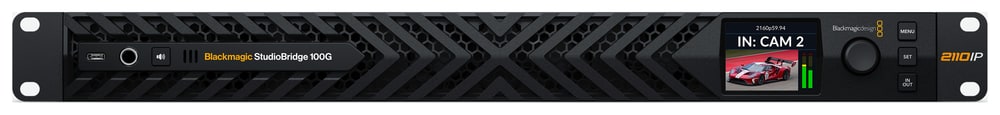

The StudioBridge 100G offers two 10G RJ45 ports and two 10G SFP optical ports for accessories. The front-panel 2.2-inch LCD with a control knob and buttons allows monitoring of video, audio, timecode, and system status; a built-in speaker and headphone output provide instant audio monitoring. External control is provided by a dedicated RJ45 port for NMOS configuration and a USB-C port for settings and firmware updates, while a pair of IEC C14 inputs provides redundant power.

PACKAGE CONTENT

  • Blackmagic StudioBridge 100G
  • Welcome card with a QR code for software download

SPECIFICATIONS

  • IP video: up to 2× SMPTE 2110, HD up to 4K60
  • 100GbE: 2× QSFP28 inputs and 2× QSFP28 redundant outputs
  • Redundancy: SMPTE 2022-7
  • Video: 10-bit 4:2:2, Rec. 709, and Rec. 2020
  • Audio: Up to 16 embedded channels per stream, speaker, and 6.35mm headphone output
  • Accessories: 2× 10G RJ45 and 2× 10G SFP optical ports
  • Control: 1G RJ45 for NMOS, USB-C for configuration and firmware
  • Display: 2.2″ LCD with control wheel and buttons
  • Power: 2× IEC C14, 100–240 V AC, 50/60 Hz
  • Dimensions: 482.6 × 218.4 × 43.7 mm (1 RU)
  • Operating temperature: 5 to 40 °C
  • Standards: IEEE 1588-2008, SMPTE 2110-20/-21/-30/-40, and SMPTE 2022-7
Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Signal converters

Main parameters

Other featuresAudio output · LCD display · auto format adaptation
