Blackmagic Design Teranex Express

The new Teranex Express is the world’s first real time broadcast up and down converter that operates in SD, HD and Ultra HD and introduces the new 12G-SDI technology! Teranex Express is a whole new design featuring the advanced patented Teranex algorithms for the visually transparent quality conversions that Teranex has been famous for and that are often mandated…

More information

1 635.92 € with VAT 1 352 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The new Teranex Express is the world’s first real time broadcast up and down converter that operates in SD, HD and Ultra HD and introduces the new 12G-SDI technology! Teranex Express is a whole new design featuring the advanced patented Teranex algorithms for the visually transparent quality conversions that Teranex has been famous for and that are often mandated by major broadcasters and studios worldwide! This new model includes an incredible 178 different SD, HD and Ultra HD up and down conversions in full 10-bit quality complete with audio, closed captions, timecode and more!

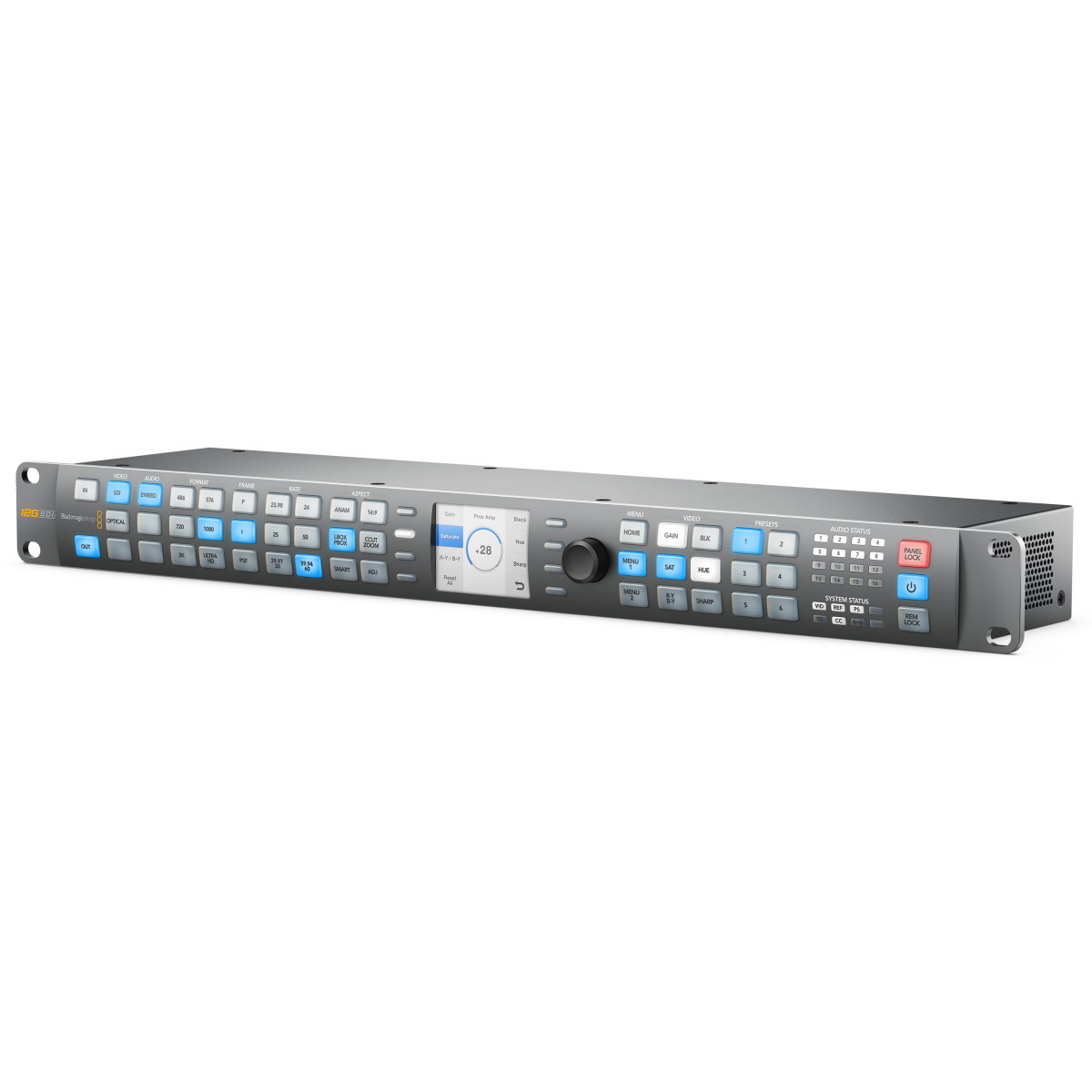

Blackmagic Design Teranex Express

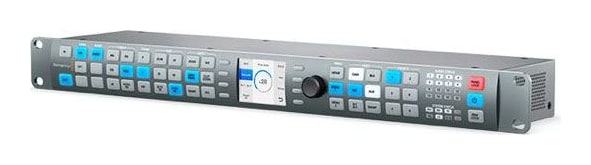

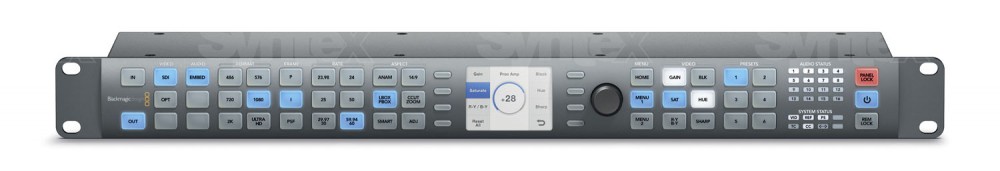

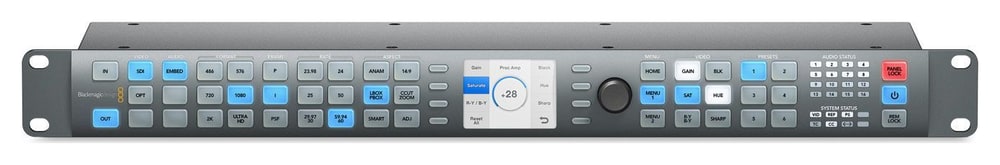

For users of other models of Teranex standards converters, the new Teranex Express will be easy to transition to because it includes the same familiar front panel layout. The built in LCD monitor lets users easily navigate menus and see source format and frame rate with live video, so they don’t have to use an external monitor. With an elegant machined metal front panel, its compact 1RU size and built in international power supply, Teranex Express is a true premium product from the internal processing quality right through to its attractive exterior design.

12G-SDI!

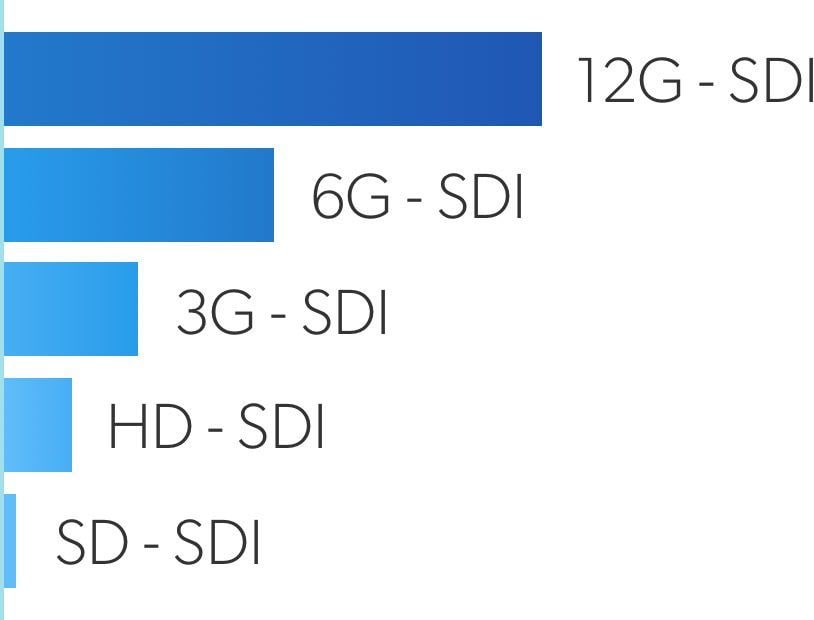

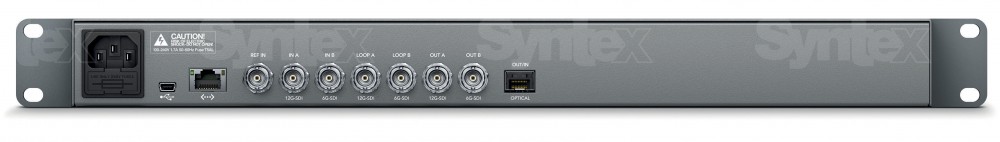

Teranex Express is the world’s first broadcast converter to include multi rate 12G-SDI connections. That means it can switch between 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI making it compatible with a wide range of existing SD, HD, and Ultra HD equipment. These connections can transfer data at an incredible 12 gigabits per second, making them fast enough to support progressive Ultra HD video at up to 60fps. That means Teranex Express will be able to support emerging formats when they become available, making it the most expandable and future proof solution available.

Blackmagic Design Teranex Express

PixelMotion
Teranex’s proprietary and patented PixelMotion de-interlacing algorithms are built into the new Teranex Express so customers can get perfect progressive frames from interlaced material. The real time processing adjusts the aperture on a pixel by pixel basis. That means improved image quality because the vertical resolution is maintained. PixelMotion de-interlacing preserves source detail and, when combined with multidirectional diagonal filters, eliminates jaggies on conversions so you get well defined edges and the sharpest images possible. Teranex Express also supports conversion of up to 16 audio channels plus timecode and closed caption VANC data. Teranex Express is also compatible with Dolby encoded audio, so it never has to be decoded or re-encoded during up and down conversions of the same frame rate. With Teranex Express, subtitles are always retained and both audio and timecode always stay in perfect sync with your video.
Blackmagic Design Teranex Express

Teranex Express Key Features
– Includes famous Teranex processing for extremely high quality up conversion, down conversion.
– Includes 12G-SDI/dual link 6G-SDI in and out and upgradable to optical fiber SDI in and out.
– Includes full conversion of timecode and subtitles.
– Includes 16 channels of frame accurate audio conversions and full audio channel remapping.
– Classic Teranex front panel so extremely easy for Teranex customers to integrate and use.
– Reference input for built in frame sync feature.
– Built in power supply supports 110V to 240V AC.

Blackmagic Design Teranex Express

PACKAGE CONTENT

Teranex Express

SD card with software and manual

2x Bumper guards with 4x M4 screws



SPECIFICATIONS

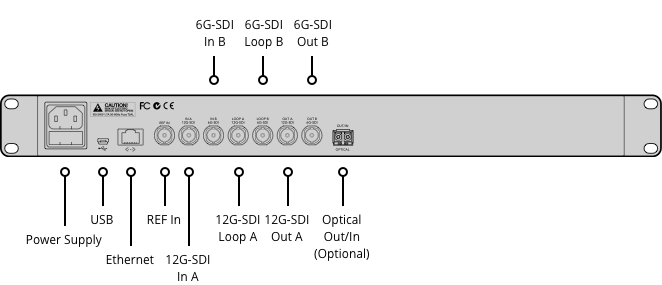

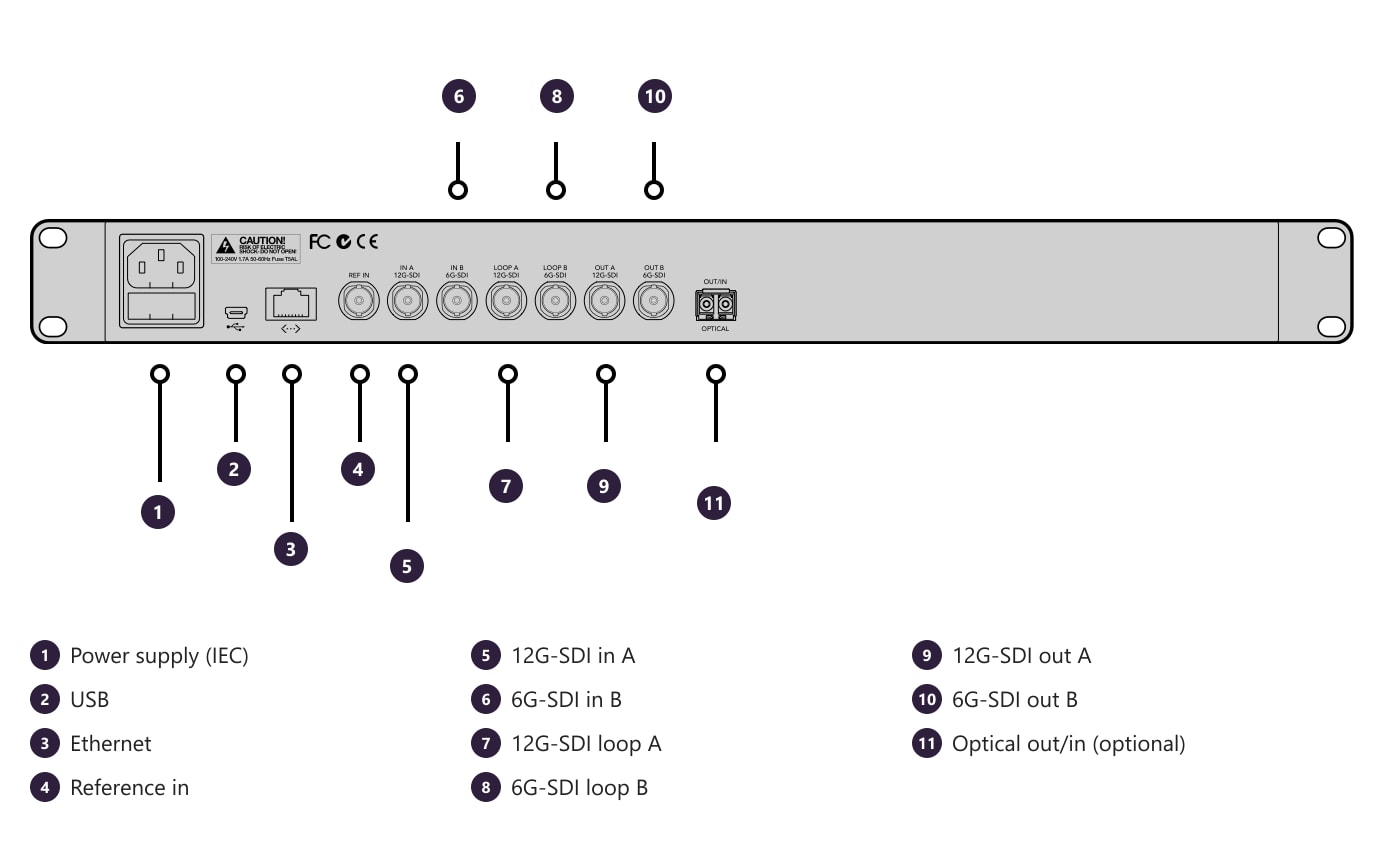

Connections

SDI Video Inputs

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD and 6G Ultra HD auto switching. Usable as dual link input for 4:2:2 3G or 6G UHD.

SDI Video Input Loops

1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3 Gb/s HD, 6G Ultra HD auto switching.

SDI Video Outputs

1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B and 6G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.

Quad SDI Video Outputs

SMPTE 435-1 - Quad HD Split (square division method) only. Utilizes SDI Out A for quadrant A, SDI Out B for quadrant B; reconfigures SDI In A Loop for quadrant C, SDI In B Loop for quadrant D.

Optical Fiber Video Inputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Video Outputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching. Not available while operating in Dual Link or Quad Link output modes.

SDI Audio Inputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

SDI Audio Outputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Connection (optional)

1x SMPTE optical fiber SFP socket.

Optical Fiber Audio Inputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Audio Outputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Dolby® Support Built In

Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.

Timecode Inputs

Support for VITC/ATC. No support for LTC.

Timecode Outputs

Support for VITC/ATC. No support for LTC.

Multi Rate Support

SDI connections are switchable between standard definition, high definition and UltraHD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.

Reference Input

1x BNC - Black Burst or Tri-level sync.

Computer Interface

1x USB 2.0 mini B port for software updates.
1x RJ45 10/100 Ethernet for remote control and configuration.

Processor Interface

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.

Teranex Express

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

1.5G-SDI HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

3G-SDI HD Video Standards

1080p50, 1080p59.94, 1080p60 levels A and B

2K Video Standards

2K DCI 23.98p, 2K DCI 24p

2K DCI 23.98PsF, 2K DCI 24PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

SDI Metadata Support

VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.

Audio Sampling

Television standard sample rate of 48kHz and 24-bit

Video Sampling

4:2:2 SDI

Color Precision

10-bit

Color Space

REC 601, REC 709

SDI Video Standards

525 NTSC, 625 PAL, 720HD, 1080HD, 2K 2048 x 1080 and Ultra HD 3840 x 2160 auto switching.

Conversions

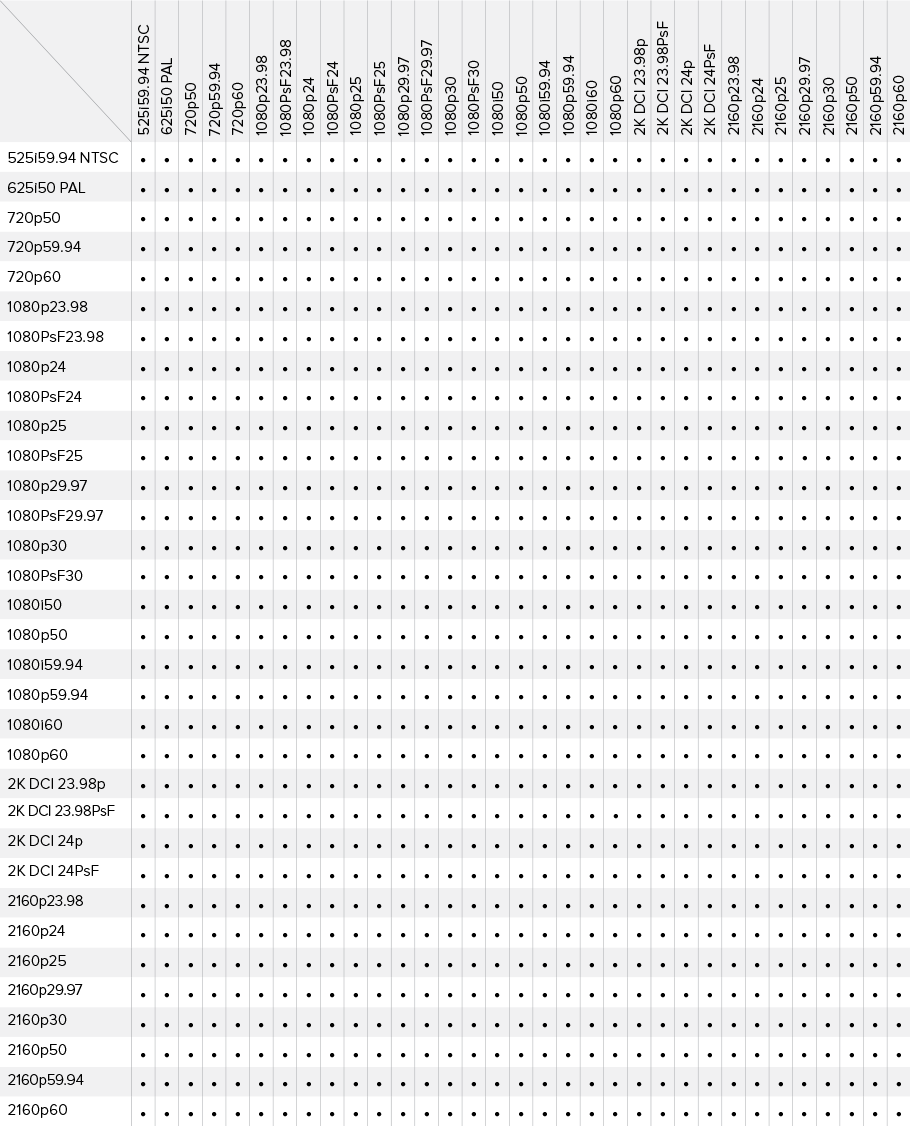

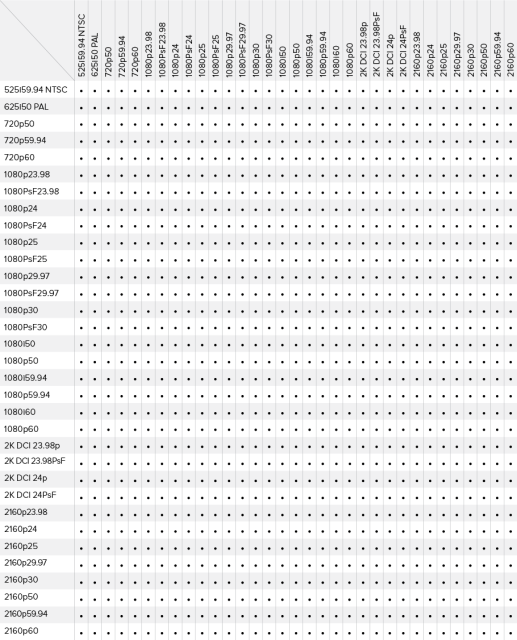

Conversions chart

Processing

Aspect Ratio Conversion

Real time variable and fixed aspect ratio conversions.

Real Time Video Processing

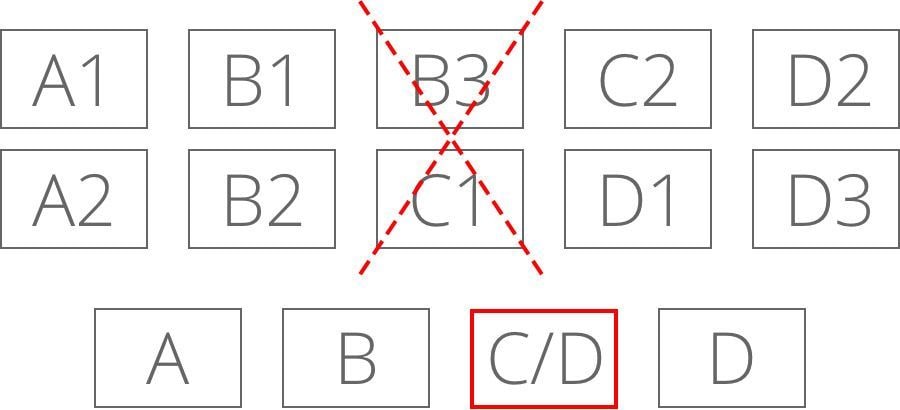

Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control

Format Conversion

Real time up conversion, down conversion , cross conversion and SD/HD/UHD standards conversion.

Colorspace Conversion

Hardware based real time

Test Patterns

SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black.

Software

Software Control

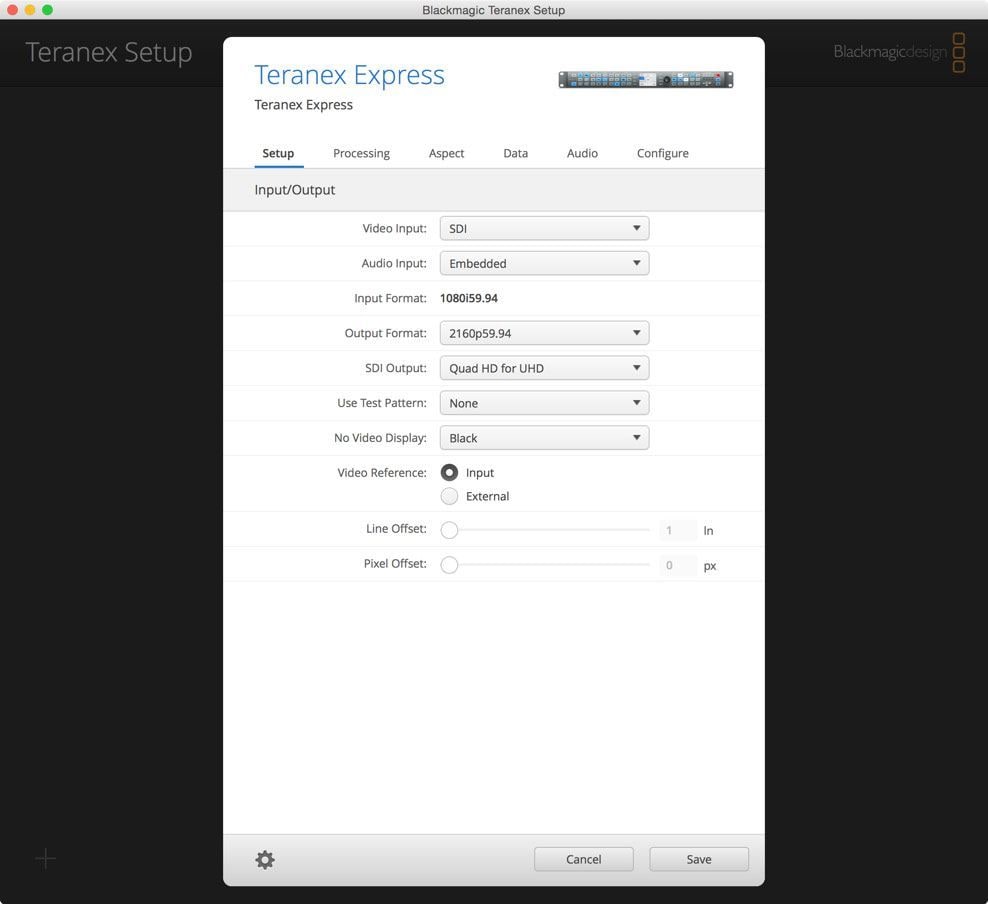

Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac.

Internal Software Upgrade

Via USB Type-B 2.0 using the included Teranex Setup application

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Physical Specifications

Teranex Express

Physical Installation

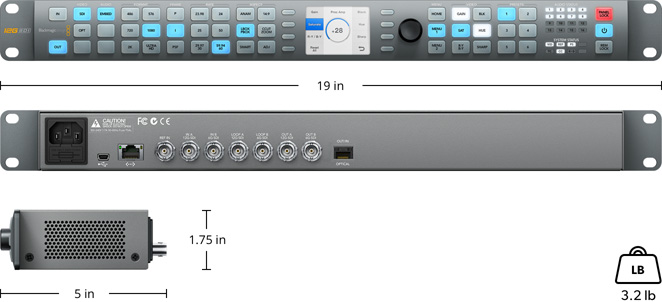

1 rack unit size. Less than 5 inches deep.

Power Requirements

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz

Typical Power Consumption

42 watts

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Warranty

12 Month Limited Manufacturer's Warranty

Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Signal converters

Main parameters

SourceSDI
SourceHDMI
Source12G SDI
TargetHDMI
TargetSDI
TargetQuad SDI
Target12G SDI
