Blackmagic Design SmartScope Duo 4K

  • Free transport
SKU: HDL-SMTWSCOPEDUO4K2

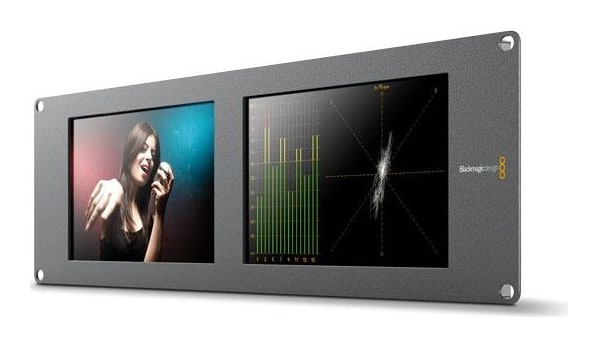

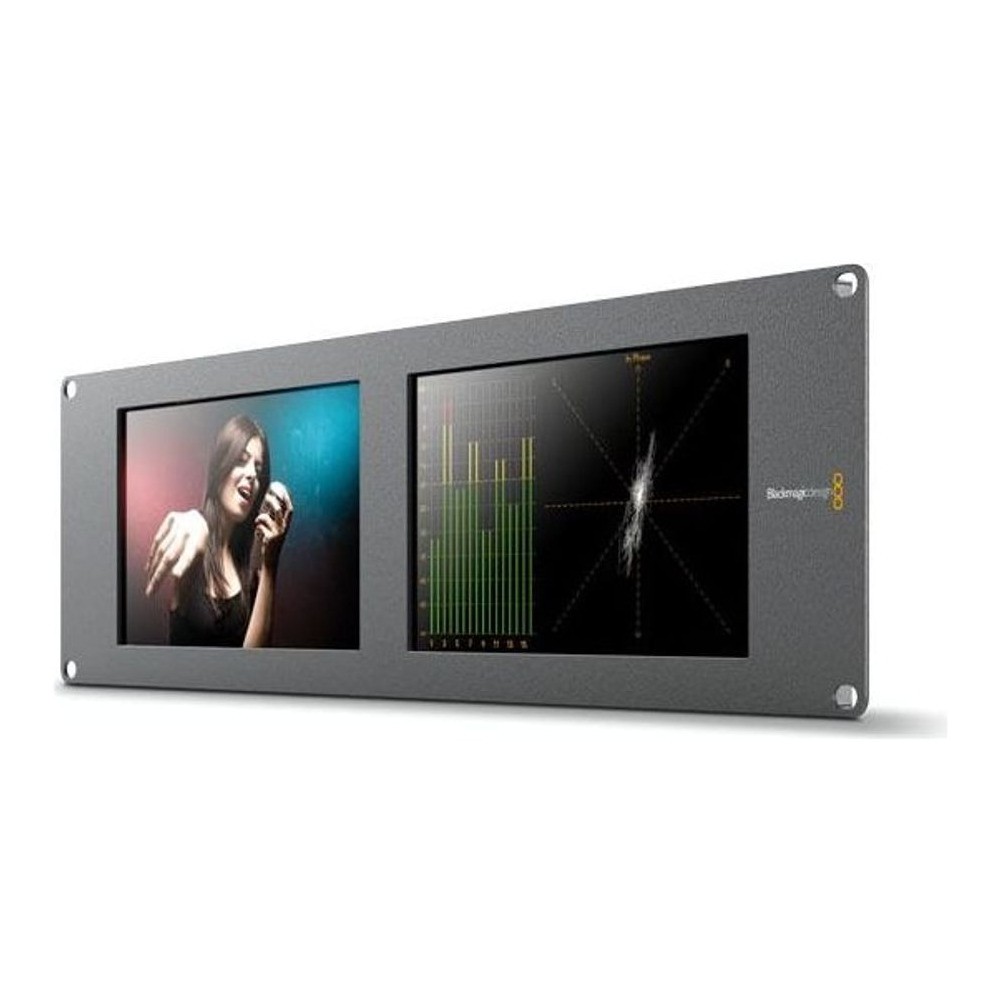

SmartScope Duo 4K is a dual preview monitor for mounting in equipment racks. It features two 8 inch LCDs and can display the picture as well as scopes for SD, HD and Ultra HD signals on either of the two displays. The 4K model supports 6G-SDI and Ultra HD up to 2160p30, and each display has its own SDI input and tally borders.

More information

1 149 € with VAT 949.59 € without VAT
Add to Compare Price history
Availability
on request
SKU:
HDL-SMTWSCOPEDUO4K2
Add to Compare Price history

Blackmagic Design SmartView Duo

629 €without VAT 519.83 €

Top accessories for Blackmagic Design SmartScope Duo 4K

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

Infinitek L-1.5C2VS 0.4m FLEX HD-SDI cable BNC-BNC BLK

  • New
Assembled SDI cable, Infinitek L-1.5C2VS, 0.4 m long, terminated with BNC (M) and
16 €
In stock 5 pcs

Infinitek L-3.3CUHWS 2m FLEX 12G-SDI cable BNC-BNC

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request

Blackmagic Design GPI and Tally Interface

Add tally to your ATEM switcher with the Blackmagic Design GPI and Tally Interface.
539 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

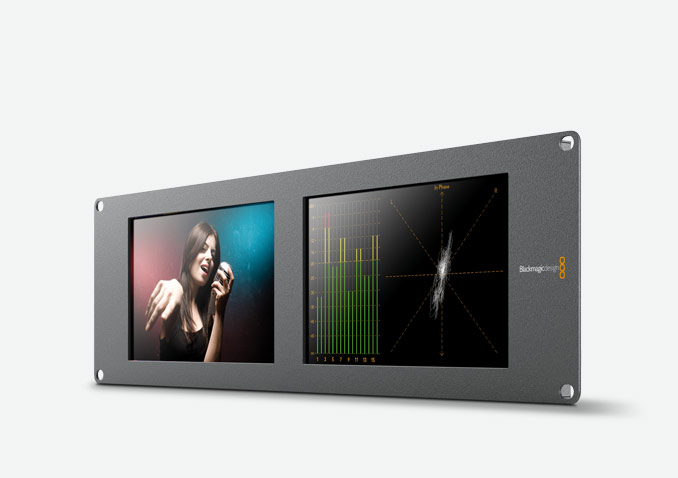

SmartScope Duo 4K is a dual preview monitor for mounting in equipment racks. It features two 8 inch LCDs and can display the picture as well as scopes for SD, HD and Ultra HD signals on either of the two displays. The 4K model supports 6G-SDI and Ultra HD up to 2160p30, and each display has its own SDI input and tally borders.

Two monitors and scopes in 3 RU

SmartScope Duo 4K lets you independently display the picture or a professional scope for SD, HD and Ultra HD signals on each of its two 8″ displays.

2× 8″ LCD6G-SDIUltra HD 2160p30ScopesTally3 RU

SDI monitoring wherever you need it

SmartView monitors mount in racks, broadcast trucks and flight cases, switch the input format automatically and can all be set up from one computer via Ethernet.

Two independent displays

Each 8″ screen has its own SDI input with loop output and displays a different source.

Thin and light

The 3 RU rack mount design is very thin and light and also fits flight cases and broadcast trucks.

Ethernet control

Set up and match all monitors from one computer with software for Mac and Windows.

Integrated tally

The tally input with a 9-pin D connector works with many switchers and automation systems.

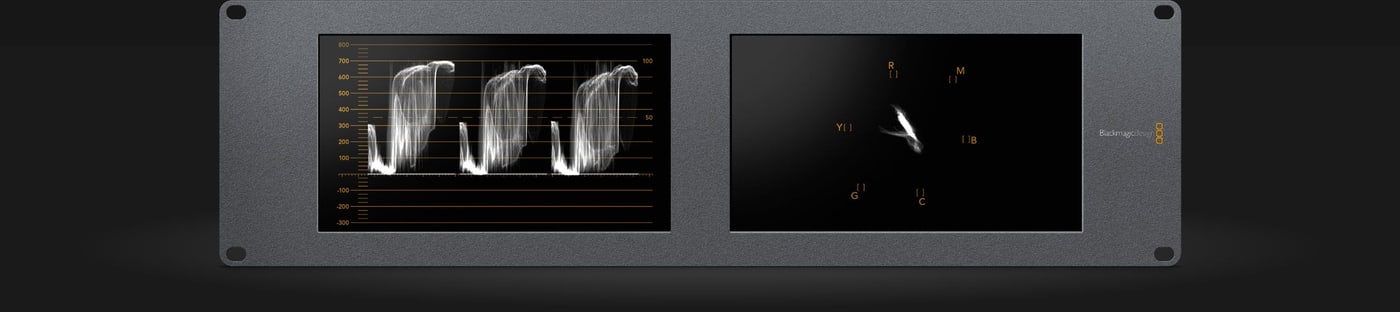

Waveform, vectorscope and audio

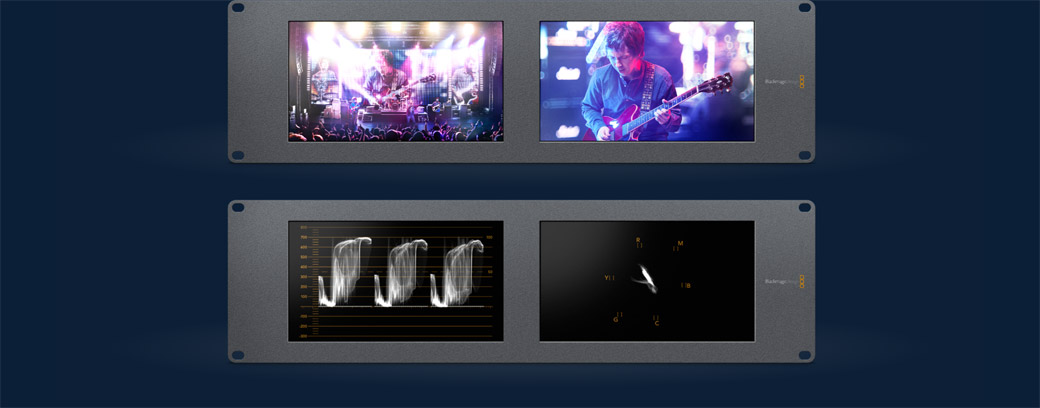

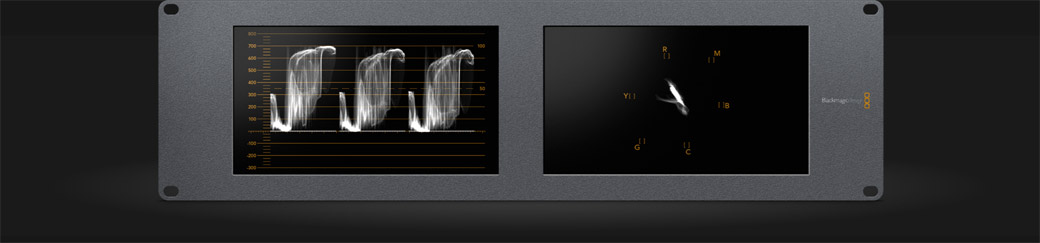

On each display you can independently select the picture or one of the scopes: luminance waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase and level display for 16 channels of SDI embedded audio. Both displays can be combined to suit the task at hand.

SmartScope Duo 4K – Waveform, vectorscope and audio

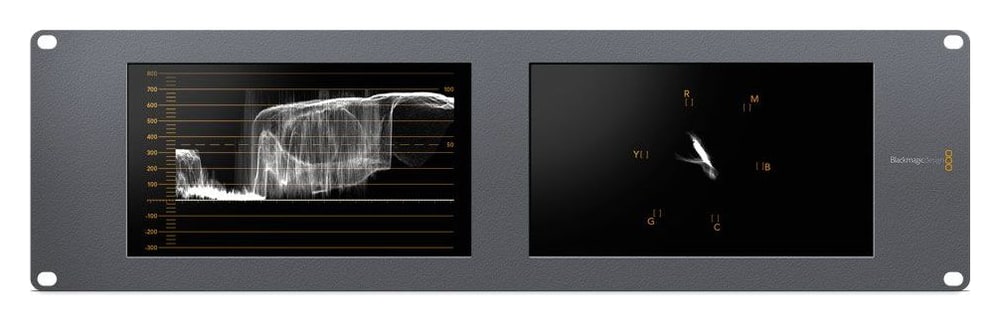

6G-SDI for SD, HD and Ultra HD

The SDI inputs of SmartScope Duo 4K switch automatically between SD, HD and 6G-SDI and handle Ultra HD up to 2160p30. Each display has its own input with loop output, and audio is processed at a 48 kHz sample rate.

SmartScope Duo 4K – 6G-SDI for SD, HD and Ultra HD

Integrated tally

SmartScope Duo 4K has integrated tally compatible with many switchers and automation systems. Tally is connected via the 9-pin D connector on the rear, so the monitor fits into live production too.

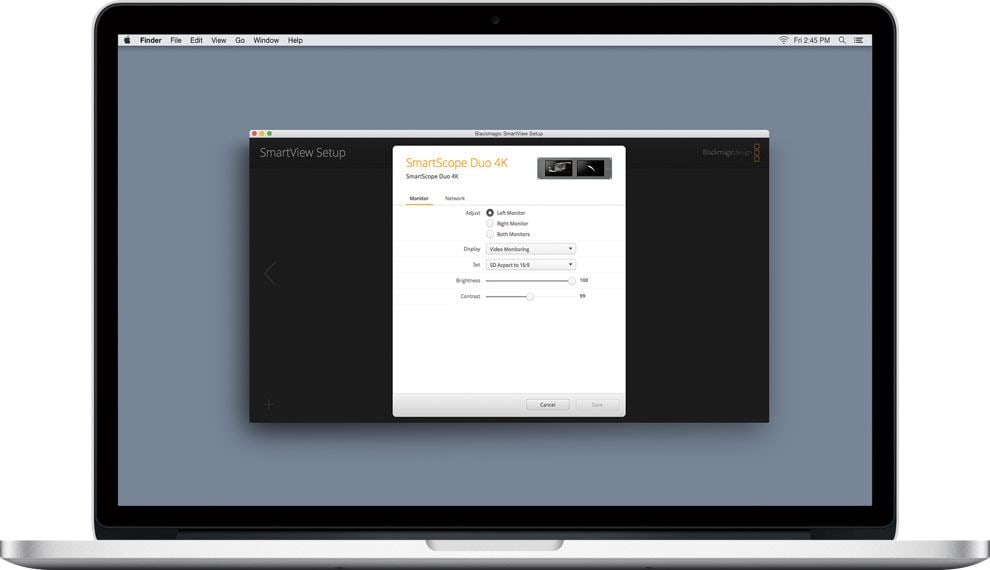

Setup from a single computer

Software for Mac and Windows connected via Ethernet sets up all monitors from one place and also switches the scope modes. Color matching multiple monitors takes only a moment.

SmartScope Duo 4K – Setup from a single computer

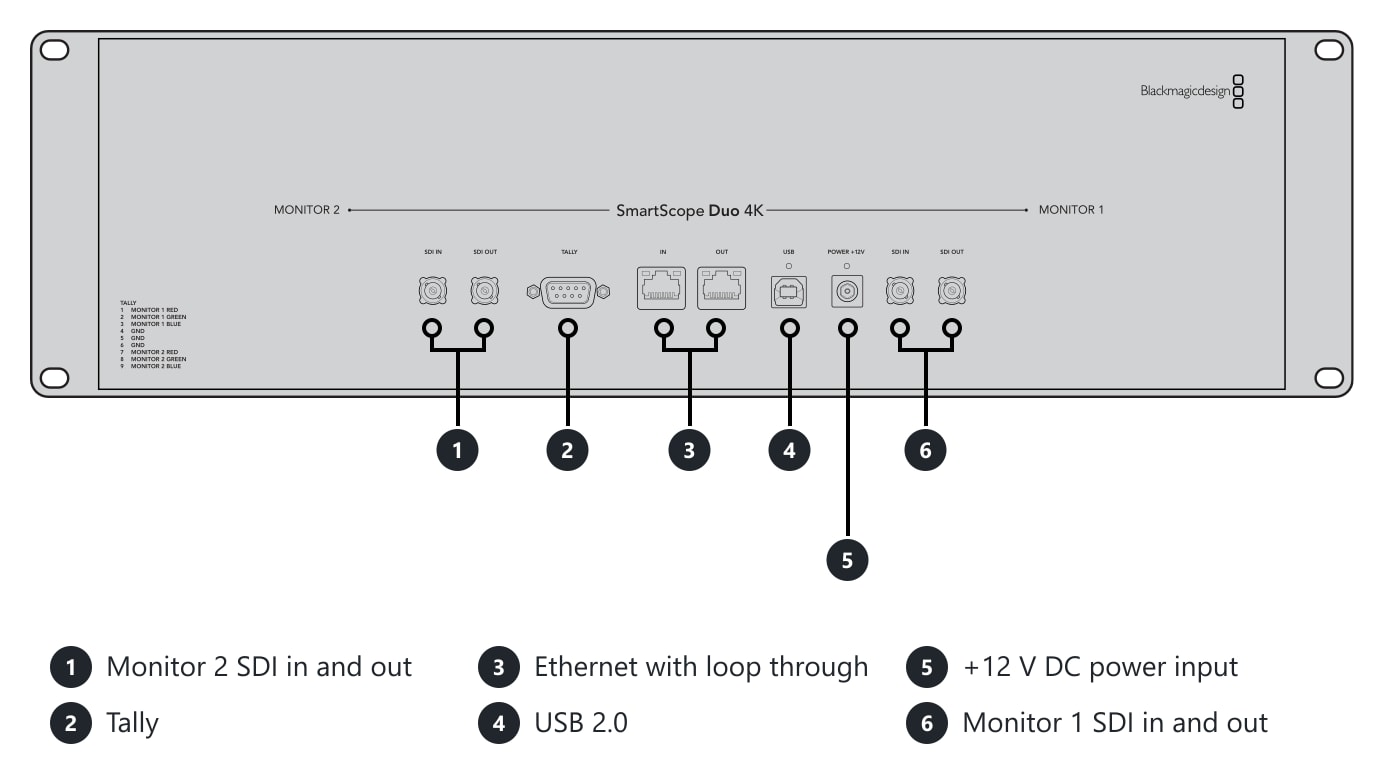

Connections and controls

On the rear, each of the two monitors has its own SDI input and output. In the middle are the tally connector, Ethernet with loop through, USB 2.0 and the 12 V DC power input.

SmartScope Duo 4K – Connections and controls

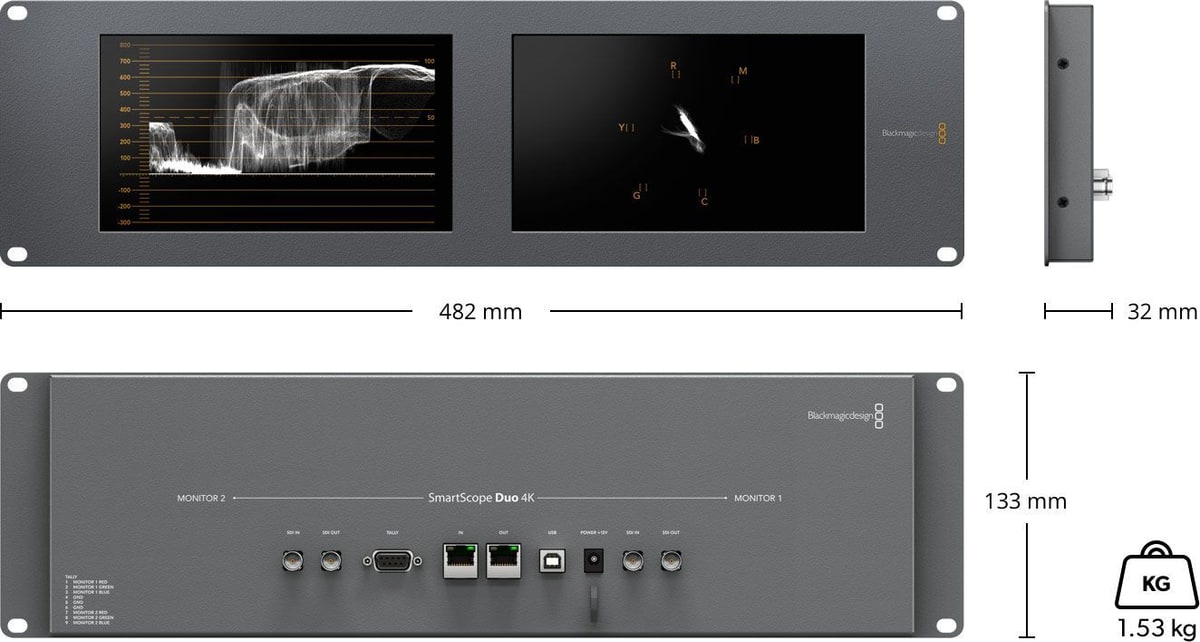

Dimensions and weight

482 × 133 × 32 mm, weight 1.53 kg.

SmartScope Duo 4K – Dimensions and weight

More information

Test and measurement position and picture preview in one rack

Stay in control

SmartScope Duo 4K offers two large 8″ LCD screens in a very compact design – the unit is only about 3 cm deep. It features powerful electronics and displays both video preview and scopes for SD, HD and Ultra HD signals. You can choose between scope modes including waveform, vectorscope, RGB or YUV parade, histogram and an audio meter with 16 channels of SDI audio and signal phase. SmartScope Duo 4K looks the same as SmartView Duo but also offers scopes. It suits equipment panels for local monitoring in post production studios as well as monitor walls in control rooms, and supports remote control via Ethernet.

Easy to control

One of the main problems when installing a larger number of monitors is color matching them. SmartScope Duo 4K solves this with an Ethernet network interface and software for Windows and macOS that controls all monitors from one place. The control software also lets you switch between all measurement modes.

Tally support

SmartScope Duo 4K is also designed for live broadcasts and fully supports tally signaling. Integrated tally is connected via the parallel port on the rear and is compatible with switchers and other automation systems.

SmartScope Duo 4K key features

  • Two independent 8″ LCD displays in a 3 RU chassis about 3 cm deep
  • SD, HD and Ultra HD 6G-SDI input with loop output for each monitor
  • Ethernet with loop through for control from remote computers
  • Control software for Windows and macOS included
  • High quality signal processing for excellent picture quality
  • Ideal for control rooms, post production studios and broadcast trucks

PACKAGE CONTENT

  • Blackmagic Design SmartScope Duo 4K
  • 12 V universal power supply with socket adapters
  • Welcome wallet with QR code for software download

SPECIFICATIONS

  • Displays: 2× independent 8″ LCD
  • SDI inputs: 1× SD/HD/6G-SDI input with reclocked loop output per display
  • Formats: SD, HD, 2K DCI up to 25p and Ultra HD up to 2160p30
  • SDI audio: 16 × SDI; 48 kHz
  • Scopes: waveform, vectorscope, RGB parade, YUV parade, histogram, audio phase and level
  • Video processing: 4:2:2 and 4:4:4 sampling; 8-bit; YUV and RGB
  • Tally: 9-pin D connector
  • Control: Ethernet for configuration; USB 2.0 for updates
  • Software: SmartView Utility for macOS 10.15 Catalina, macOS 11 Big Sur or later, Windows 10 (64-bit)
  • Power: 12–15 V DC; 12 V universal power supply with adapters included
  • Power usage: under 20 W
  • Installation: 3 RU
  • Dimensions: 482 × 133 × 32 mm
  • Weight: 1.53 kg
  • Operating temperature: 0 to 40 °C
  • Storage temperature: −20 to 45 °C
  • Relative humidity: 0–90 % non-condensing
  • Warranty: 1 year limited manufacturer warranty

WE RECOMMEND

The following accessories go with the Blackmagic Design SmartScope Duo 4K.

GPI and tally interface – Interface for GPI and tally signals.

SDI cables – Coaxial cables for carrying SDI signals.

Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Studio Monitors

Main parameters

Size8"
Monitor inputsSDI · 3G-SDI · 6G-SDI · HD-SDI
Monitor power supplyAC 100-240V

Other parameters

TallyYes
Other featuresRack-mountable
