Blackmagic Design PYXIS Monitor Kit
SKU: CINEURSABB/AMKIT
Blackmagic PYXIS Monitor Kit contains the 5″ HDR touchscreen monitor with full camera control for Blackmagic PYXIS and URSA Cine cameras, a sunshade, a USB-C cable with locking screws and the PYXIS mounts – swivel mount, fixed mount and dovetail shoe that let you attach and remove the monitor without tools. 1500 nits of brightness keep it readable even in…
489 € with VAT
404.13 € without VAT
Availability
on request
Top accessories for Blackmagic Design PYXIS Monitor Kit
SmallRig Rosette Magic Arm (7") with ARRI Locating Screw 4899
Rosette magic arm: a 1/4"-20 screw with expanding anti-twist pins at one end, an
42 €
In stock 1 pcs
Blackmagic Design PYXIS Rosette Plate
Blackmagic PYXIS Rosette Plate is an optional side plate for Blackmagic PYXIS cameras.
79 €
To be sent 1 pcs
Blackmagic URSA Cine Handle
The Blackmagic URSA Cine Handle is a durable top handle with a rubberized grip for
241 €
on request
Blackmagic Design Camera PYXIS Monitor – Cable USB Set
Blackmagic Camera PYXIS Monitor – Cable USB Set is an original set of two USB-C cables
60 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

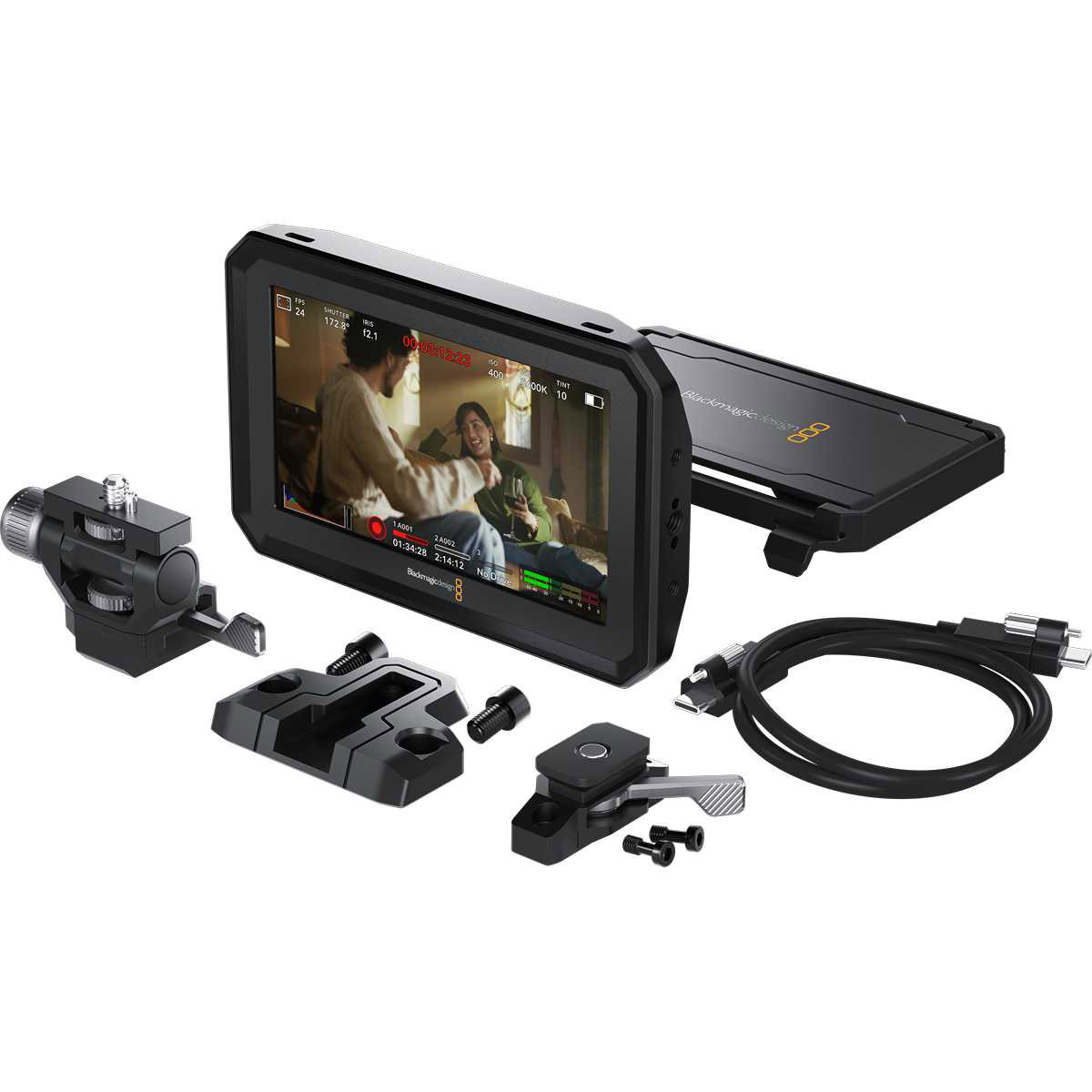

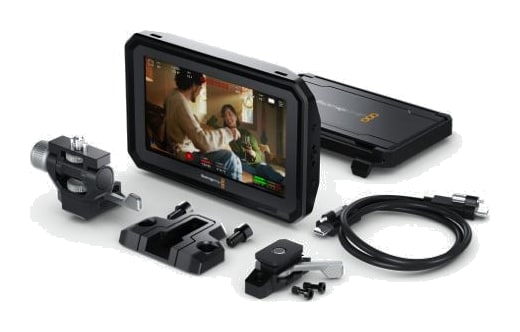

Blackmagic PYXIS Monitor Kit contains the 5″ HDR touchscreen monitor with full camera control for Blackmagic PYXIS and URSA Cine cameras, a sunshade, a USB-C cable with locking screws and the PYXIS mounts – swivel mount, fixed mount and dovetail shoe that let you attach and remove the monitor without tools. 1500 nits of brightness keep it readable even in sunlight.
Monitor with mounts and cable for PYXIS
A complete kit: monitor, sunshade, USB-C cable and mounts that let you attach and remove the monitor without tools.
5″ Full HD 1920 × 1080HDR · 1500 nitsTouchscreen camera controlUSB-C: video, power, controlTally · F1–F3With mounts and USB-C cable
Full camera control over one cable
The monitor provides the same controls and overlays as the built in screen of PYXIS and carries video, power and control over a single USB-C cable.
Assist station
The monitor also works off camera – an assistant can watch framing and focus from any position on set, for example when the camera is on a gimbal.
For one person crews
The rear tally shows that the camera is recording, so you can stand in front of the camera and operate it at the same time.

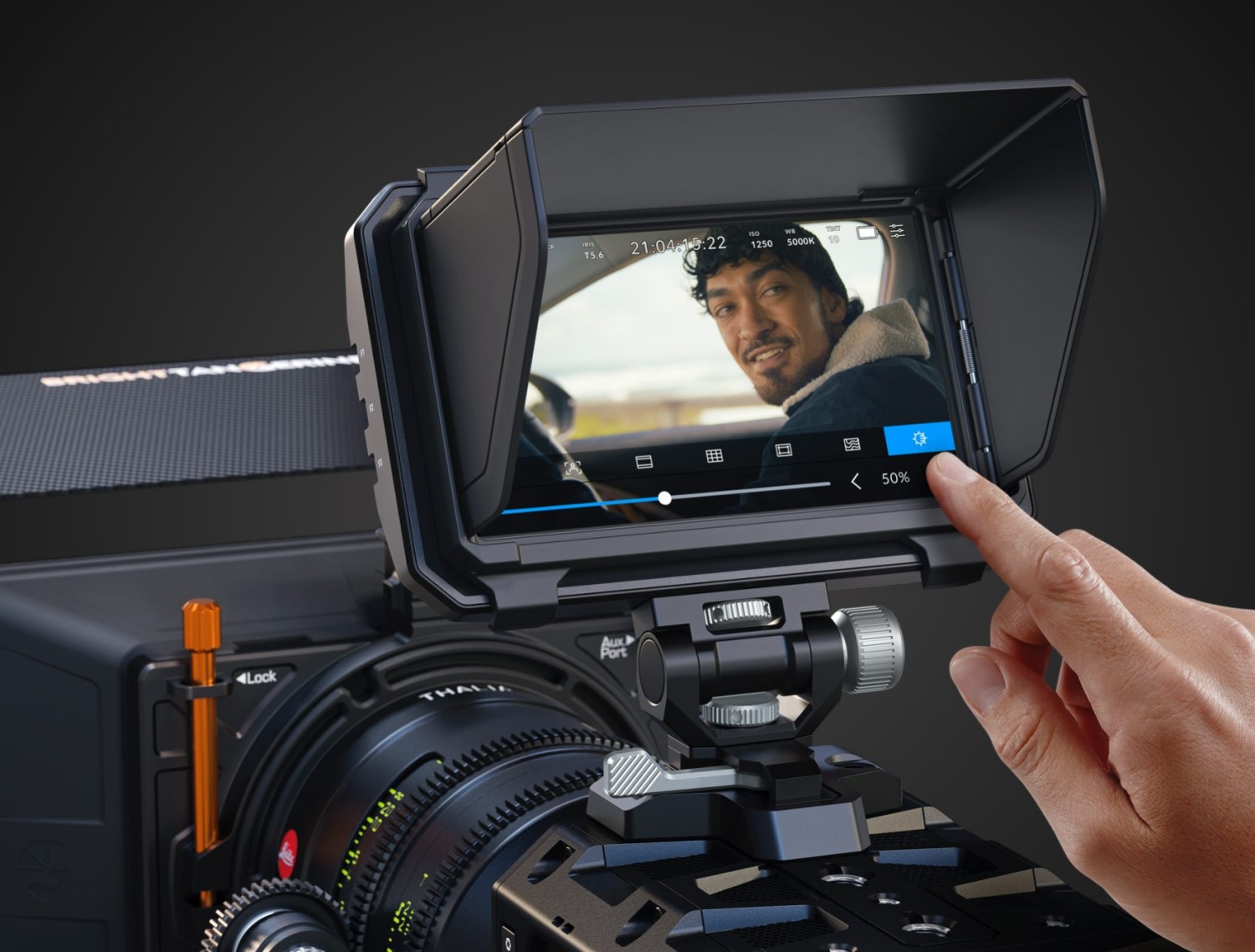

Touchscreen camera control
Tap the screen to set frame rate, shutter, iris, ISO, white balance, tint, timecode, media, audio, focus zoom, digital slate and camera menus, and to start recording. Three assignable F1–F3 buttons recall presets or toggle zebra, focus assist, false color, grid or LUT.

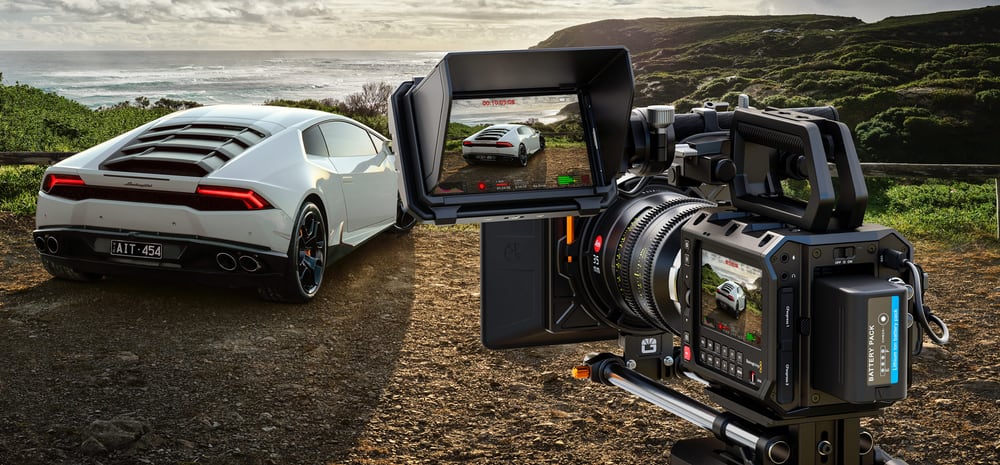

When the rig covers the built in screen
Cages, rods and other accessories can block the built in 4″ screen of PYXIS. The 5″ monitor can then be mounted wherever you need it – on the camera, on the rig or off camera on a gimbal – with full control. The accelerometer rotates the image when the monitor is mounted upside down.

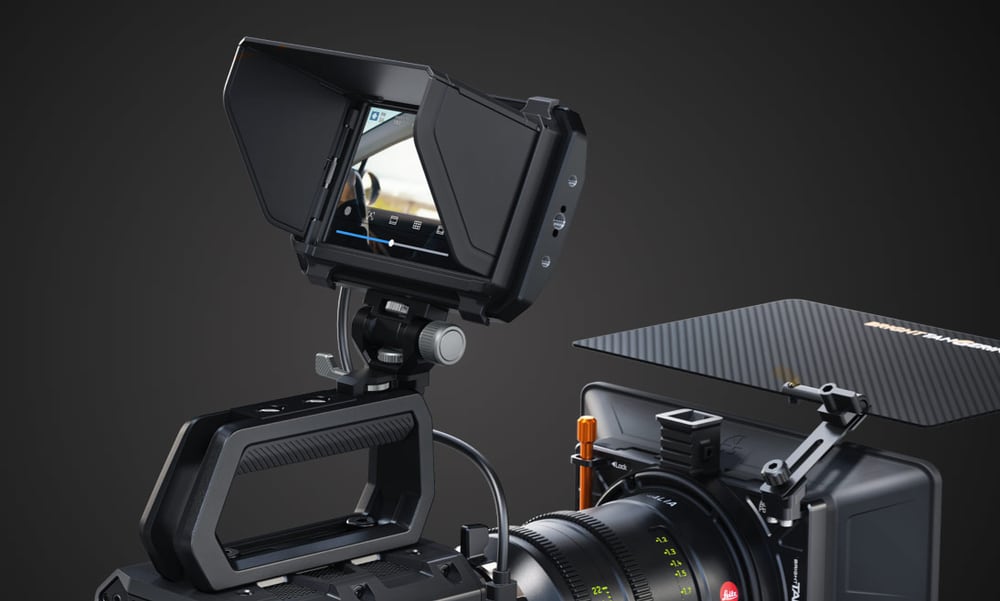

1500 nits and a sunshade
The HDR monitor with 1500 nits of brightness stays readable even in direct sunlight. The clip on sunshade has fold out sides and folds up to protect the monitor in transport.

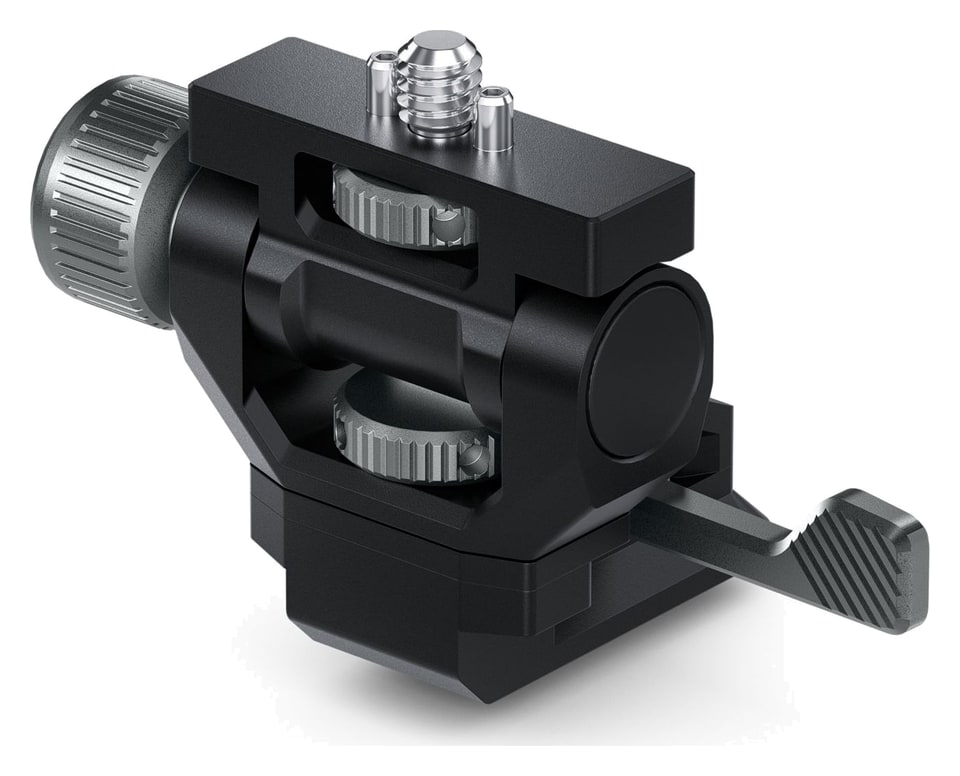

PYXIS mounts with dovetail
The dovetail shoe screws onto the camera, the swivel mount holds the monitor, and thanks to the dovetail the monitor attaches and detaches in seconds, without loosening bolts with tools. The swivel mount also attaches directly to the Blackmagic URSA Cine Handle; the fixed mount attaches the monitor to the rotating bracket of the URSA Cine EVF viewfinder.
What is in each package
All three packages contain the same PYXIS monitor with sunshade. They differ in how you mount and connect the monitor:
PYXIS Monitor
- 5″ monitor
- Sunshade
- No mounts and no USB-C cable – the cable is sold separately
This package
PYXIS Monitor Kit
- 5″ monitor
- Sunshade
- Swivel mount
- Fixed mount with screws
- Dovetail shoe with screws
- 1× USB-C cable
PYXIS Monitor EVF Kit
- Everything in the Monitor Kit
- URSA Cine EVF bracket rod mount
- Rotating bracket with 19 mm carbon fibre rod
- 2× short 15 mm carbon fibre rod
- Long and short USB-C cable
PACKAGE CONTENT
- Blackmagic PYXIS Monitor

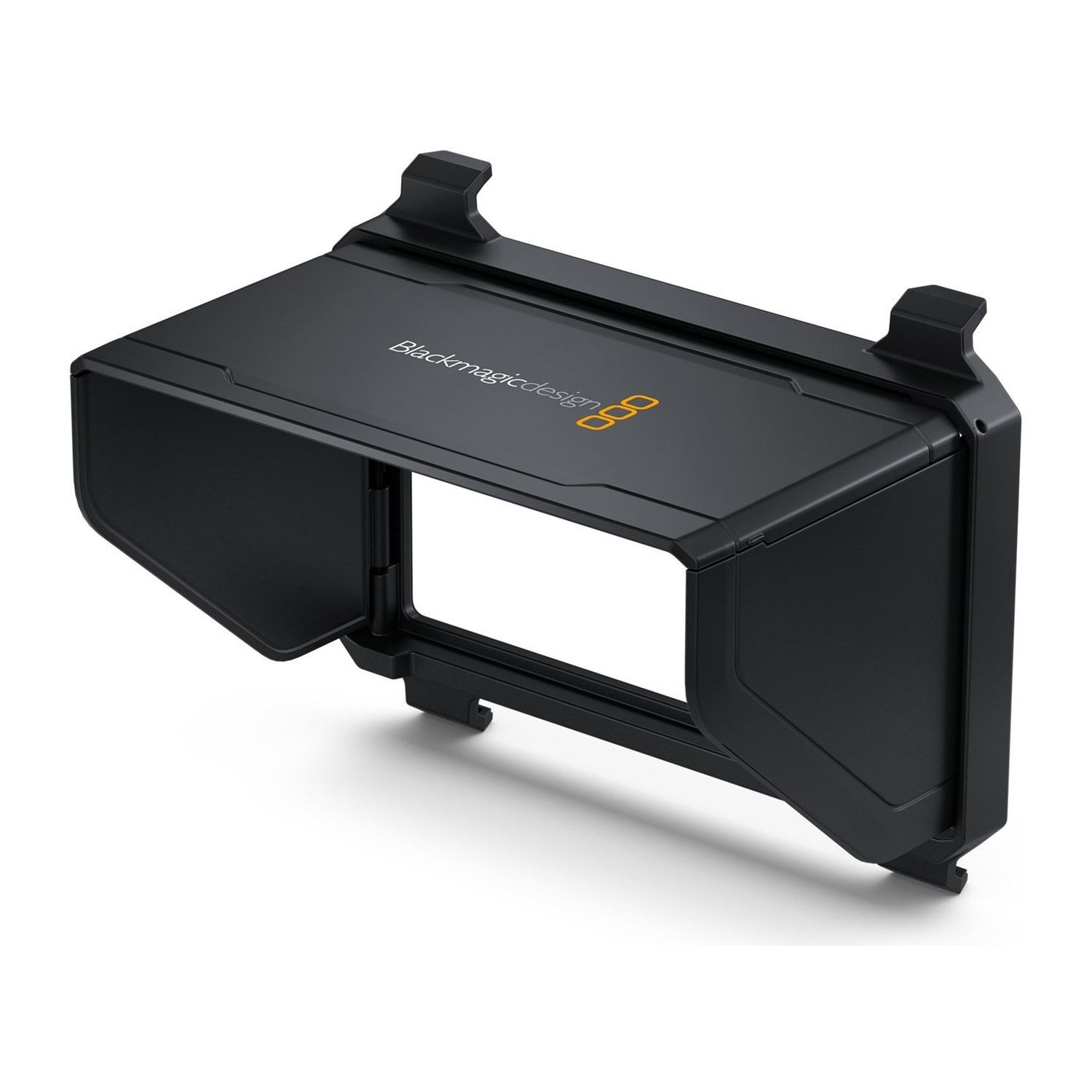

- Clip on sunshade (Blackmagic PYXIS Clip On Sunshade)

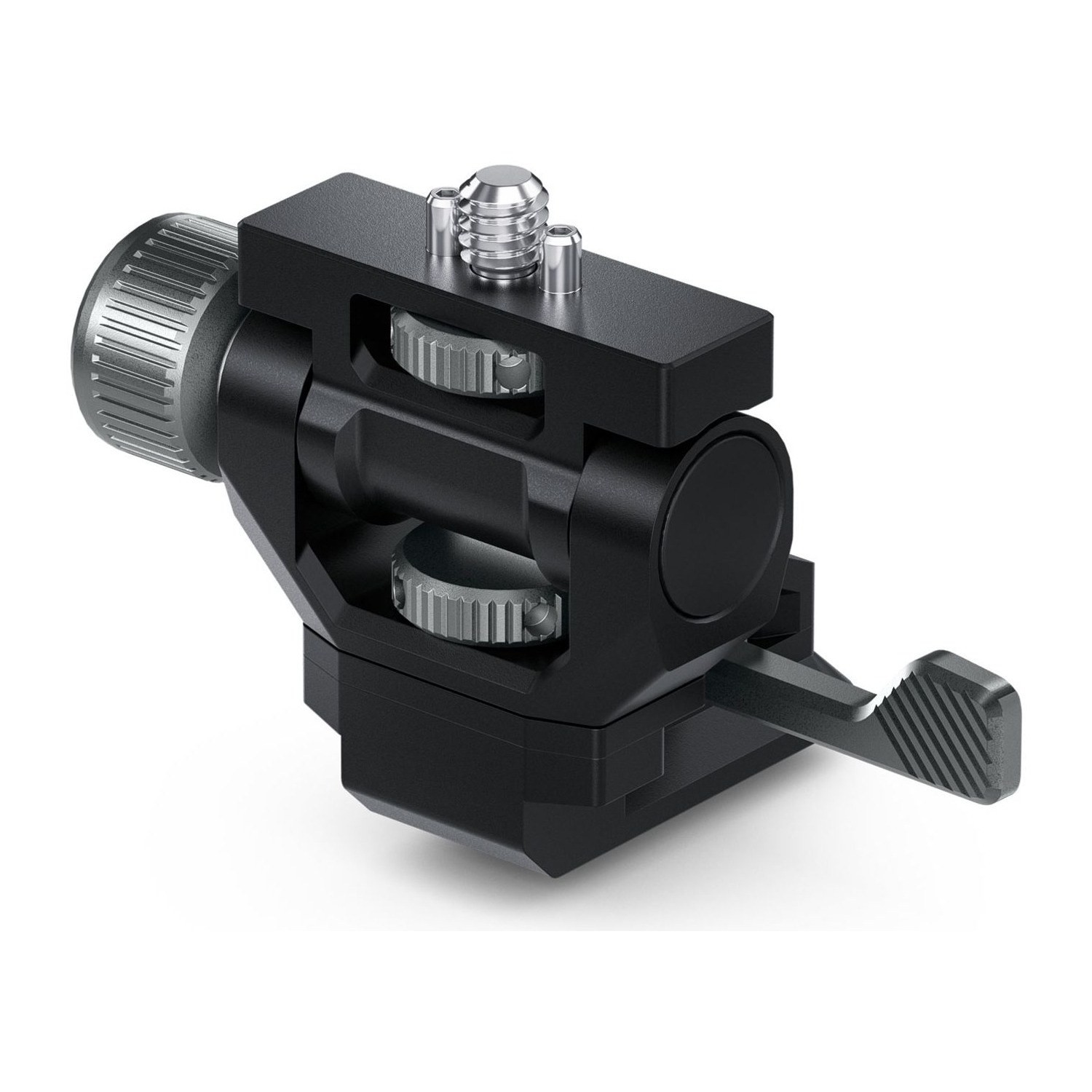

- Swivel mount (Blackmagic PYXIS Monitor Swivel Mount)

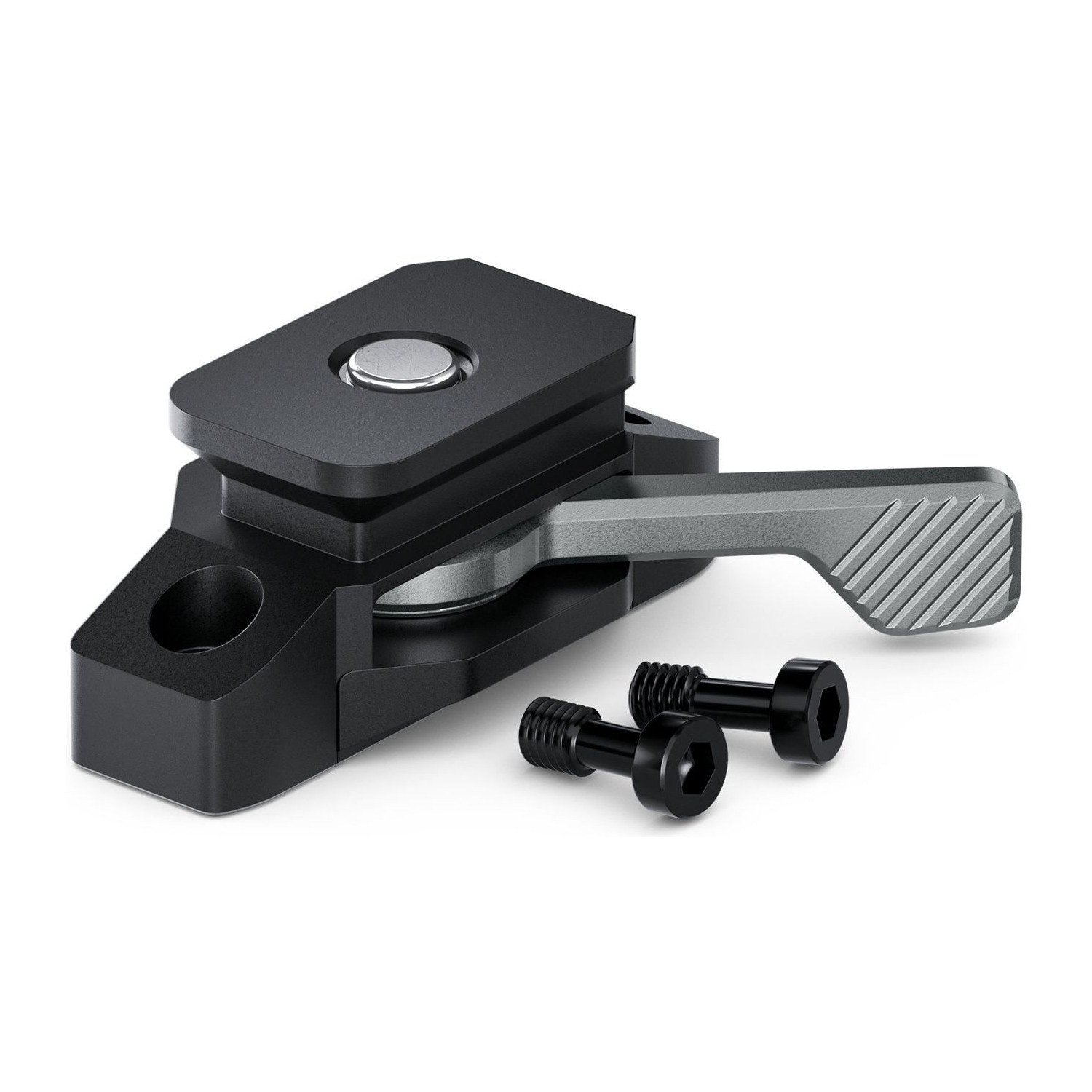

- Fixed mount with screws (Blackmagic PYXIS Monitor Fixed Mount)
- Dovetail shoe with screws (Blackmagic PYXIS Monitor Dovetail Shoe)
- 1× USB-C viewfinder cable
- Welcome wallet with QR code for software download
- Blackmagic Design sticker
SPECIFICATIONS
- Display: 5″ LCD capacitive touchscreen, HDR
- Resolution: 1920 × 1080 (Full HD)
- Brightness: 1500 nits
- Frame rates: up to 60 fps
- Connection: USB-C with locking connector – video, power, data and software updates
- Tally: rear facing LED tally light
- Accelerometer: automatically rotates the image when the monitor is mounted upside down
- Control: touchscreen camera control and assignable F1, F2, F3 buttons
- Mounting points: bottom 1× 1/4-20 with ARRI locating pin pattern and 2× M4, side 1× 1/4-20 with ARRI locating pin pattern and 2× M4
- Compatible cameras: Blackmagic PYXIS 6K, PYXIS 6K PL, PYXIS 6K EF, URSA Cine 12K LF, URSA Cine 17K 65, Micro Studio Camera 4K G2
- Software: Mac 13 Ventura, Mac 14 Sonoma or later, Windows 10 and 11
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 60 °C
- Relative humidity: 0 to 90 % non-condensing
- Mounts included: swivel mount, fixed mount, dovetail shoe
- Warranty: 1 year limited manufacturer’s warranty
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Camera monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080p up to 60p |
| Size | 5" |
| Monitor inputs | USB-C |
| Luminosity | 1500cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | USB-C |
Other parameters
| Tally | Yes |
| Other features | 3D LUT correction |
| High Brightness (NITS) | Yes |
