Blackmagic Design PYXIS Monitor

Name: Blackmagic Design PYXIS Monitor
Brand: Blackmagic Design
SKU: CINEURSABB/AM
Price: 327 EUR
Availability: OutOfStock

SKU: CINEURSABB/AM

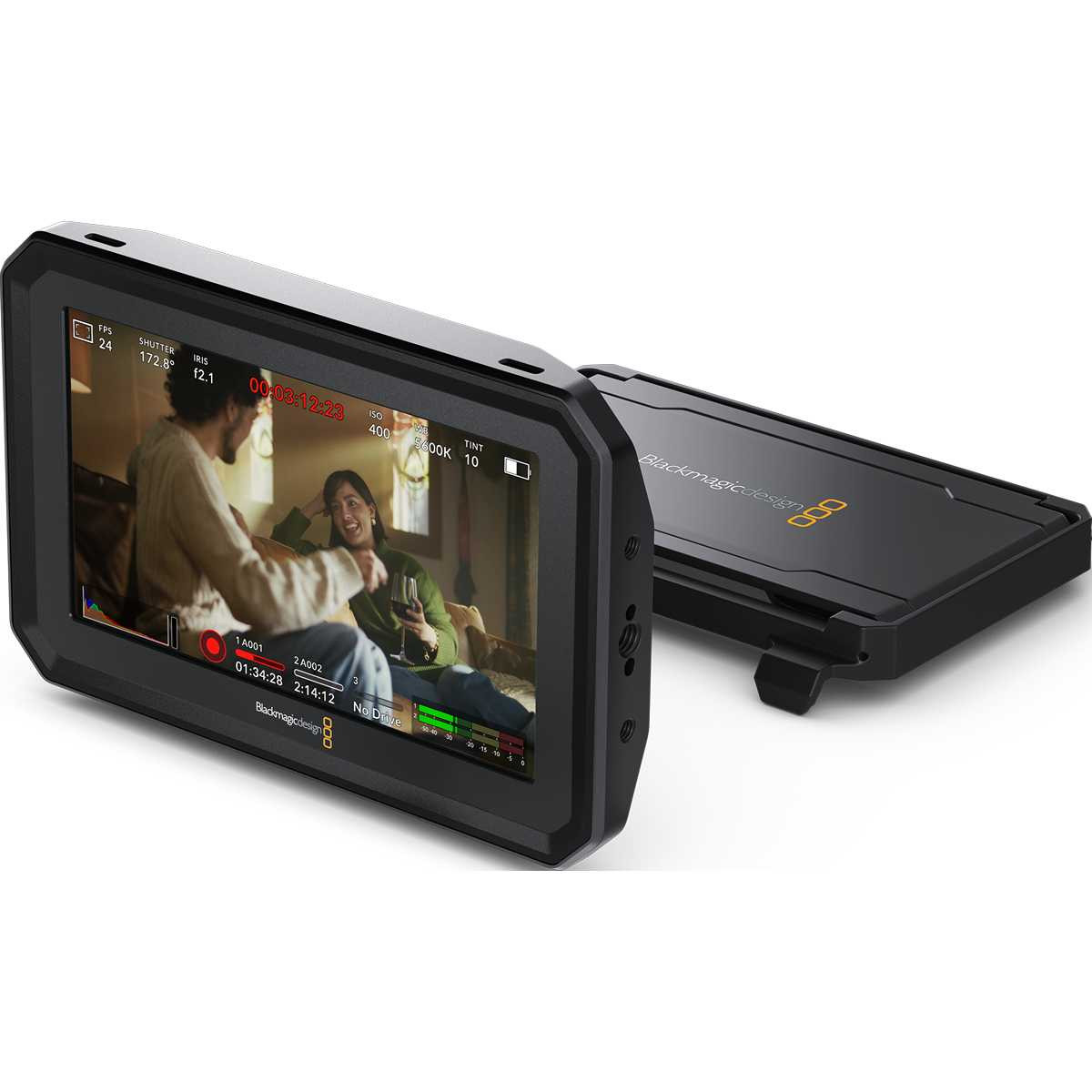

Blackmagic PYXIS Monitor is a standalone 5″ HDR touchscreen monitor with full camera control for Blackmagic PYXIS and URSA Cine cameras. A single USB-C cable carries video, power and control, and 1500 nits of brightness with a removable sunshade keep it readable even in sunlight. This package contains the monitor and the sunshade; mounts and a USB-C cable…

More information

327 € with VAT 270.25 € without VAT

Price history

Availability

on request

SKU:
CINEURSABB/AM

Price history

Top accessories for Blackmagic Design PYXIS Monitor

SmallRig Rosette Magic Arm (7") with ARRI Locating Screw 4899

LAST PIECE

Rosette magic arm: a 1/4"-20 screw with expanding anti-twist pins at one end, an

42 €

In stock 1 pcs

Blackmagic Design PYXIS Rosette Plate

Blackmagic PYXIS Rosette Plate is an optional side plate for Blackmagic PYXIS cameras.

79 €

Backordered 1 pcs

Blackmagic URSA Cine Handle

The Blackmagic URSA Cine Handle is a durable top handle with a rubberized grip for

241 €

Backordered 1 pcs

Blackmagic Design Camera PYXIS Monitor – Cable USB Set

Blackmagic Camera PYXIS Monitor – Cable USB Set is an original set of two USB-C cables

60 €

on request

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

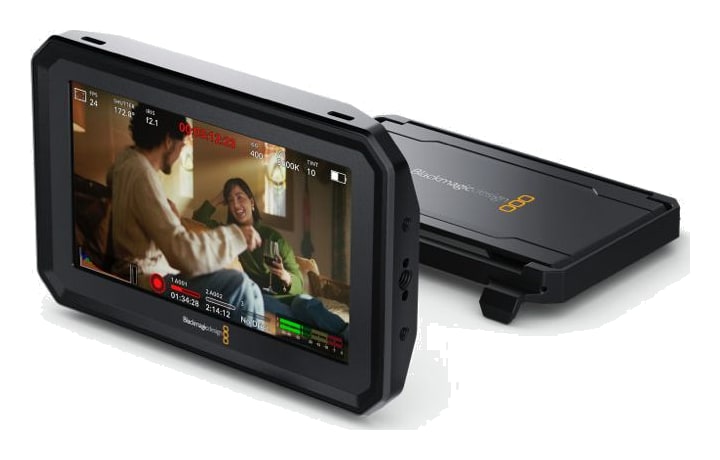

Standalone 5″ HDR monitor for PYXIS and URSA Cine

A touchscreen monitor with camera control that you mount wherever the rig blocks the built in screen.

5″ Full HD 1920 × 1080HDR · 1500 nitsTouchscreen camera controlUSB-C: video, power, controlTally · F1–F3With sunshade

Full camera control over one cable

The monitor provides the same controls and overlays as the built in screen of PYXIS and carries video, power and control over a single USB-C cable.

Assist station

The monitor also works off camera – an assistant can watch framing and focus from any position on set, for example when the camera is on a gimbal.

For one person crews

The rear tally shows that the camera is recording, so you can stand in front of the camera and operate it at the same time.

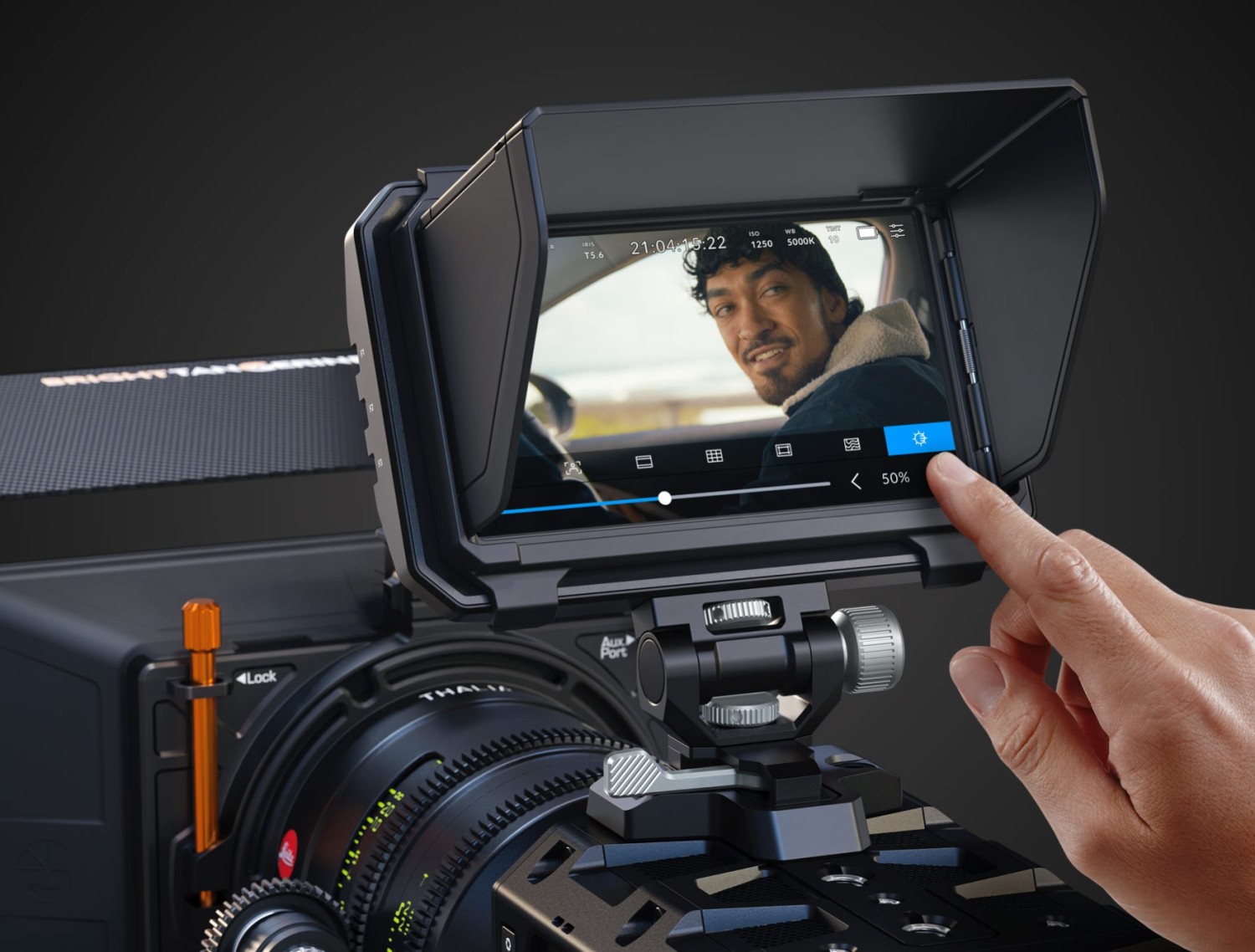

Touchscreen camera control

Tap the screen to set frame rate, shutter, iris, ISO, white balance, tint, timecode, media, audio, focus zoom, digital slate and camera menus, and to start recording. Three assignable F1–F3 buttons recall presets or toggle zebra, focus assist, false color, grid or LUT.

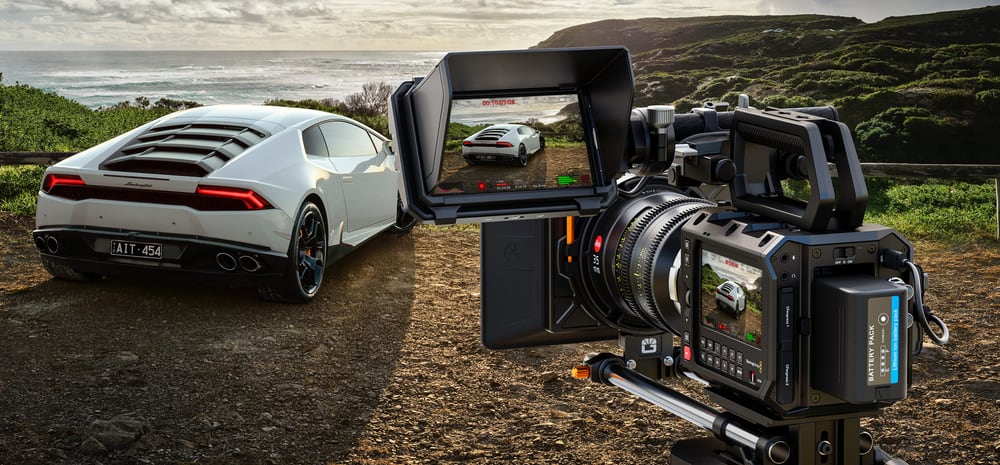

When the rig covers the built in screen

Cages, rods and other accessories can block the built in 4″ screen of PYXIS. The 5″ monitor can then be mounted wherever you need it – on the camera, on the rig or off camera on a gimbal – with full control. The accelerometer rotates the image when the monitor is mounted upside down.

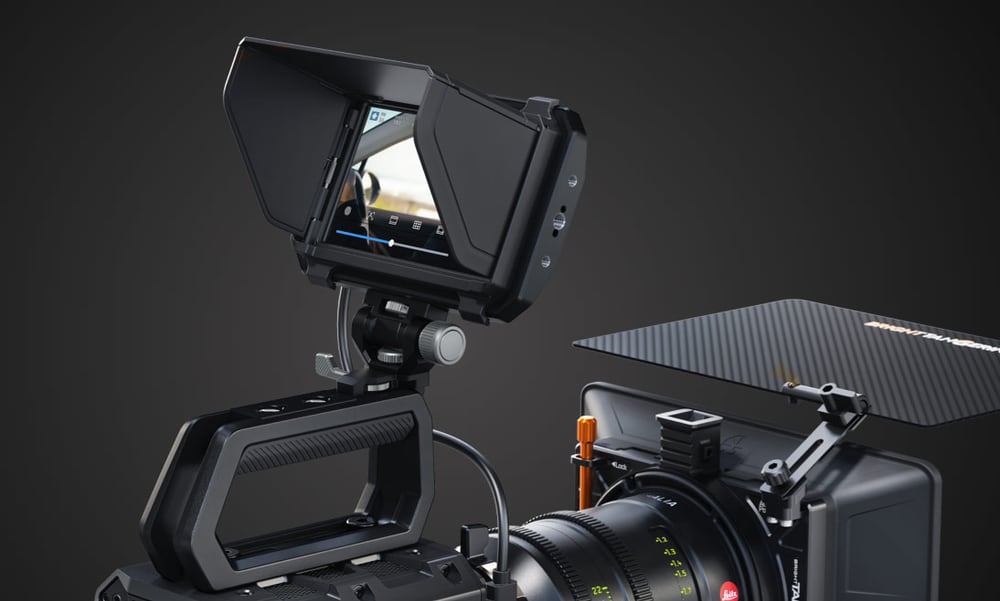

1500 nits and a sunshade

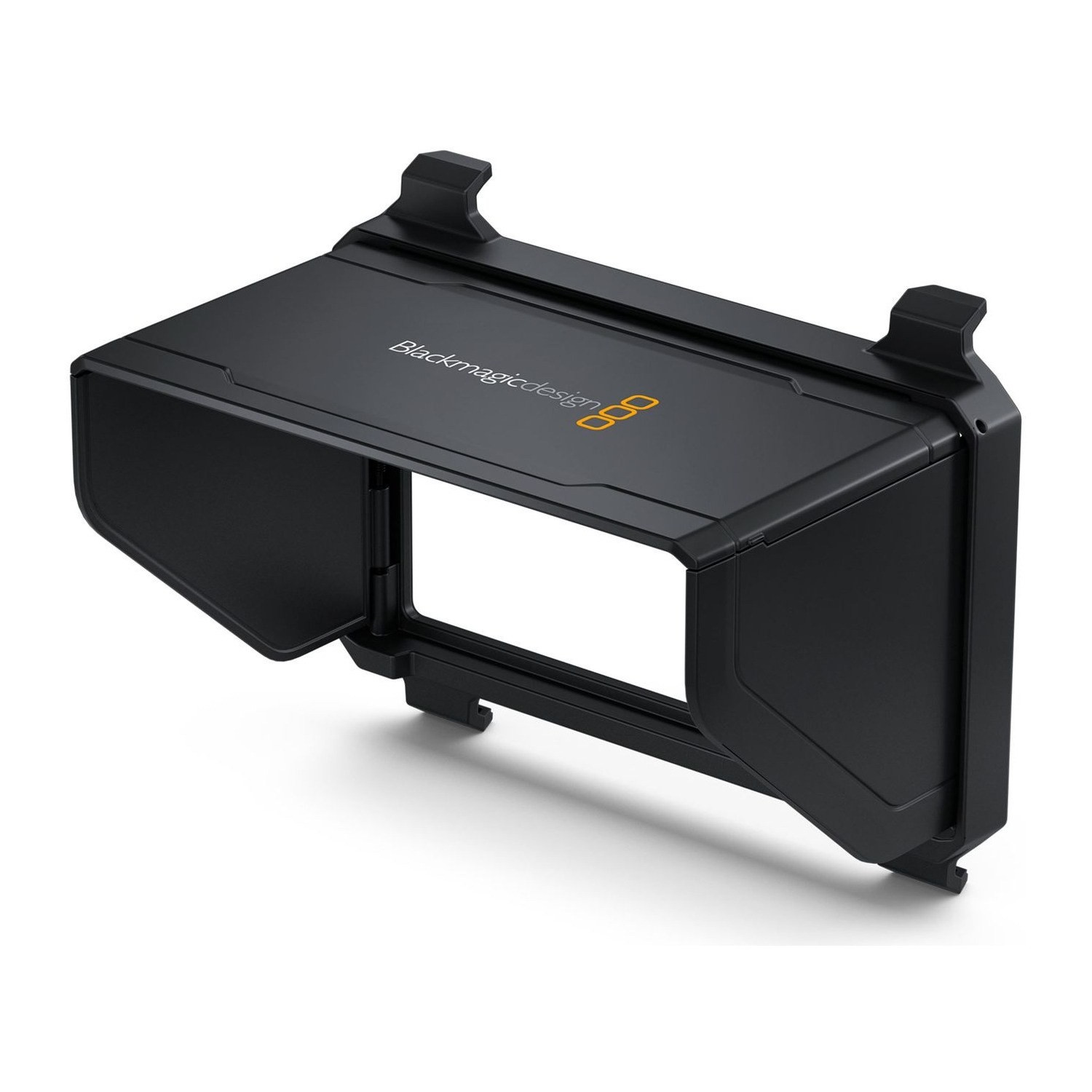

The HDR monitor with 1500 nits of brightness stays readable even in direct sunlight. The clip on sunshade has fold out sides and folds up to protect the monitor in transport.

What to add to the monitor

The basic package contains the monitor and the sunshade. Connecting it to the camera requires a USB-C cable – the original Camera PYXIS Monitor – Cable USB Set has locking screws. Mounts are included in the Monitor Kit and the Monitor EVF Kit.

What is in each package

All three packages contain the same PYXIS monitor with sunshade. They differ in how you mount and connect the monitor:

This package

PYXIS Monitor

5″ monitor
Sunshade
No mounts and no USB-C cable – the cable is sold separately

PYXIS Monitor Kit

5″ monitor
Sunshade
Swivel mount
Fixed mount with screws
Dovetail shoe with screws
1× USB-C cable

PYXIS Monitor EVF Kit

Everything in the Monitor Kit
URSA Cine EVF bracket rod mount
Rotating bracket with 19 mm carbon fibre rod
2× short 15 mm carbon fibre rod
Long and short USB-C cable

PACKAGE CONTENT

Blackmagic PYXIS Monitor
Clip on sunshade (Blackmagic PYXIS Clip On Sunshade)
Welcome wallet with QR code for software download
Blackmagic Design sticker

SPECIFICATIONS

Display: 5″ LCD capacitive touchscreen, HDR
Resolution: 1920 × 1080 (Full HD)
Brightness: 1500 nits
Frame rates: up to 60 fps
Connection: USB-C with locking connector – video, power, data and software updates
Tally: rear facing LED tally light
Accelerometer: automatically rotates the image when the monitor is mounted upside down
Control: touchscreen camera control and assignable F1, F2, F3 buttons
Mounting points: bottom 1× 1/4-20 with ARRI locating pin pattern and 2× M4, side 1× 1/4-20 with ARRI locating pin pattern and 2× M4
Compatible cameras: Blackmagic PYXIS 6K, PYXIS 6K PL, PYXIS 6K EF, URSA Cine 12K LF, URSA Cine 17K 65, Micro Studio Camera 4K G2
Software: Mac 13 Ventura, Mac 14 Sonoma or later, Windows 10 and 11
Operating temperature: 0 to 40 °C
Storage temperature: −20 to 60 °C
Relative humidity: 0 to 90 % non-condensing
Mounts and cable: not included
Warranty: 1 year limited manufacturer’s warranty

ARTICLES

Blackmagic Design updates 01/2025

Parameters

Manufacturer:	Blackmagic Design
Category:	Camera monitors

Main parameters

Supported video signal modes (resolution / frame rate)	1080p up to 60p
Size	5"
Monitor inputs	USB-C
Luminosity	1500cd/m2
Panel resolution	1920x1080
Monitor power supply	USB-C
