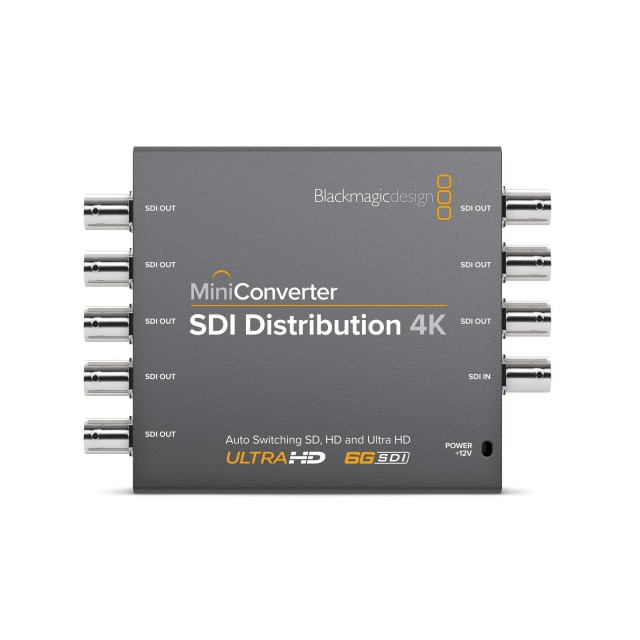

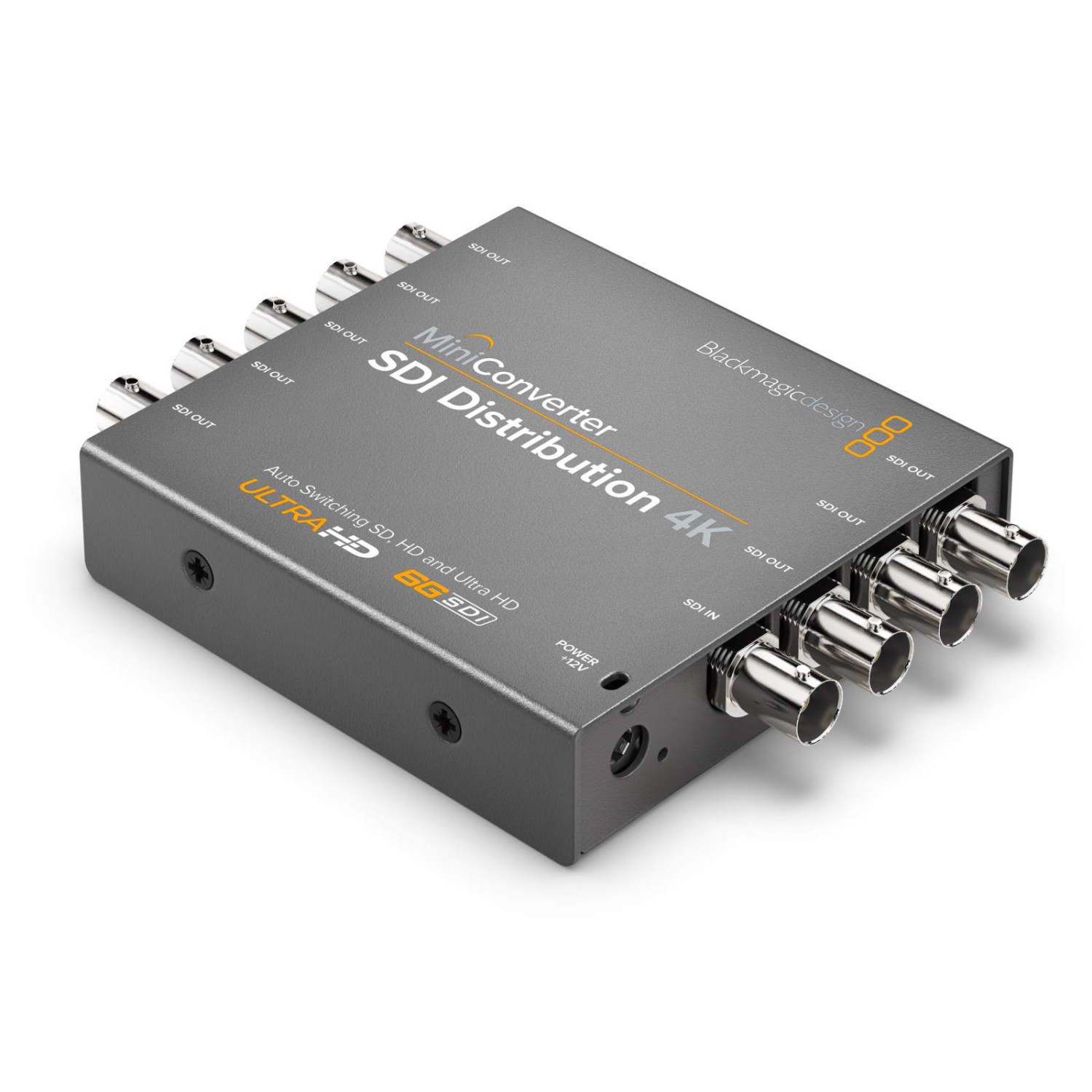

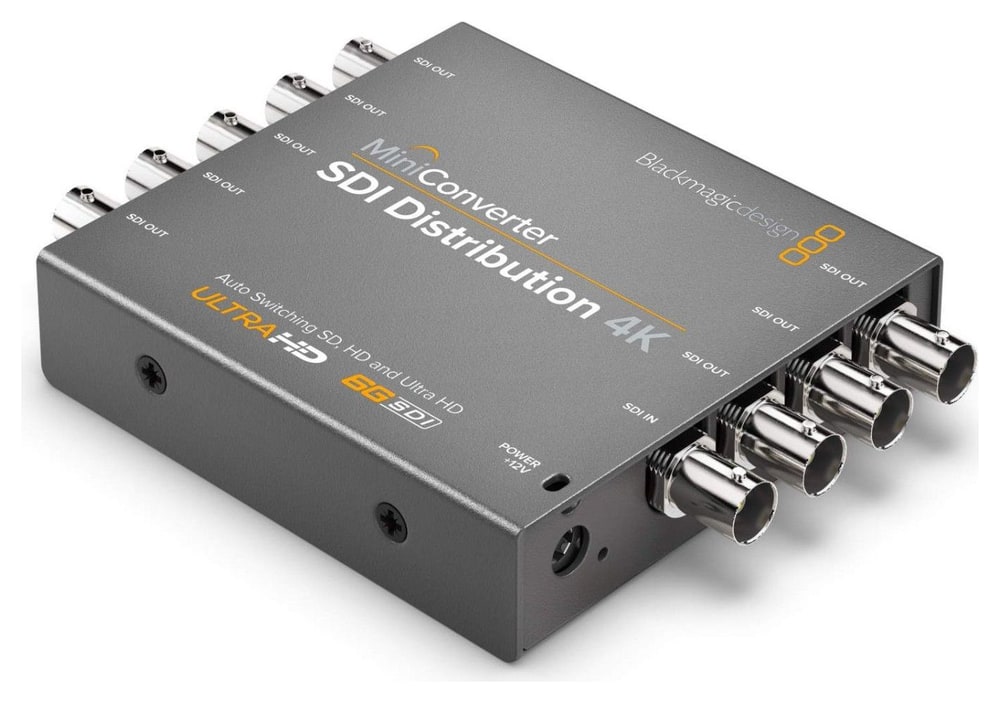

Blackmagic Design Mini Converter SDI Distribution 4K
SKU: CONVMSDIDA4K
Mini Converter SDI Distribution 4K distributes the signal from its SDI input to 8 separate SDI outputs. It switches automatically between SD, HD and Ultra HD video formats. The reclocked outputs work with SD, HD, 3G and 6G-SDI up to 2160p30 and keep embedded audio, ancillary data and ASI, and a universal 12 V power supply is included.
419 € with VAT
346.28 € without VAT
Availability
Shipment day: 27. 10.
Shipment day: 27. 10.
To be sent 1 pcs
Bratislava 1 pcs
Bratislava 1 pcs
Top accessories for Blackmagic Design Mini Converter SDI Distribution 4K
Infinitek L-3C2VS 1m FLEX HD-SDI cable BNC-BNC YEL
Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 1m
12 €
In stock 3 pcs
Blackmagic Design Power Supply - Mini Converters 12V12W Locking
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
In stock 1 pcs
Infinitek L-3.3CUHWS 2m FLEX 12G-SDI cable BNC-BNC
Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request
Blackmagic Design Power Supply - Converters 12V10W
Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
on request
Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Mini Converter SDI Distribution 4K distributes the signal from its SDI input to 8 separate SDI outputs. It switches automatically between SD, HD and Ultra HD video formats. The reclocked outputs work with SD, HD, 3G and 6G-SDI up to 2160p30 and keep embedded audio, ancillary data and ASI, and a universal 12 V power supply is included.
Ultra HD distribution for eight devices
Splits one SDI signal into eight reclocked outputs and switches automatically between SD, HD, 3G and 6G-SDI.
6G-SDI input8× SDI outputUltra HDReclockingPower supply included
Picture, audio and ancillary data
The outputs automatically follow the input format, including ASI, ancillary data and embedded audio. Suited to control rooms, studios and mobile broadcasts.
Control room monitors
Distribute an Ultra HD signal to several monitors at once.
Recording
Send the same signal to several recorders at the same time.
Broadcast trucks
The compact distribution amplifier fits even a small rack.
Mixed equipment
Works with SD, HD and Ultra HD devices.

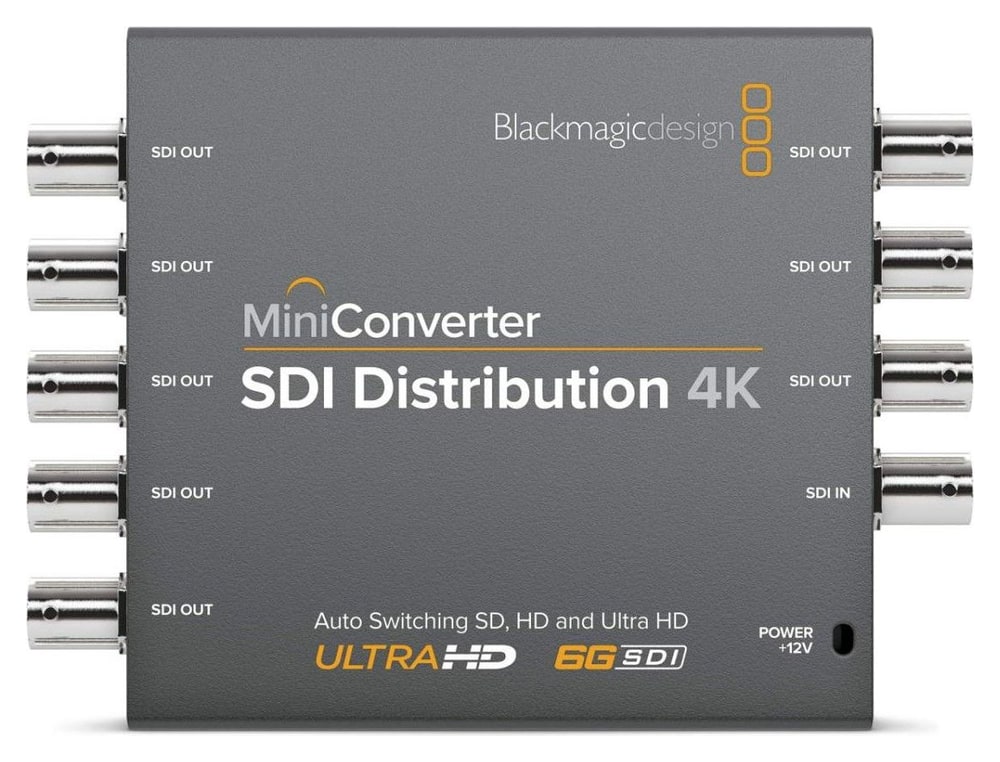

Eight SDI outputs for the whole facility
Mini Converter SDI Distribution 4K splits one SDI input into eight reclocked outputs. The outputs automatically take on the input format and also carry embedded audio, ancillary data and ASI.

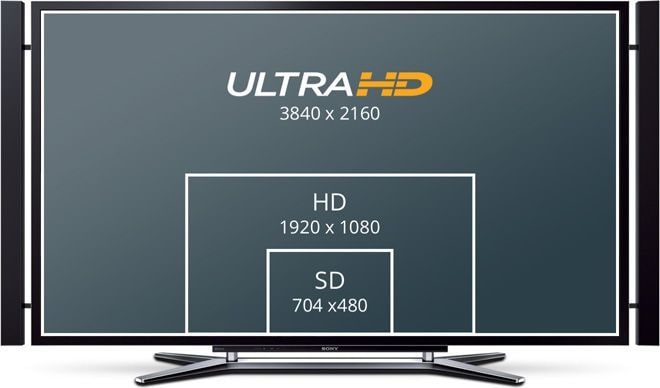

SD, HD and Ultra HD
The multi-rate 6G-SDI connection switches automatically between SD, HD, 3G and 6G-SDI and covers formats up to 2160p30 and 4K DCI up to 25p, so one distribution amplifier serves older SD and HD equipment as well as new Ultra HD production.

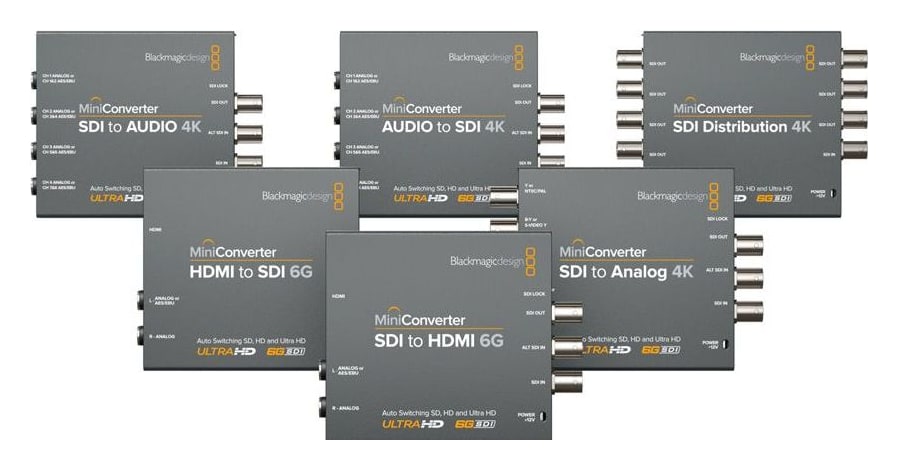

The Mini Converter 6G range
SDI Distribution 4K belongs to the Mini Converter 6G range of converters – together with the HDMI to SDI 6G, SDI to HDMI 6G or SDI to Analog 4K models it forms a complete set of equipment for Ultra HD production.
No setup needed
The distribution amplifier has no user controls: it detects the input format itself and matches the outputs to it. Just connect power and cables – thanks to reclocking and low jitter, longer cables can be used too.

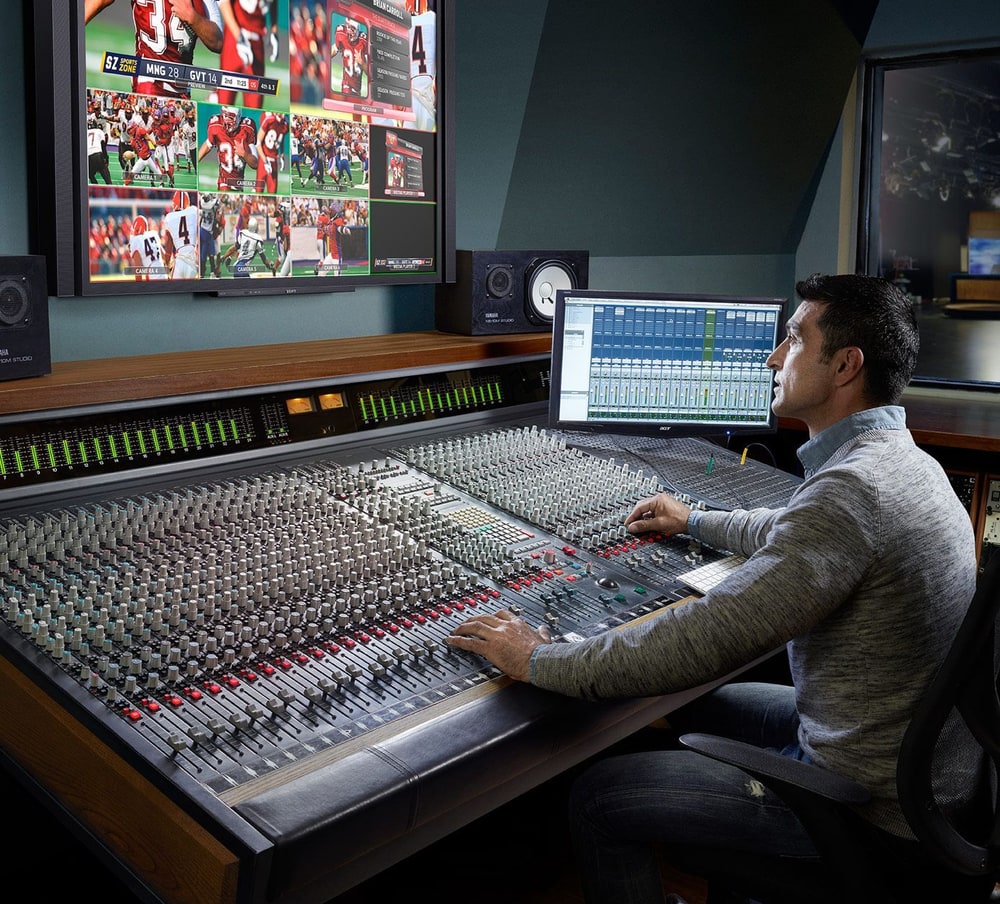

In the rack, in the truck and outdoors
The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a studio rack, an outside broadcast truck or a live sports event outdoors. The connections are easy to reach and use standard cables.

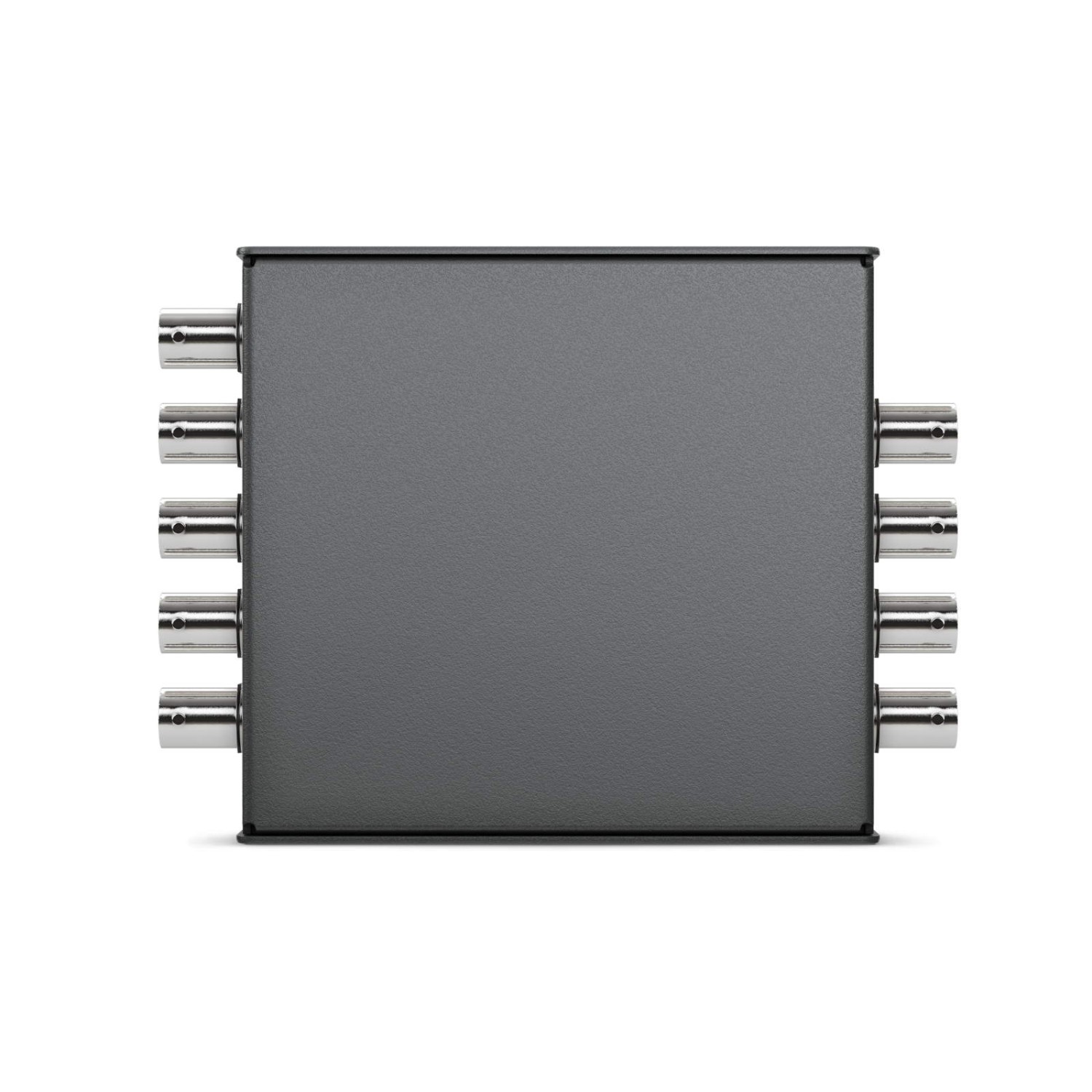

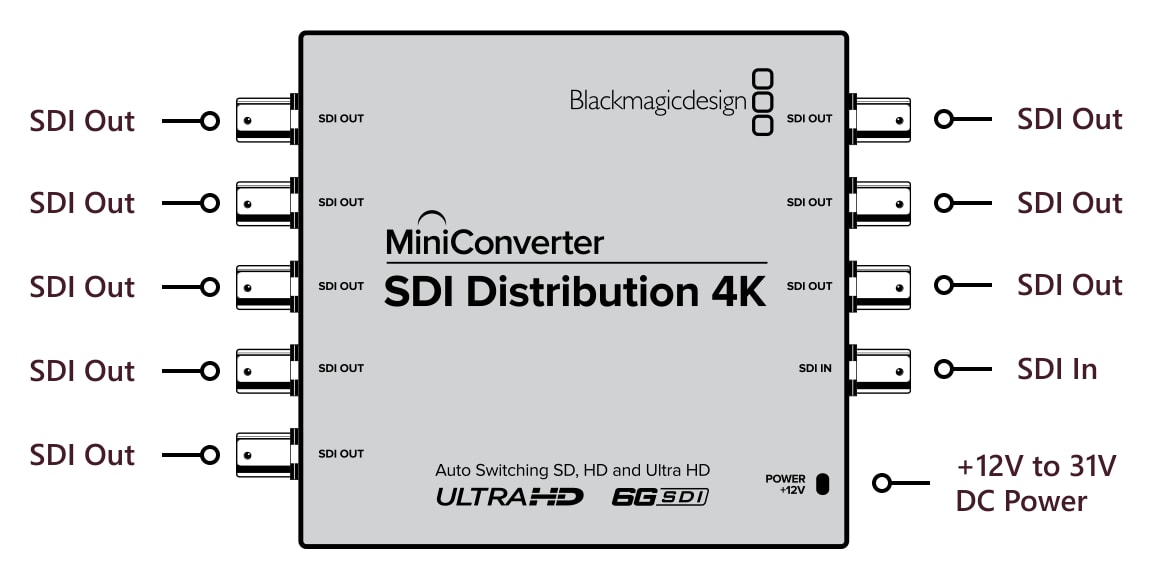

Connections

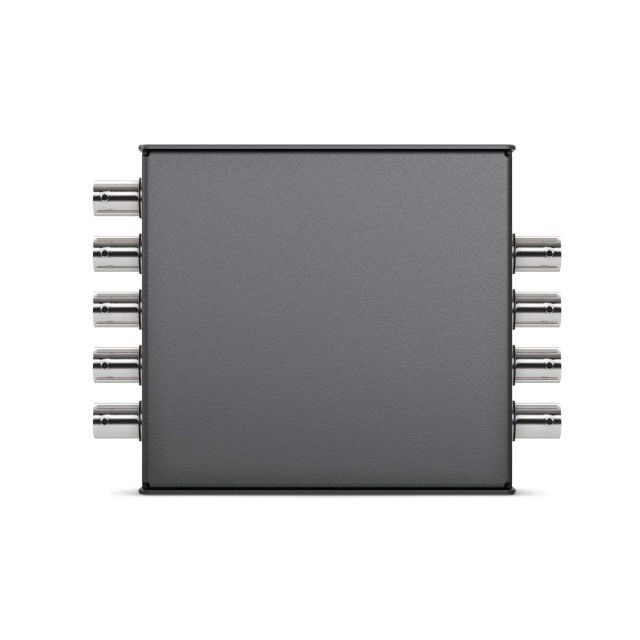

One side has five SDI outputs, the other three more SDI outputs, the SDI input and the power input.
More information
About the Mini Converter range
The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.
The converter has no user controls – it detects supported formats automatically and keeps picture and sound stable throughout the signal chain.
PACKAGE CONTENT
- Mini Converter SDI Distribution 4K
- Universal 12 V power supply with international socket adapters
SPECIFICATIONS
- SDI input: 1× SD/HD/6G-SDI
- SDI outputs: 8× reclocked SDI, automatically matching the input
- Auto detection: SD, HD, 3G-SDI, 6G-SDI
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K standards: 2K DCI 23.98p, 24p, 25p, 2K DCI 23.98PsF, 24PsF, 25PsF
- Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI standards: 4K DCI 23.98p, 24p, 25p
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, ST 2081, ITU-R BT.656 and BT.601
- SDI sampling and color space: 4:2:2 and 4:4:4, YUV and RGB
- Audio sampling: 48 kHz, 24 bit
- ASI: yes
- Reclocking: yes
- Settings control: no user controls (automatic detection)
- Power supply: universal 12 V with international socket adapters, cable tie point
- Operating voltage: 12–31 V DC
- Power consumption: 4.80 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90% non-condensing

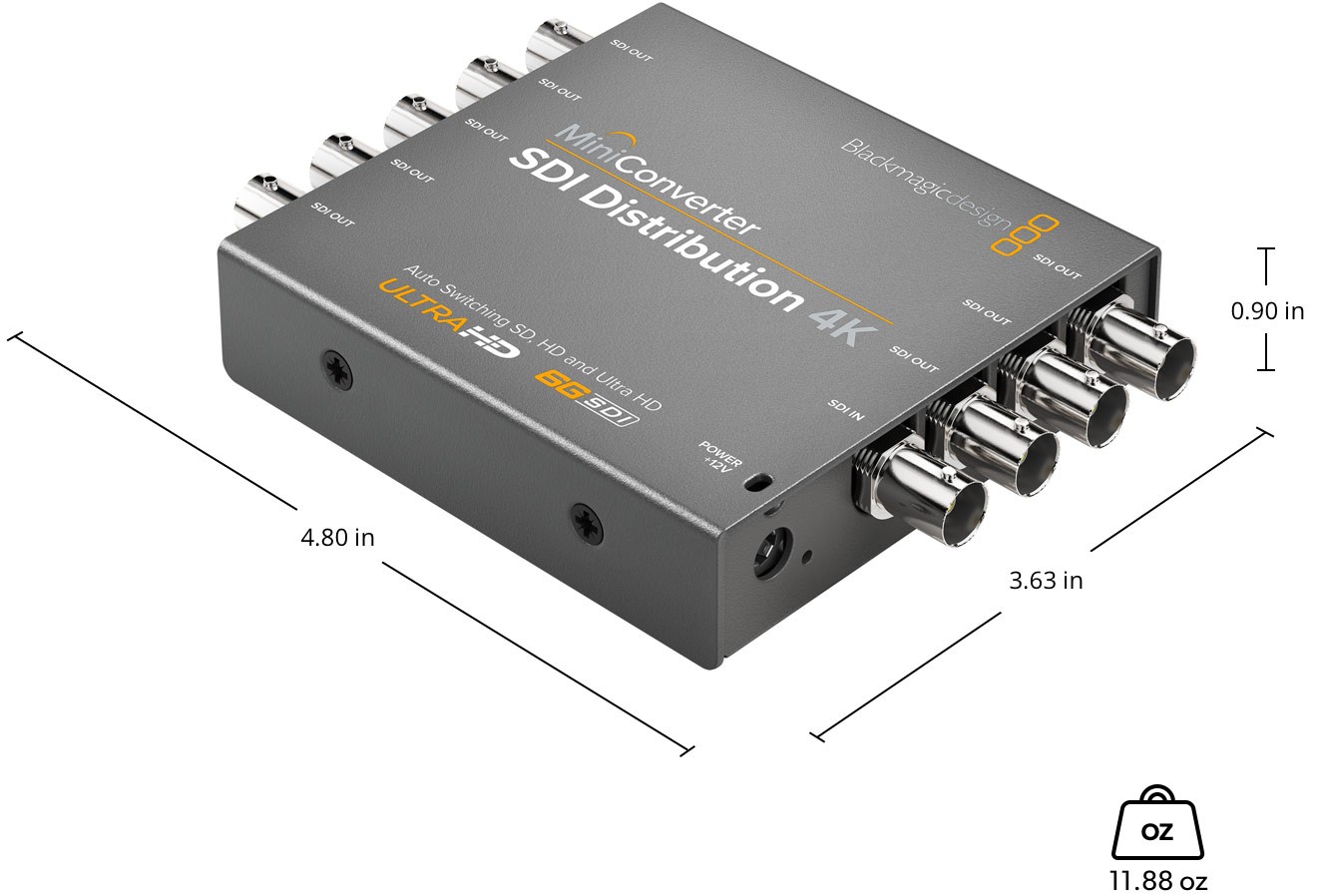

- Dimensions (L × W × H): 4.80 × 3.63 × 0.90 in (122 × 92 × 23 mm)
- Weight: 11.88 oz (337 g)
- Warranty: 3-year limited manufacturer warranty
WE RECOMMEND
The following accessories go with the Blackmagic Design Mini Converter SDI Distribution 4K.
Power supplies – Blackmagic Design power supplies for running the unit from the mains.
- Blackmagic Design Power Supply - Mini Converters 12V12W Locking
- Blackmagic Design Power Supply - Converters 12V10W
SDI cables – Coaxial cables for carrying SDI signals.
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Other features | Splitter · auto format adaptation |
| Source | SDI · 6G SDI |
| Target | SDI · 6G SDI |
