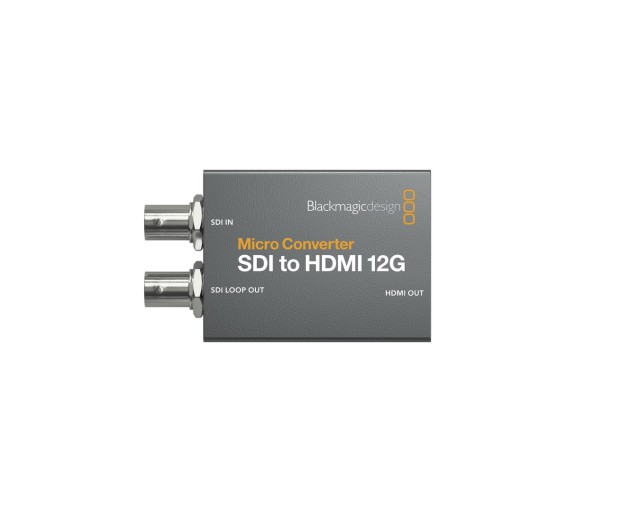

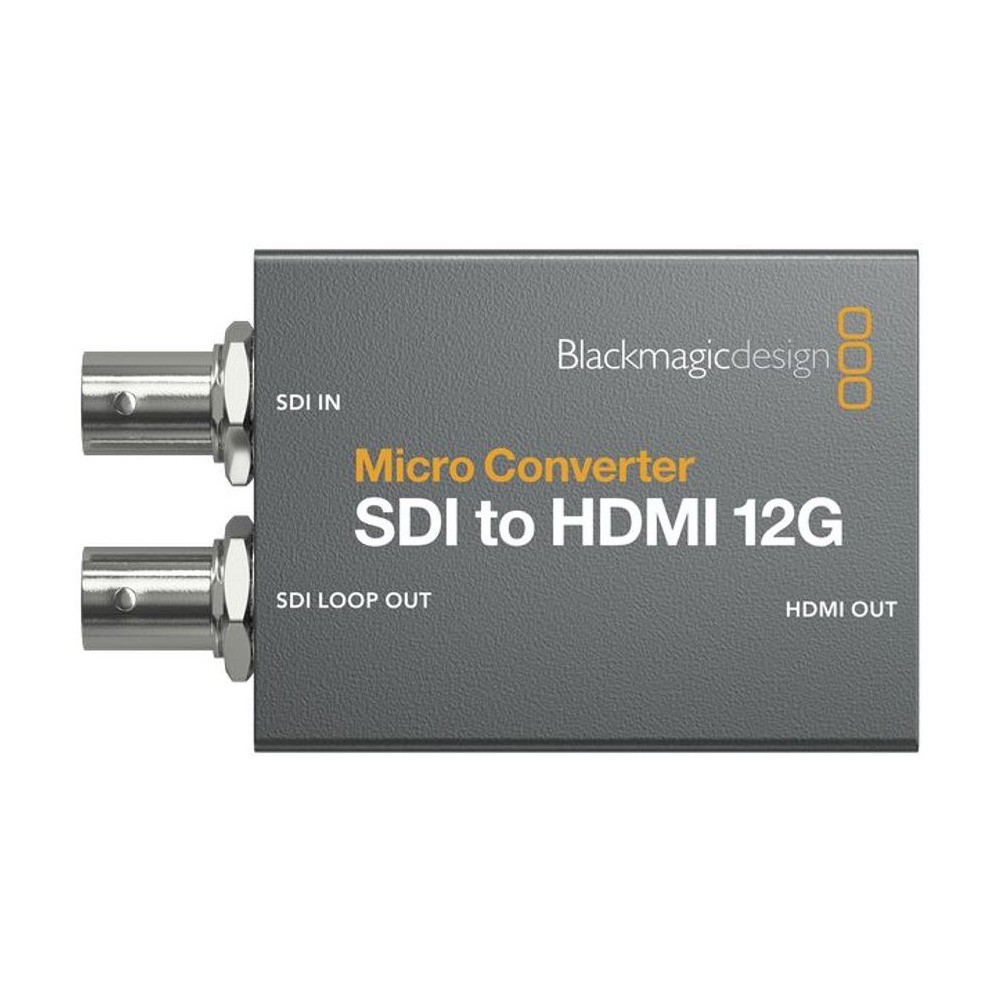

Blackmagic Design Micro Converter SDI to HDMI 12G (without PS)

+3
SKU: CONVCMIC/SH12G

New family of Micro Converter 12G models lets customers use HDMI equipment with professional SDI systems! Micro Converter SDI to HDMI 12G is perfect for monitoring in all SD, HD, 4K and Ultra HD standards up to 2160p60. It includes a 17 point 3D LUT for color calibrating monitors. Customers can also output the 3D LUT on the 12G-SDI loop output. Plus it supports…

More information

160 € with VAT 132.23 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs, Bratislava 3 pcs, Budapest 1 pcs
SKU:
CONVCMIC/SH12G
Add to Compare Price history

Blackmagic Design Micro Converter SDI to HDMI 12G (incl PS)

In stock > 5 pcs172 €without VAT 142.15 €

Top accessories for Blackmagic Design Micro Converter SDI to HDMI 12G (without PS)

Blackmagic Design Micro Converter Power Supply

  • LAST PIECE
An optional Micro Converters AC Power Supply that supports 110 to 240V AC and comes
31 €
In stock 1 pcs

PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 0.5m metallic gold plated connectors

  • 8K resolution
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.1 €
In stock 3 pcs

PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 2m metallic gold plated connectors

  • 8K resolution
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.7 €
In stock 2 pcs

Infinitek L-3.3CUHWS flexible 12G-SDI cable, BNC–BNC, 2 m

Professional 2 m 12G-SDI interconnect cable for mobile production. The flexible Canare
23 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

New family of Micro Converter 12G models lets customers use HDMI equipment with professional SDI systems! Micro Converter SDI to HDMI 12G is perfect for monitoring in all SD, HD, 4K and Ultra HD standards up to 2160p60. It includes a 17 point 3D LUT for color calibrating monitors. Customers can also output the 3D LUT on the 12G-SDI loop output. Plus it supports DCI film rates including 4Kp24, 4Kp47.95 and 4Kp48. 11/12 2021.

12G-SDI monitoring over HDMI 2.0

Connect professional SDI sources to HDMI monitors, projectors and televisions in formats up to 2160p60 and 4K DCI. A reclocked SDI loop output keeps the original signal available for the next device.

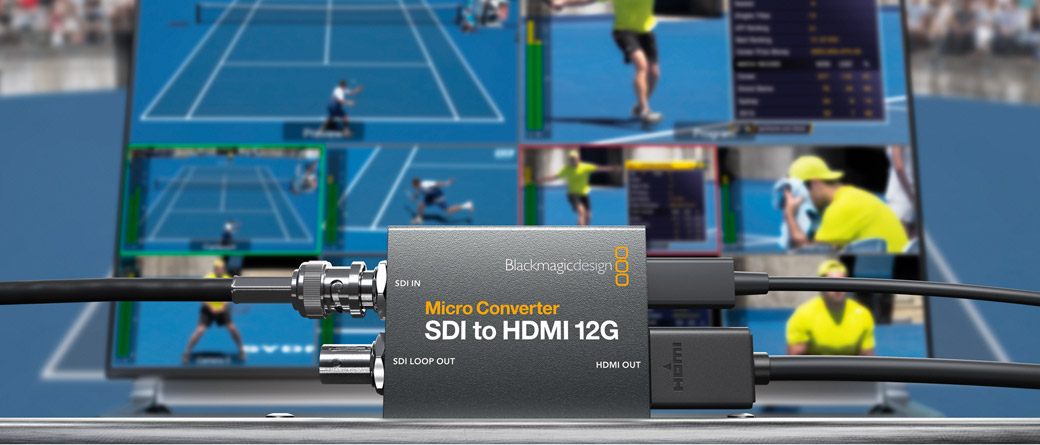

Blackmagic Micro Converter SDI to HDMI 12G in a monitoring setup
12G-SDIHDMI 2.02160p6033-point 3D LUT
HDR image comparison

Calibrated HDR monitoring

Load a 33-point 3D LUT through Blackmagic Converter Utility to calibrate a display or create a viewing look. The LUT can also be applied to the SDI loop output when required.

Small enough to use anywhere

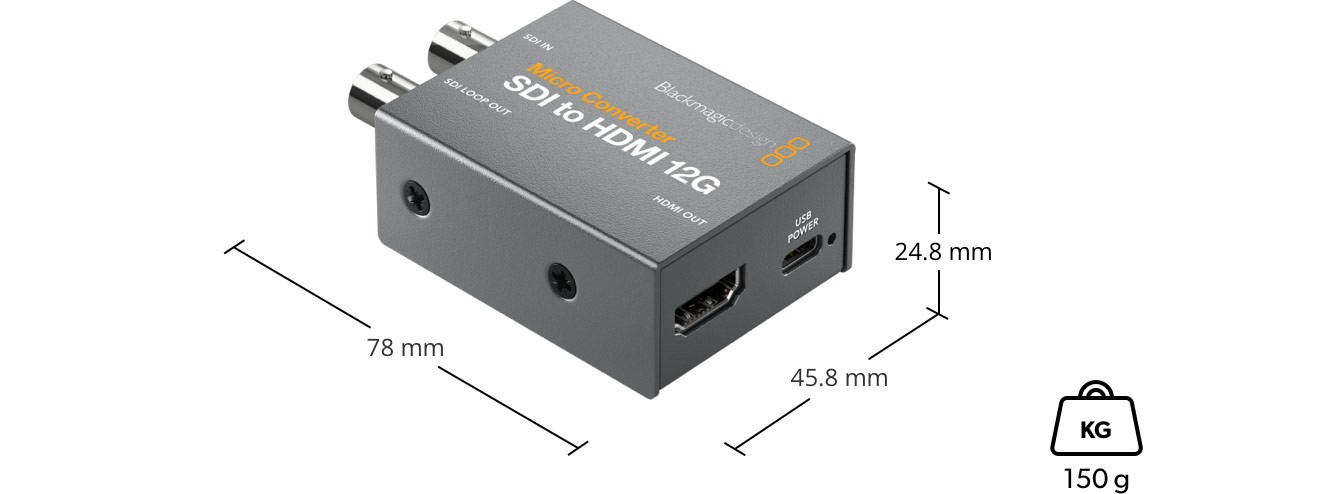

The durable metal body combines full-size HDMI, locking BNC connectors and USB-C power in an enclosure that fits behind a display or into a compact field kit.

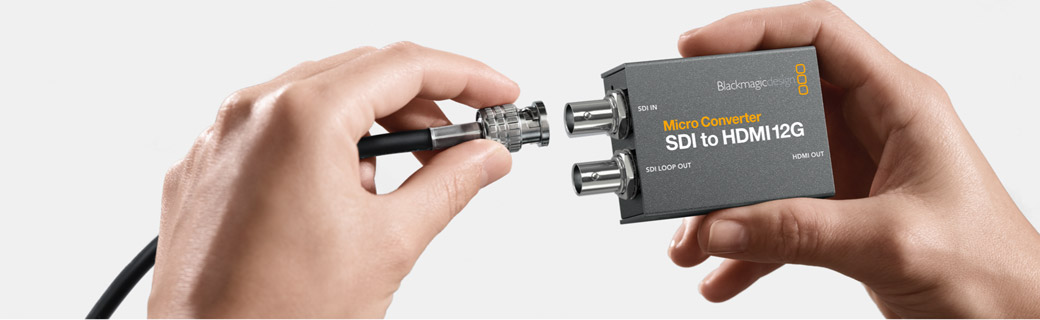

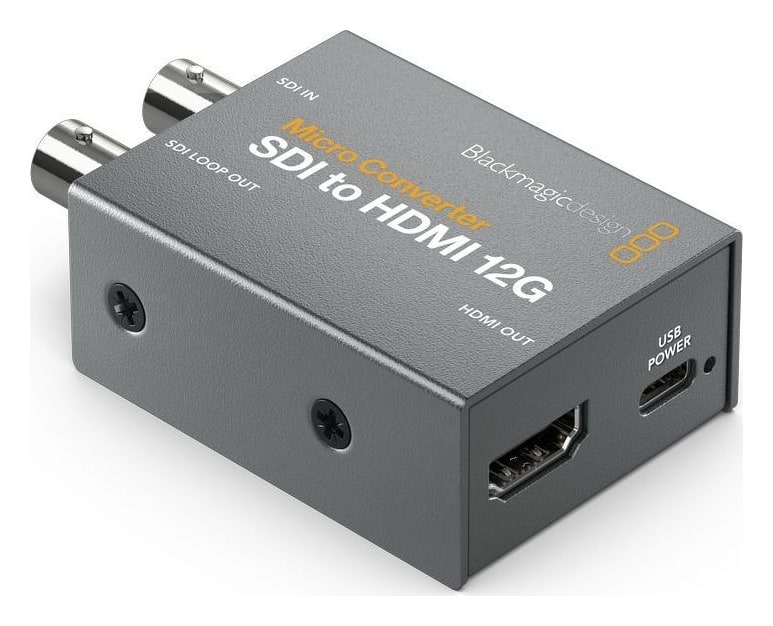

Compact Blackmagic Micro Converter SDI to HDMI 12G

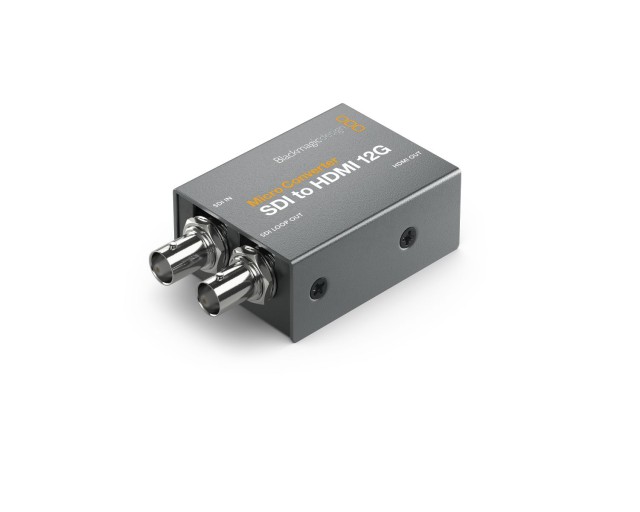

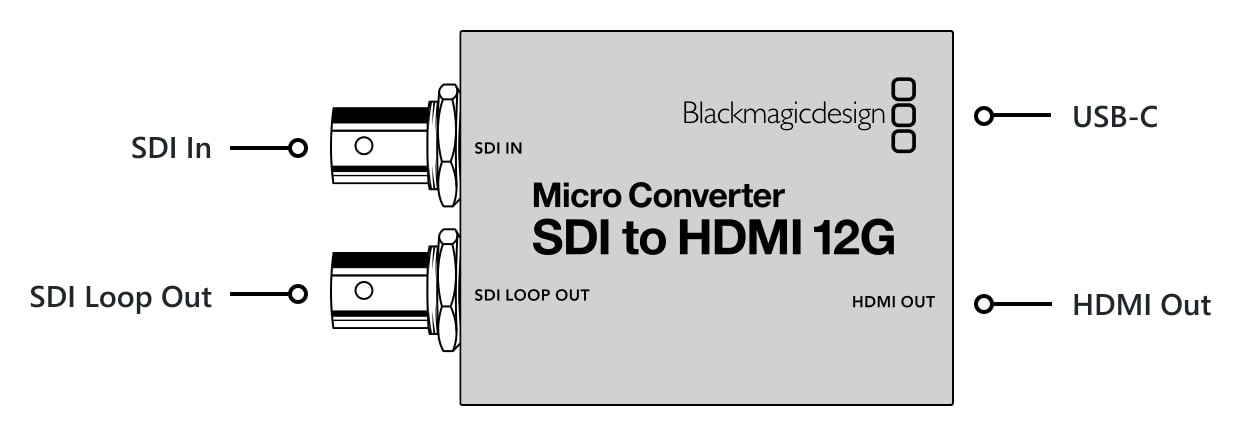

SDI input and loop output

SDI input with loop out

Automatic format detection supports SD, HD, 2K, Ultra HD and 4K, including 3G-SDI Level A and B.

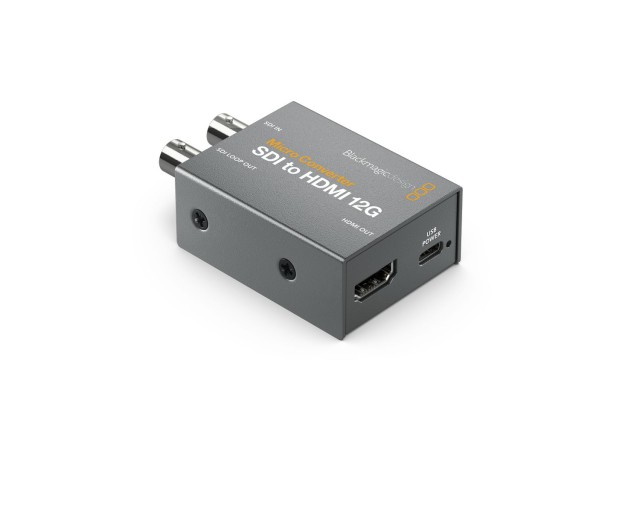

HDMI 2.0 output and USB-C power

Flexible USB-C power

Power the converter from a monitor, computer or suitable 5 V USB-C supply. USB-C also handles configuration and firmware updates.

PACKAGE CONTENT

  • Micro Converter SDI to HDMI 12G ×1

SPECIFICATIONS

  • SDI input: 1× 12G-SDI
  • SDI output: 1× reclocked loop output
  • HDMI output: 1× HDMI 2.0 Type A
  • SDI rates: 270 Mb/s, 1.5G, 3G, 6G and 12G
  • Supported formats: SD, HD, 2K, Ultra HD and 4K DCI up to 60p
  • 3D LUT: 33-point, loadable by software
  • Color precision: 4:2:2 YUV
  • Configuration and power: USB-C, 4.4 to 5.25 V DC
  • Maximum consumption: 4 W
  • Warranty: 3 years

WE RECOMMEND

The Blackmagic Design Micro Converter SDI to HDMI 12G is a professional converter designed for monitoring 12G-SDI signals on HDMI displays, with support for 17-bit 3D LUT corrections. For optimal performance, it requires compatible 12G-SDI signal sources, such as professional cameras and video capture cards, as well as color profile management software.

Cameras with 12G-SDI Output - These cameras provide native 12G-SDI output, which the converter processes for HDMI monitoring.

Video capture cards and interfaces - Devices for outputting an SDI signal from a computer to a converter for precise video preview.

Video production and signal processing - Products suitable for integrating SDI signals into HDMI infrastructure or interconnect cables.

Software and Control - Tools for creating and managing 3D LUT corrections supported by the converter.

Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Signal converters

Main parameters

Other featuresSDI LOOP · 3D LUT
Source12G SDI
TargetHDMI
