AVMatrix 3G-SDI/ HDMI Bidirectional Scaling Converter With Transceiver SFP Module

AVMATRIX SC2040 TR is a professional bidirectional 3G-SDI/HDMI scaling converter supplied with a bidirectional SFP transceiver module. It combines conversion, up/downscaling, frame-rate conversion, distribution, analogue audio handling and a test-pattern generator in one compact device.

More information

350 € with VAT 289.26 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX SC2040 TR is a professional bidirectional 3G-SDI/HDMI scaling converter supplied with a bidirectional SFP transceiver module. It combines conversion, up/downscaling, frame-rate conversion, distribution, analogue audio handling and a test-pattern generator in one compact device.

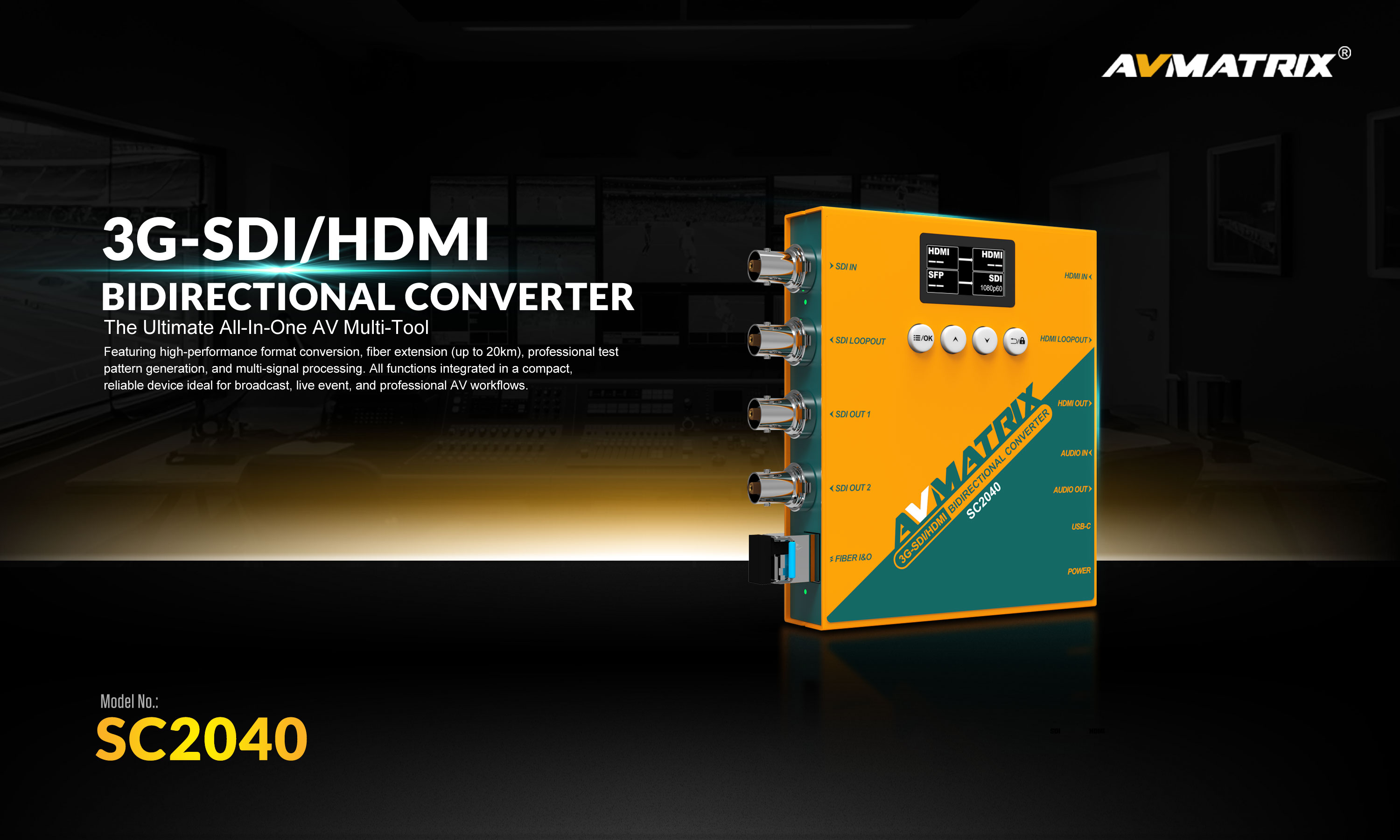

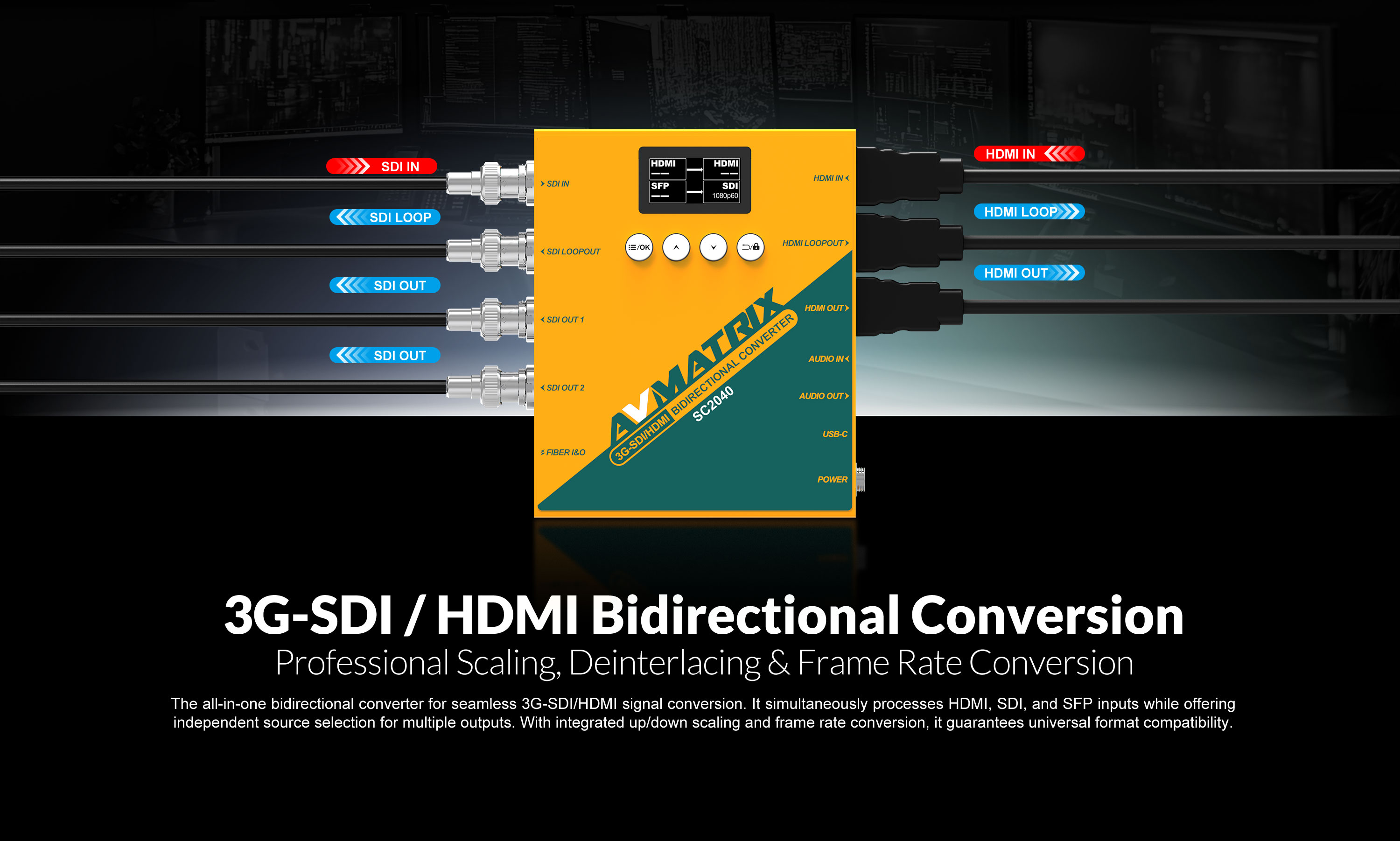

Bidirectional 3G-SDI and HDMI scaling converter

Conversion, up/downscaling and frame rate conversion, analogue audio handling and a test pattern generator in one compact device. It ships with an SFP transceiver module.

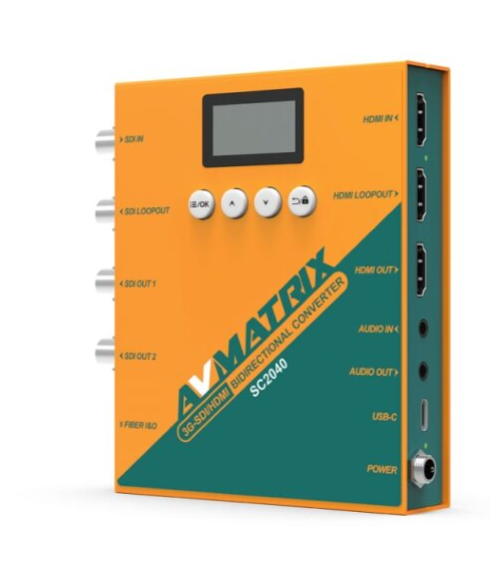

AVMATRIX SC2040 TR
3G-SDI ↔ HDMIUp/downscalingUp to 1080p60SFP optical3.5 mm audioDC or USB-C

Scaler, optics and diagnostics in one box

Scaling and frame rate conversion sort out incompatible sources, the SFP interface adds an optical path, and the built-in generator of 23 test patterns speeds up installation and diagnostics.

Up to 1080p60

Formats 1080p, 1080i, 720p, 576p, 480p, NTSC and PAL with resolution and frame rate conversion.

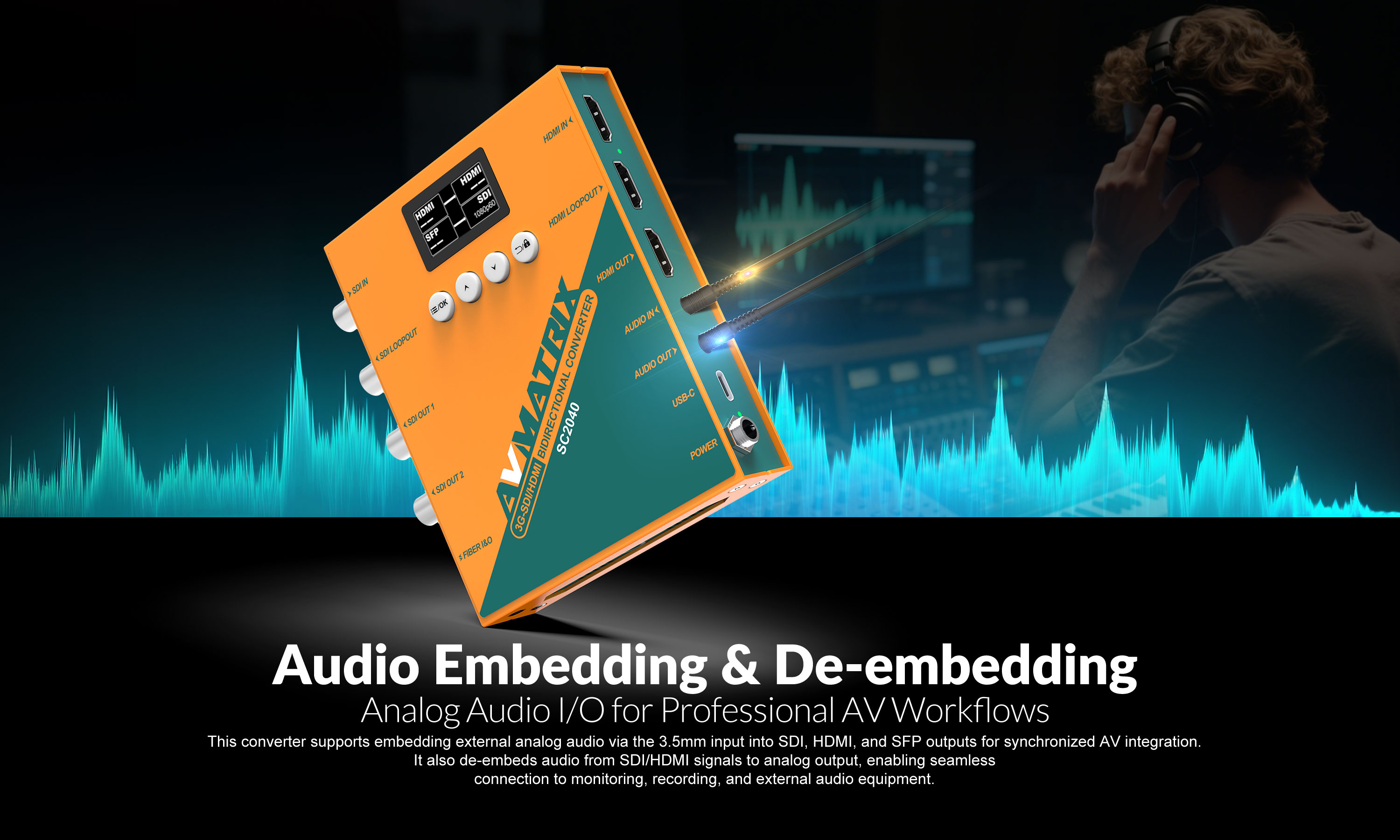

Analogue audio

3.5 mm input and output for embedding and de-embedding sound.

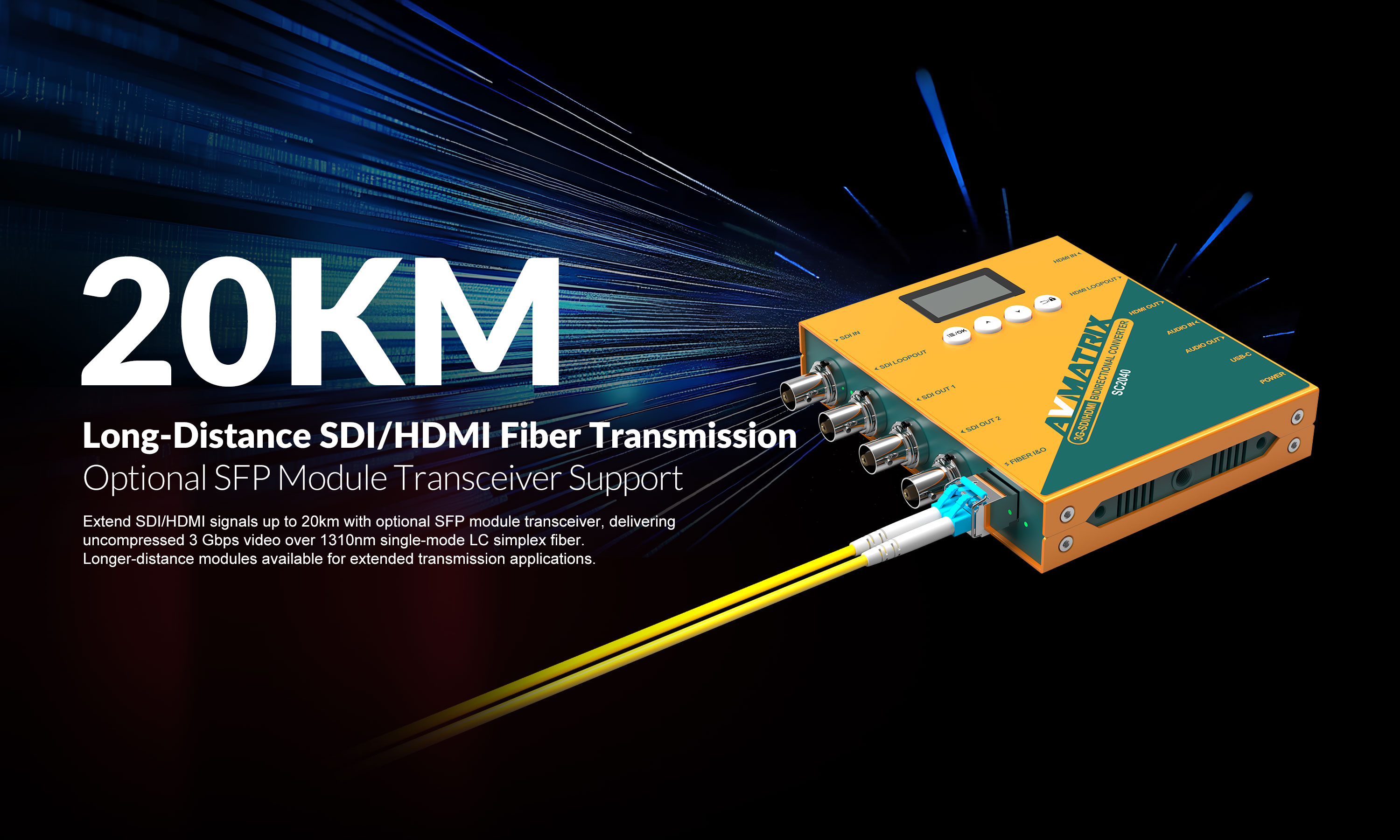

SFP up to 20 km

Optical transmission up to 20 km, depending on the SFP module used.

Display and USB-C

Front-panel control, USB-C for power and updates, or DC 9–24 V.

AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic AVMATRIX SC2040 TR – infographic

More information

About the product

AVMATRIX SC2040 TR is a professional bidirectional 3G-SDI/HDMI scaling converter supplied with a bidirectional SFP transceiver module. It combines conversion, up/downscaling, frame-rate conversion, distribution, analogue audio handling and a test-pattern generator in one compact device.

Key features

  • Bidirectional 3G-SDI and HDMI conversion
  • Up/downscaling and frame-rate conversion
  • Formats up to 1080p60
  • SFP optical transmission up to 20km depending on the module
  • Analogue audio embedding and de-embedding through 3.5mm connectors

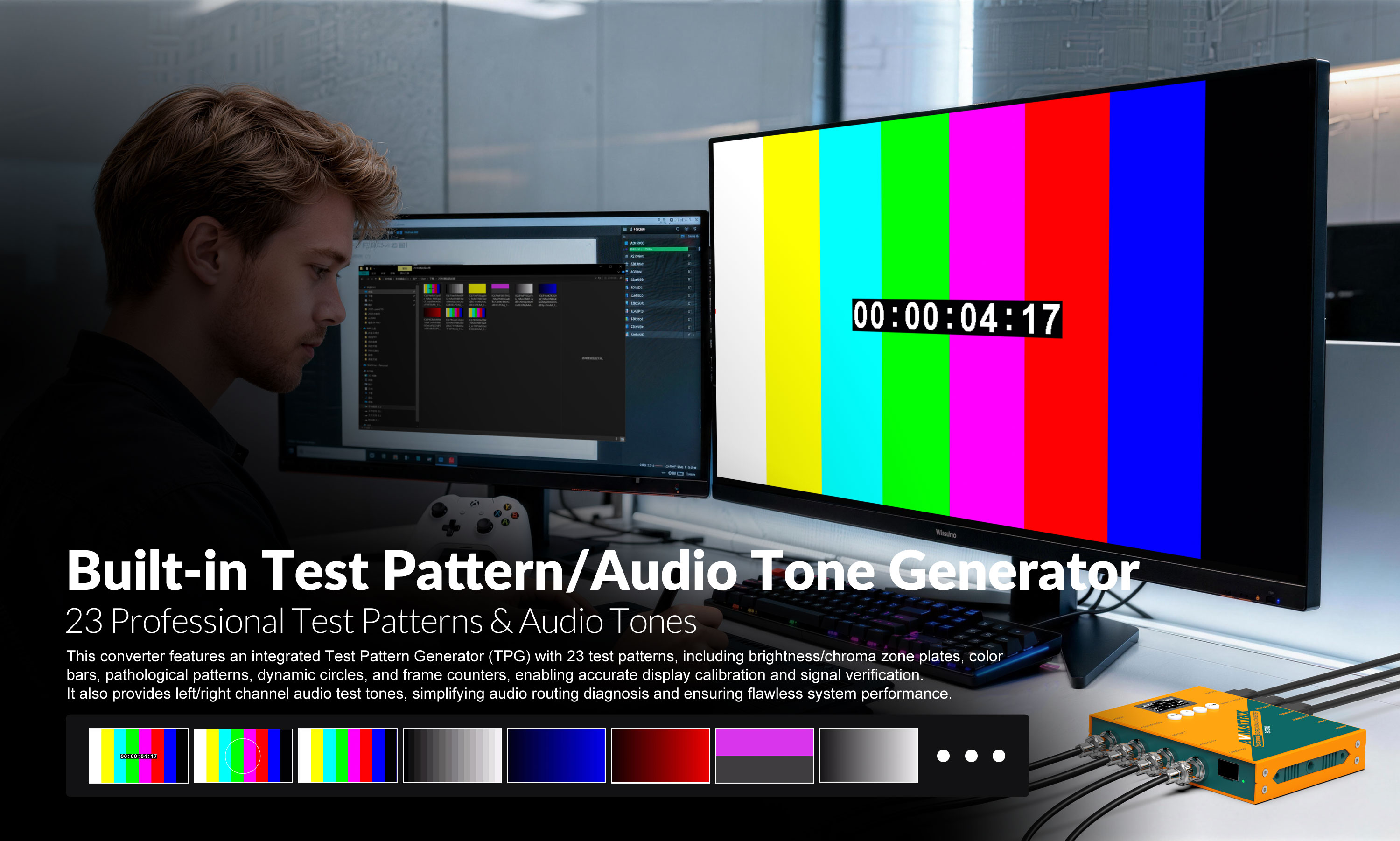

  • Generator with 23 professional test patterns and audio tones

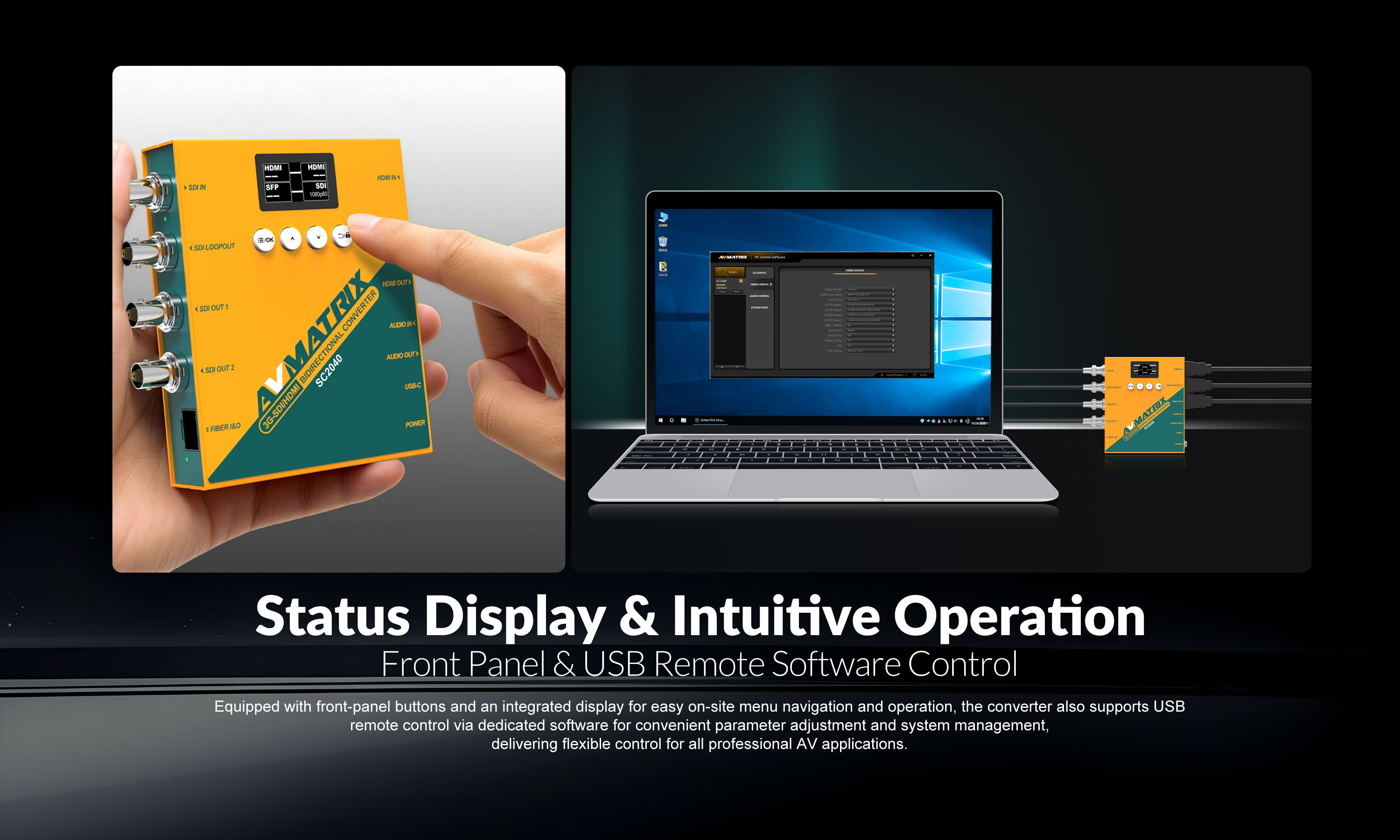

  • Front-panel and USB software control

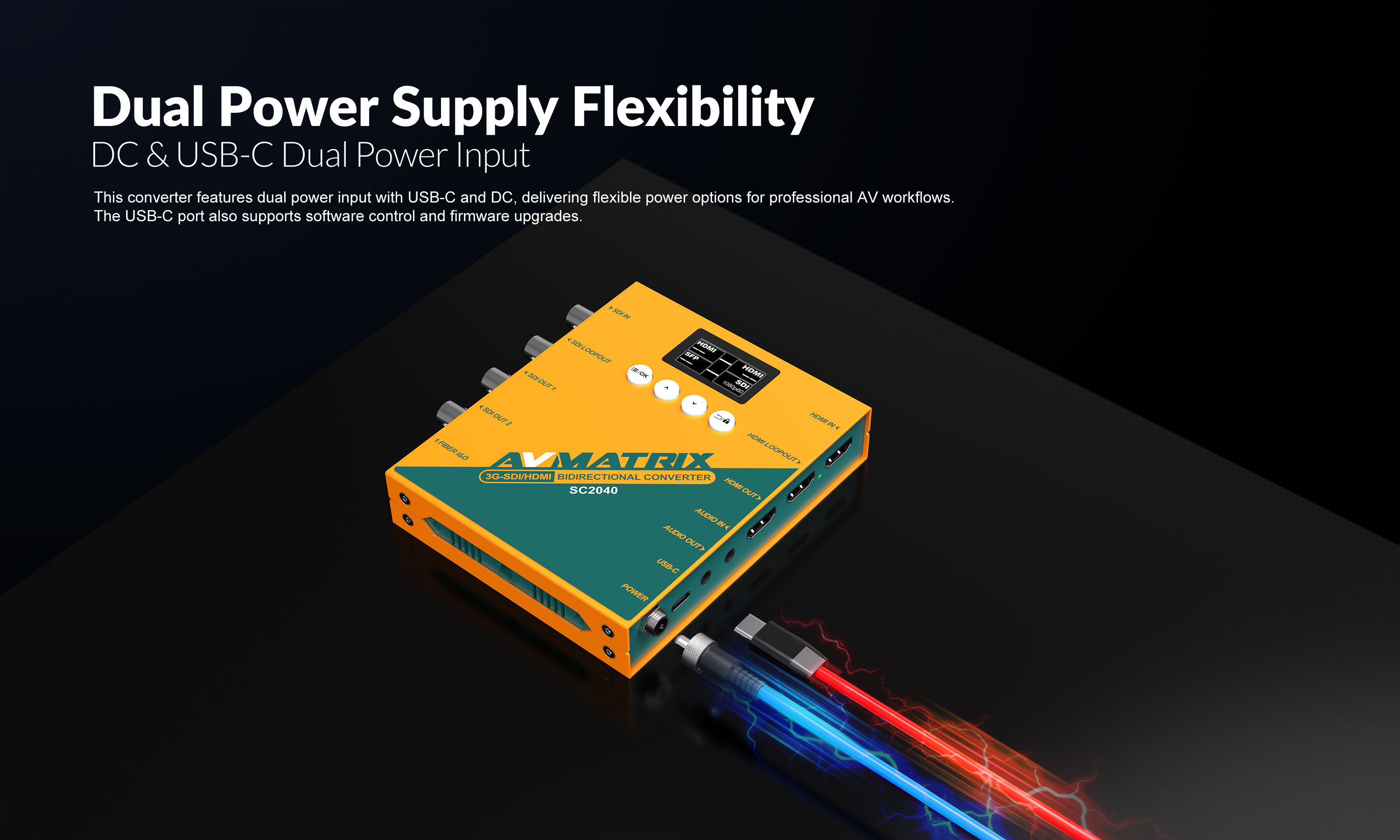

  • Dual DC or USB-C power

Converter, scaler and diagnostics in one

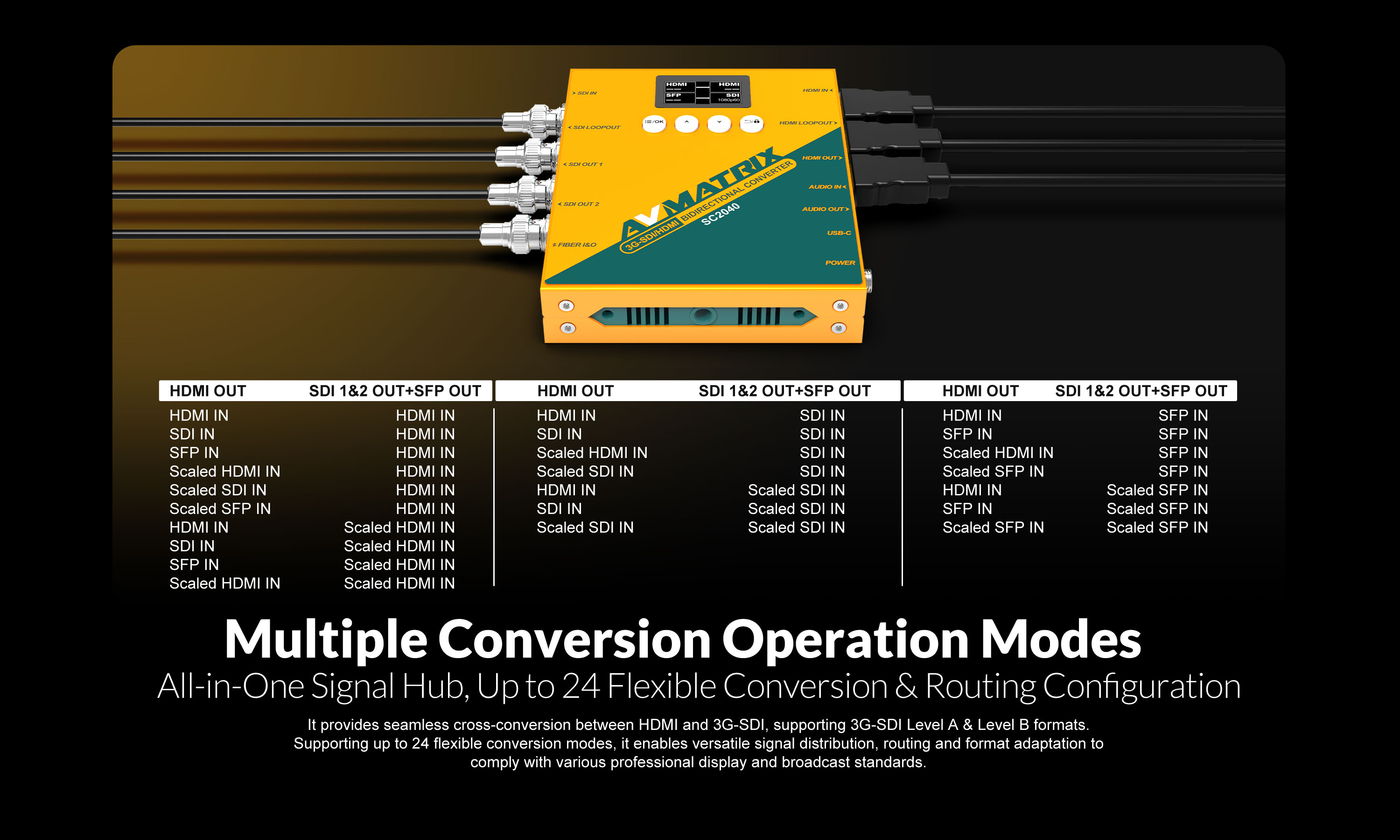

SC2040 adapts both the interface and image format between HDMI and 3G-SDI. Integrated scaling and frame-rate conversion resolve incompatible sources, while loop and independent outputs simplify monitoring and distribution. The SFP interface supports a long optical path.

PACKAGE CONTENT

  • 1× AVMATRIX SC2040 TR
  • 1× SFP transceiver module
  • 1× power adapter
  • 1× user manual

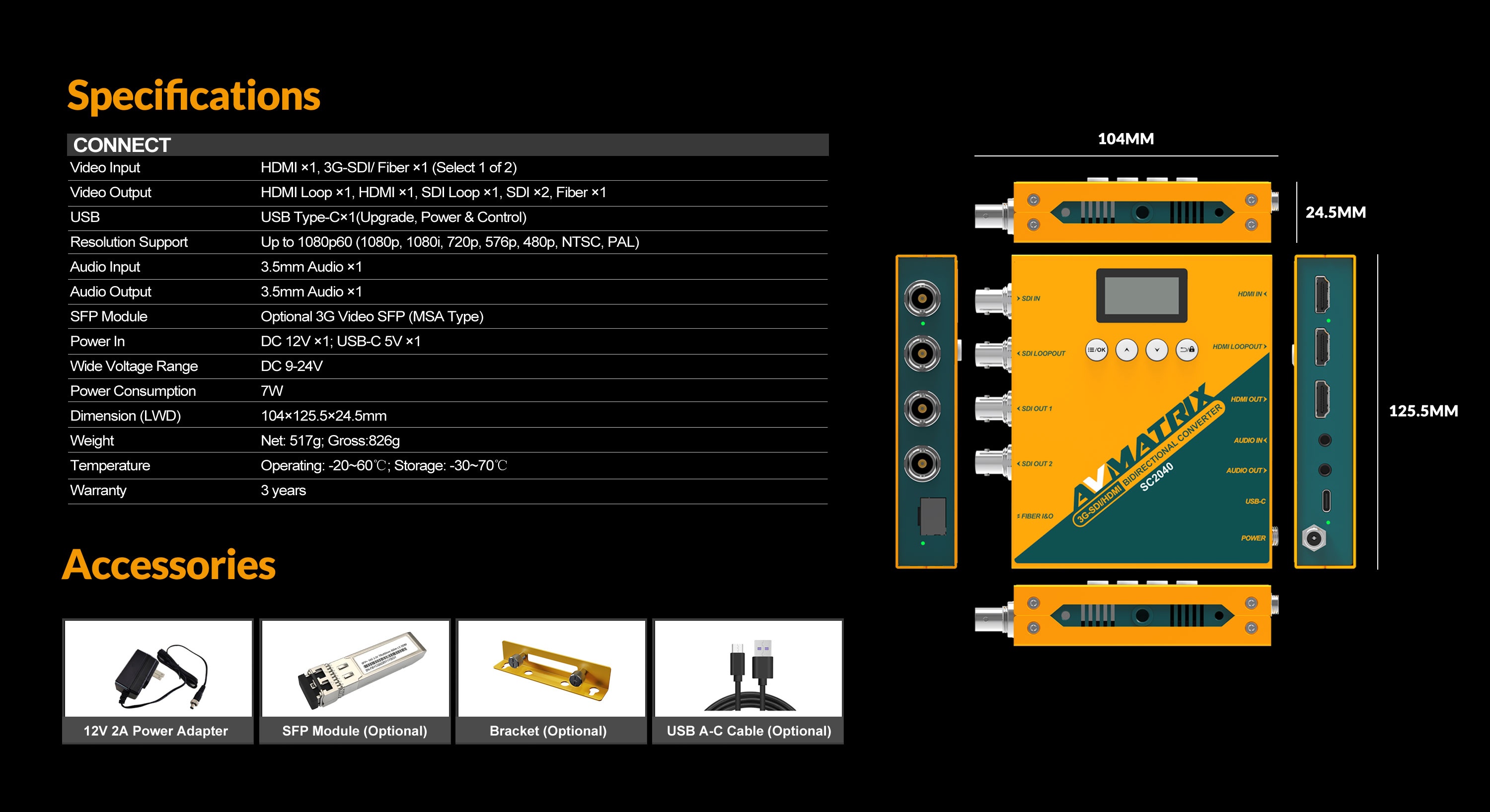

SPECIFICATIONS

  • Video inputs: 1× HDMI; 1× 3G-SDI or optical
  • Video outputs: 1× HDMI loop, 1× HDMI, 1× SDI loop, 2× SDI, 1× optical
  • Formats: 1080p, 1080i, 720p, 576p, 480p, NTSC, PAL; up to 1080p60
  • Audio: 1× 3.5mm input, 1× 3.5mm output
  • SFP: MSA-type 3G Video SFP
  • USB-C: update, control and power
  • Power: 12V DC or 5V USB-C; 9–24V DC range; 7W
Parameters

Parameters

Manufacturer: AVMATRIX
Category: Signal converters

Main parameters

Source3G SDI · HDMI · Optical · SDI
Target3G SDI · HDMI · Optical · SDI
