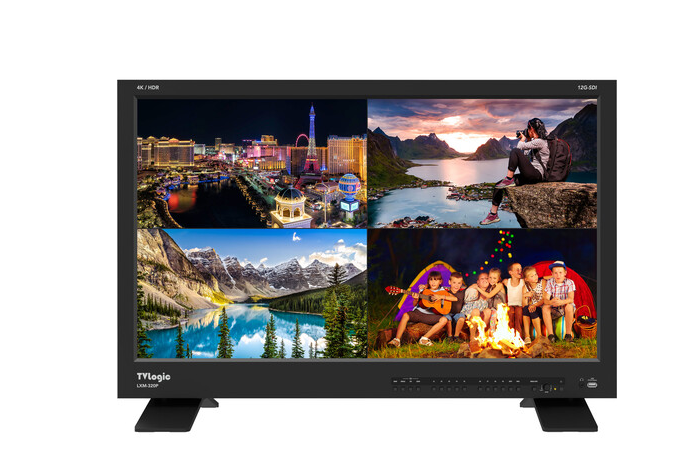

TVLogic LXM-320P Monitor

The TVLogic LXM-320P is a 31.5" professional DCI/UHD 4K monitor designed for broadcast, studio, and post-production environments. Featuring a native 3840 x 2160 IPS panel with 10-bit color depth, 98% DCI-P3 coverage, and 1000 cd/m² brightness, it delivers accurate color and high-contrast imagery. With four 12G-SDI inputs, HDMI 2.0 connectivity, quad/dual-view display modes, and advanced waveform and vectorscope tools, the LXM-320P is built for demanding UHD workflows.

Enhance your production workflow with the TVLogic LXM-320P 31.5" DCI/UHD 4K Monitor, engineered for professional broadcast and cinematic applications. The large 31.5-inch IPS-Type LCD panel delivers a native resolution of 3840 x 2160 with 1.07 billion colors (10-bit), 98% DCI-P3 wide color gamut, 1000:1 contrast ratio, and peak brightness of 1000 cd/m² for excellent clarity in bright studio environments.

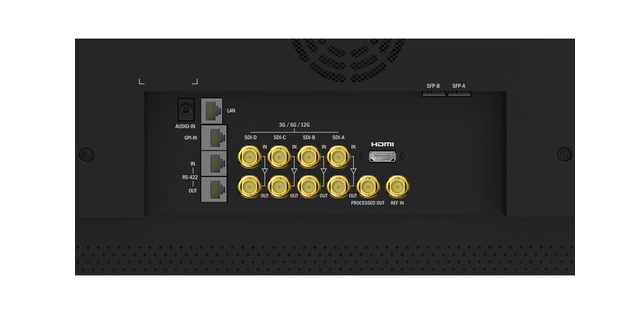

The LXM-320P supports up to UHD 4K input via HDMI 2.0 and four 12G-SDI inputs, as well as quad-link 3G-SDI. It features 12G-SDI and 3G-SDI quad-link loop outputs, enabling signal distribution to additional monitors or switchers for quad-view and dual-view monitoring setups. HDMI/SDI cross conversion and quad-link 12G input to single-link 12G output provide added flexibility in complex broadcast configurations.

Advanced image analysis tools—including waveform, vectorscope, histogram, audio phase meter, markers, timecode display, and check field—ensure precise signal monitoring. The monitor also supports custom 3D LUT import via USB, color calibration utility, closed caption (CC-608/708) support, auto SDI payload ID detection, and fast mode operation. Dual SFP inputs, reference input, Ethernet and GPI control, and firmware updates via USB or Ethernet complete its professional feature set.

Key Features

• 31.5" IPS-Type LCD display

• Native 3840 x 2160 DCI/UHD resolution

• 4 × 12G-SDI inputs with loop outputs

• 3G-SDI quad-link input and loop output

• HDMI 2.0 input

• Dual SFP inputs

• Quad-view & dual-view display modes

• 1000 cd/m² peak brightness

• 1000:1 contrast ratio

• 1.07 billion colors (10-bit)

• 98% DCI-P3 wide color gamut

• HDR emulation (PQ, HLG) & HDR/SDR comparison

• Custom 3D LUT import via USB

• HDMI/SDI cross conversion

• Quad link 12G input to single link 12G output

• Waveform, vectorscope, histogram

• Audio phase meter

• Closed caption support (CC-608, CC-708)

• Ethernet & GPI control

• Firmware update via USB or Ethernet
