TVLogic LXM-240U monitor

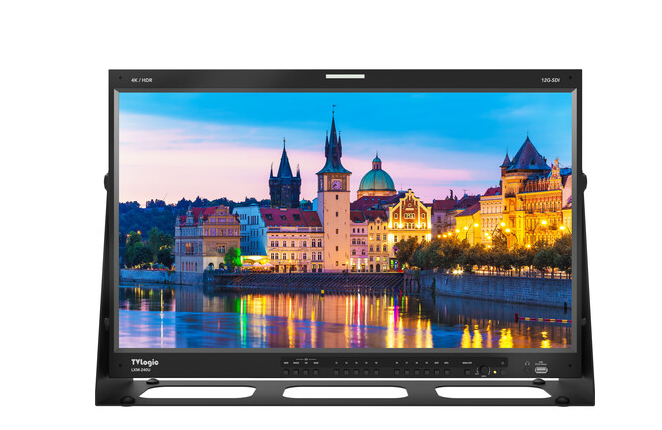

The TVLogic LXM-240U is a professional-grade 23.8" DCI/UHD 4K monitor designed for broadcast, post-production, and on-set environments. Featuring a native 3840 x 2160 IPS panel with 10-bit color, 98% DCI-P3 coverage, and HDR support (PQ, HLG, SLog3), it delivers precise color accuracy and wide dynamic range performance. With four 12G-SDI inputs, HDMI 2.0 connectivity, quad/dual-view monitoring, and advanced waveform and vectorscope tools, the LXM-240U is built for demanding UHD workflows.

Add high-performance UHD monitoring to your production workflow with the TVLogic LXM-240U 23.8" DCI/UHD 4K Monitor. Designed for professional broadcast, cinema, and studio environments, this IPS-type LCD monitor offers a native 3840 x 2160 resolution with 1.07 billion colors (10-bit), 1200:1 contrast ratio, and up to 1200 cd/m² brightness for clear, accurate viewing even in bright conditions.

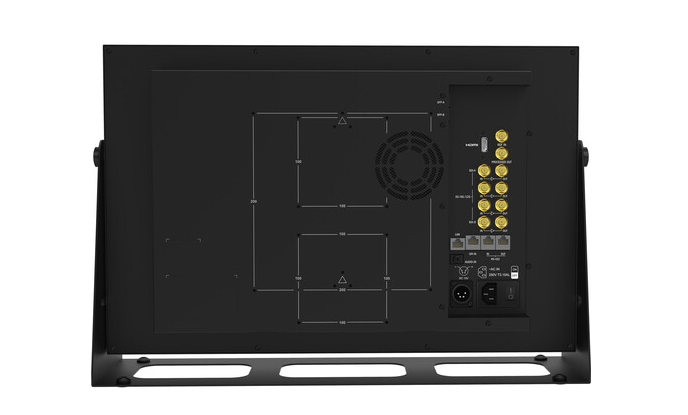

The LXM-240U supports HDR emulation and monitoring with PQ and HLG gamma, wide color gamut (98% DCI-P3), HDR vs SDR comparison, and custom 3D LUT import via USB. Its versatile connectivity includes four 12G-SDI inputs and loop outputs, quad-link 3G-SDI input/output, HDMI 2.0 input, dual SFP slots, and reference input. HDMI-to-SDI and SFP-to-SDI conversion, quad-view and dual-view display modes, and processed monitor outputs provide exceptional flexibility for multi-camera and live production setups.

Built-in professional monitoring tools such as waveform, vectorscope, histogram, audio phase meter, timecode display, markers, check field, and closed caption (CC-608/708) support ensure precise signal analysis. The monitor also supports Ethernet and GPI control, firmware updates via USB or Ethernet, and embedded audio monitoring through built-in stereo speakers and headphone output.

Key Features

• 23.8" IPS-Type LCD display

• Native 3840 x 2160 DCI/UHD resolution

• 4 × 12G-SDI inputs with loop outputs

• Quad-link 3G-SDI input/output

• HDMI 2.0 input

• Dual SFP slots

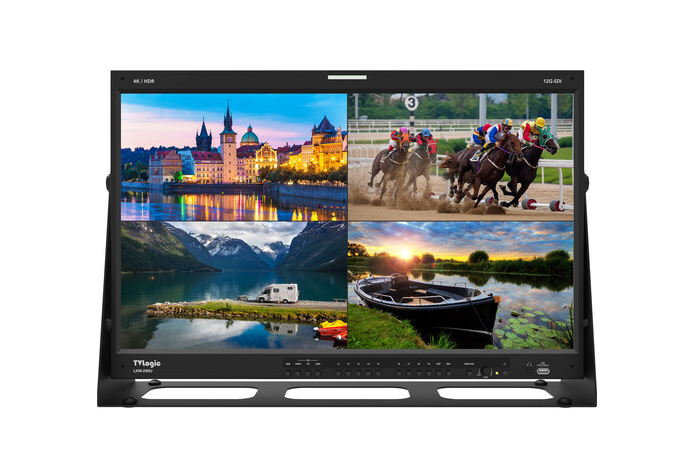

• Quad-view & dual-view display modes

• 1200 cd/m² brightness (panel rated 500 nits)

• 1200:1 contrast ratio

• 1.07 billion colors (10-bit)

• 98% DCI-P3 wide color gamut

• HDR support (PQ, HLG)

• HDR vs SDR comparison mode

• Custom 3D LUT import via USB

• Waveform, vectorscope, histogram

• Audio phase meter & embedded audio monitoring

• Closed caption support (CC-608, CC-708)

• HDMI to SDI & SFP to SDI conversion

• Ethernet, GPI, RS-422 control

• Firmware update via USB or Ethernet
