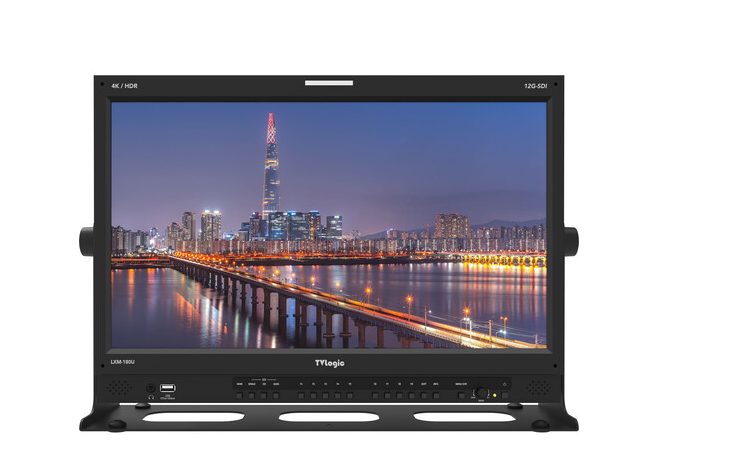

TVLogic LXM-180U

The TVLogic LXM-180U is a 18.5" professional-grade 4K input-ready monitor with Full HD resolution, HDR support, and versatile SDI/HDMI connectivity. Featuring advanced image analysis tools and wide color gamut, it is designed for demanding broadcast and production workflows requiring vivid, accurate monitoring.

Elevate your production environment with the TVLogic LXM-180U, an 18.5-inch 4K input-ready monitor offering exceptional image quality and versatile connectivity. With a native Full HD (1920 x 1080) resolution, the monitor supports up to UHD 4K input through HDMI 2.0 or four 12G-SDI inputs, plus quad-link 3G-SDI input/output for 1080p60 signals.

Boasting 500 cd/m² brightness and a sharp 1000:1 contrast ratio, the LXM-180U delivers clear visibility even in bright settings, paired with a wide 178° viewing angle. It features comprehensive HDR emulation, including PQ, HLG, and S-Log3 gamma support, along with a wide color gamut and 10-bit color depth, ensuring faithful color reproduction.

The monitor supports advanced features such as quad-view and dual-view display modes, HDMI/SDI cross conversion, and closed captioning (CC-608, CC-708). It includes professional monitoring tools like waveform, vectorscope, histogram, audio phase meter, and timecode display to assist with precise image and audio analysis. Additionally, it allows custom 3D LUT imports via USB flash drive and supports remote control and firmware updates via Ethernet and GPI.

Ideal for broadcast studios, post-production suites, and live event monitoring, the TVLogic LXM-180U is a robust, flexible solution for professional video workflows.

Key Features:

• 18.5" display with 1920 x 1080 Full HD resolution

• Supports UHD 4K input via HDMI 2.0 and 4 × 12G-SDI inputs

• Quad-link 3G-SDI input/output for 1080p60

• 500 cd/m² brightness, 1000:1 contrast ratio, 178° viewing angle

• HDR emulation with PQ, HLG, and S-Log3 gamma support

• Wide color gamut and 10-bit color depth (16.7 million colors)

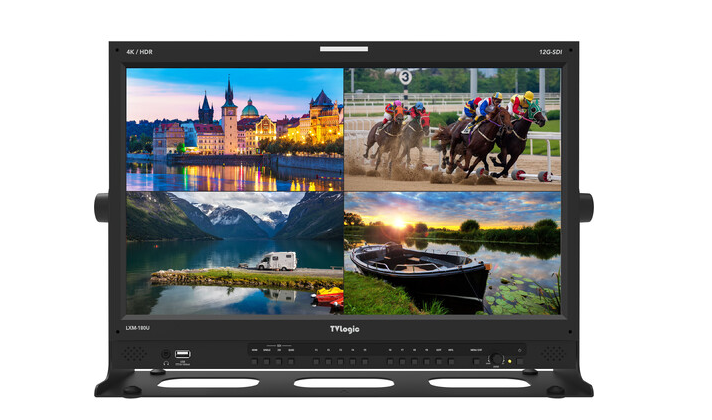

• Quad-view & dual-view display modes

• HDMI/SDI cross conversion

• Waveform, vectorscope, histogram, audio phase meter

• Closed caption support (CC-608, CC-708)

• Custom 3D LUT import via USB flash drive

• Firmware update via Ethernet, GPI remote control

• Reference input and dual SFP input
