TVLogic LXM-240P Monitor

The TVLogic LXM-240P is a 23.8" professional DCI/UHD 4K monitor built for broadcast, studio, and post-production workflows. Featuring a native 3840 x 2160 IPS panel with 10-bit color, 98% DCI-P3 coverage, HDR (HLG/PQ) support, and 1000 cd/m² brightness, it delivers accurate color and high dynamic range performance. With 12G-SDI, HDMI 2.0 connectivity, quad/dual-view display, and advanced waveform and vectorscope tools, the LXM-240P is engineered for demanding UHD environments.

The TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor is a professional-grade display solution designed for high-end broadcast, cinema, and production environments. Its IPS-Type LCD panel delivers a native 3840 x 2160 resolution with 1.07 billion colors (10-bit), 98% DCI-P3 wide color gamut, 1000:1 contrast ratio, and peak brightness of 1000 cd/m² for clear and accurate monitoring, even in bright conditions.

Supporting HDR formats including PQ and Hybrid Log Gamma (HLG), along with HDR vs SDR comparison mode and SLog3 gamma emulation, the LXM-240P ensures precise evaluation of high dynamic range content. Custom 3D LUT import via USB and a built-in color calibration utility provide enhanced color management flexibility.

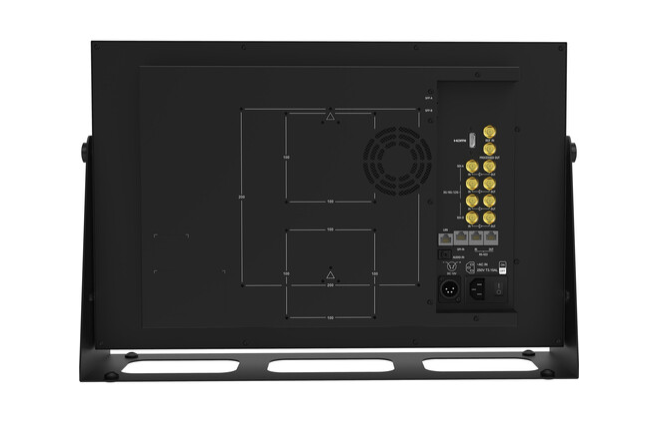

Connectivity includes four 12G-SDI inputs with loop outputs, quad-link 3G-SDI input/output, HDMI 2.0 input, dual SFP slots, and reference input. The monitor supports HDMI-to-SDI and SFP-to-SDI conversion, quad-link 12G input to single-link 12G output, and quad-view or dual-view display modes for multi-camera production setups.

Professional monitoring tools such as waveform, vectorscope, histogram, audio phase meter, timecode display, markers, check field, and closed caption (CC-608/708) support ensure detailed signal analysis. Ethernet, GPI, and RS-422 control options, along with USB or Ethernet firmware updates, make the LXM-240P a versatile and future-ready production monitor.

Key Features

• 23.8" IPS-Type LCD display

• Native 3840 x 2160 DCI/UHD resolution

• 4 × 12G-SDI inputs with loop outputs

• Quad-link 3G-SDI input/output

• HDMI 2.0 input

• Dual SFP slots

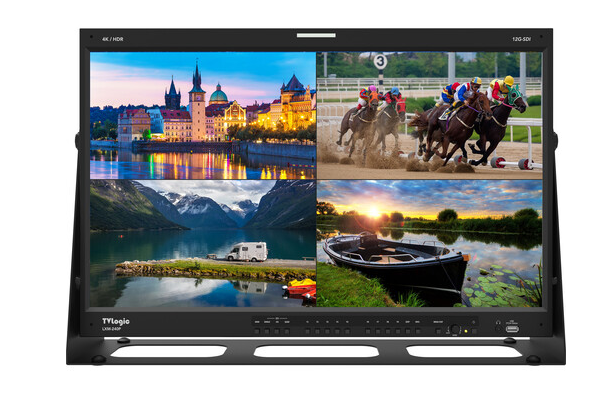

• Quad-view & dual-view display modes

• 1000 cd/m² brightness

• 1000:1 contrast ratio

• 1.07 billion colors (10-bit)

• 98% DCI-P3 wide color gamut

• HDR support (PQ, HLG)

• HDR vs SDR comparison mode

• Custom 3D LUT import via USB

• HDMI to SDI & SFP to SDI conversion

• Waveform, vectorscope, histogram

• Audio phase meter

• Closed caption (CC-608, CC-708)

• Ethernet, GPI & RS-422 control

• Firmware update via USB or Ethernet
