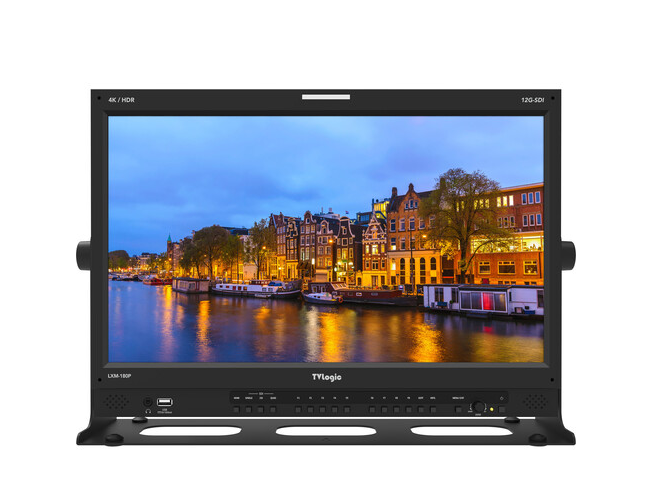

TVLogic LXM-180P Monitor

The TVLogic LXM-180P 18.4" DCI/UHD 4K Monitor delivers professional-grade HDR video monitoring with 1.07 billion colors, 1000 cd/m² brightness, and wide 178° viewing angles. Featuring four 12G-SDI inputs, HDMI 2.0 input, quad/dual-view modes, and built-in waveform, vectorscope, and histogram tools, this monitor is ideal for film, broadcast, and post-production environments. Its versatile inputs, HDR/SDR comparison, and color calibration capabilities make it a reliable choice for critical video monitoring.

The TVLogic LXM-180P is a high-performance 18.4" DCI/UHD 4K monitor designed for professional production environments. With a native 3840 x 2160 resolution, 1.07 billion colors, 1000 cd/m² peak brightness, and 1000:1 contrast ratio, it provides sharp, vibrant images with a wide 178° viewing angle. This monitor supports UHD 4K input via four 12G-SDI inputs, quad-link 3G-SDI, and HDMI 2.0, with loop outputs for multi-monitor setups or quad-view/dual-view displays.

Optimized for HDR workflows, the LXM-180P supports PQ, HLG, and S-Log3 gamma with HDR/SDR comparison, wide color gamut (98% DCI-P3), and custom 3D LUT import via USB. Professional monitoring tools include waveform, vectorscope, histogram, focus assist, markers, and closed caption display. The monitor also features HDMI/SDI cross conversion, audio phase meter, stereo speaker and headphone output, and support for firmware updates via Ethernet or USB. Control is possible through GPI, RS-422, or LAN interfaces.

Key Features:

• 18.4" IPS LCD, 3840 x 2160 native resolution, 16:9

• 1000 cd/m² peak brightness, 1000:1 contrast, 178° viewing angle

• Wide color gamut: 98% DCI-P3, 10-bit color (1.07 billion colors)

• HDR support (PQ, HLG, S-Log3) with HDR vs SDR comparison

• Four 12G-SDI inputs & loop outputs, 3G-SDI quad-link input/output

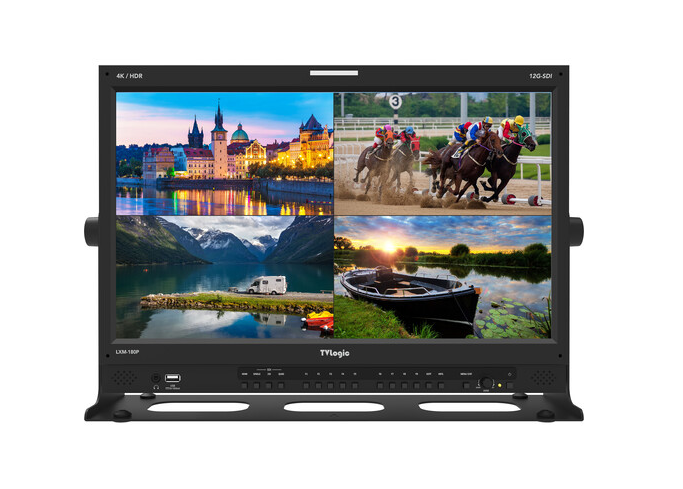

• HDMI 2.0 input, quad-view & dual-view modes, processed monitor output

• Professional image tools: waveform, vectorscope, histogram, focus assist, markers, image flip, blue only

• Audio monitoring: HDMI/SDI embedded, 3.5 mm line input, stereo speaker & headphone output

• Control via GPI, RS-422, LAN, and firmware updates via USB/Ethernet

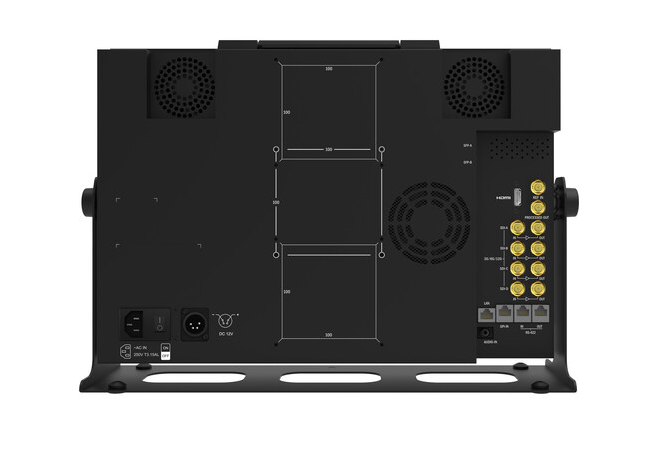

• SFP slots and reference input for flexible connectivity
