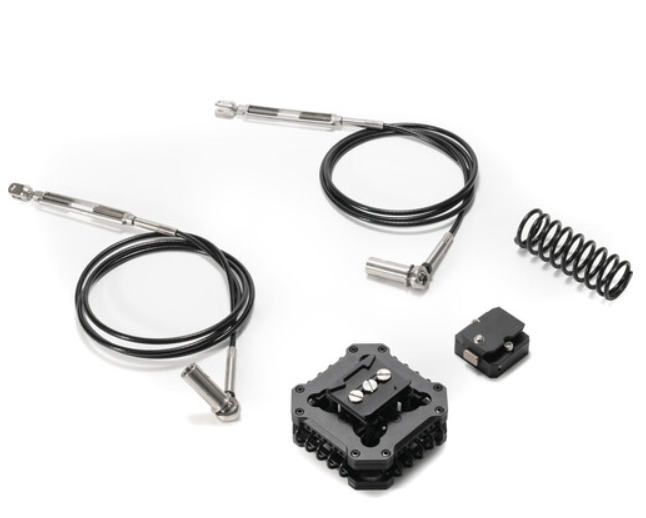

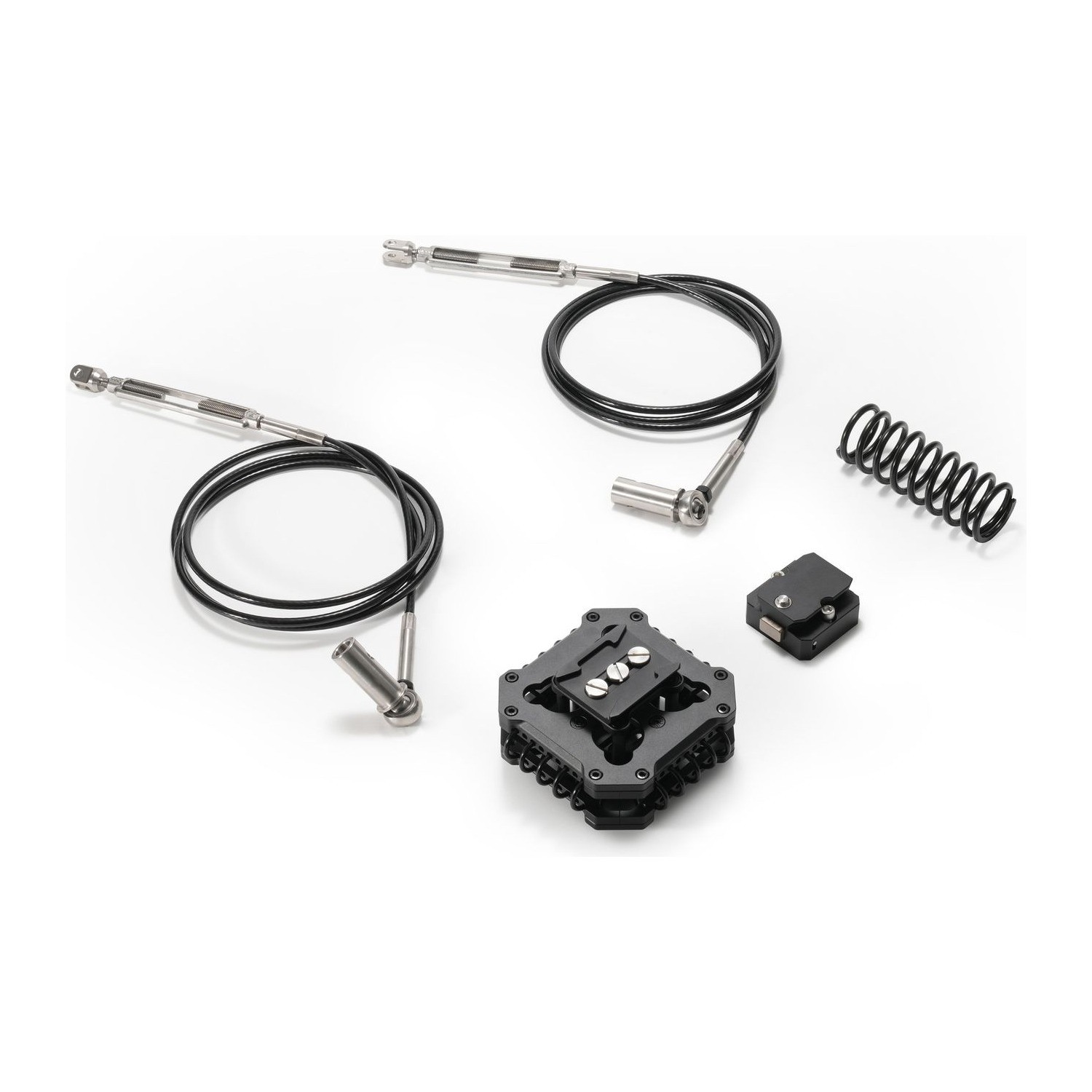

Tilta Hydra Arm Mini Modification Kit for DJI Ronin 2

The Tilta HDA-T08-MK-R2 Hydra Arm Mini Modification Kit upgrades the standard Tilta Hydra Arm Mini specifically for DJI Ronin 2 users, boosting maximum payload from ~17 lb to an impressive 17.6–28.7 lb (8–13 kg) while dramatically reducing high-frequency road vibrations through a steel-wire shock absorber head, heavy-duty spring, dedicated Ronin 2 quick-release mount and dual support cables – all in a 2-section arm configuration for the smoothest, heaviest-duty car-to-car and vehicle-mounted gimbal shots.

The Tilta HDA-T08-MK-R2 kit replaces the stock polyurethane dampers with steel-wire shock absorbers that excel at killing harsh vibrations from rough roads and high-speed driving. A stiffer heavy-duty spring raises the safe working load to 13.02 kg, while the included quick-release Ronin 2 adapter plate allows direct, tool-free gimbal mounting without extra dovetails. Two 2-meter stainless-steel support cables add redundancy and further stabilize the system. Note: this modification limits the arm to two sections only (no third extension) to maintain safety margins at the higher payload.

Key features

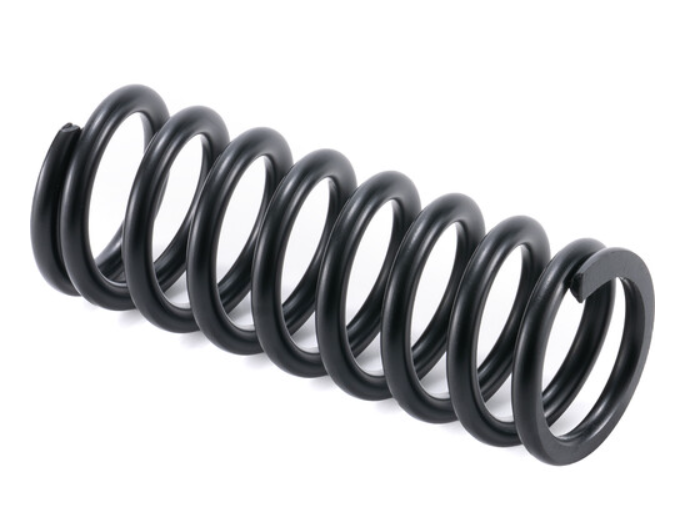

Shock-absorbing spring

The original spring on the Hydra Mini Arm has a limited payload capacity. The modification kit includes an upgraded spring for the shock-absorbing arm, raising the payload capacity to 8–13 kg.

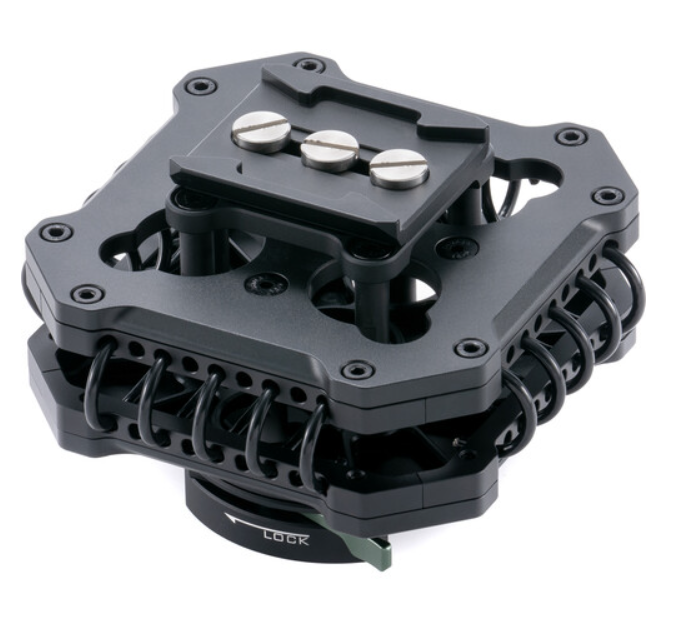

Shock-absorbing head

Because of demand for stronger shock absorption when mounting the Ronin 2, we replaced the original polyurethane head material with steel wire. This eliminates high-frequency vibrations and keeps gimbal performance stable.

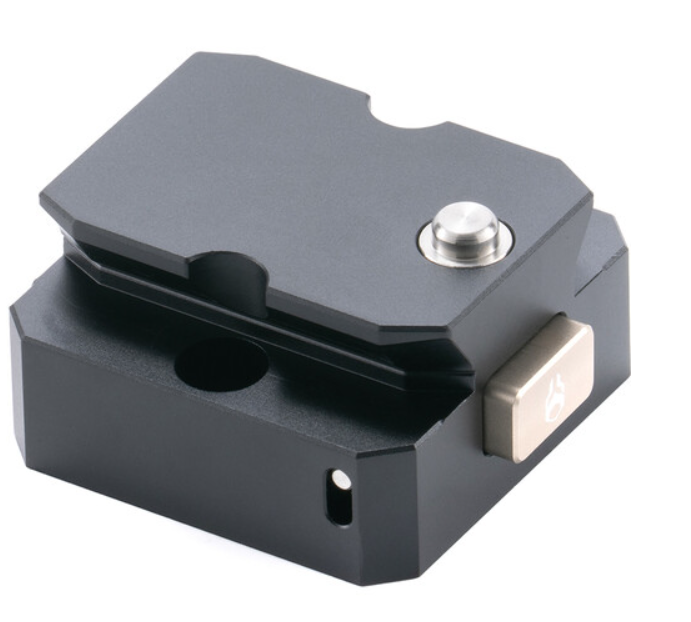

Mount adapter for the DJI Ronin 2

To integrate the Ronin 2 with our system easily, we designed a dedicated mount adapter for it.

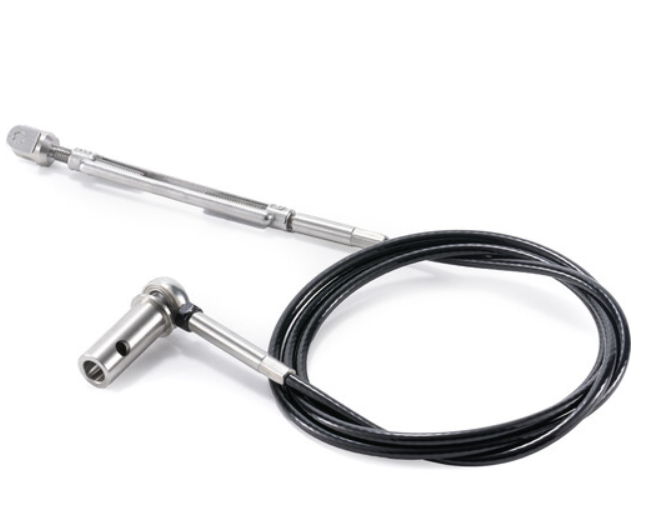

Support cables

Shorter support cables allow a two-arm setup, which improves flexibility when filming in tight environments.

Key Features

• Increases Hydra Arm Mini payload to 17.6–28.7 lb (8–13 kg)
• Steel-wire shock absorber head for superior high-frequency vibration elimination
• Heavy-duty replacement spring
• Dedicated quick-release mount adapter for DJI Ronin 2
• 2 × 6.6 ft (2 m) stainless support cables
• Maintains full tilt/pan functionality of Ronin 2
• Only compatible with 2-section Hydra Arm Mini configuration
