Tilta Camera Cage for Sony FX3/FX30 V2 Pro Kit - Black

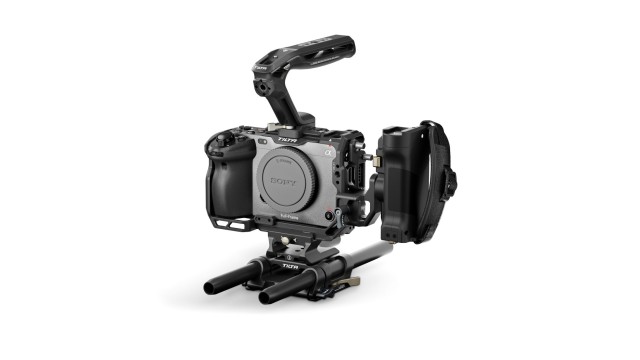

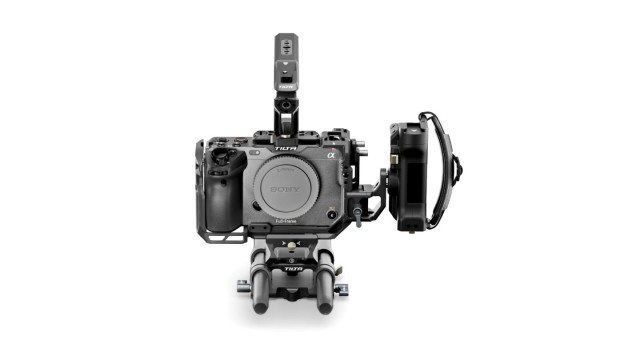

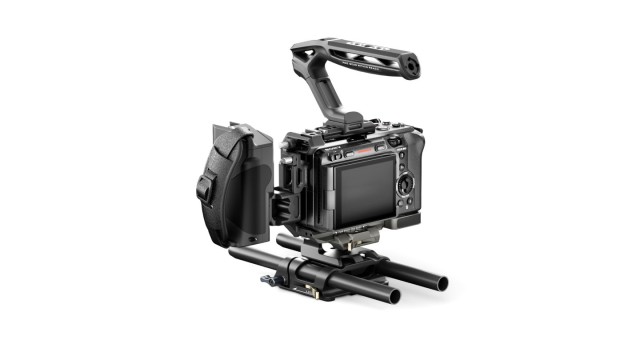

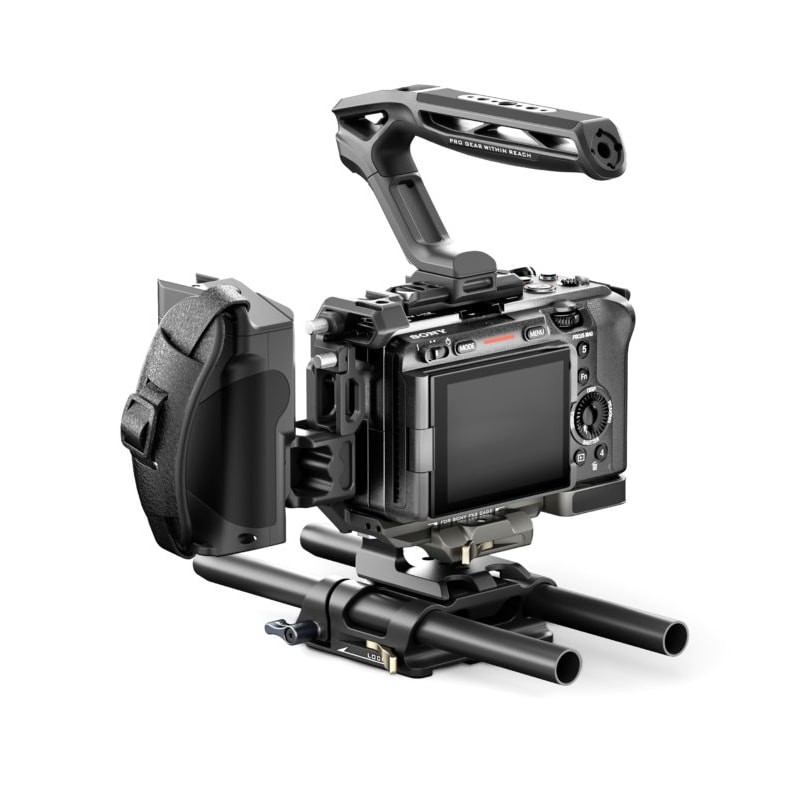

The Tilta Camera Cage for Sony FX3/FX30 V2 Pro Kit is the most complete of the three kits built around the same cage — it holds the Basic Kit and the Lightweight Kit at once. The full cage for the Sony FX3 and FX30 comes with the Tilta Xeno top handle, the powered side handle with Run/Stop and the universal 15mm LWS baseplate with two rods. Finish: Black.

The Pro Kit is the largest of the three Tilta kits for the Sony FX3 and FX30 — it holds the contents of the Basic Kit and the Lightweight Kit together. Cage, Tilta Xeno top handle, powered side handle with Run/Stop control, universal 15mm LWS baseplate and two aluminium rods. You hold the camera with both hands and at the same time have somewhere to hang a matte box and follow focus.

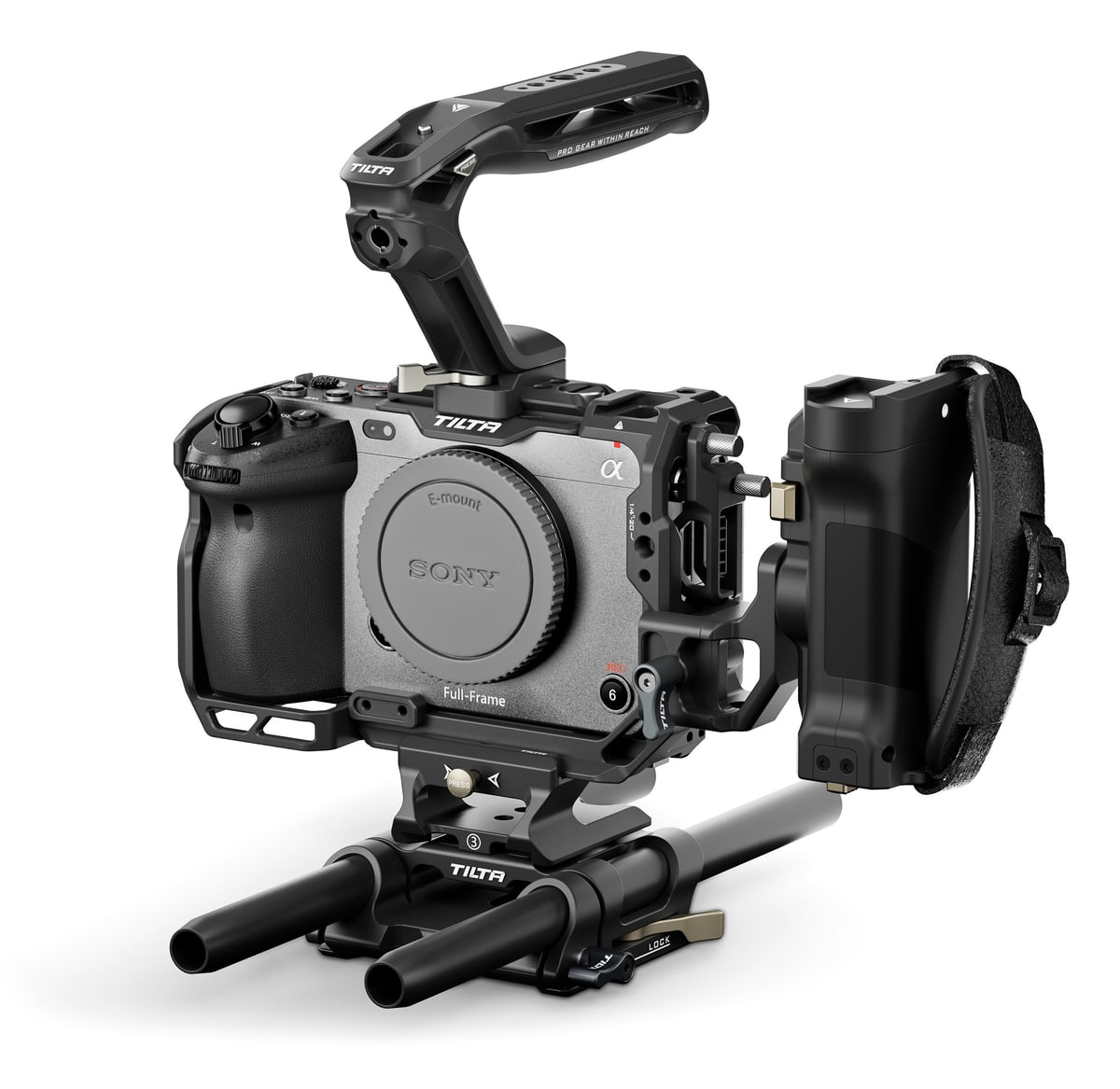

What is in the Pro Kit

The Pro Kit is both smaller kits together: full cage for the Sony FX3 and FX30, Tilta Xeno top handle for the NATO rail, universal Tilta 15mm LWS baseplate with the LWS Baseplate Adapter Type III, two aluminium 15mm rods 200 mm long, the Type VI side handle attachment and the powered Left Side Advanced Power Handle with Run/Stop control including the cable. You hold the camera with both hands and at the same time have rod support for a matte box and follow focus.

A cage made to measure — ports, tally and screen stay accessible

The cage is machined exactly for the Sony FX3 and FX30 bodies, so it covers nothing you need while shooting: not the side connectors, not the recording (tally) lamp, not the NP-FZ100 battery compartment and not the flip-out screen, which on these bodies opens to the side. The camera controls stay within reach and the cage does not have to come off to change the battery or the memory card.

Everywhere you can screw something on

The top plate carries a NATO rail for handles, two cold shoe receivers and 1/4″-20 and 3/8″-16 threads with locating points that keep accessories from turning. On the sides there are further threads and points for a single 15mm rod holder, at the back a cable clamp tightened with a thumb screw and, in two places, wrist strap ports.

The top plate and the baseplate adapter up close

The top plate has a NATO rail, a cold shoe receiver for the top handle and a 1/4″-20 thread; one of the three camera mounting screws also passes through it. The LWS Baseplate Adapter Type III from the kit adds a 3/8″-16 thread and the baseplate locking design underneath — and the magnetic flat head screwdriver that does the whole rebuild is built into it.

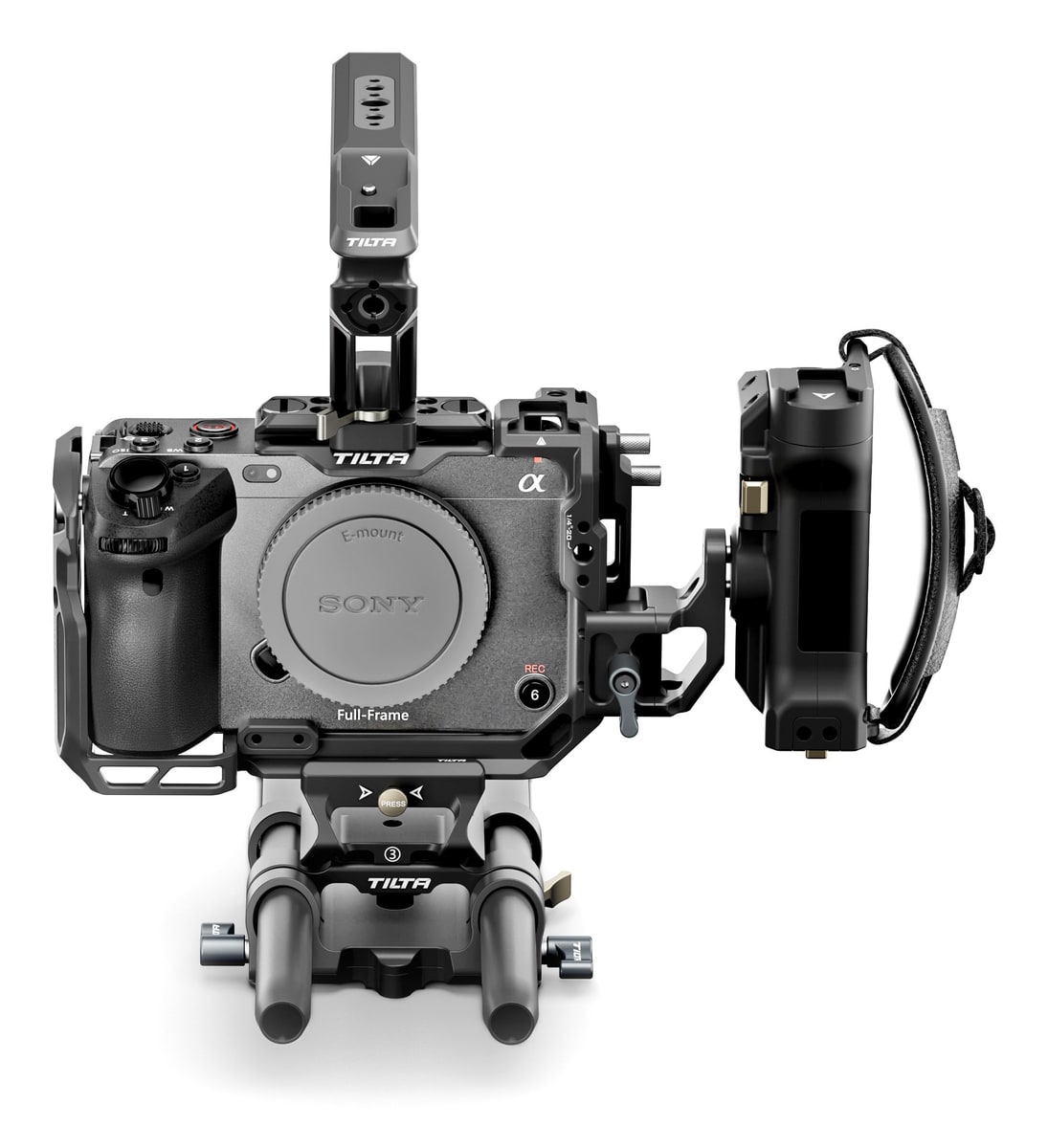

Two handles: the Xeno on top and a powered one at the side

The Pro Kit has both handles at once. The Xeno top handle sits on the NATO rail of the top plate and has its own 1/4″-20 threads and a cold shoe receiver for a monitor. The powered side handle rotates to the chosen angle, holds the camera in the hand with its strap, powers accessories from a Sony NP-F series battery (type F570) and starts and stops recording with the RS-TA3-SYA cable. The battery is not included.

Arca-Swiss underneath — moving to tripod and gimbal

The bottom plate of the cage is made to the Arca-Swiss standard, so the camera moves between tripod head and gimbal without any screwing. The manufacturer points out that it follows DJI’s Arca format: with the DJI Ronin series heads the fit is verified, with other makers it is not guaranteed. Moving between tripod, gimbal and hand is therefore a matter of one click.

Baseplate and 15mm rods for matte box and follow focus

The universal Tilta 15mm LWS baseplate carries two 15mm rods — the kit contains two aluminium ones 200 mm long — and a matte box, follow focus and lens support stand on them. The plate itself has a DJI-format Arca receiver on top for moving to Ronin series gimbals and, underneath, a seat for Tilta Standard dovetail plates plus 1/4″-20 and 3/8″-16 threads.

Four versions of the same cage — how they differ

The cage is the same in all four versions — only what the manufacturer packs with it differs.

Full cage (TA-T16-FCC): the cage on its own, the HDMI cable clamp and two Allen keys. No handles, no baseplate and no rods.

Basic Kit (TA-T16-A): cage, Tilta Xeno top handle, universal 15mm LWS baseplate with Type III adapter and two 15mm rods. No side handle.

Lightweight Kit (TA-T16-B): cage and powered side handle with Run/Stop control. The lightest kit — no top handle, no baseplate and no rods.

Pro Kit (TA-T16-C): both together — cage, Xeno top handle, baseplate with adapter, two 15mm rods, powered side handle with Run/Stop and cable.

Compatibility

The kit is intended for the Sony FX3 (ILME-FX3) and Sony FX30 (ILME-FX30) bodies. Camera and lens are not included.

The top module of the cage can be removed to fit the original Sony XLR handle (XLR-H1), which Sony supplies with the FX3 and with the FX30 in the version with the XLR handle.

The bottom plate of the cage and the baseplate both follow DJI’s Arca format. Compatibility with DJI Ronin series gimbals is verified; for other standards the manufacturer does not guarantee it.

What to watch out for

A Sony NP-F series battery (type F570) for the powered side handle is not included.

A monitor mount is not part of the kit.

The manufacturer gives no product dimensions for these kits. The figure "7 × 6 × 3.5 in" in its table is identical for the five-piece Basic Kit and the eight-piece Pro Kit — it is the packaging size, which is why we do not list it in the specification.
