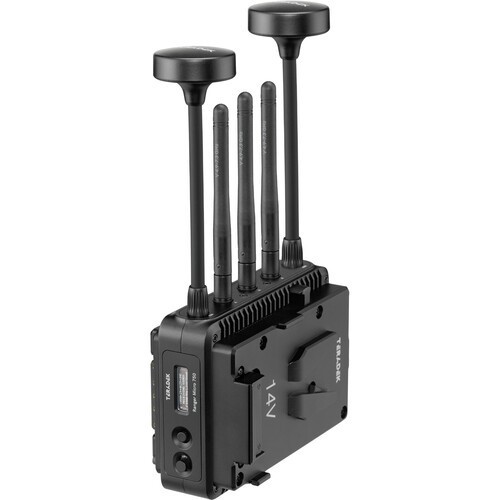

Teradek Live Ranger Micro 750 3G-SDI/HDMI - Wireless RX V-Mount

The Teradek Live Ranger Micro 750 is a standalone wireless receiver for professional HD video transmission. The specific model, TELI-10-2532-V, receives a visually lossless signal from compatible Ranger transmitters at distances of up to 750 ft / 228.6 m with line-of-sight, and provides both 3G-SDI and HDMI outputs up to 1080p60. With latency under 1 ms, it is designed for live production, ENG, sports broadcasting, and camera workflows where immediate video response is essential.

The receiver operates in both licensed and unlicensed bands from 4.9 to 6.4 GHz, uses AES-256 encryption, and features five external RP-SMA antennas. The V-Mount version includes a fixed V-Mount plate; alternatively, it can be powered via a 2-pin LEMO input in the range of 7–28 V DC. Bluetooth 5 LE enables setup and spectrum analysis within the Teradek Launchpad app. As part of the Ranger series, it can be combined with transmitters and receivers of other range variants; a mixed setup operates at the range of the shortest paired component.
