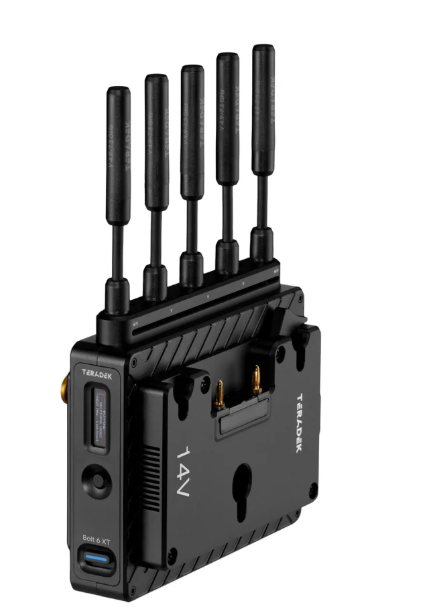

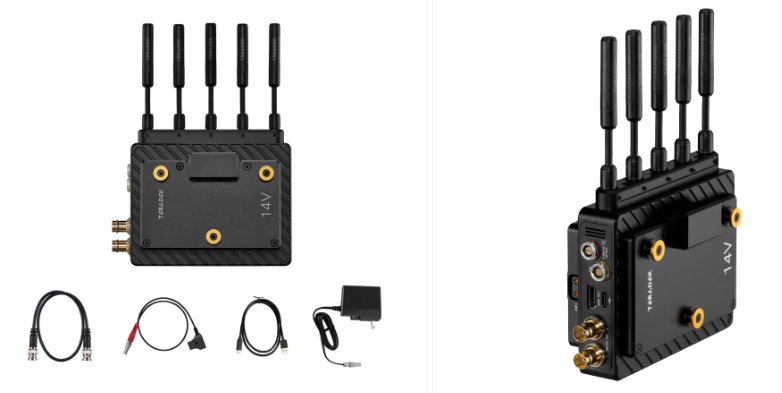

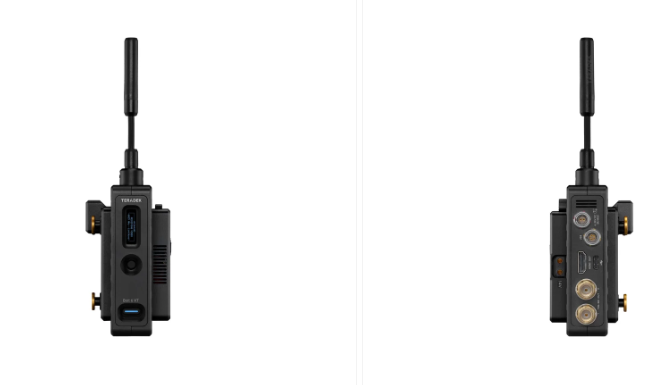

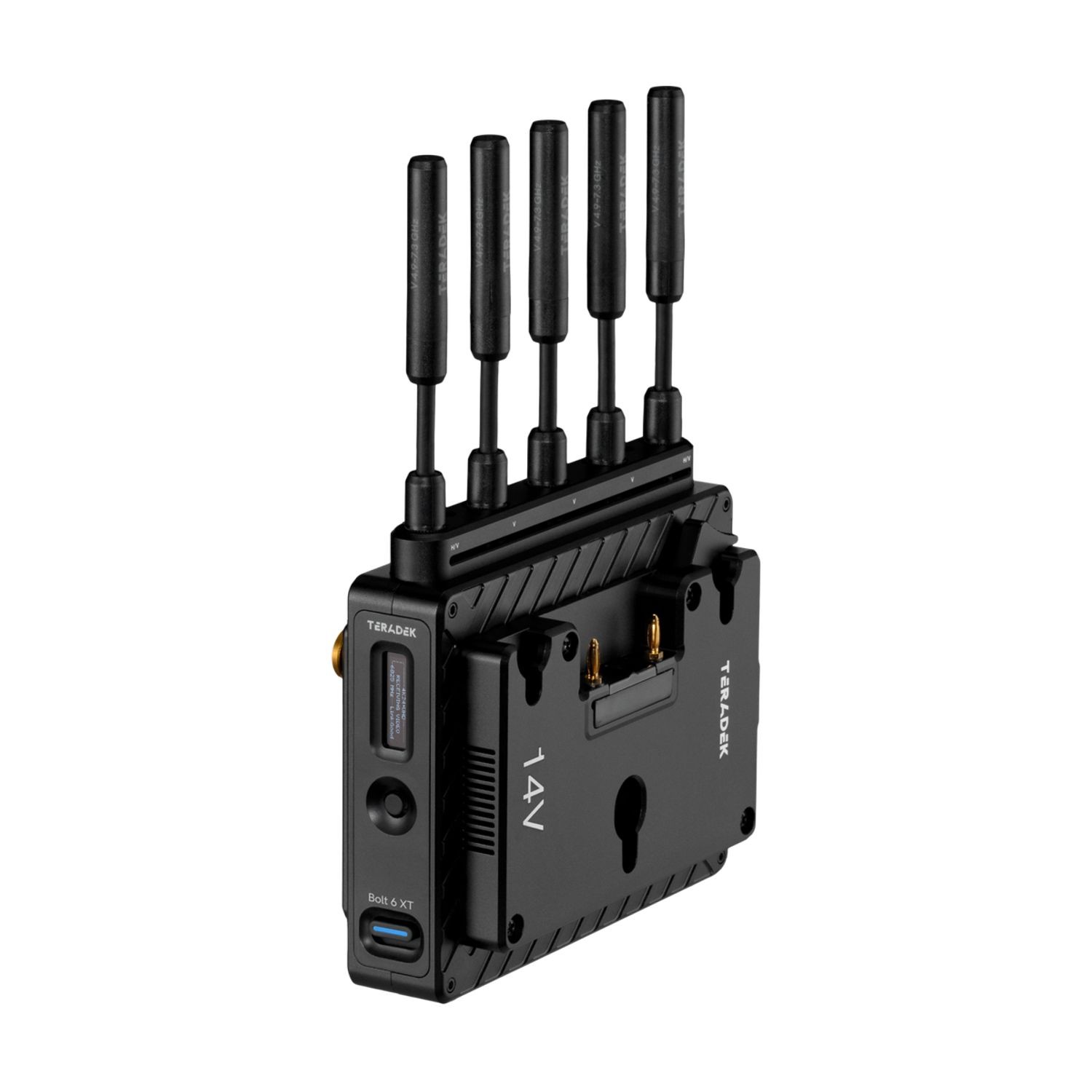

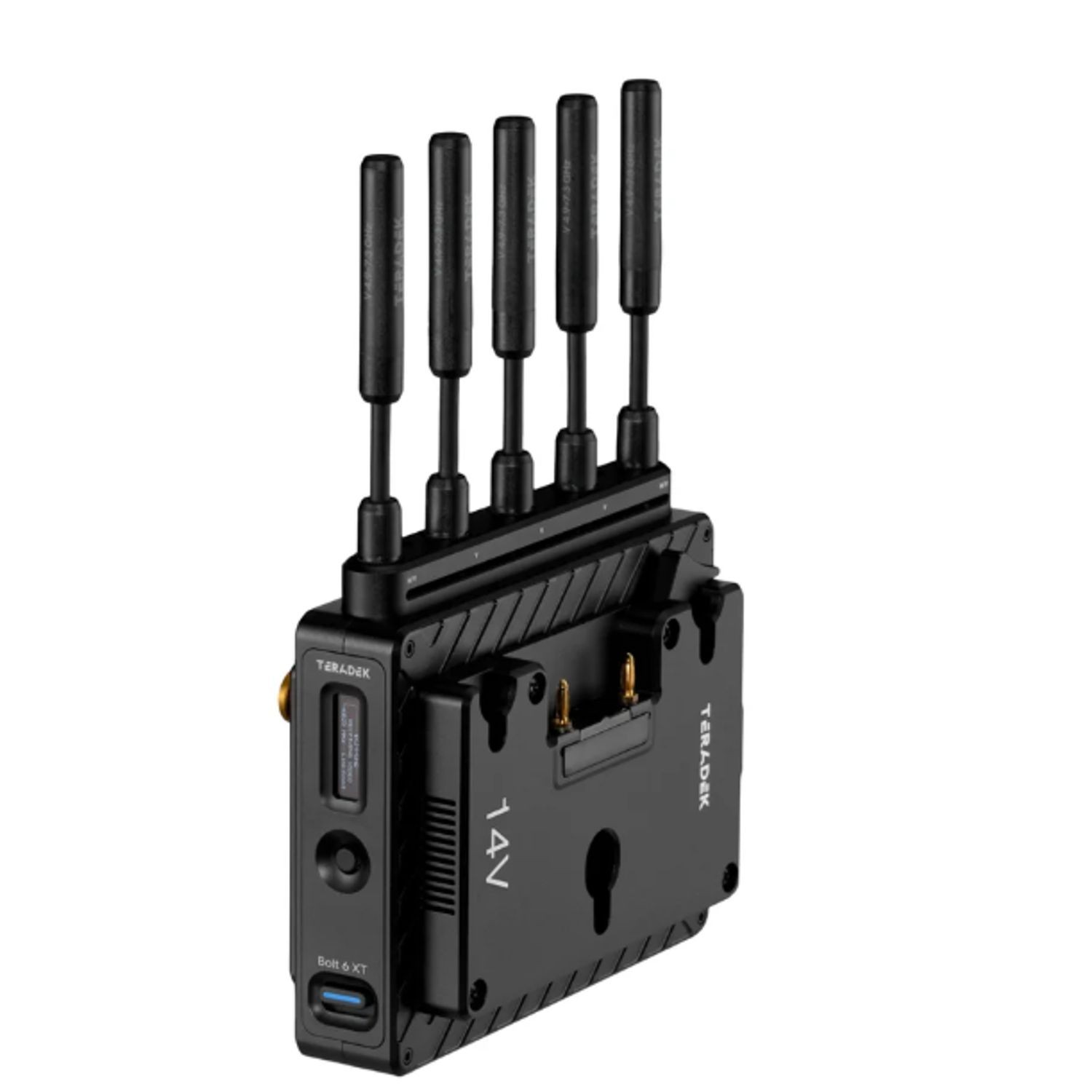

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX Gold-Mount

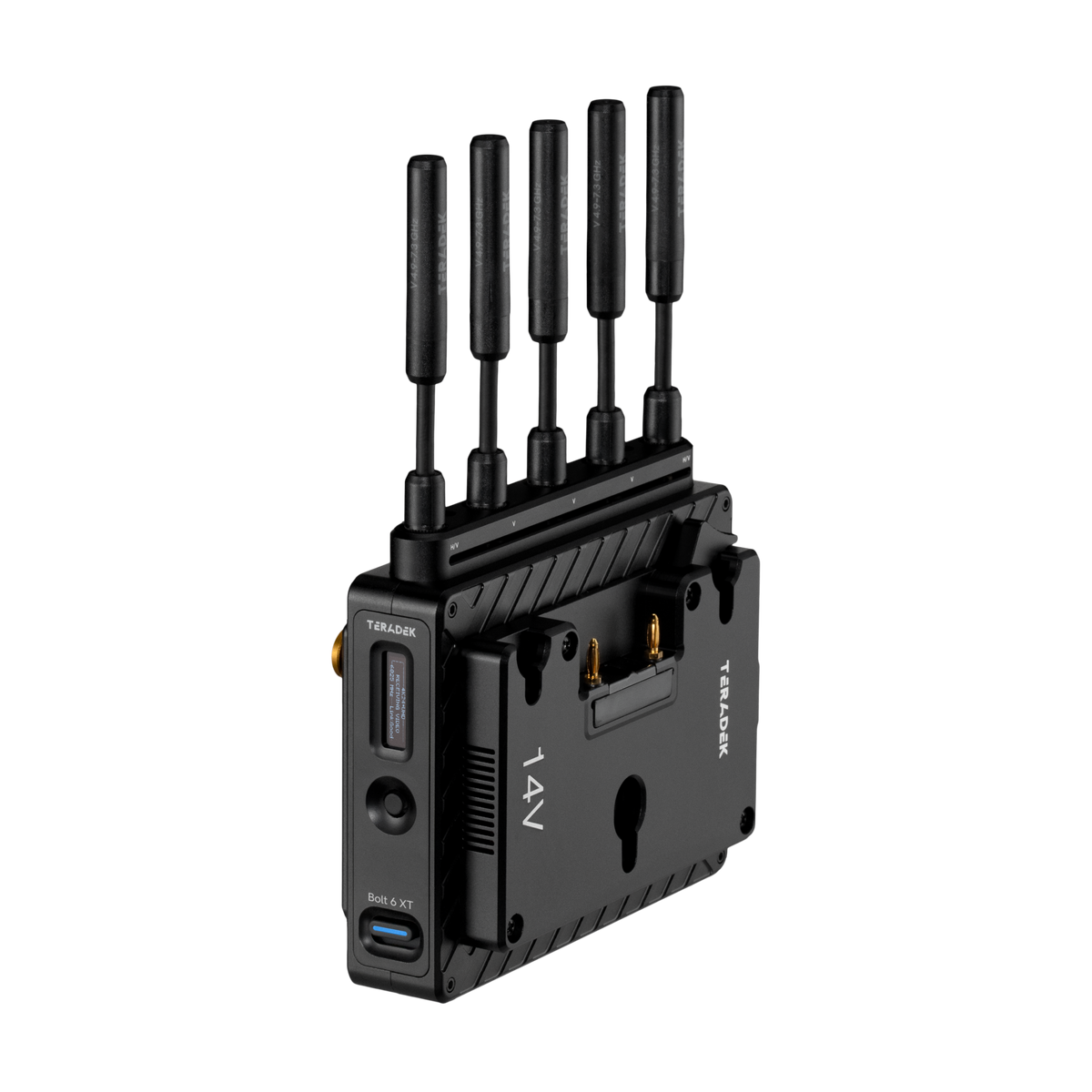

Bolt 6 XT 750 RX Gold-Mount

A receiver for 12G-SDI and HDMI 2.0 with a range of up to 750 ft, zero latency, and Gold-Mount power.

The Teradek Bolt 6 XT 750 wireless receiver is designed for professional video production, television broadcasting, and monitoring applications where reliable wireless video transmission with virtually zero latency is essential. It supports video resolutions up to 4Kp60 with 10-bit 4:2:2 HDR via the 12G-SDI interface, while its HDMI 2.0 output supports up to 8-bit RGB 4:4:4. Teradek’s patented Zero-Delay chip enables transmission with a latency of less than 0.001 seconds between the transmitter and receiver, while visually lossless compression preserves image quality.

The receiver offers 12G-SDI and HDMI 2.0 outputs, integrated two-channel audio, support for SDI auxiliary data for metadata, timecode, and start/stop signals from most camera manufacturers, as well as video upscaling for resolution and frame rate conversion. A 17×17×17 3D LUT supports 10-bit color processing for accurate monitoring and on-set color workflows.

The Bolt 6 XT 750 operates on supported frequencies of 5 GHz and 6 GHz, with automatic or manual RF channel selection and AES-256 encryption with RSA-1024 key exchange. Thanks to the five included external antennas with 2 dBi gain and RF noise suppression, it can coexist with Wi-Fi and wireless phones in the 5 GHz band, with up to six Bolt sets operating in the same location. The 750 model uses V-type (vertical) antennas and provides a line-of-sight range of up to 750 ft. For more challenging RF environments or longer distances, Teradek offers the Bolt 6 XT configuration with extended range and optional accessories such as the RF-X automatic switcher and an antenna array.

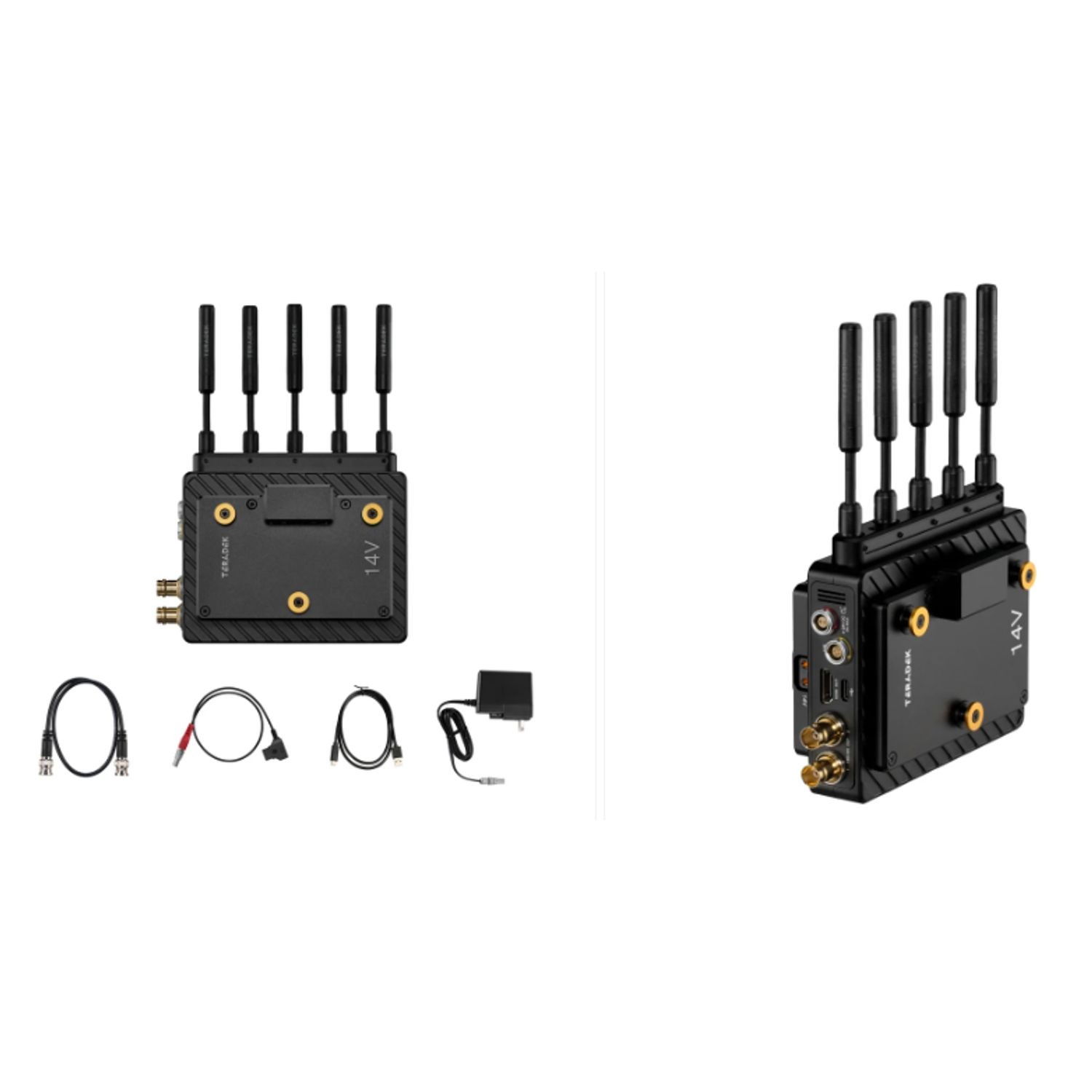

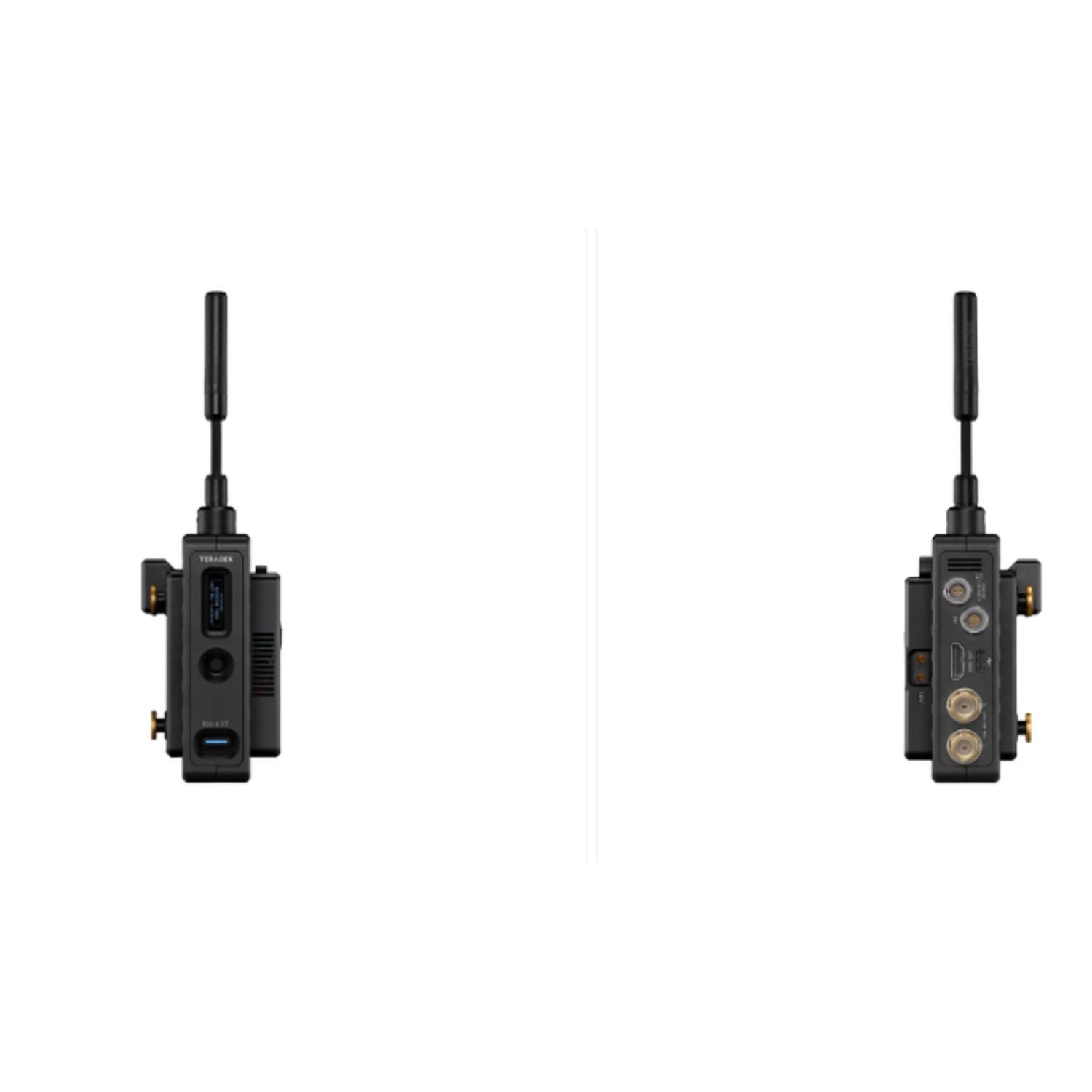

The receiver, with a milled aluminum body, measures 112 × 139 × 27 mm and weighs approximately 430 g. Numerous 1/4"-20 and 3/8"-16 mounting points provide flexible installation options. The device is powered by 6–28 VDC via a lockable 2-pin connector and can be supplemented with an optional Gold Mount or V-Mount battery plate. This version is compatible with the Gold Mount system.

Key Features

• Wireless receiver for Teradek Bolt 6 XT systems
• Supports video up to 4K60, 10-bit, 4:2:2 HDR
• 12G-SDI and HDMI 2.0 video outputs
• Teradek Zero-Delay technology with a delay between transmitter and receiver of less than 0.001 seconds
• Visually lossless video compression
• Wireless range of up to 750 ft in line of sight
• Wireless operation in the 5 GHz and 6 GHz bands
• 17×17×17 3D LUT supporting 10-bit color
• Support for SDI auxiliary data for metadata, timecode, and start/stop signals
• Resolution and frame rate scaling
• Integrated dual-channel SDI/HDMI audio output

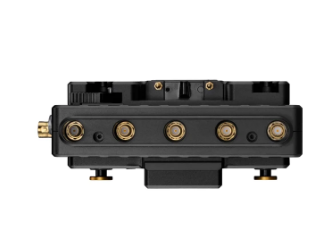

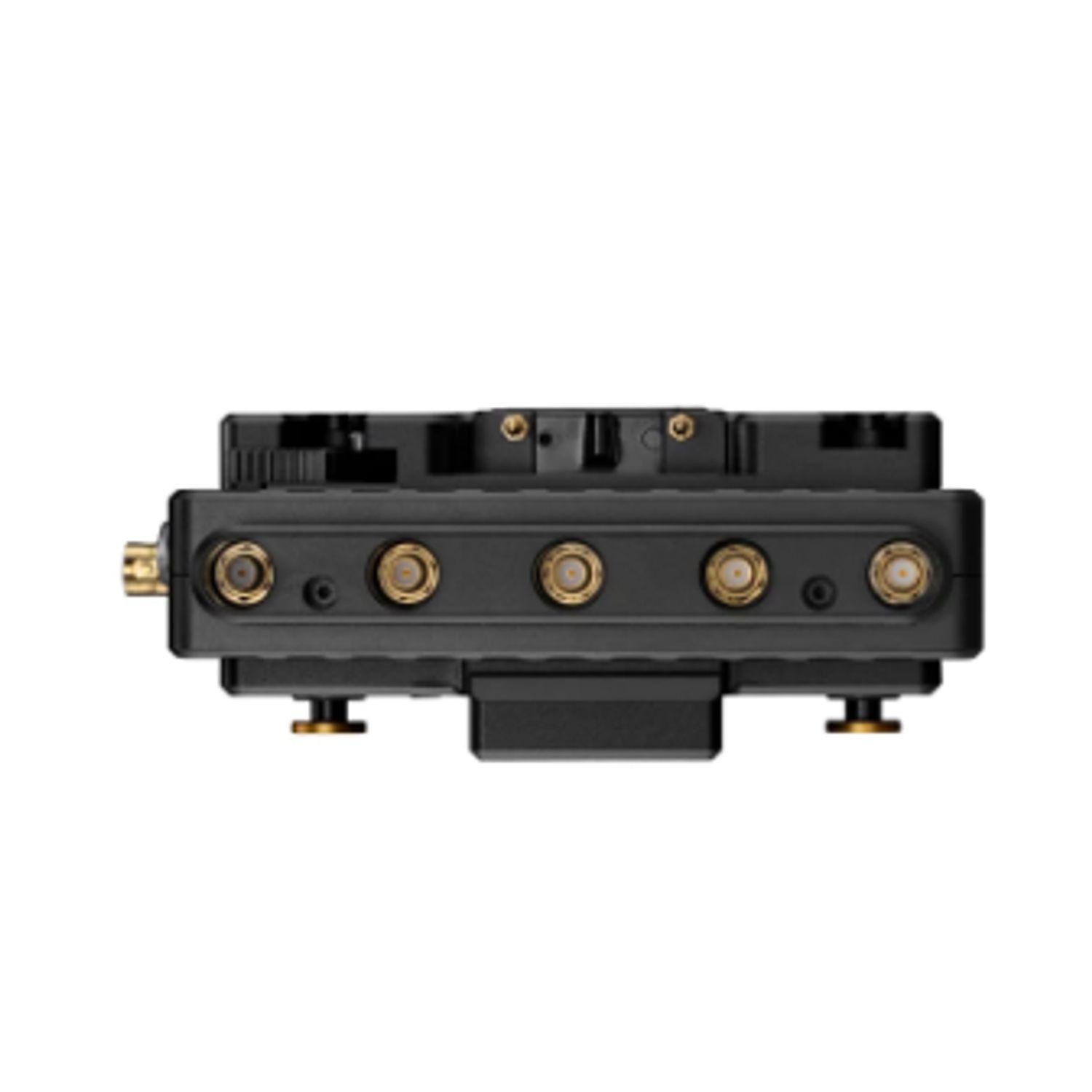

• The package includes five external antennas with 2 dBi gain
• AES-256 encryption with RSA-1024 key exchange
• Automatic or manual RF channel selection
• RF noise suppression for demanding production environments
• Supports up to 6 receivers per transmitter in this configuration
• Multiple 1/4"-20 and 3/8"-16 mounting points
• Machined aluminum frame
• Compatible with Gold Mount battery plate
• Secure USB-C connection for firmware updates and CCU functions
• 2.4 GHz Bluetooth connectivity
