Wooden Camera Offset Mount for Teradek Bolt 6 LT TX and Bolt 4K LT TX

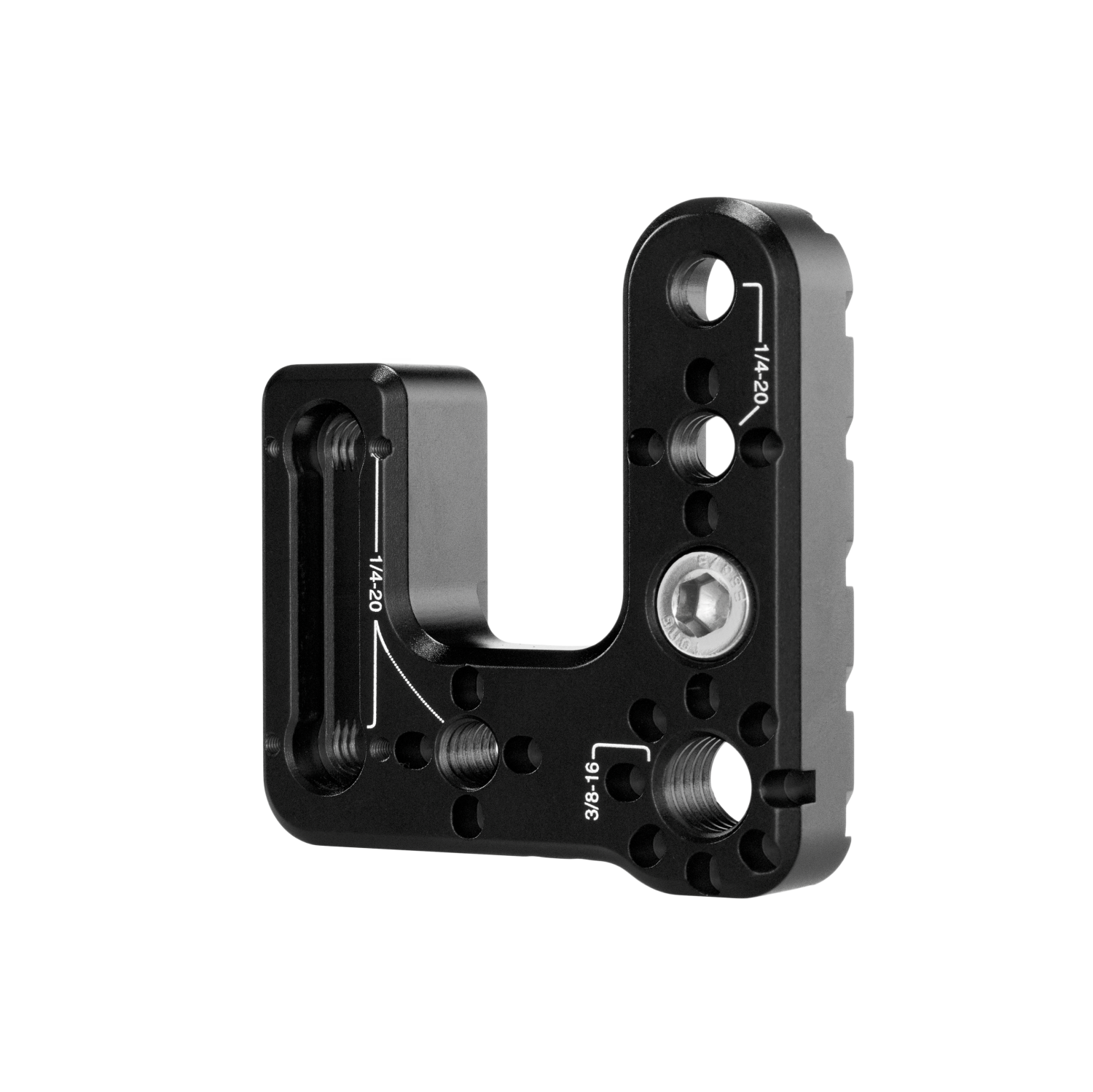

Wooden Camera aluminum mount for the Teradek Bolt 6 LT TX and Bolt 4K LT TX transmitters. A single 1/4"-20 locking screw allows the transmitter to be mounted in up to six different positions, while a through-hole and additional threads provide mounting points for arms, rods, and mounting kits.

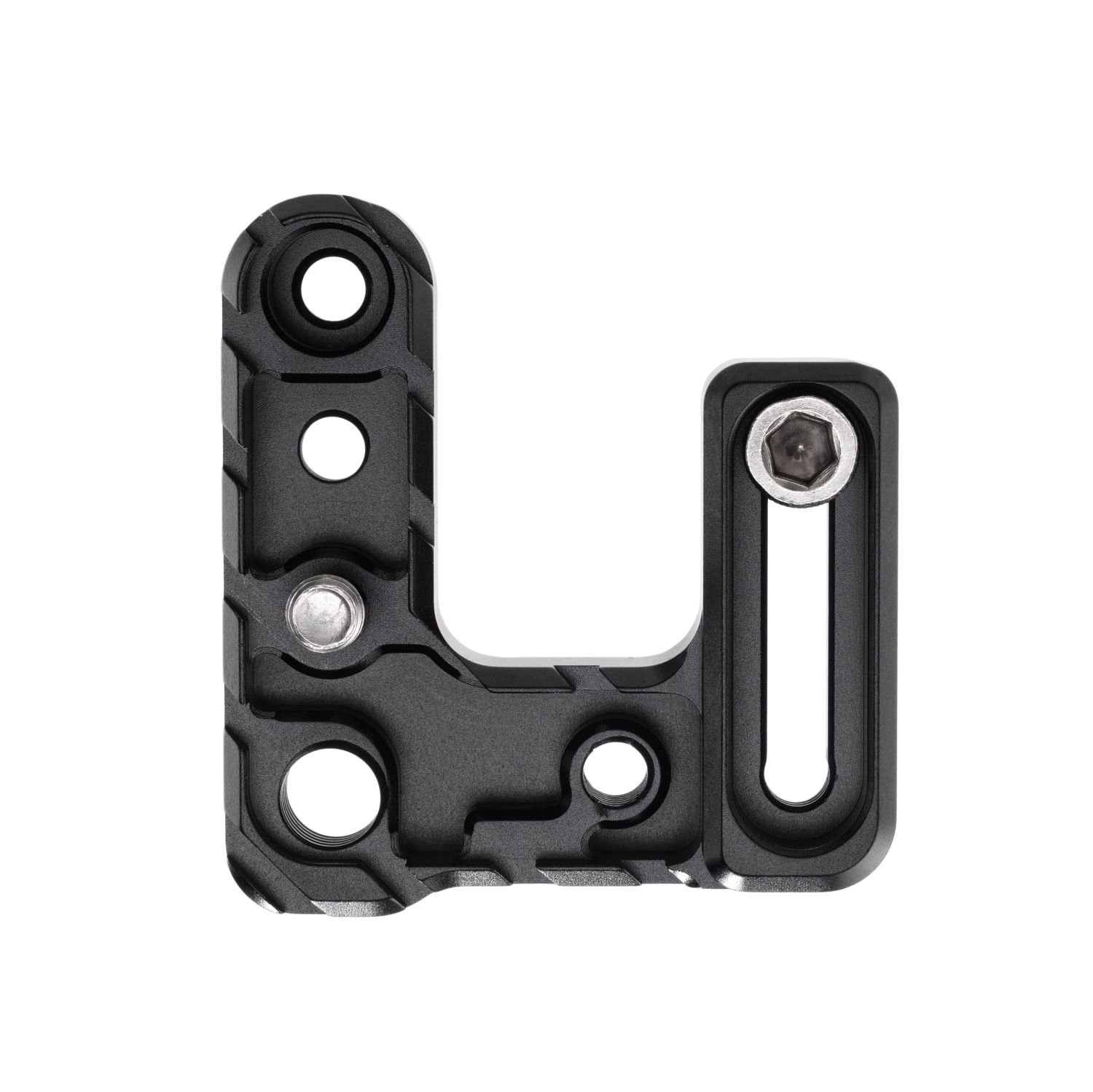

The Offset Mount is a slim bracket used to attach the Teradek Bolt 6 LT TX transmitter (as well as the older Bolt 4K LT TX) to a camera rig. The transmitter is secured by a single 1/4"-20 locking screw and can be adjusted to up to six different positions, ensuring that the antenna doesn’t get in the way, even in a cramped setup.

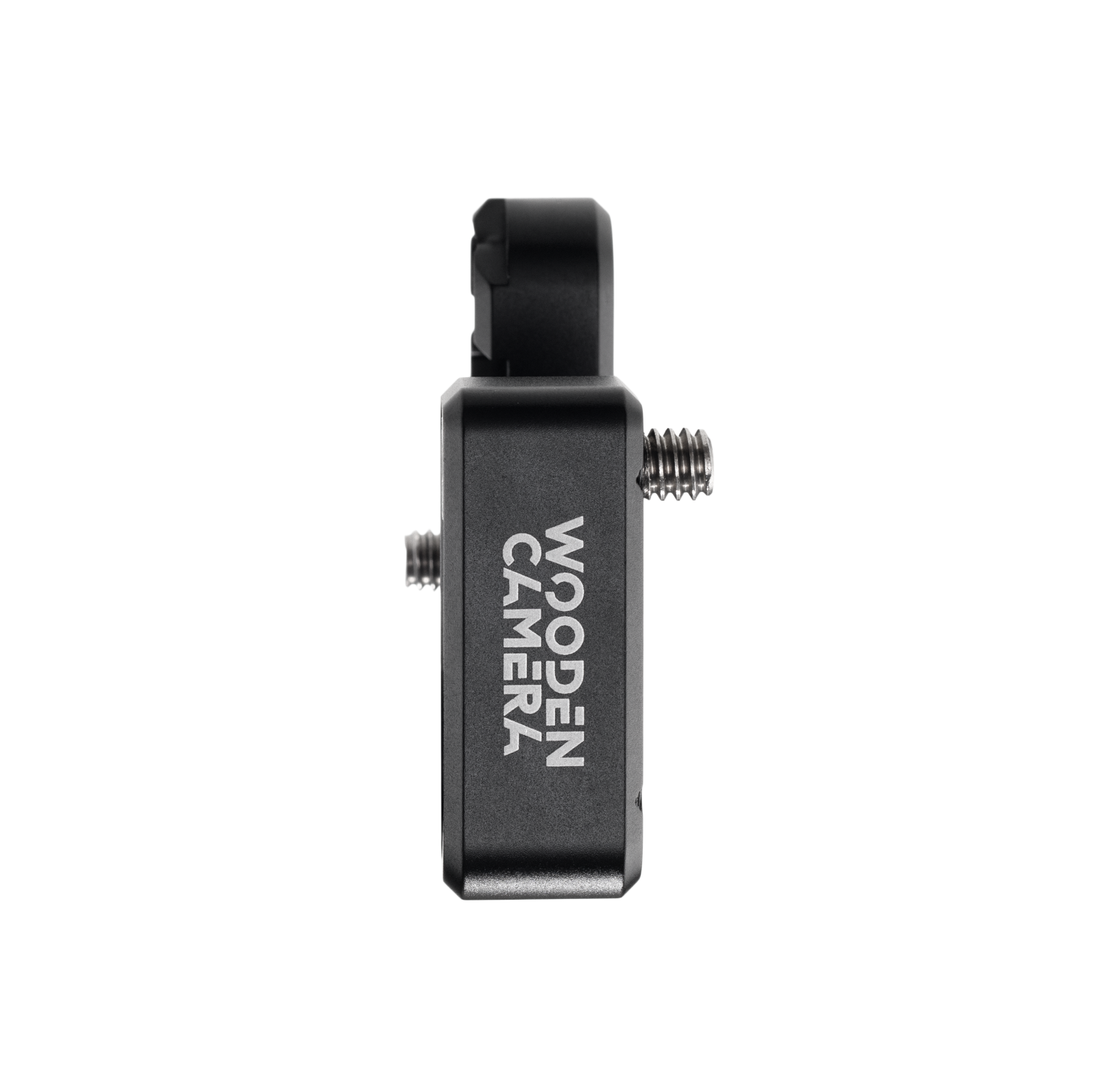

The offset 1/4"-20 through-hole allows the mount to be placed on any 1/4"-20 threaded surface and shifted sideways. Locking pins are screwed into both ends of the slot to prevent rotation; when not needed, they can be unscrewed and stored in the side of the mount. The transmitter can also be secured using a single 1/4"-20 through-hole in the upper part.

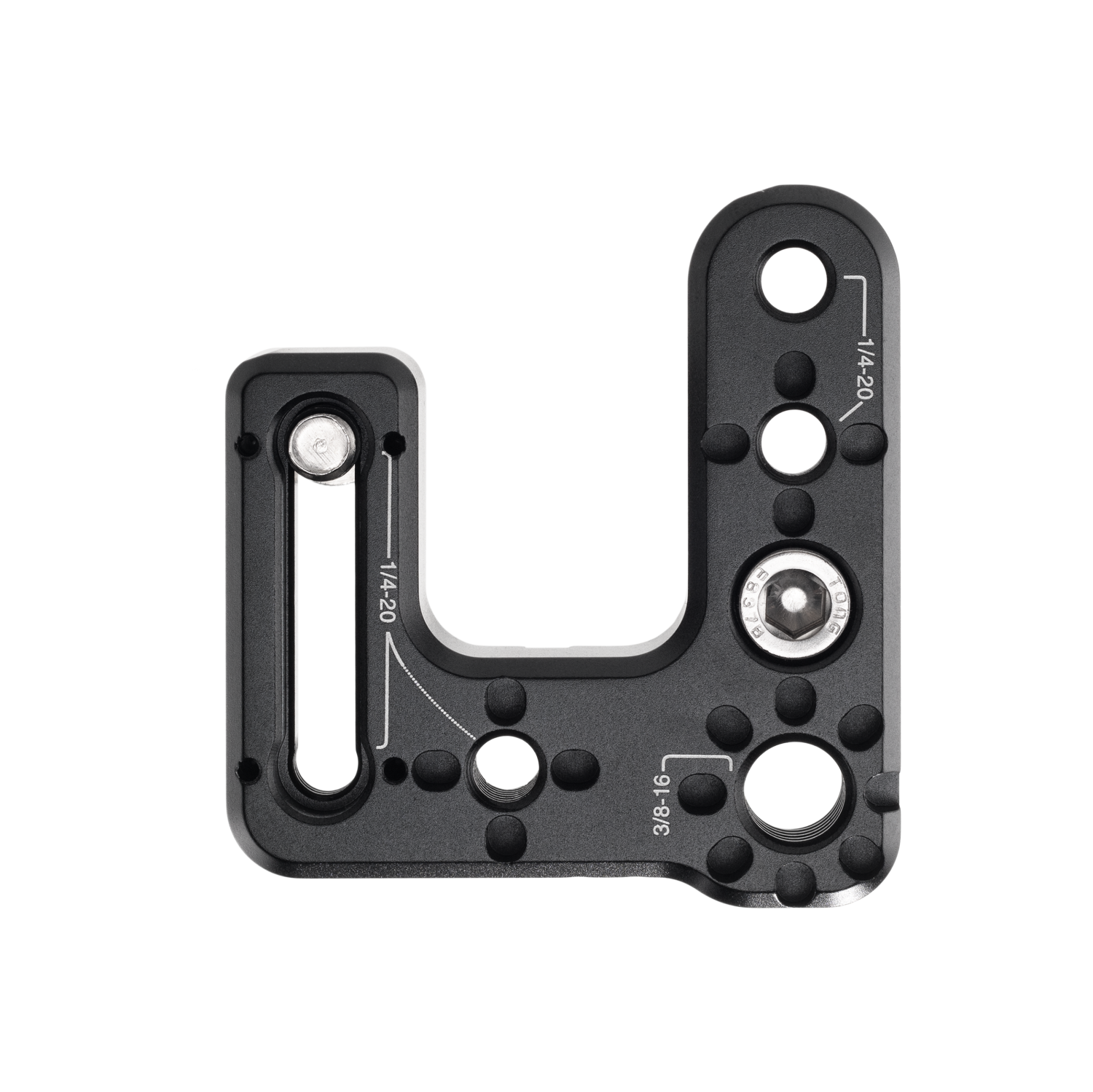

The body also features one 3/8"-16 thread and two 1/4"-20 threads with recesses for locking pins, allowing you to attach articulated arms, pole components, or mounting kits to the mount. A more compact version of this solution is the Mount for Bolt 6 LT TX.
