Redesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.
Redesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.
The FSB 6 features Speedbalance technology to finely balance any camera payload from 0kg up to 8kg (17.6lbs). The snap and go side loading mechanism with a sliding range of 120mm (4.7in) makes mounting and positioning accessorised cameras simple. An illuminated PrismBubble is visible from any height – day or night – to help ensure your setup is level.
Create precision pans with smooth starts and soft stops. Patented Sachtler drag always gives you subtle and smooth movement. Three horizontal and vertical drag settings help you to tune the drag to your payload.

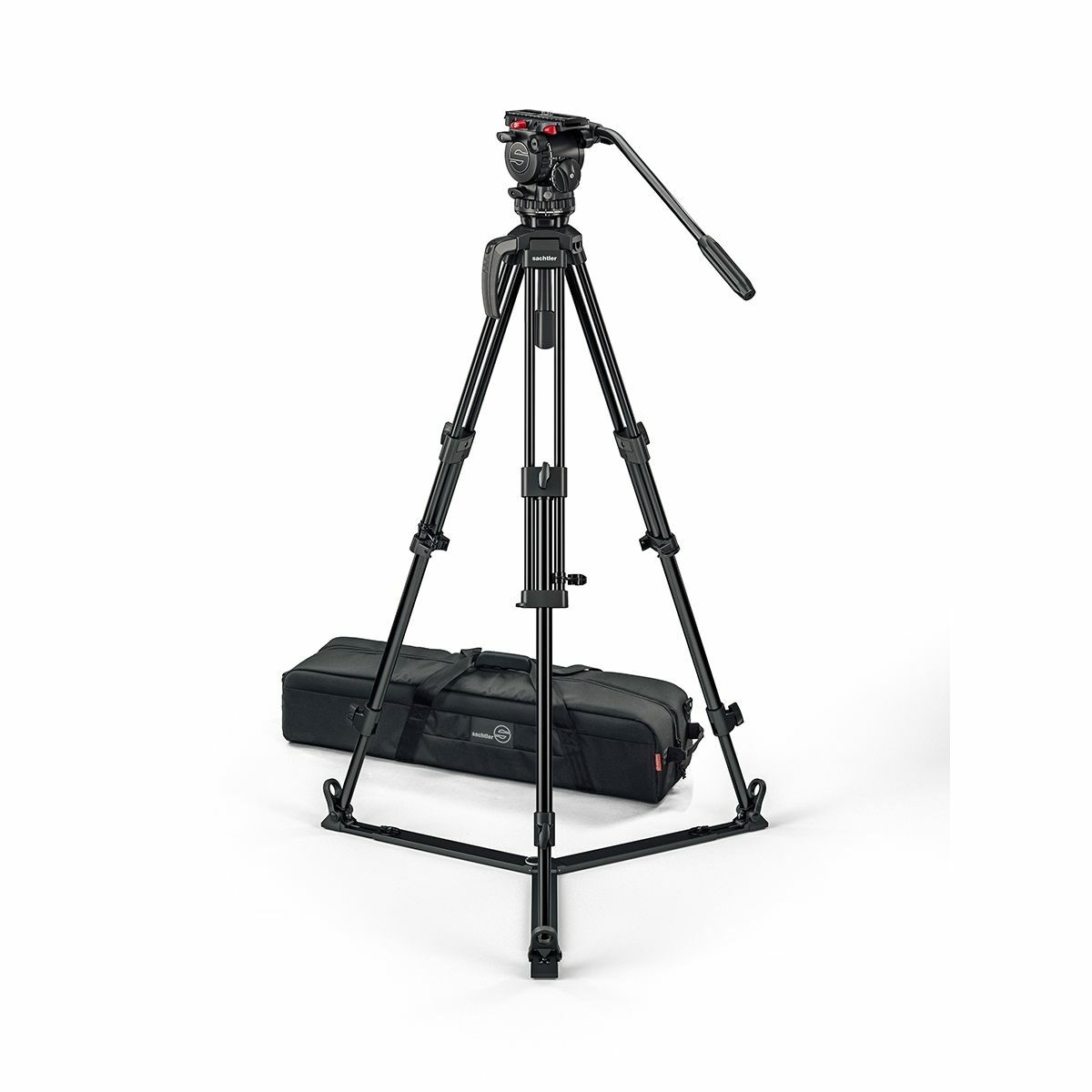

The System includes a lightweight 2-stage aluminium 75mm tripod that’s portable without sacrificing strength. With three 3/8” accessory mounting points on the tripod bowl you can add extra accessories like a Magic Arm and attach the included carry handle to help move the system around one-handed. The detachable ground spreader provides maximum stability, and a padded bag is included for transportation.
Engineered to the highest standards with tough materials and precision components, FSB is built for endurance. With no variation in performance in the widest range of temperatures and environments, FSB is the first choice for busy operators.
| Range | FSB |
| Payload | 0 kg to 8 kg |
| Drag | 3 + 0 drag settings |
| Counterbalance | 15 + 0 counterbalance steps |
| Bowl Size | 75 mm with integrated flat base |
| Height | 59 cm to 175 cm |
| Material | Aluminium |
| Tripod Stages | 2 |
| Weight | 5.4 kg |
| Transport Length | 88 cm |
| Pan Bar Count | 1 |
| Tilt Range | 90° to -70° |
| Sliding Range | 12 cm |
| Temperature Range | -40°C to 60°C |
| Pan Bar Type | pan bar DV |
| Level Bubble | Yes, Prism Bubble |
| Camera Plate | Sideload |
| Fluid Head | FSB 6 |
The Sachtler System FSB 6 75/2 AL GS Mk II is a professional tripod system with a 75mm half-ball head that combines a precise fluid head with a load capacity of up to 8 kg and sturdy aluminum legs with a lower spreader. Key accessories for this system include those that ensure safe transport, precise balancing of the camera’s center of gravity, and increased mobility in a studio environment.
Carrying Cases and Bags - High-quality padded cases and sturdy hard cases ensure safe handling and protection of the tripod system during transport.
Mounting Adapters and Plates - Accessories for quick mounting and fine balancing of camera setups on the FSB 6 fluid head.
Tripod Accessories and Mobility - Accessories to expand tripod functionality, including casters for smooth movement in the studio.
