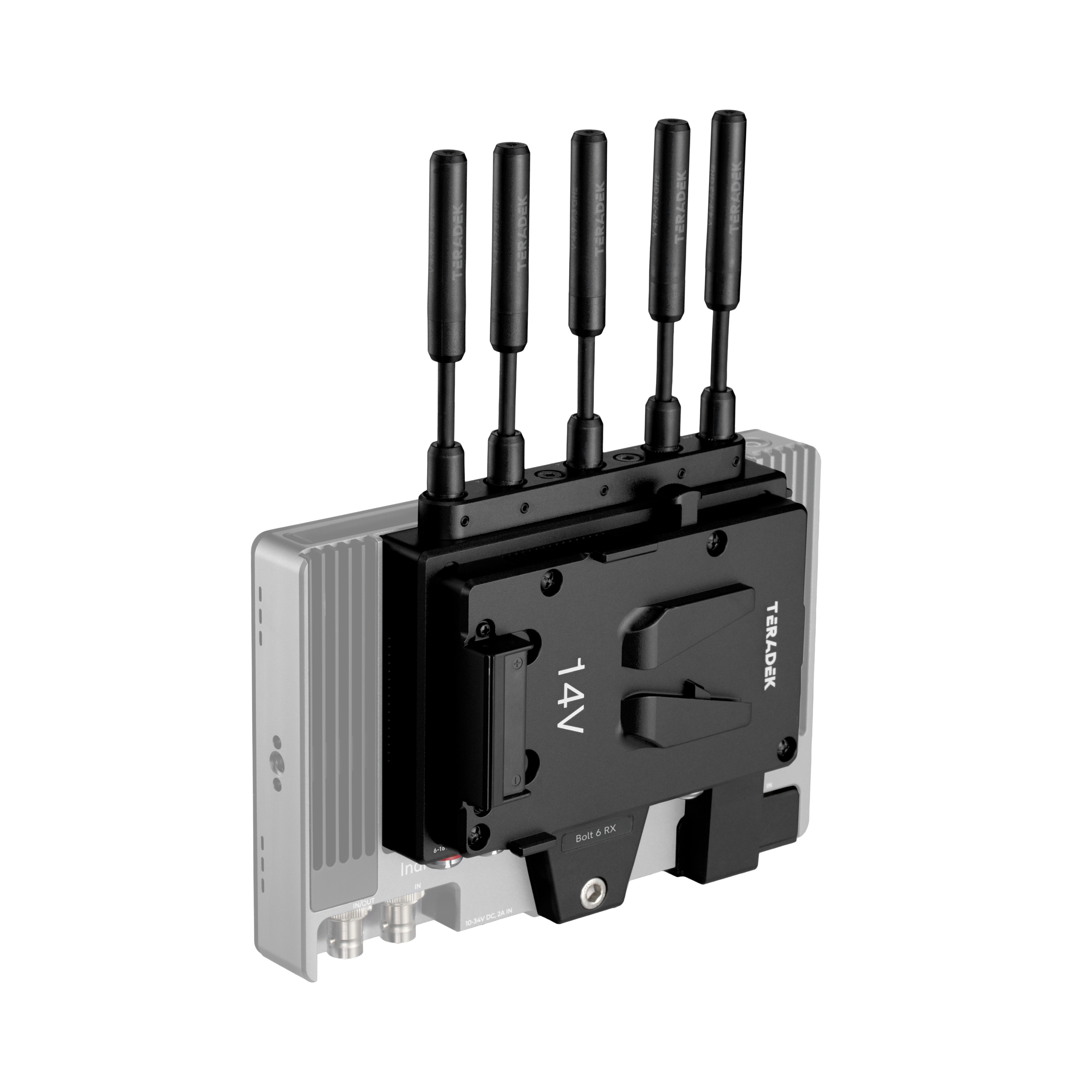

Teradek Bolt 6 Monitor Module 1500 RX V-Mount

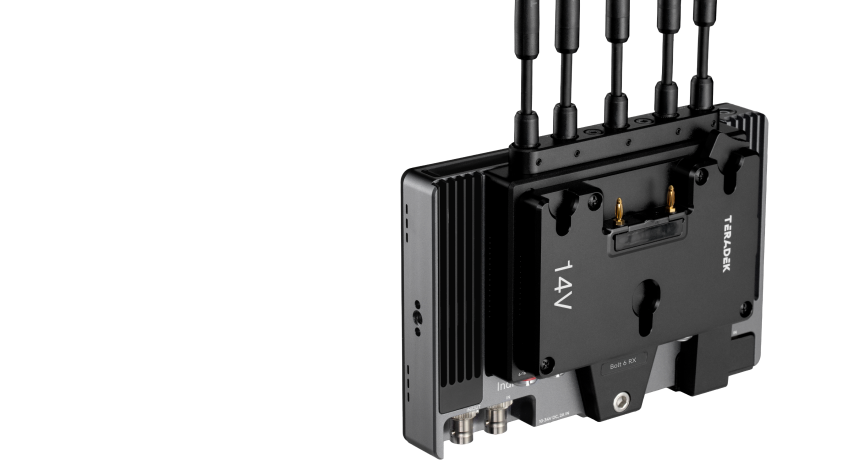

Bolt 6 Monitor Module 1500 RX V-Mount

Direct integration with the SmallHD 7" monitor combines wireless video reception, power, and camera control into a compact setup.

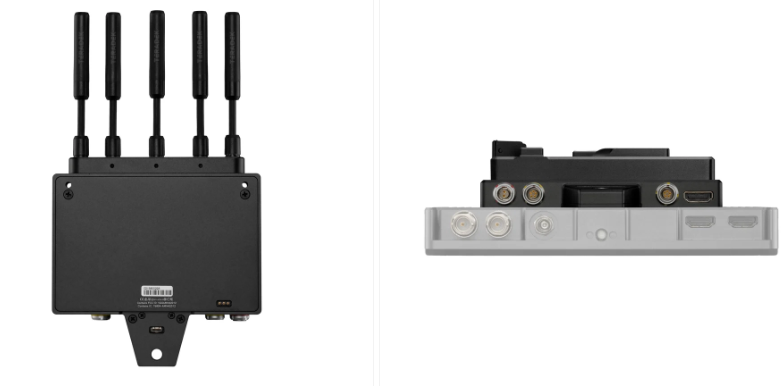

The Teradek Bolt 6 Monitor Module 1500 RX V-Mount provides professional wireless video reception with visually lossless transmission and a latency between the transmitter and receiver of less than 0.001 seconds. It supports resolutions up to 4Kp30, including 1080p and 720p, with support for 10-bit SDI YCbCr 4:2:2 and 8-bit HDMI RGB 4:4:4 color signals. The module is designed for direct connection to SmallHD Cine 7, 702 Touch, and Indie 7 Smart monitors and can share both power and video signals with the monitor, while enabling wireless camera control via the SmallHD interface. The 1500 model is equipped with both vertical and horizontal antennas for improved signal resilience in challenging RF environments and supports line-of-sight transmission up to a distance of 1,500 ft. It operates on compatible 5 GHz and 6 GHz frequencies, offers AES-256 encryption with RSA-1024 key exchange, supports one transmitter with up to six receivers, and can coexist with Wi-Fi and wireless phones in the 5 GHz band. The receiver features a milled aluminum chassis, five external antennas with 2 dBi gain, an HDMI output, connectors for connecting to a CCU, Bluetooth functionality via the SmallHD monitor, and has a rated power consumption of 6 W when powered by 6–18 V DC.

Key Features

• Wireless video receiver for professional on-set monitoring
• Supports video resolutions up to 4K30, 10-bit, 4:2:2 HDR
• Teradek Zero-Delay technology with a delay between transmitter and receiver of <0.001 s
• Wirelessrange up to 1,500 ft in line of sight
• Operates on 5 GHz and 6 GHz radiofrequencies

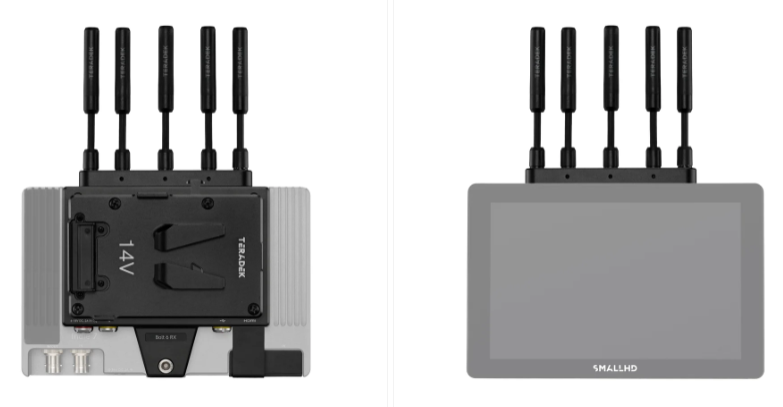

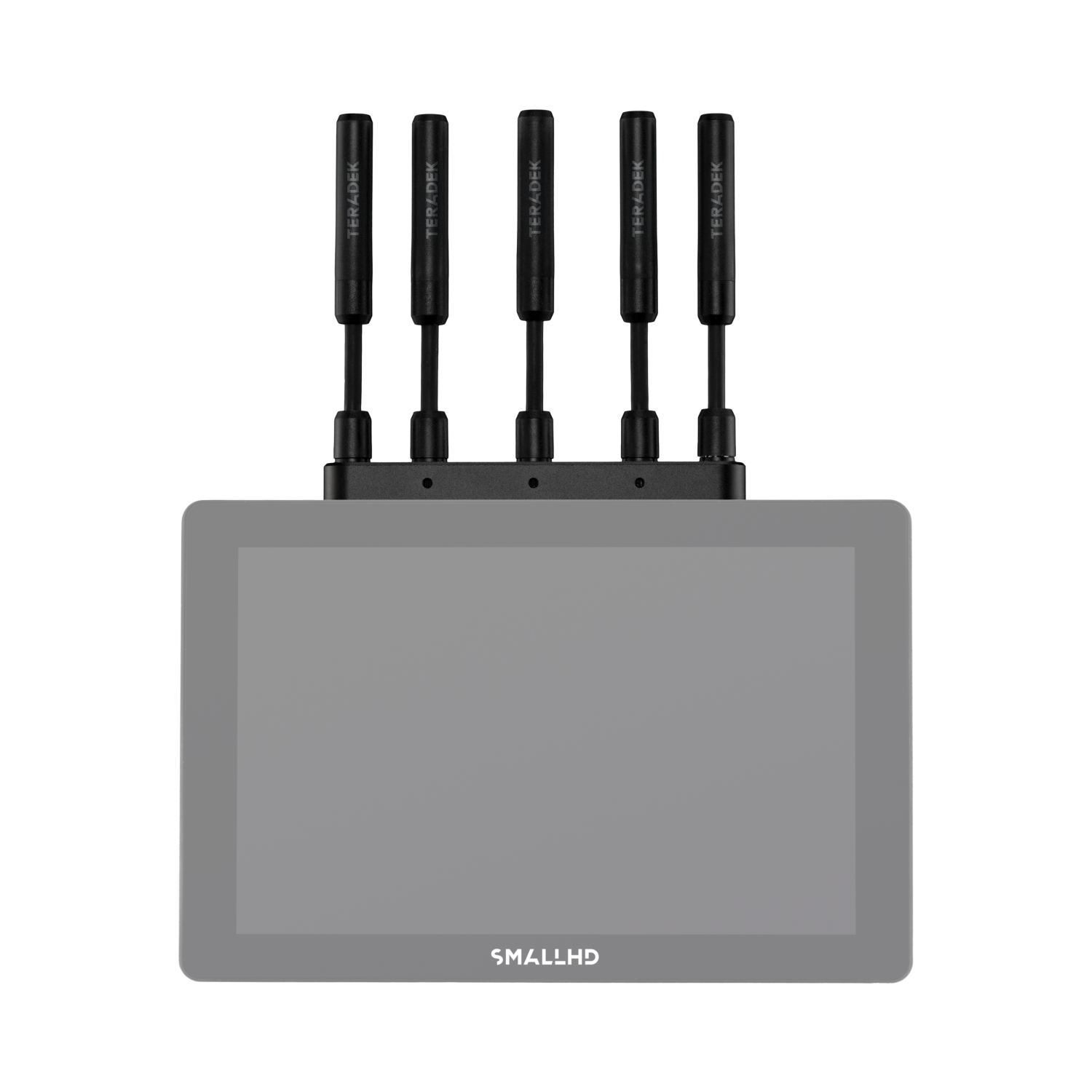

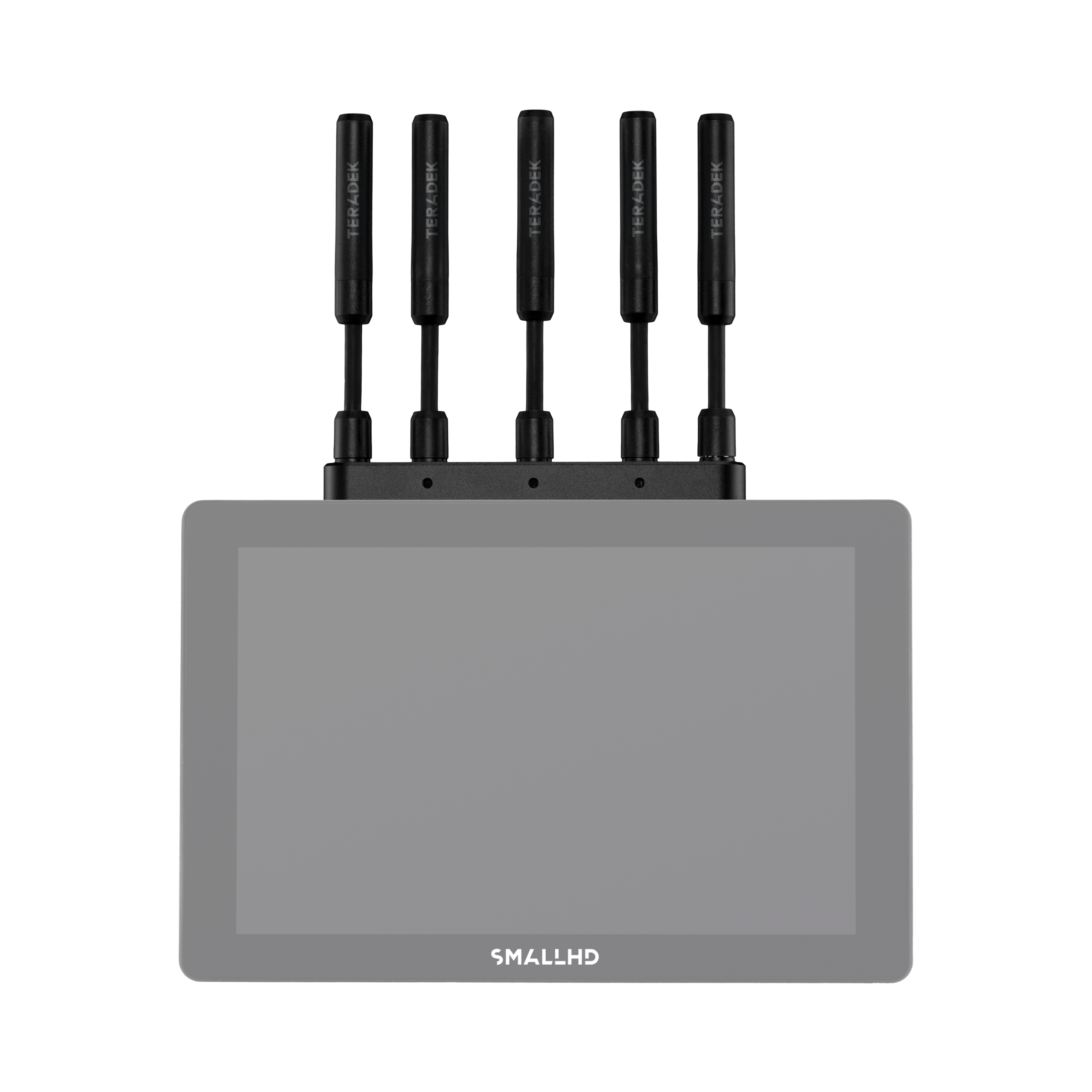

• Designed for direct connection to SmallHD Cine 7, 702 Touch, and Indie 7 Smartmonitors
• Enables power and video sharing between the receiver and compatible SmallHD monitors
• Supports wireless camera control through integration with SmallHD smart monitors
• The 1500 model features vertical and horizontal antennas for better performance in the radio band
• Visually lossless video compression
• Supports connecting one transmitter to up to six receivers
• AES-256 encryption with RSA-1024 key exchange
• Can operate concurrently with Wi-Fi and 5 GHz wireless telephone systems
• Compatible with Bolt 4K XT and Bolt 4K LT transmitters, subject to the limitations of the device with the shortest range

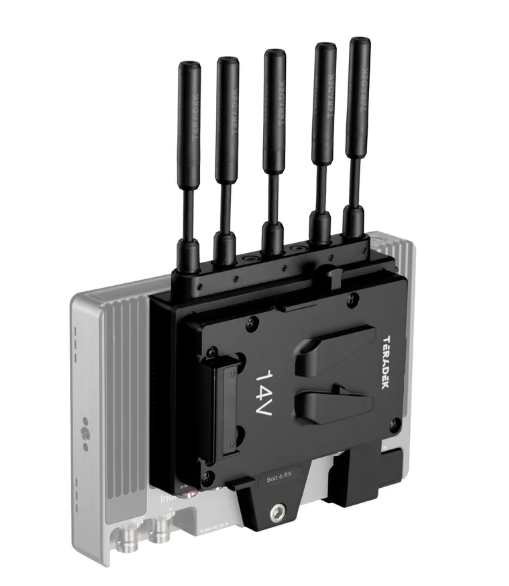

• Configuration with a V-Mount battery for convenient on-set power
