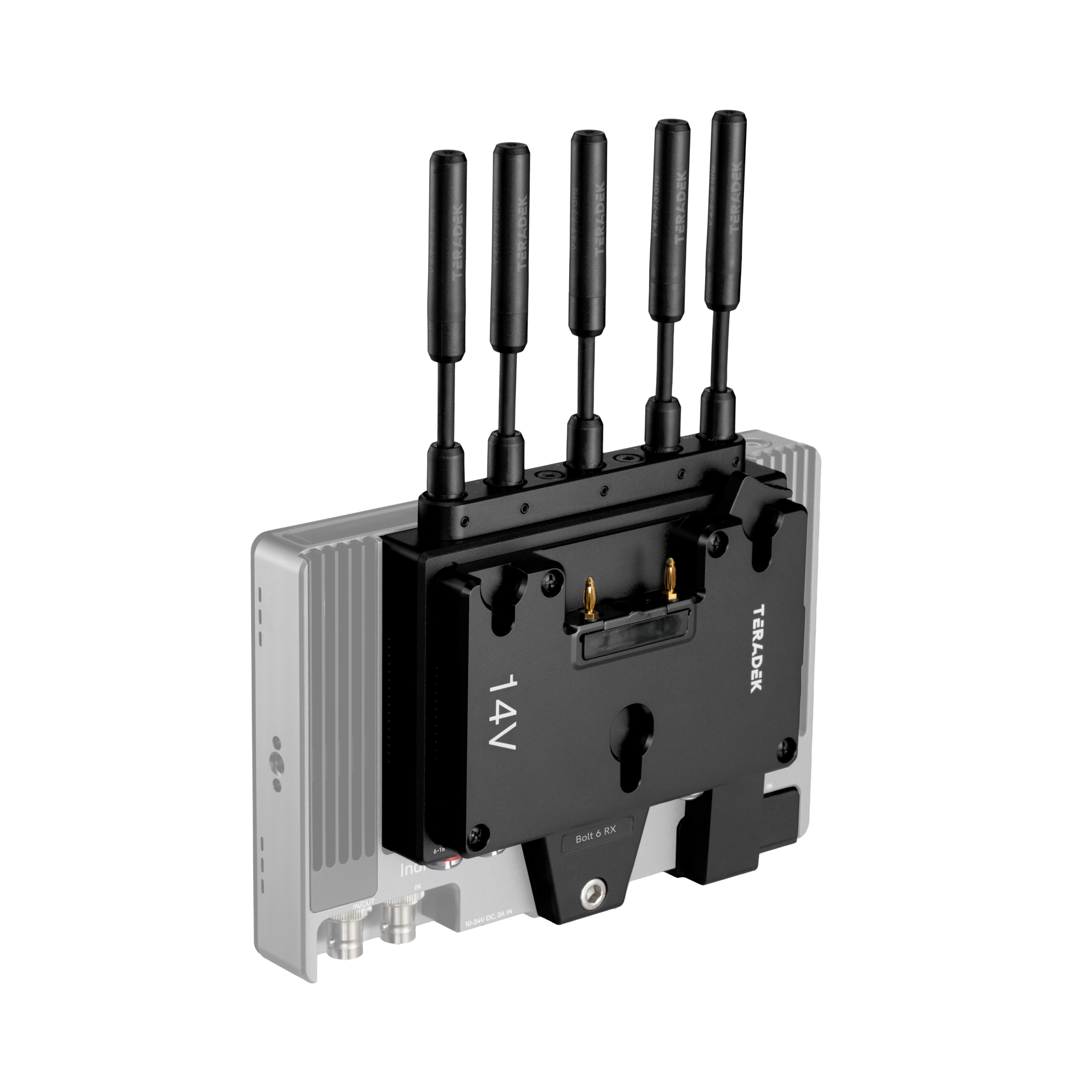

Teradek Bolt 6 Monitor Module 1500 RX Gold-Mount

The Teradek Bolt 6 Monitor Module 1500 RX Gold Mount receives up to 4K30 10-bit 4:2:2 HDR video with less than 1 ms transmitter-to-receiver delay, without format conversion. It fits directly behind a SmallHD Cine 7, Indie 7 or 702 Touch Smart 7 monitor, sharing power and video with the display. Its external antennas and Gold Mount battery plate support a compact monitoring rig with up to 1500 ft / 457 m line-of-sight range.

BOLT 6 · RX 1500 · GOLD MOUNT

1500 ft reception at the monitor

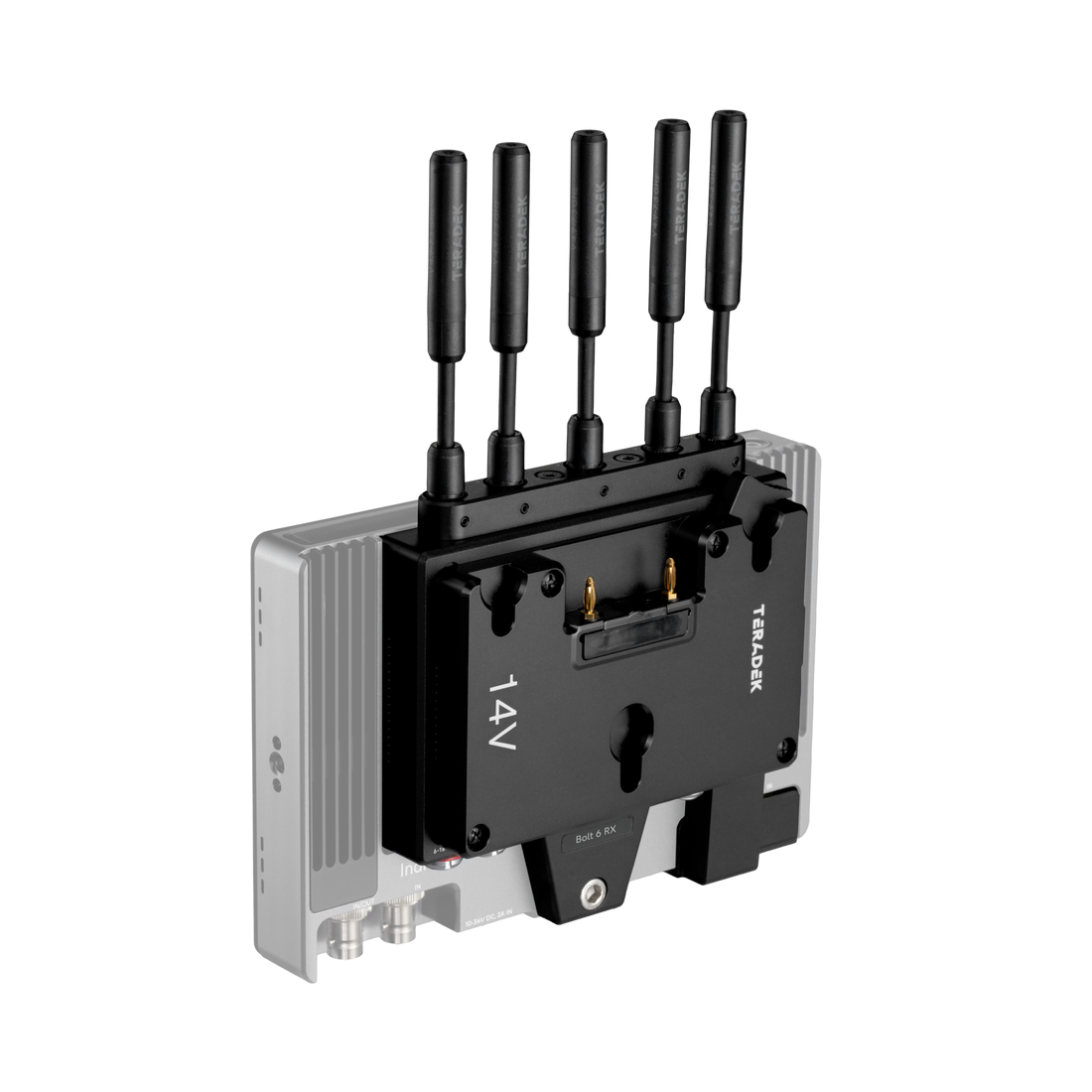

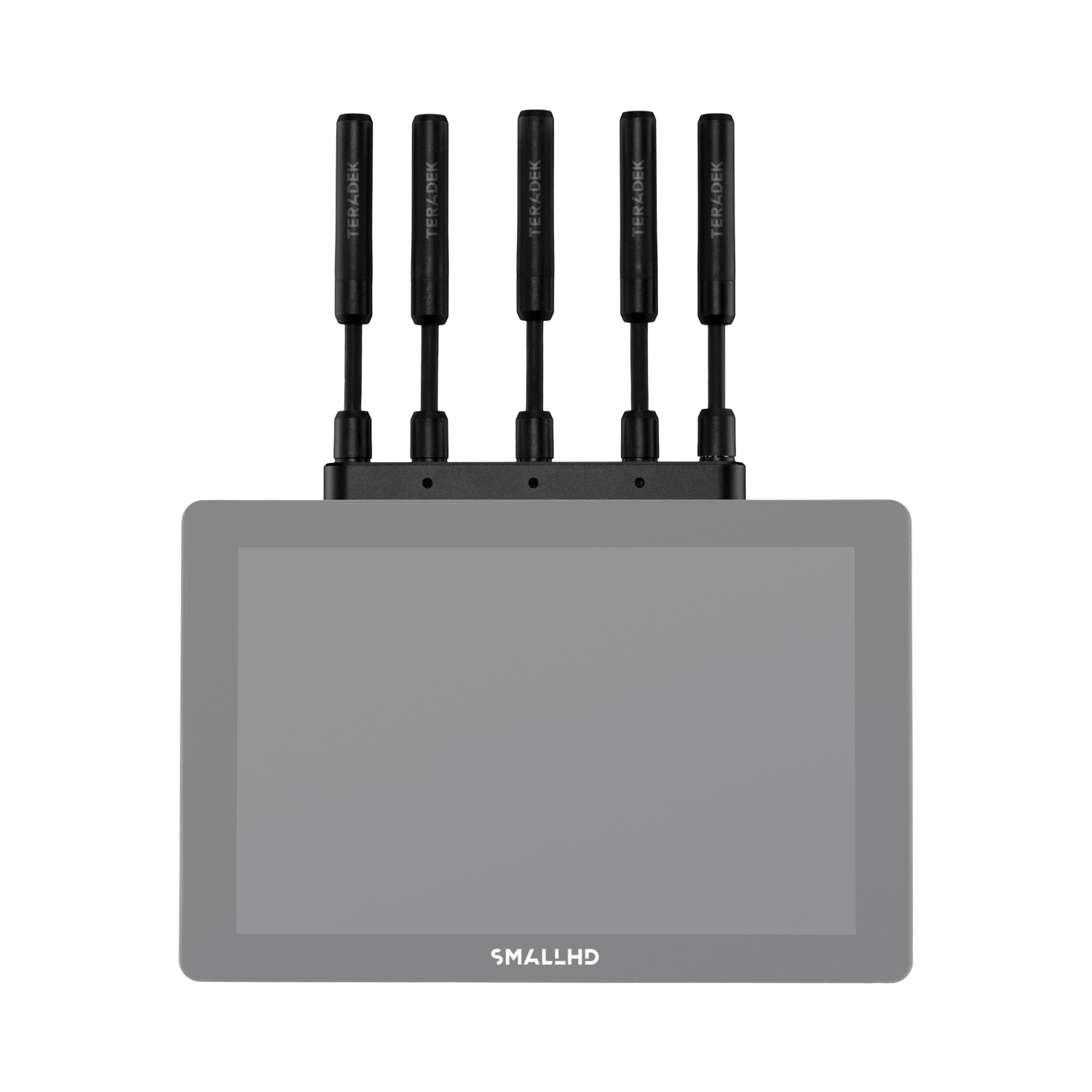

It fits directly behind a SmallHD Cine 7, Indie 7 or 702 Touch Smart 7 monitor, sharing power and video with the display. Its external antennas and Gold Mount battery plate support a compact monitoring rig with up to 1500 ft / 457 m line-of-sight range.

Built into the SmallHD workflow

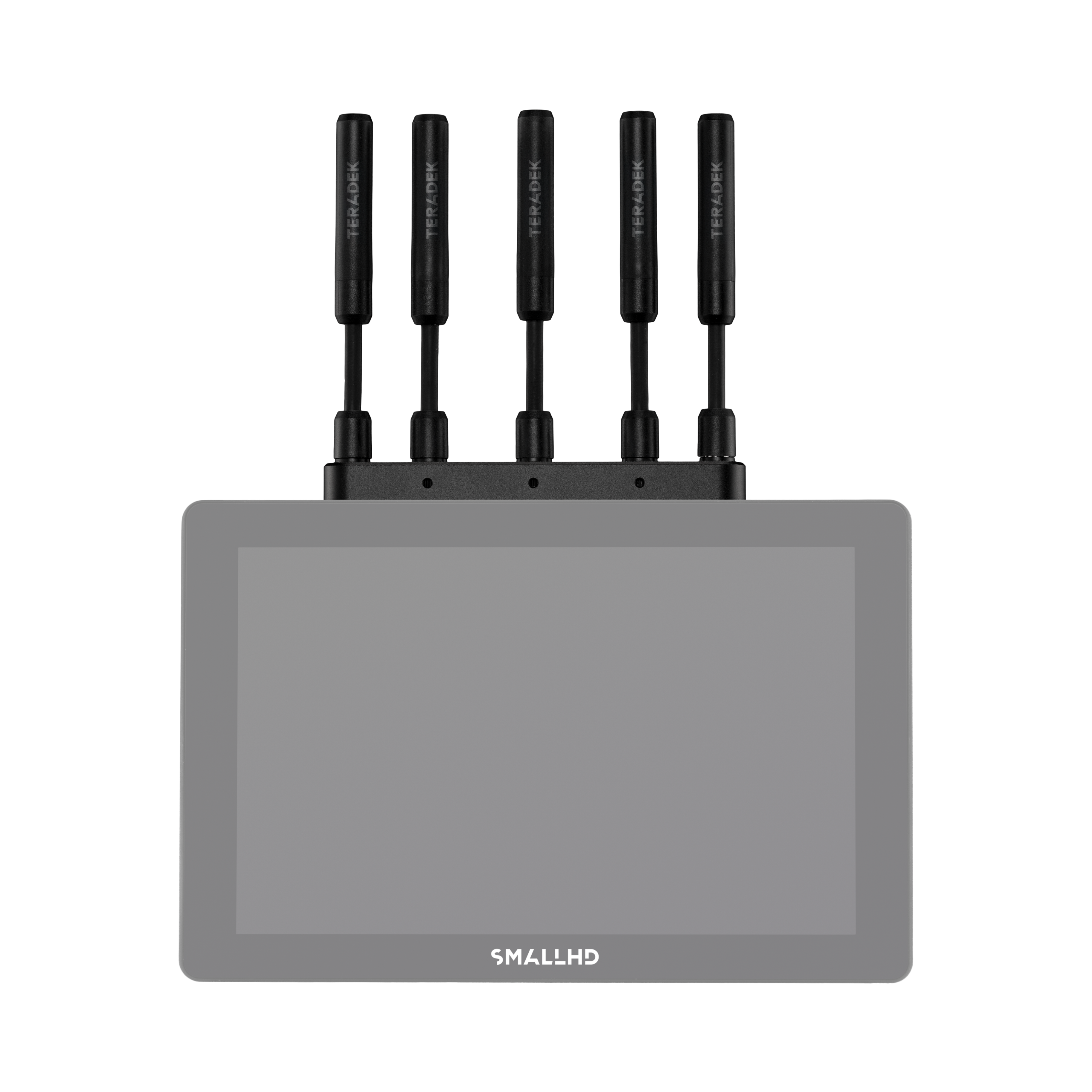

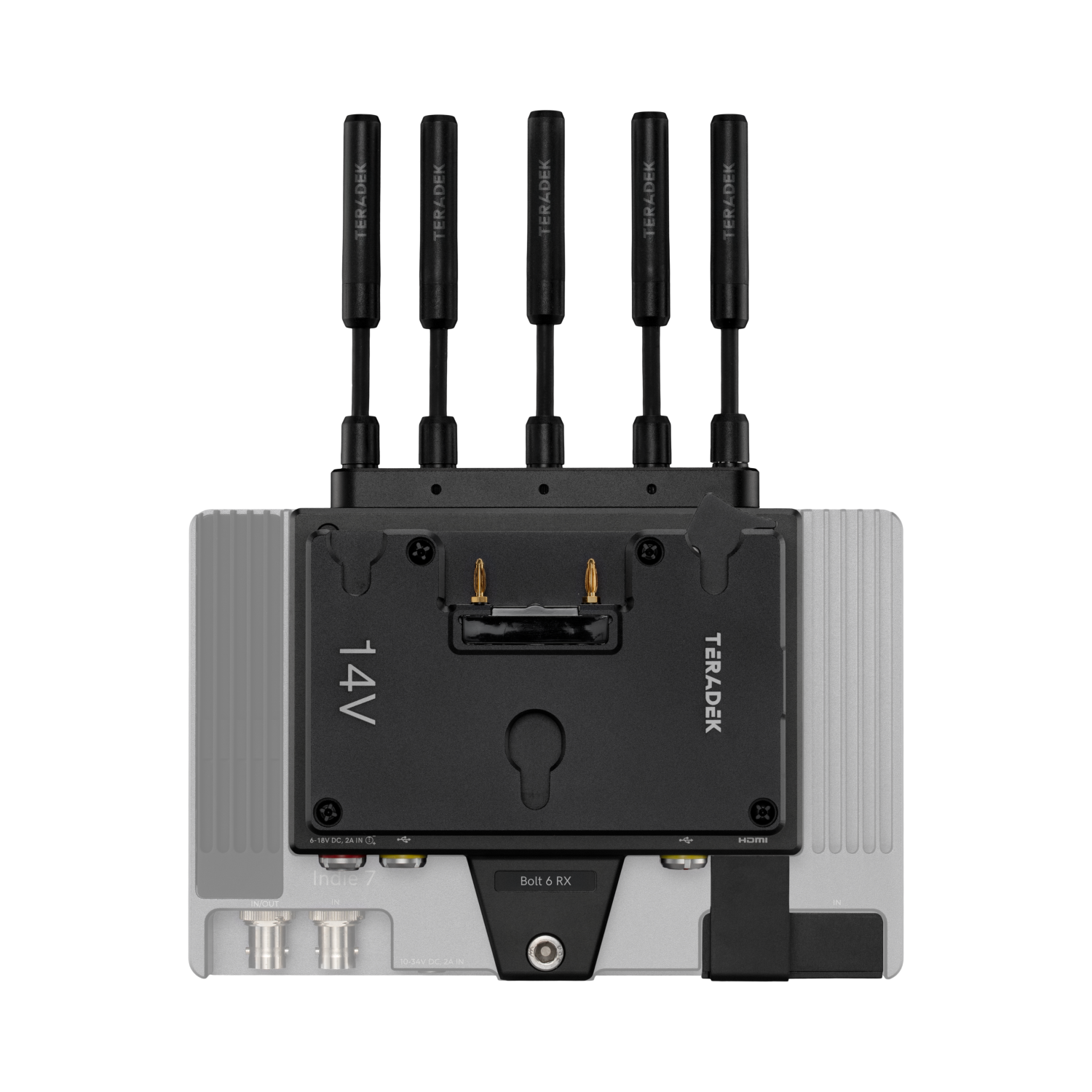

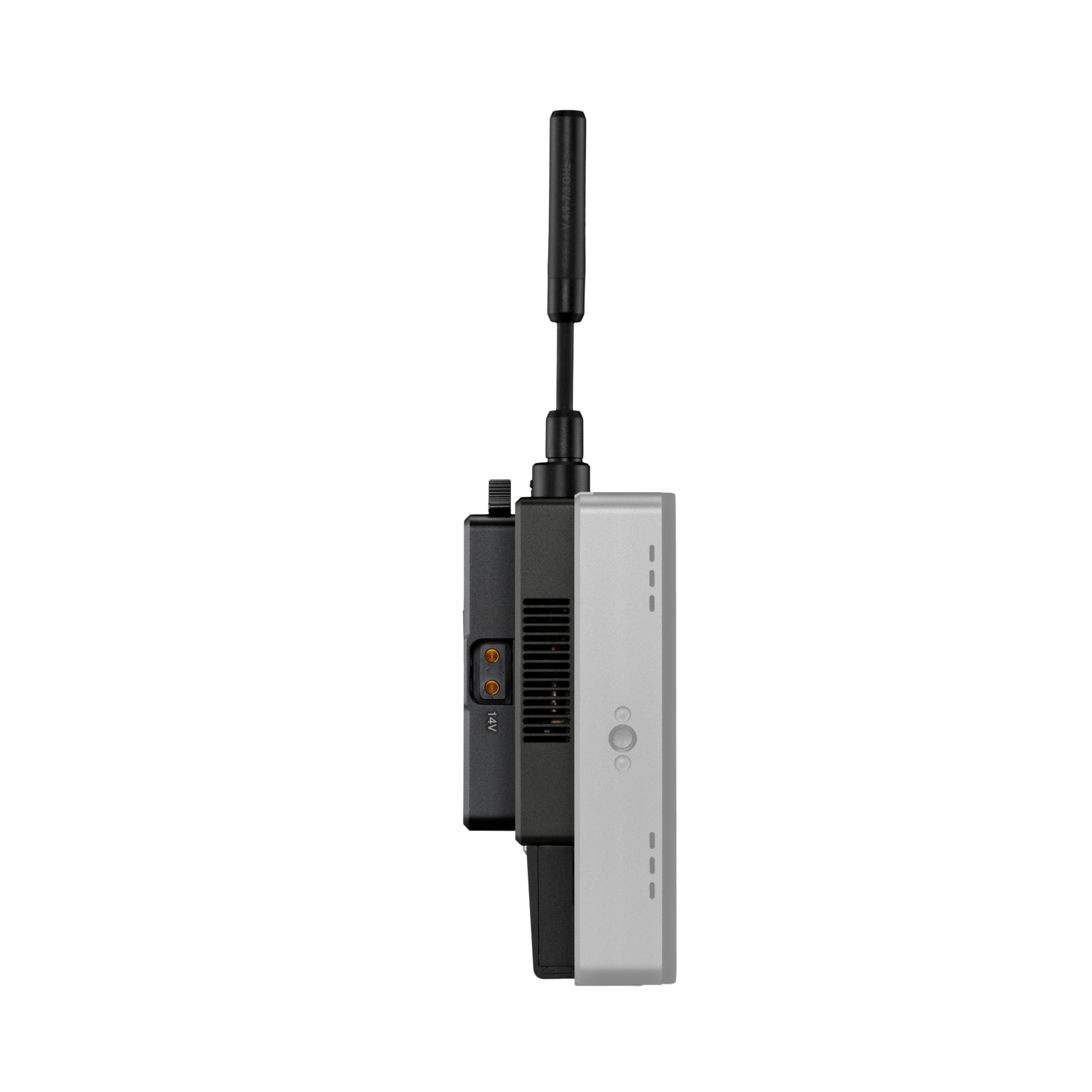

Mounted between the Smart 7 monitor and a Gold Mount battery, the receiver feeds video through the monitor block connection. This reduces separate signal and power cabling on a director or client monitor. The 1500 ft version supports vertical and horizontal antenna options for challenging RF environments.

Flexible 5 and 6 GHz monitoring

Bolt 6 receives over supported 5 and 6 GHz channels and uses AES-256 encryption. The 6 GHz band requires local regulatory availability and a compatible Bolt 6 transmitter; Bolt 4K interoperability uses the supported 5 GHz mode.
