SWIT S-4904SS, 700m wireless video system, SDI HDMI wireless transmitter, V-Mount wireless video, WHDI transmission system, uncompressed wireless SDI, low latency wireless video, broadcast wireless system, AES encrypted video transmission, professional film wireless solution.
The SWIT S-4904SS is a high-performance wireless video transmission system designed for professional broadcast, film, and live production applications. Utilizing advanced WHDI (MIMO/OFDM) technology, the system delivers uncompressed 3G/HD/SD-SDI and HDMI signals with less than 1ms latency, ensuring real-time monitoring without visible delay.
With a transmission range of up to 700 meters (line-of-sight), the S-4904SS is ideal for large studio environments, outdoor productions, sports broadcasting, and multi-camera setups. It supports 2-channel embedded audio via SDI/HDMI and operates within the license-free 5.1–5.9GHz frequency band. Users can configure frequency bands as needed to optimize performance in different RF environments.
The system supports multicast functionality, allowing one transmitter to send signals to multiple receivers simultaneously. For security, AES 256-bit encryption ensures safe and protected video transmission.
Both transmitter and receiver feature V-Mount battery plates for seamless integration into professional camera and monitoring rigs. Built with an all-metal housing, the units are durable and ready for demanding production environments. The system offers true plug-and-play operation with pure hardware connection—no complex setup required.
Key Features
Up to 700m (1000ft) line-of-sight transmission
Uncompressed 3G/HD/SD-SDI and HDMI transmission
Less than 1ms ultra-low latency
WHDI (MIMO/OFDM) wireless technology
5.1–5.9GHz license-free frequency range
User configurable frequency bands
Multicast support (1 TX to multiple RX units)
2-channel SDI/HDMI embedded audio transmission
AES 256-bit encryption
Less than 63mW radio power
V-Mount power connections (TX & RX)
All-metal durable housing
Plug-and-play operation

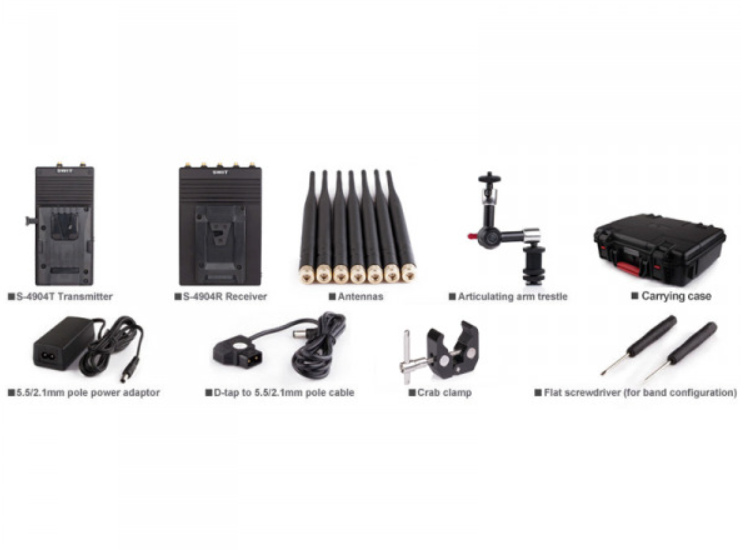

1 × S-4904T Transmitter (V-Mount)
1 × S-4904R Receiver (V-Mount)
7 × Antennas
1 × Articulating Arm Trestle
1 × Crab Clamp
1 × D-Tap to 5.5/2.1mm Pole Cable
1 × 5.5/2.1mm Pole Power Adapter
2 × Flat Screwdrivers (for band configuration)
Transmission Distance: Up to 700m (LOS)
Latency: <1ms
Frequency Range: 5.1–5.9GHz (license-free)
Video Input/Output: 3G/HD/SD-SDI, HDMI
Audio: 2-channel embedded
Encryption: AES 256-bit
Power Mount: V-Mount
Housing: All-metal construction
The SWIT S-4904SS is a professional wireless video transmission system with a range of up to 700 meters, featuring SDI and HDMI interfaces and equipped with native V-mount battery plates. For reliable operation in the field, we recommend supplementing the system with compatible V-mount chargers, power cables, and signal distribution devices.
Power and Charging - Key components for powering V-mount transmitters and receivers and maintaining batteries.
Cables and Signal Distribution - Accessories for connecting the system to cameras, monitors, and production control rooms.
Transport and Maintenance - Bags for safe transport and kits for cleaning optical and technical components of the system.
Other Accessories - Additional equipment suitable for production sets using wireless transmission.
| Manufacturer: | Swit |
| Category: | Wireless video transmission |
| Input wireless video | 3G/HD/SD-SDI, HDMI |
