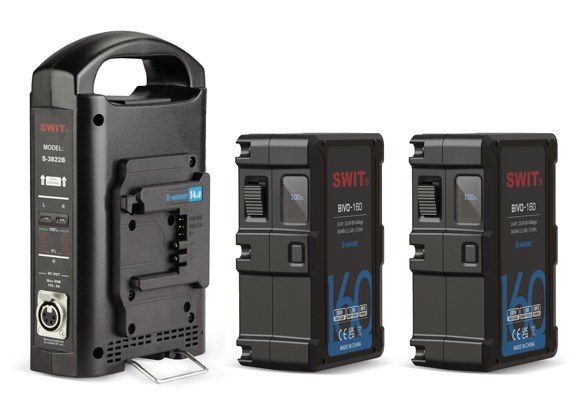

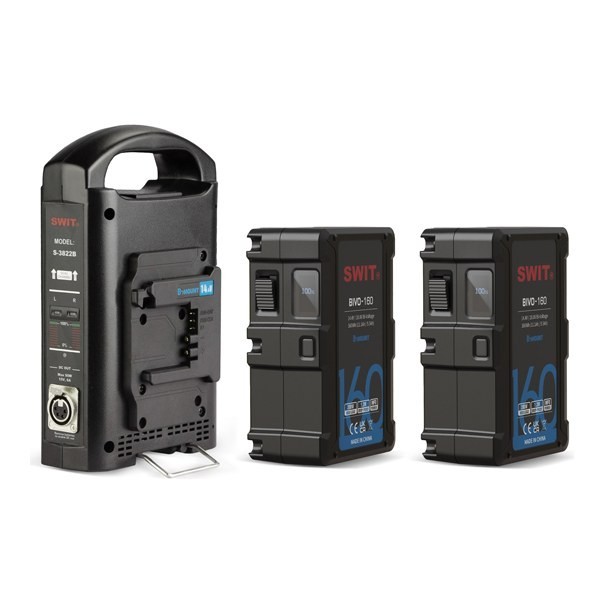

SWIT BIVO-160*2 URSA KIT

Two B-mount batteries and a charger in one kit

A kit for Blackmagic URSA and ARRI cameras with B-mount. The batteries adapt their voltage to the plate and the charger charges both at once, so one can run the camera while the other is ready.

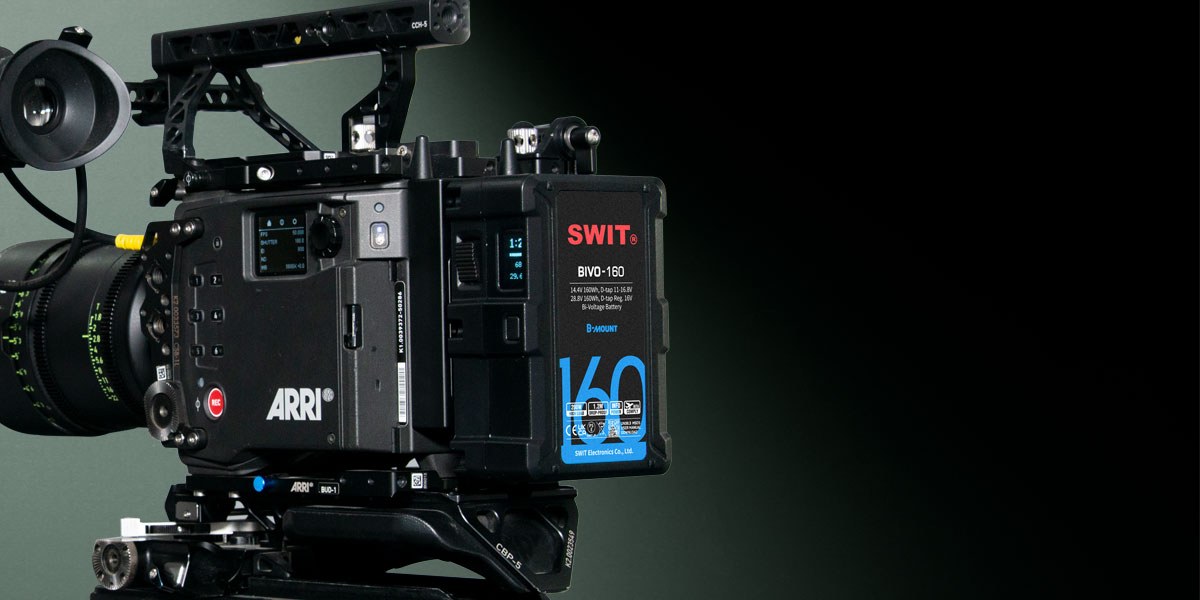

Nearly 2 hours on ALEXA 35

The 160 Wh capacity runs an ARRI ALEXA 35 camera for almost two hours.

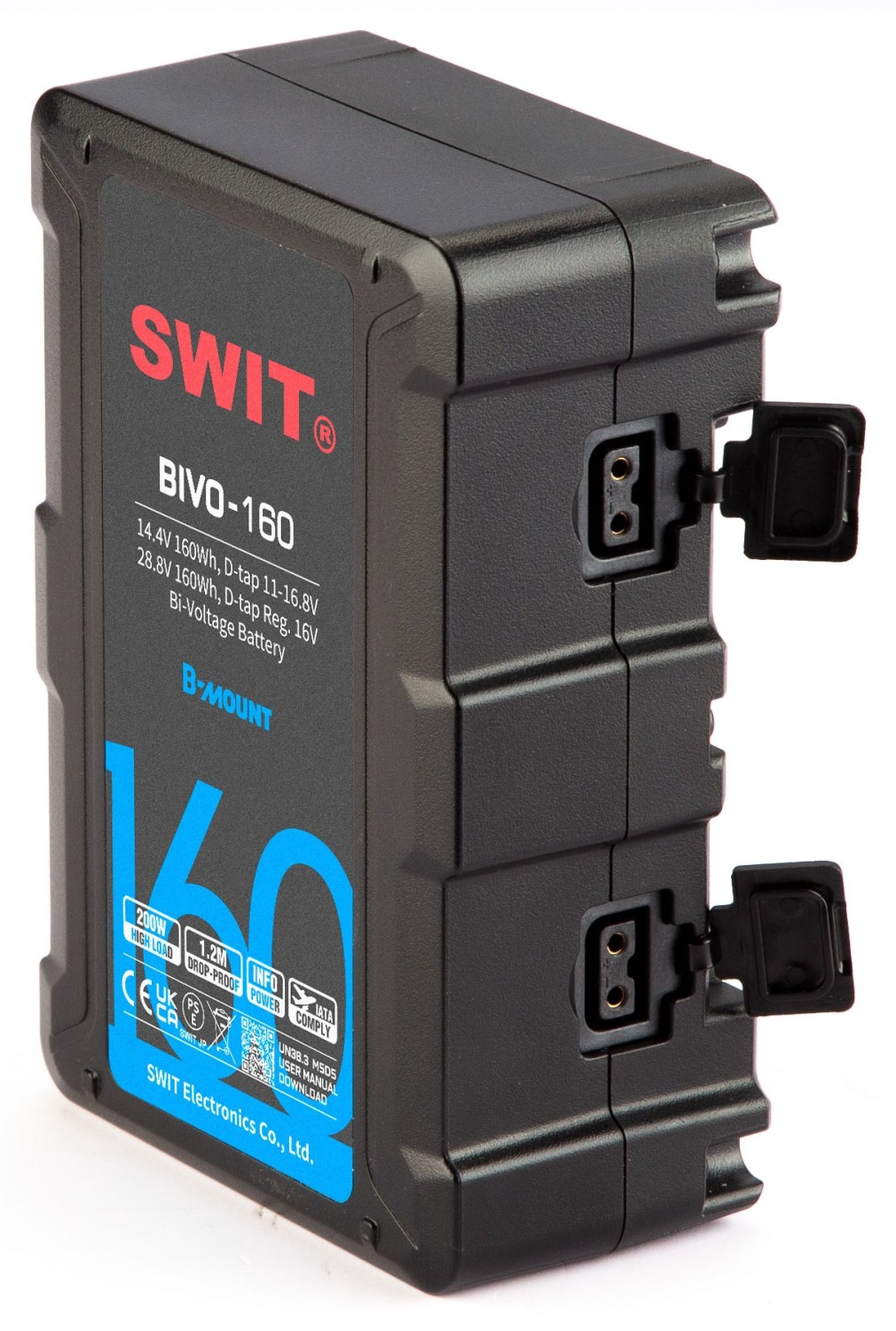

2× D-tap

In 14.4 V mode they supply 10.8–16.8 V, in 28.8 V mode a regulated 16 V for camera-top accessories.

OLED display

Shows output voltage, charge percentage, remaining run time and protection codes.

Two batteries at once

The S-3822B charges both channels simultaneously, each at 16.8 V and 3 A (50 W).

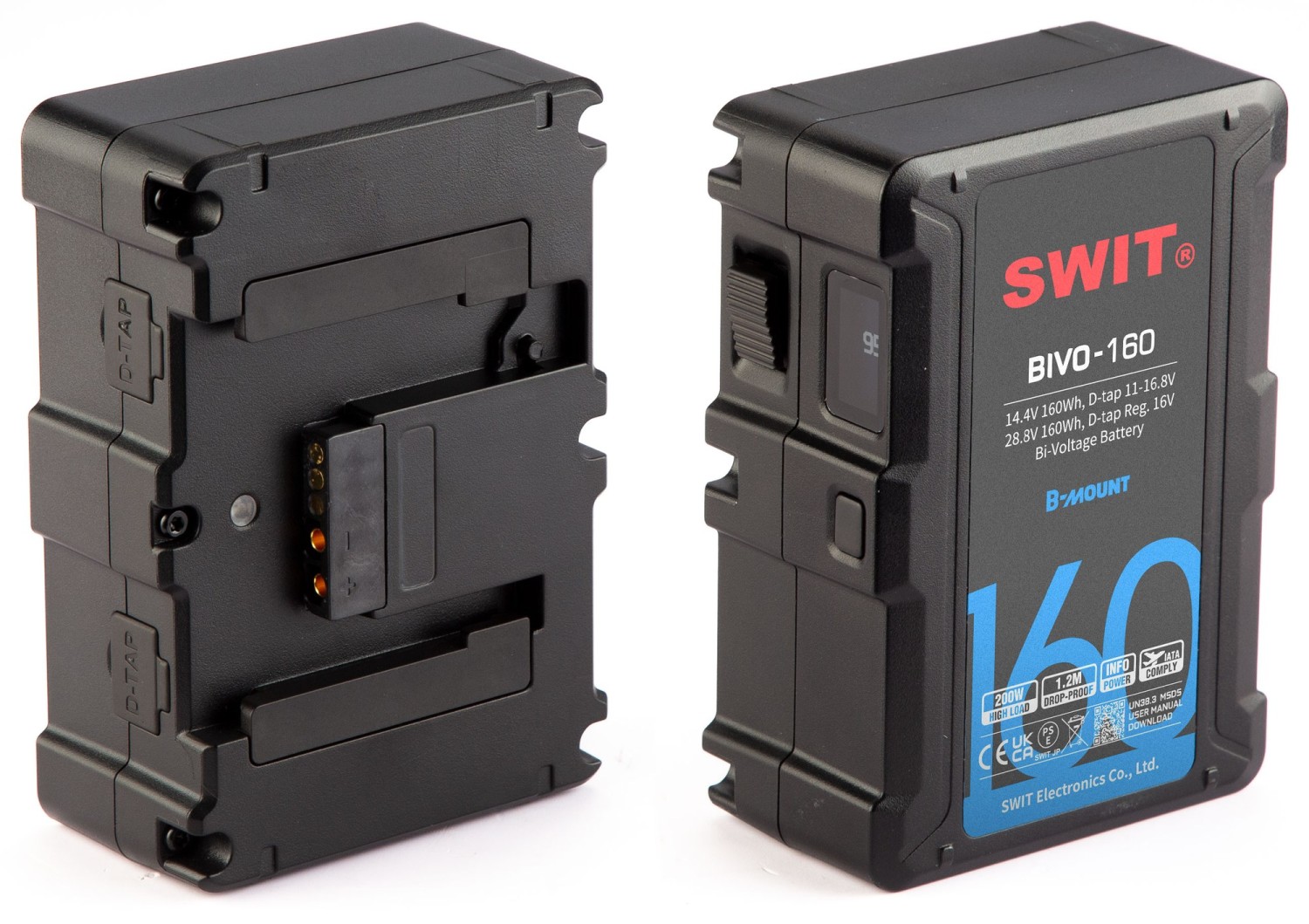

Bi-voltage B-mount

The BIVO-160 works in 14.4 V (10.8–16.8 V) and 28.8 V (21.6–33.6 V) modes. It suits ARRI and Blackmagic cameras as well as other cameras and cine gear with a B-mount. Constant load is 200 W.

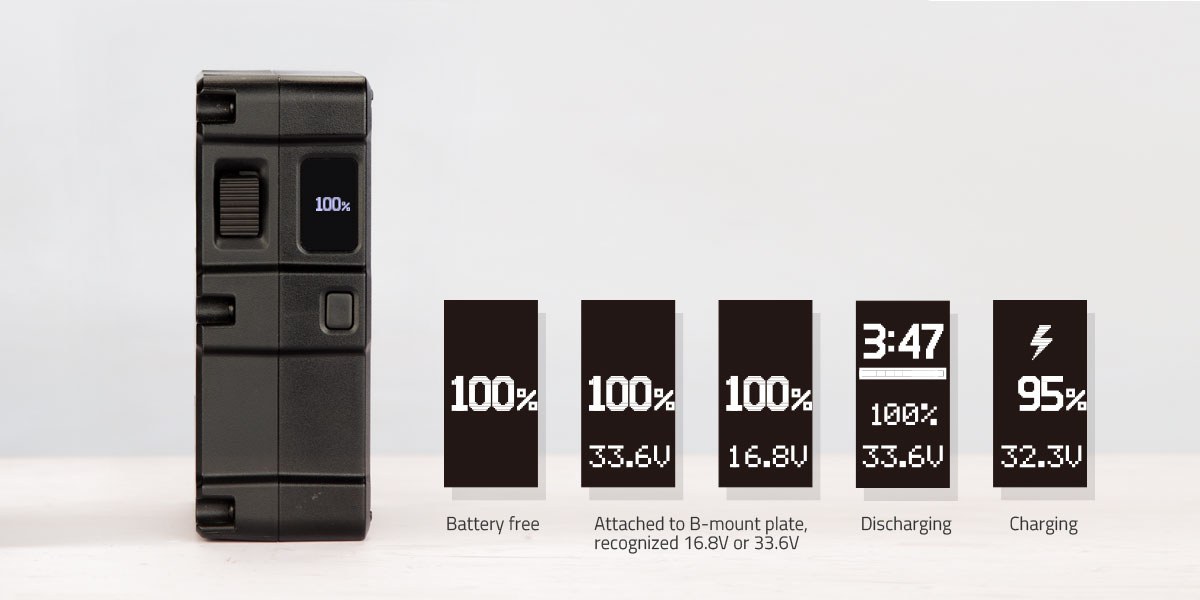

OLED display

The display shows the charge level when the battery is detached, the recognised voltage (16.8 V or 33.6 V) once attached to a B-mount plate, the remaining run time while discharging and the progress while charging.

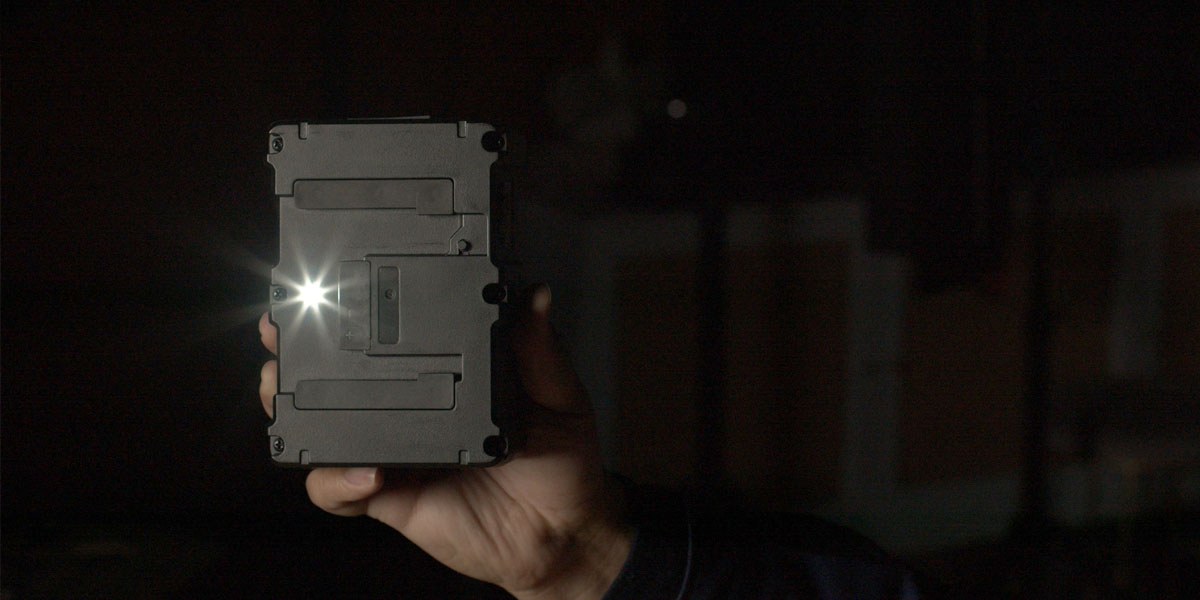

LED torch

A double press of the power check button switches on an LED torch on the back of the battery to help you find the B-mount plate in the dark. Another double press turns it off, otherwise it switches off automatically after 30 seconds.

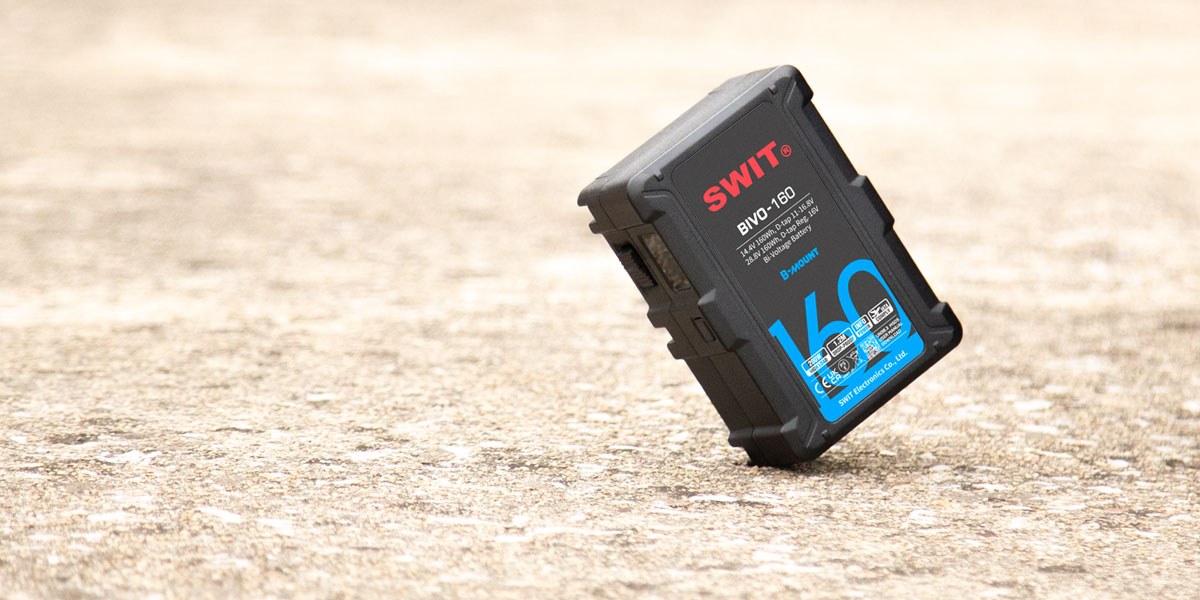

Rugged and long storage

The battery survives a 1.2 m drop at any angle. Thanks to ultra-low standby consumption it holds its charge even after years of storage without regular charge-discharge maintenance.

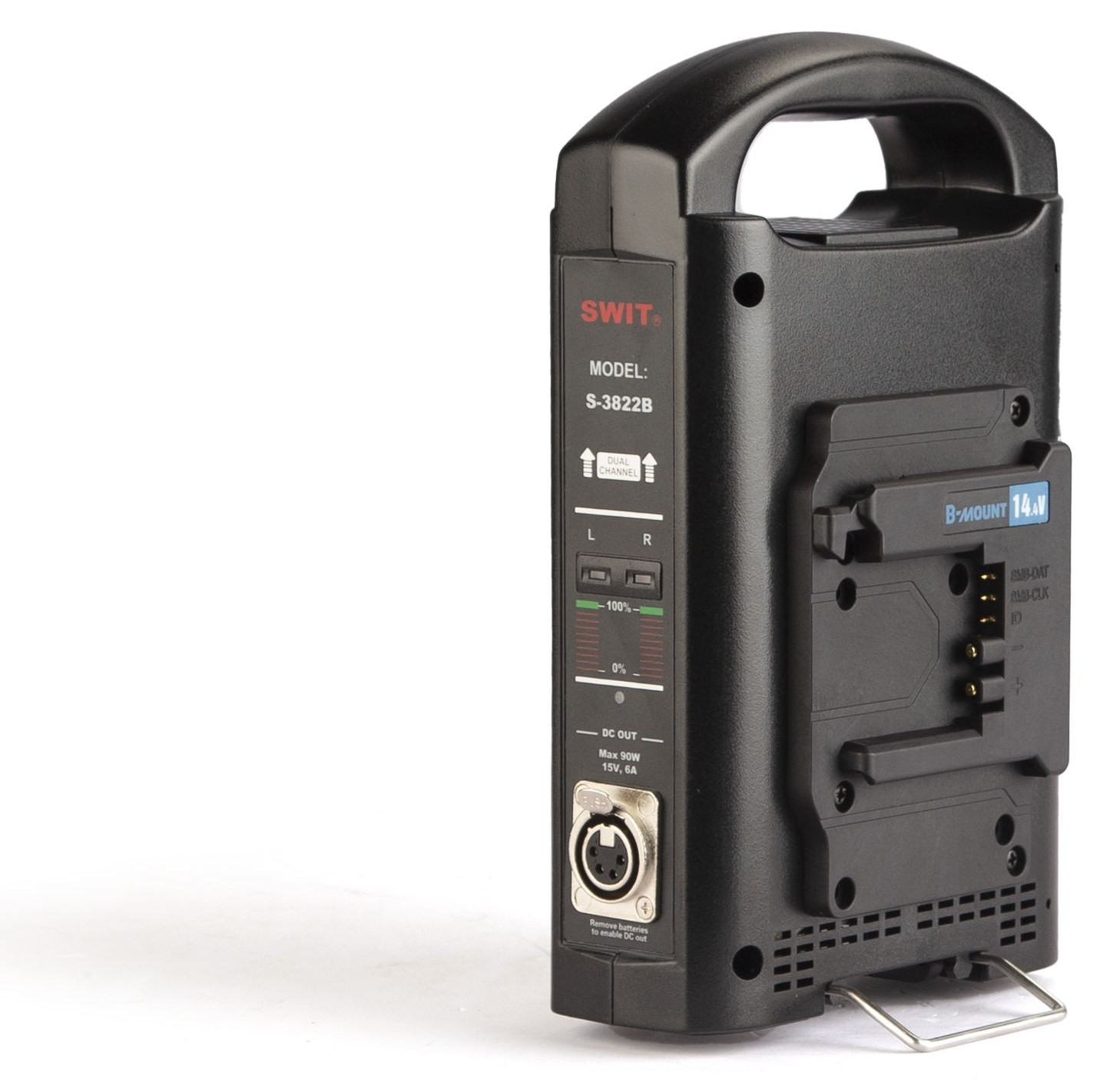

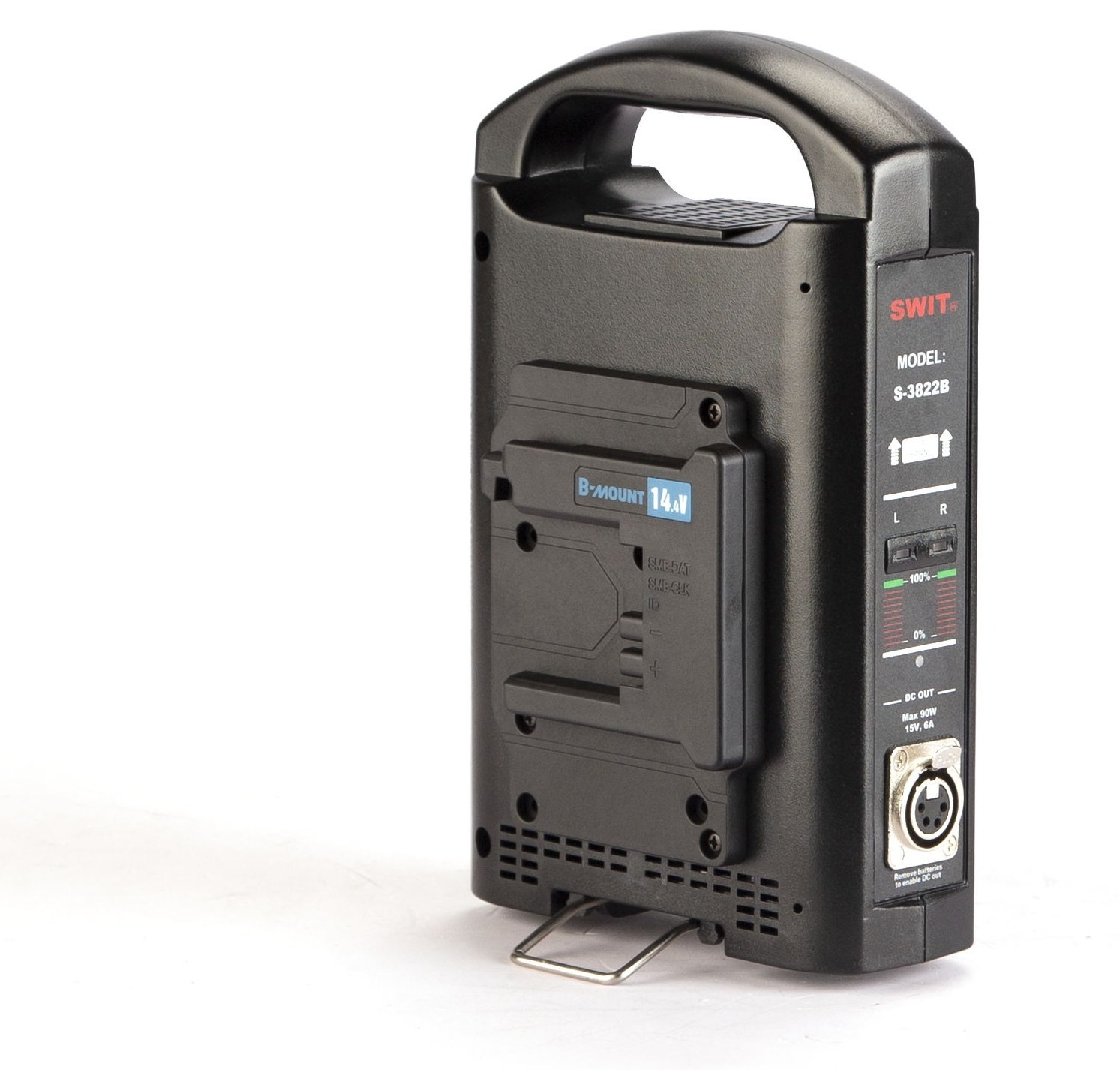

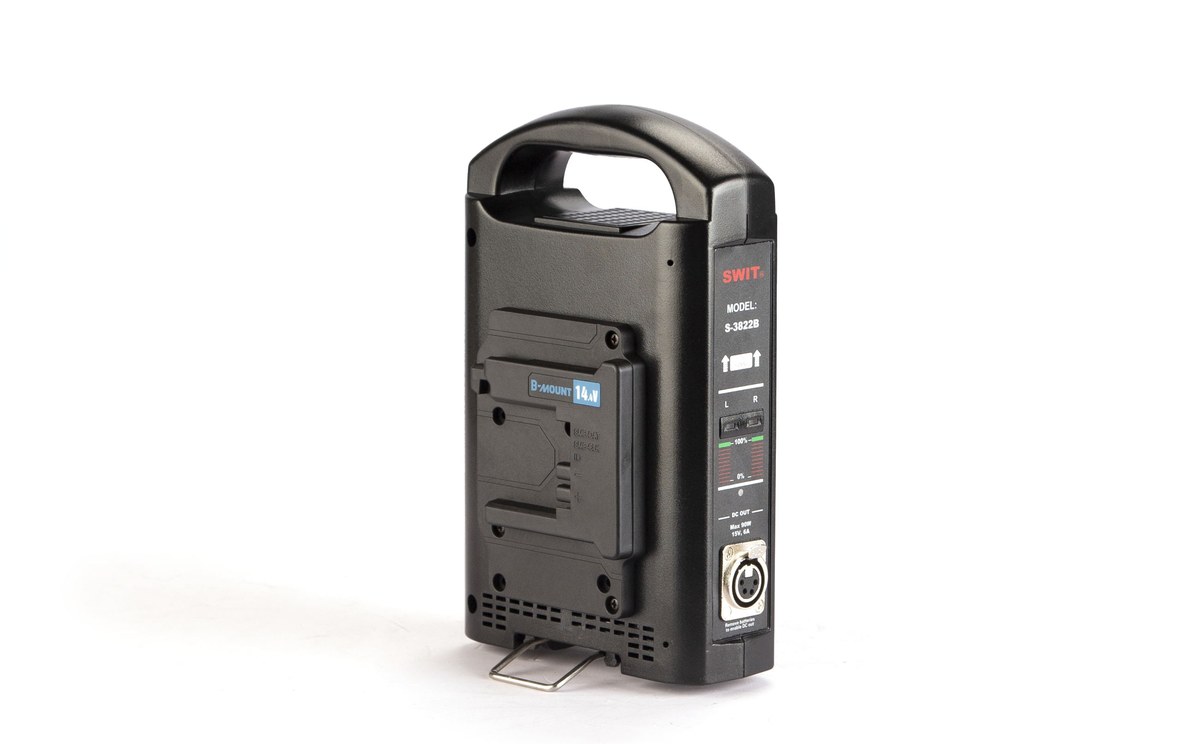

S-3822B charger

The two-channel charger charges B-mount batteries with a 14.4 V mode – SWIT BIVO, Bebob and Core SWX – at 16.8 V and 3 A per channel. The LEDs glow red while charging, green when full and flash red on an error. The 4-pin XLR output works as a 15 V / 6 A (90 W) power supply with the S-7102 cable, sold separately.
