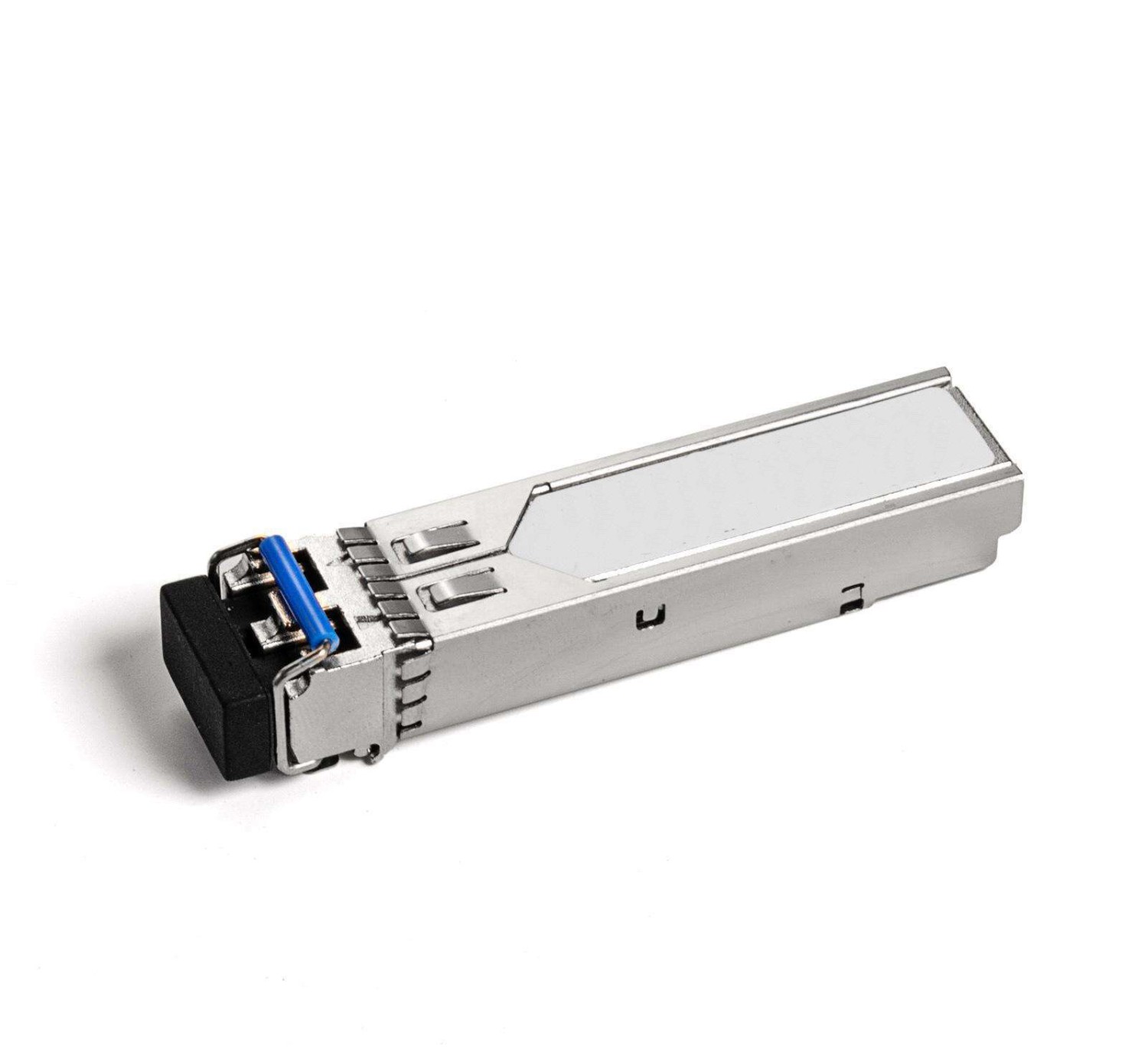

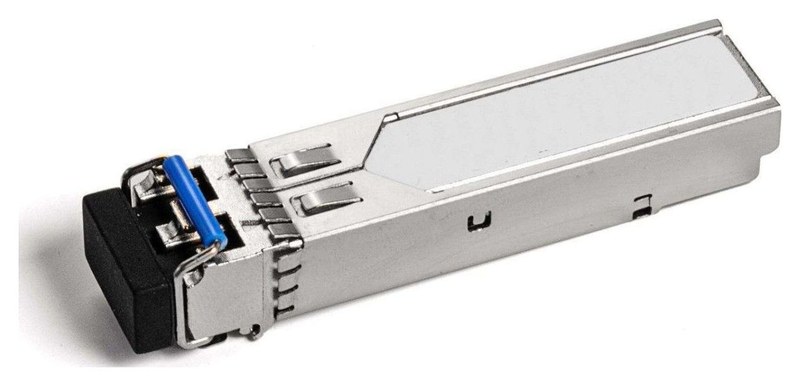

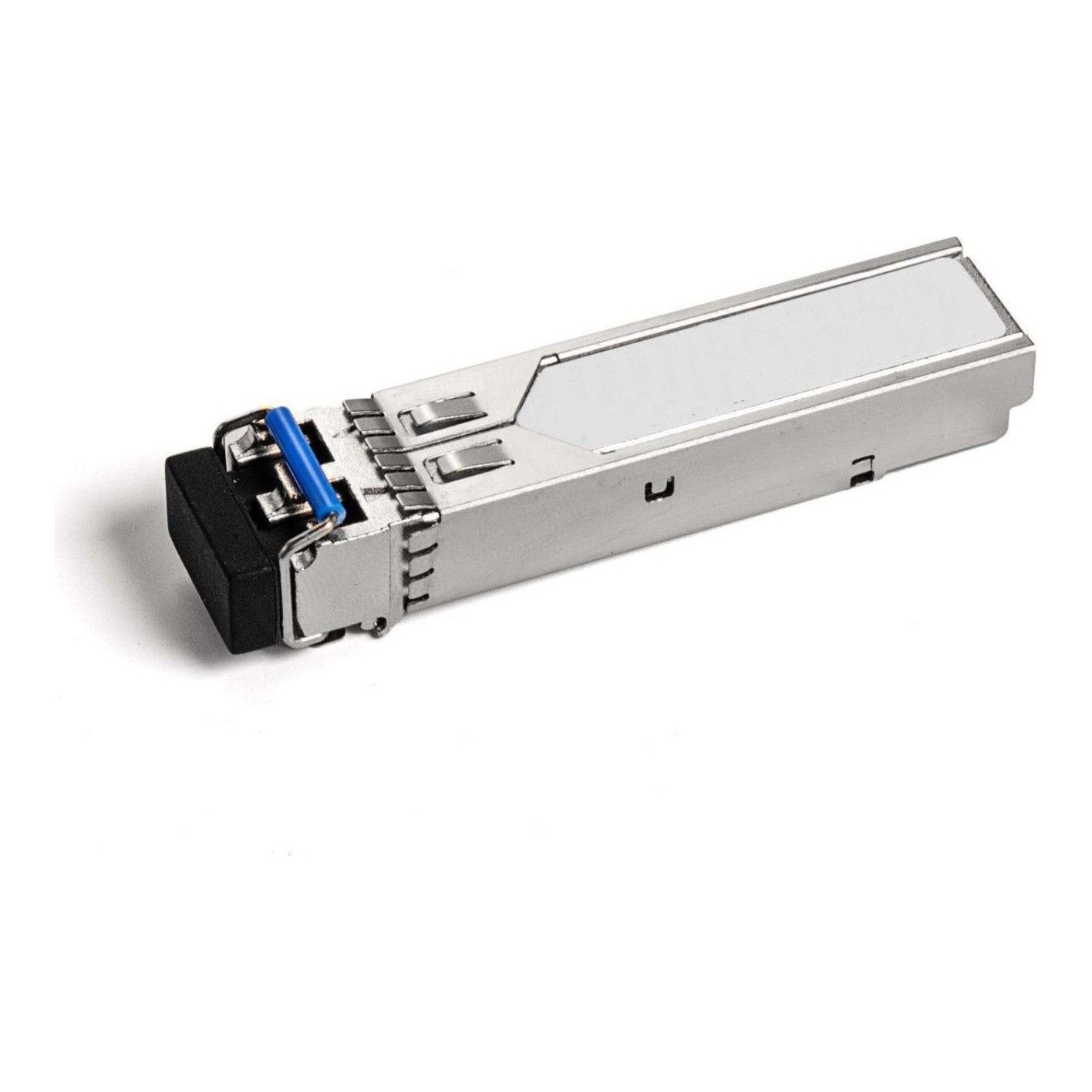

Lilliput 3 Gb/s Video SFP Optical Transmitter
SKU: 3G-SFP-LC-TX
The Lilliput 3G-SFP-LC-TX optical transmitter is an SFP module that converts an electrical SDI signal into an optical signal for transmission over fibre. It handles 50 Mb/s to 2.97 Gb/s (SMPTE 259M, 344M, 292M and 424M) including SDI pathological patterns and, paired with the matching receiver, carries video over single-mode fibre for up to 12.4 miles (20…
168 € with VAT
138.84 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput 3G-SFP-LC-TX optical transmitter is an SFP module that converts an electrical SDI signal into an optical signal for transmission over fibre. It handles 50 Mb/s to 2.97 Gb/s (SMPTE 259M, 344M, 292M and 424M) including SDI pathological patterns and, paired with the matching receiver, carries video over single-mode fibre for up to 12.4 miles (20 km).
SDI into optical fibre, up to 12.4 miles
An SFP module with an LC connector and a 1310 nm DFB laser that converts SD, HD and 3G-SDI into an optical signal. It works as a pair with the 3G-SFP-LC-RX receiver.
SFP · LCSD/HD/3G-SDI1310 nm DFB laserup to 12.4 miles3.3 V
Video where coax cannot reach
Paired with a 3 Gb/s optical receiver, it carries SDI over single-mode fibre for up to 12.4 miles (20 km) – without the loss and interference that limit copper coax.
1310 nm DFB laser
The transmitting section is a DFB laser with a 1310 nm wavelength and an MCU control unit.
I2C diagnostics
Digital diagnostic functions to SFF-8472 are available through the I2C interface.
More information
About the product
Consisting of two sections, the 3 Gb/s Video SFP Optical Transmitter features a DFB laser transmitter and an MCU control unit, with both modules satisfying class I laser safety requirements.
Further features: metal enclosure for lower EMI; 1310 nm DFB laser; support for video pathological patterns for SD-SDI, HD-SDI and 3G-SDI; non-MSA pinout; digital diagnostic functions available through the I2C interface; compatible with the SFP Multi-Source Agreement (MSA) and SFF-8472; RoHS compliant; 3.3 V single power supply. The module is fully compliant with the SMPTE 297M-2006 standard for SDI over fibre.
PACKAGE CONTENT
- Lilliput 3G-SFP-LC-TX 3 Gb/s video SFP optical transmitter
SPECIFICATIONS
- Brand: Lilliput
- Model: 3G-SFP-LC-TX
- Type: 3 Gb/s video SFP optical transmitter
- Form factor: SFP
- Optical connector: LC
- Fibre: single-mode, up to 12.4 miles (20 km)
- Data rate: 50 Mb/s – 2.97 Gb/s
- Signals: SD-SDI, HD-SDI, 3G-SDI
- Standards: SMPTE 259M, 344M, 292M, 424M, 297M-2006
- Laser: 1310 nm DFB
- Diagnostics: digital diagnostics via I2C (SFF-8472)
- Laser safety: class I
- Housing: metal (lower EMI)
- Power: 3.3 V
- Compliance: SFP MSA, SFF-8472, RoHS
