SmallRig Dummy Battery Power Cable for D-Tap for Canon LP-E6P 6656

+3
  • New
SKU: 6656

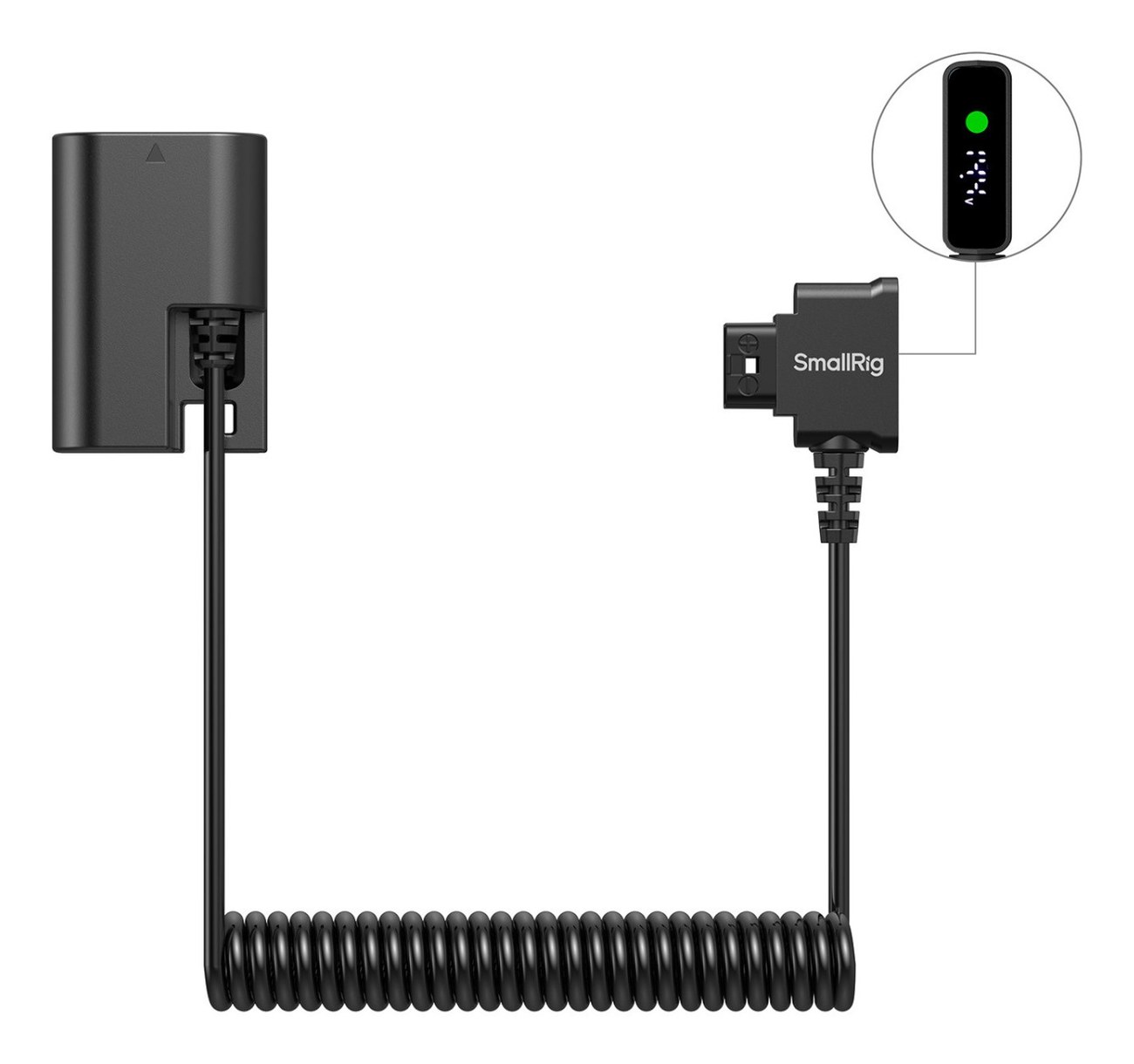

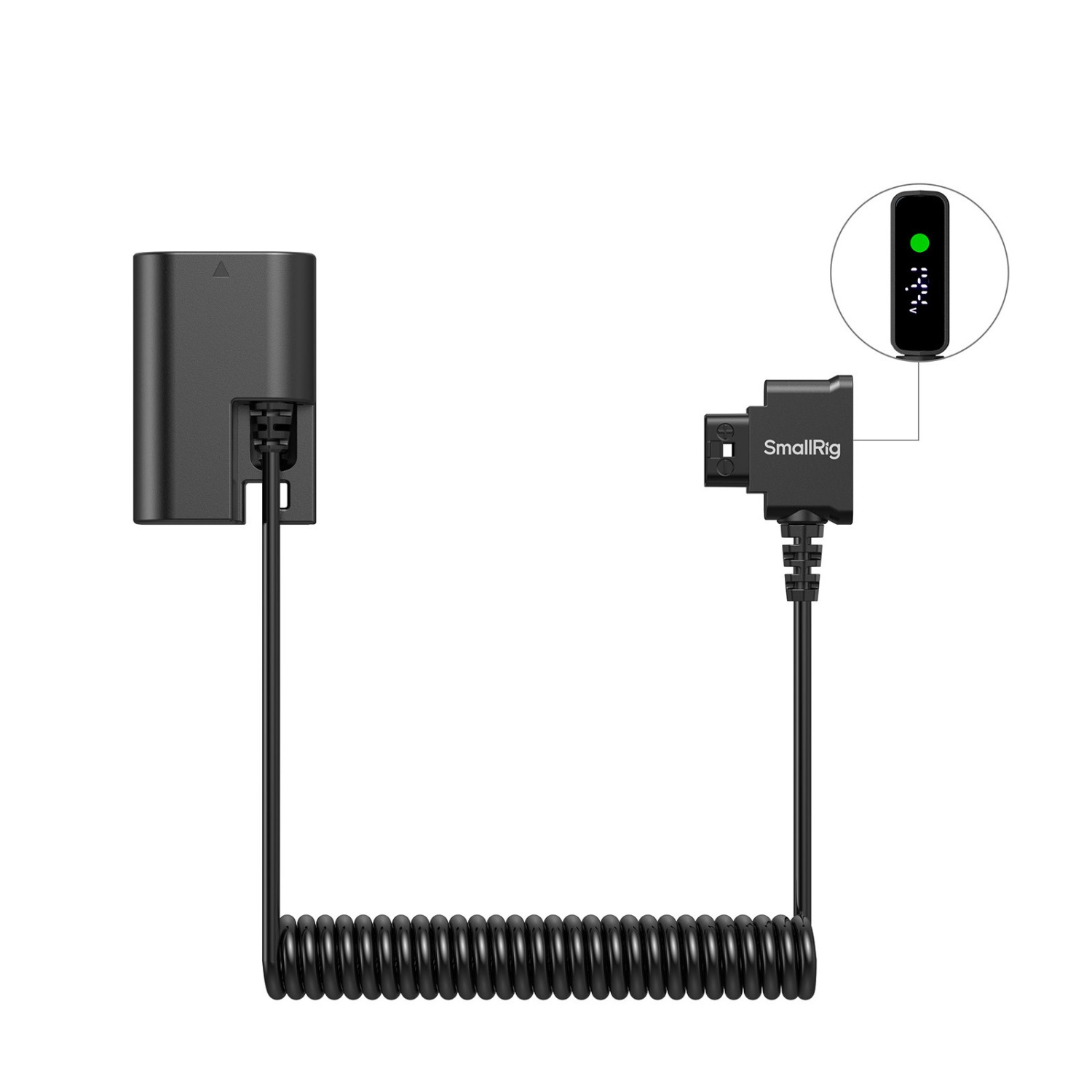

The SmallRig 6656 power cable replaces the LP-E6P battery in a Canon camera and feeds it from a V-mount battery over D-Tap. The display shows the input voltage — green above 13.0 V, red as a low warning below. The housing is flame-retardant ABS.

More information

53 € with VAT 43.8 € without VAT
Add to Compare Price history
Availability
Backordered 5 pcs - 22.10.2026
SKU:
6656
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The SmallRig 6656 power cable replaces the LP-E6P battery in a Canon camera and feeds it from a V-mount battery over D-Tap. The display shows the input voltage — green above 13.0 V, red as a low warning below. The housing is flame-retardant ABS.

D-Tap dummy battery cable for LP-E6P

The SmallRig 6656 power cable replaces the LP-E6P battery in a Canon camera and feeds it from a V-mount battery over D-Tap.

Dummy Battery Power Cable for D-Tap for Canon LP-E6P

Live voltage display

A built-in display shows the input voltage and power status in real time. Green above 13.0 V; red. steady or flashing. below 13.0 V.

9.6 to 20.0 V

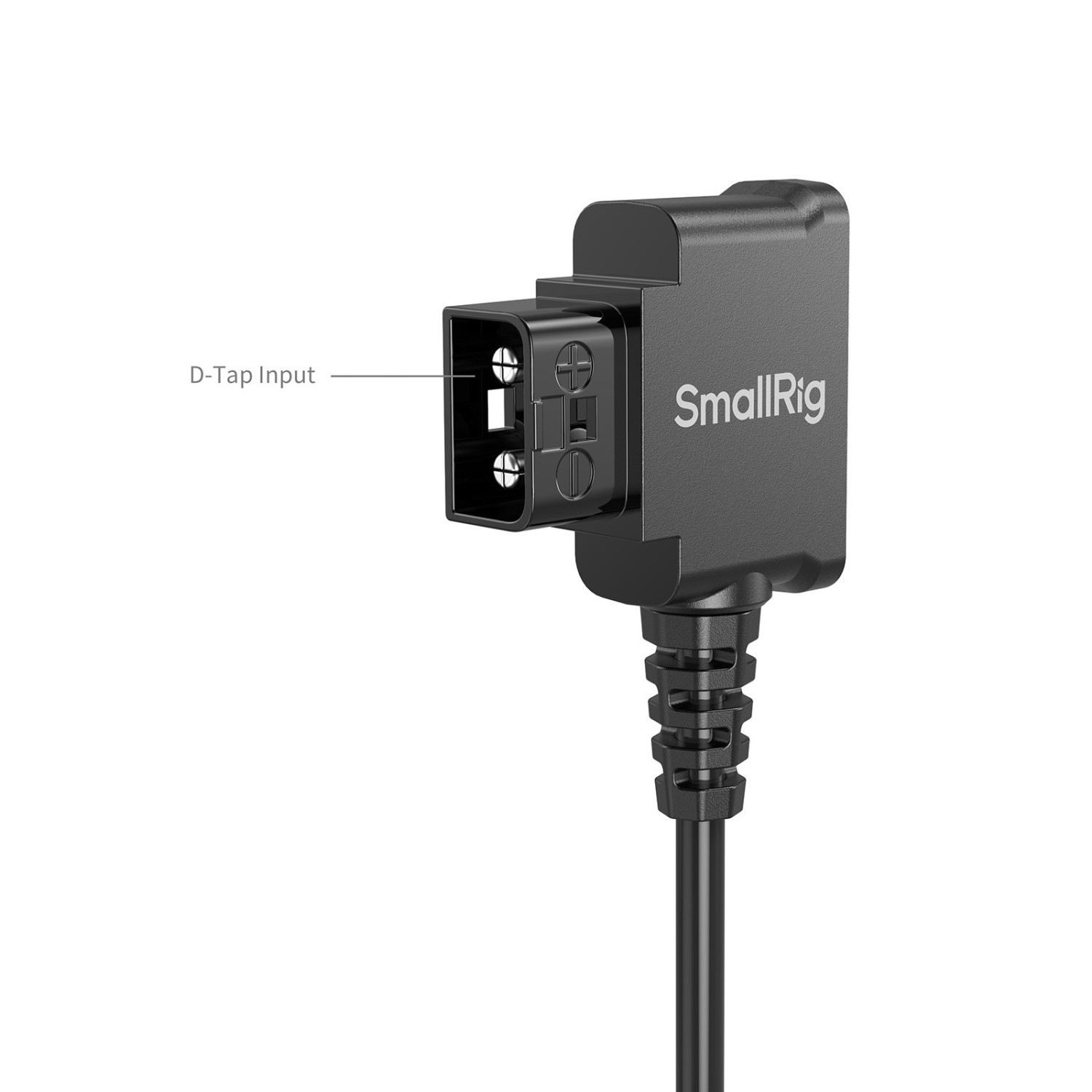

Input voltage through the D-Tap connector. typically from a V-mount battery.

Reverse protection

If D-Tap is plugged in backwards. protection engages; just turn the cable and reconnect.

2.0 A continuous

Output current. peaking at up to 3.0 A; cable up to 2000 mm long.

Protections and chip

No unknown-battery warning; overvoltage. overheating. overcharge and short-circuit protection.

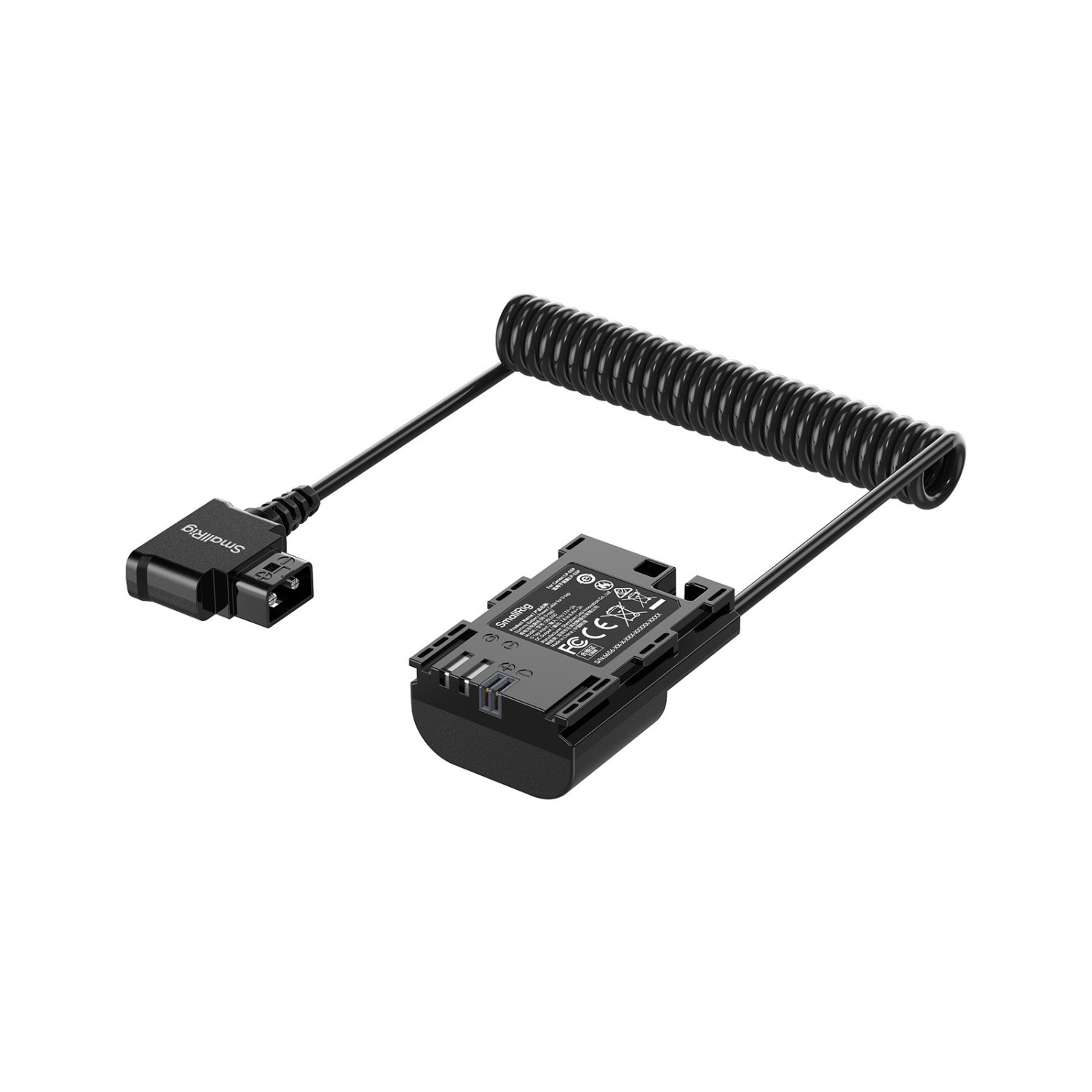

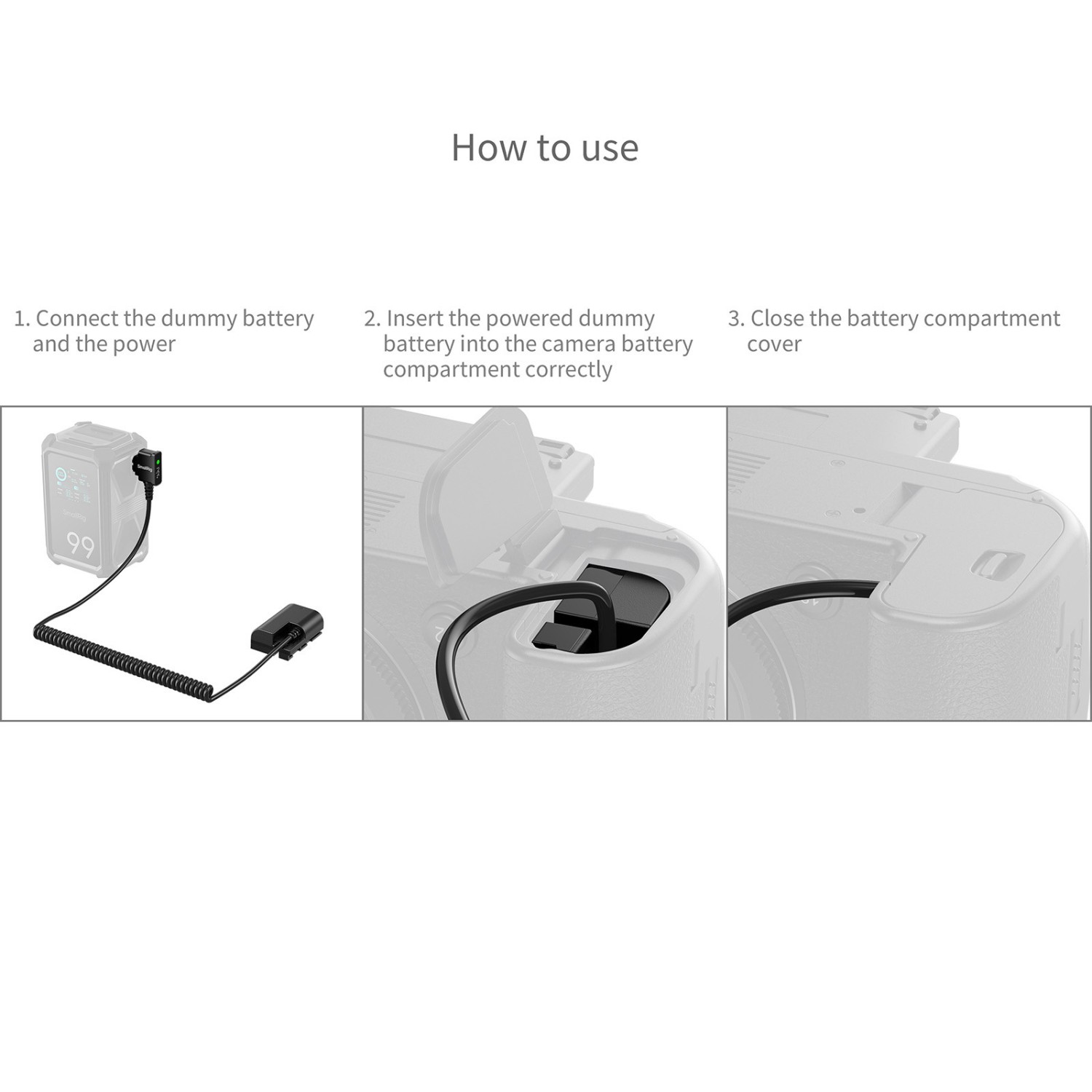

The SmallRig 6656 is a power cable with an LP-E6P dummy battery for Canon cameras. It goes in where the battery would sit and connects over a D-Tap plug to an external source, typically a V-mount battery. The camera then runs without a break, so there are no battery swaps during long recordings, livestreams or other extended shoots.

Dummy Battery Power Cable for D-Tap for Canon LP-E6P
Dummy Battery Power Cable for D-Tap for Canon LP-E6P

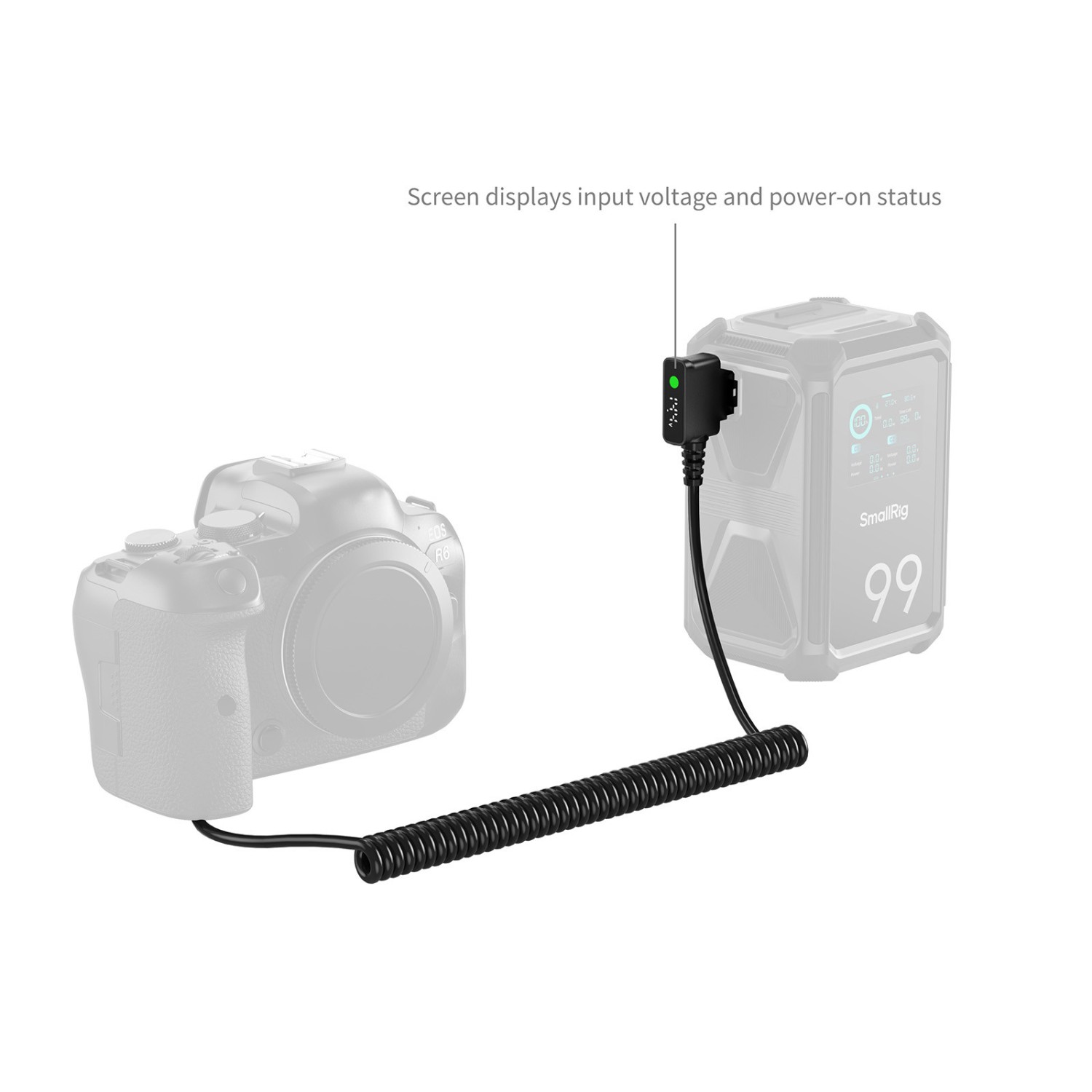

The built-in display shows the input voltage and the power status in real time. Above 13.0 V a green indicator stays on; below 13.0 V a red one lights or flashes as a low-power warning. If the D-Tap plug goes in the wrong way round, no voltage is shown and reverse-connection protection trips — turn the cable round and reconnect.

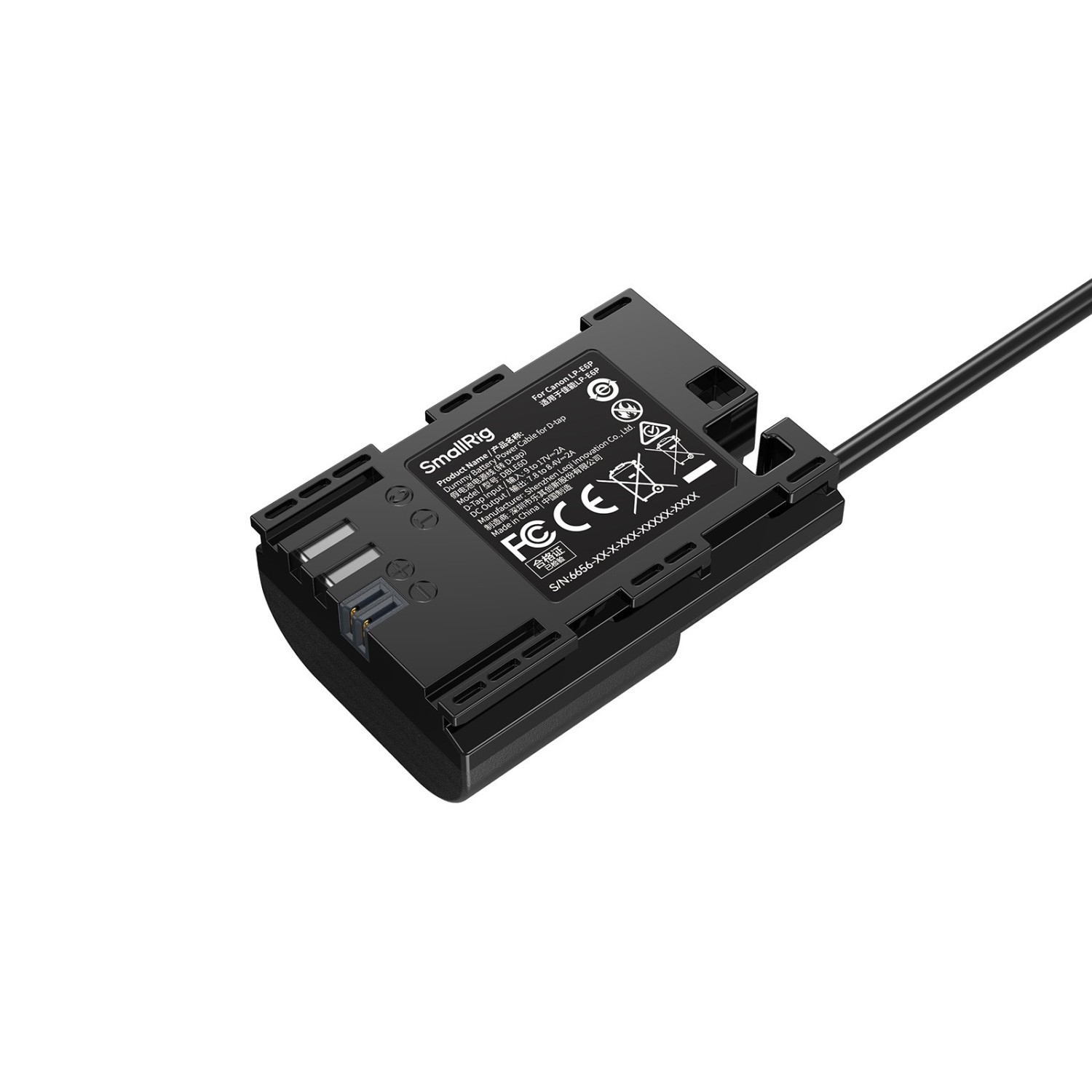

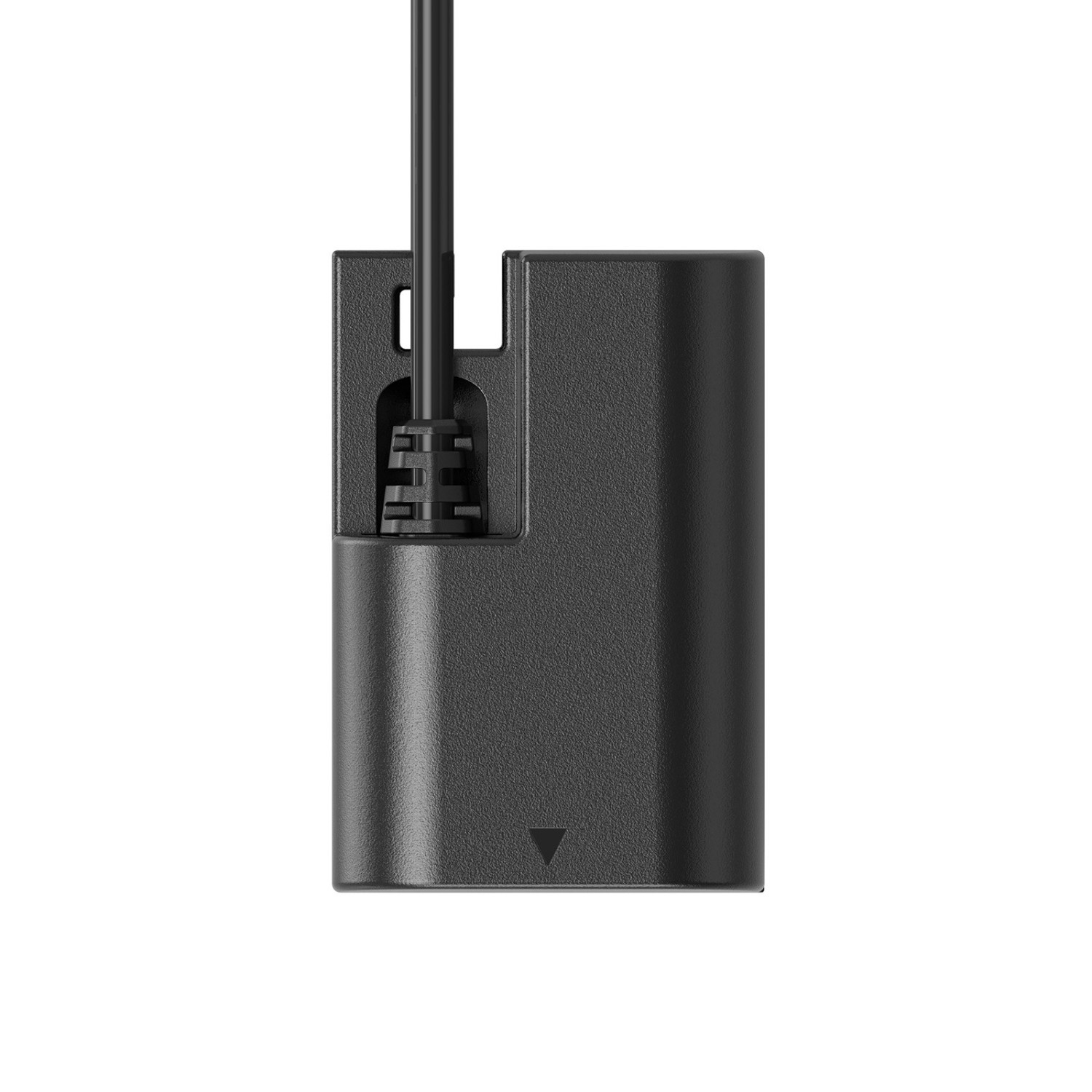

An upgraded chip keeps the camera from showing unknown-battery warnings. The dummy battery is moulded to the dimensions of the original, so it slides in and out easily. Protection covers overvoltage, overheating, overcharge and short circuit, and the housing is flame-retardant ABS. Certifications: FCC, CE, RoHS, ISED, RCM.

Compatibility: Canon R5, R5 Mark II, R6, R6 Mark II, R6 Mark III, R7, 5D Mark IV, R and Ra.

PACKAGE CONTENT

1× D-Tap to LP-E6P dummy battery power cable
1× User manual

SPECIFICATIONS

Product dimensions: 385.0 × 38.1 × 20.8 mm
Package dimensions: 140.0 × 100.5 × 30.5 mm
Product weight: 55.0 ± 5.0 g
Package weight: 99.2 ± 5.0 g
Max output voltage: 8.4 V
Min output voltage: 7.8 V
Input voltage: 9.6 to 20.0 V
Input current: 2.0 A (min)
Output current: 2.0 A (max, continuous)
Peak output current: ≤ 3.0 A
Output protection current: 3.8 to 4.9 A
Operating temperature: −20 °C to 50 °C
Storage temperature: −20 °C to 60 °C
Housing material: ABS 50 %, PVC 50 %
Input: D-Tap male connector, coiled cable up to 2000.0 ± 50.0 mm
Compatibility: Canon R5, R5 Mark II, R6, R6 Mark II, R6 Mark III, R7, 5D Mark IV, R, Ra
Parameters

Parameters

Manufacturer: SmallRig
Category: Power Cables

Main parameters

Cable typePower
VersionSpiral
ConnectorsD-Tap
