Sennheiser Microport kit - handheld (dynamic 835 with cardioid characteristic) 548 - 572 MHz

The Sennheiser XSW 1-835-A UHF Vocal Set is an all-in-one wireless system featuring the e835 dynamic handheld microphone, offering reliable UHF transmission, automatic frequency management and up to 10 compatible channels—perfect for singers, presenters, and live sound applications.

More information

352 € with VAT 290.91 € without VAT
-+
Availability
Shipment day: 13. 01.
3 pcs in stock at the supplier

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sennheiser XSW 1-835-A UHF Vocal Set is an all-in-one wireless system featuring the e835 dynamic handheld microphone, offering reliable UHF transmission, automatic frequency management and up to 10 compatible channels—perfect for singers, presenters, and live sound applications.

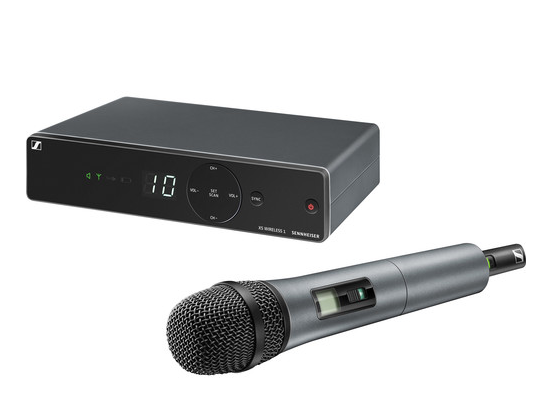

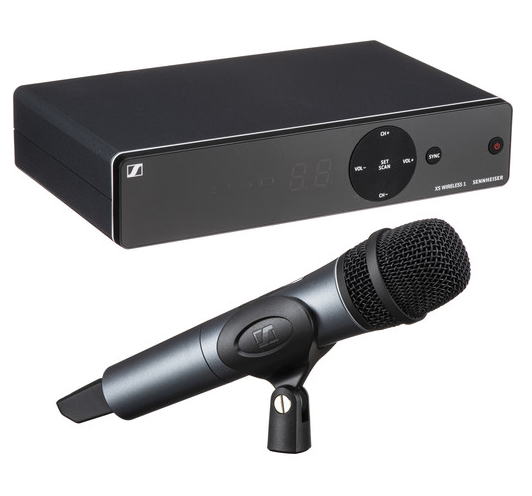

The Sennheiser XSW 1-835-A is a compact, easy-to-use wireless system designed for vocalists, presenters, and performers. Featuring the renowned e835 dynamic microphone capsule, this handheld transmitter provides clear and natural sound, while the EM-XSW 1 stationary receiver ensures reliable signal reception with antenna-switching diversity.

Automatic frequency management with remote channel setup makes getting on stage simple and fast. The system supports up to 10 compatible channels, allowing multiple users to operate in the same environment without interference. Its selectable UHF frequencies provide flexibility to avoid crowded RF environments, while the included NT 12-5 CW power supply, microphone clip, and two AA batteries offer a complete setup out of the box.

Ideal for live sound, theater, houses of worship, or school applications, the XSW 1-835-A provides dependable performance and intuitive operation for both first-time users and seasoned performers.

Key Features

  • e835 dynamic handheld microphone for clear vocal reproduction
  • EM-XSW 1 stationary receiver with internal antennas
  • Antenna-switching diversity for stable reception
  • Automatic frequency management with remote channel synchronization
  • Up to 10 compatible channels for multi-user setups
  • Selectable UHF frequencies for interference-free operation
  • Easy setup and intuitive operation
  • Includes microphone clip, AC power adapter, and 2 AA batteries

PACKAGE CONTENT

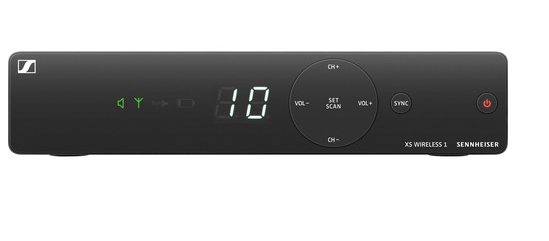

  • 1 × EM-XSW 1 Tabletop Receiver

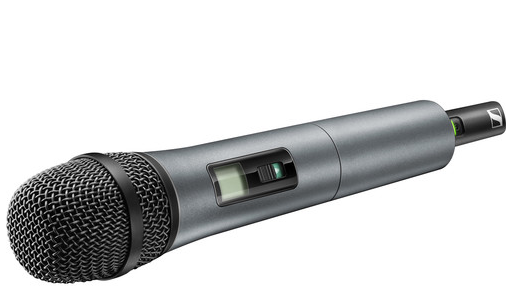

  • 1 × Handheld Transmitter with e835 Capsule
  • 1 × Microphone Clip
  • 2 × AA Batteries
  • 1 × NT 12-5 CW Power Supply

SPECIFICATIONS

  • Wireless Technology: Analog UHF

  • RF Frequency Band: 548 – 572 MHz (A)

  • Max Operating Range: 100' / 30.5 m

  • Max Transmitters per Band: 10

  • Number of RF Channel Frequencies: 80

  • Diversity: Yes

  • Type: Tabletop

  • Antennas: 2 × internal

  • Audio Outputs:

    • 1 × XLR 3-Pin balanced

    • 1 × 1/4" TS unbalanced

  • Gain Range: 45 dB (5 dB steps)

  • Frequency Response: 50 Hz – 16 kHz

  • Display: Alphanumeric LED

  • Power Supply: AC/DC adapter, 12 VDC, 300 mA

  • Dimensions: 200 × 42 × 127 mm / 7.9 × 1.7 × 5 in

  • Weight: 340 g / 12 oz

  • Type: Handheld

  • Polar Pattern: Cardioid

  • Frequency Response: 80 Hz – 16 kHz

  • Sensitivity: 1.5 mV/Pa

  • RF Output Power: 10 mW

  • Sync Method: 2.4 GHz QPSK

  • Display: LCD (non-backlit)

  • Battery Type: 2 × AA (included)

  • Battery Life: Up to 10 hours

  • Dimensions: 260 × 50 mm / 10.2 × 2 in

  • Weight: 245 g / 8.6 oz

  • Type: e835 Dynamic Capsule, Handheld

  • Polar Pattern: Cardioid

  • Frequency Response: 80 Hz – 16 kHz

  • Sensitivity: 1.5 mV/Pa

  • Color: Black

Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Other parameters

Selectable frequencies80 Channel
Frequency range548-572 MHz
