RGBlink TAO 1mini-HN

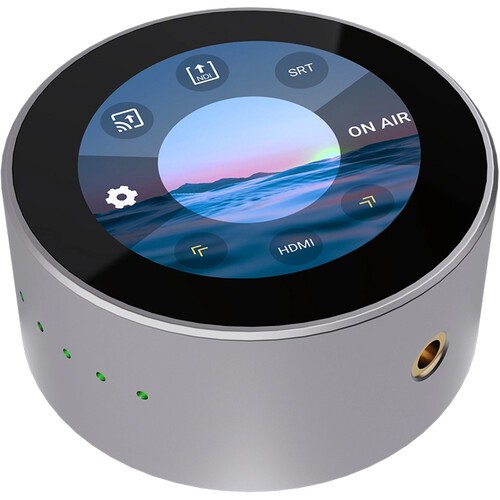

The RGBlink TAO 1mini-HN is a compact round streaming node for live broadcasting from PTZ cameras, DSLRs or webcams to YouTube, Facebook or Twitch. It has HDMI and USB-C inputs, a 2.1" touchscreen, PoE and USB-C PD power, and streams over LAN via NDI, RTMP and SRT to up to 4 platforms at once in 2K FHD.

The TAO 1mini-HN shares the round body and the connectors of the TAO 1mini. It encodes and decodes H.264, H.265 and MJPEG at up to 1920 × 1080 at 60 fps, making it the more affordable choice for Full HD streaming.

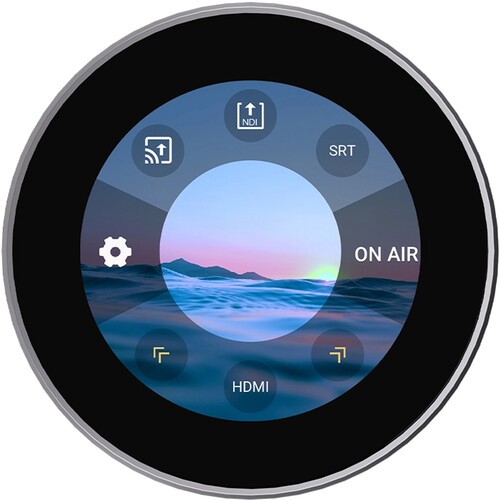

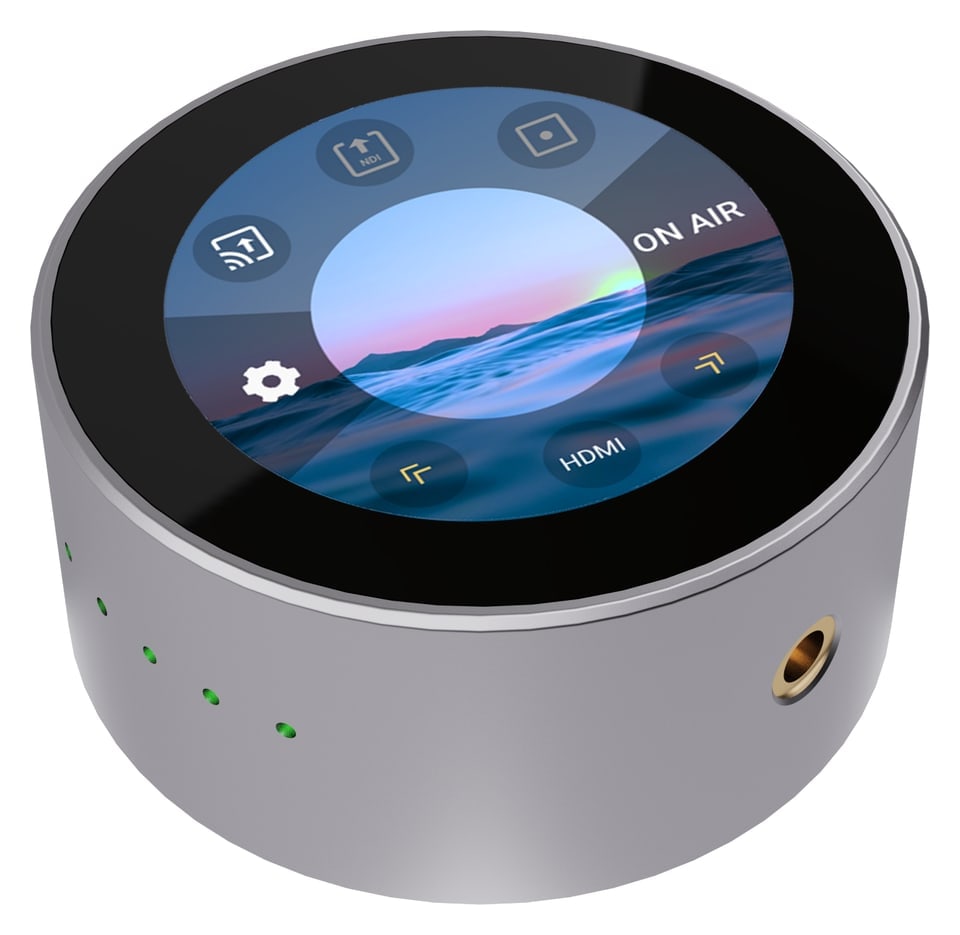

A display that shows what you broadcast

The 2.1" touchscreen shows the incoming picture and the status of the LAN or NDI stream and controls the unit without a computer. Streaming to up to 4 platforms at once, such as YouTube, Facebook and Twitch, is set up in the TAO mobile app. The picture from HDMI or a UVC camera is turned into NDI, RTMP or SRT streams.

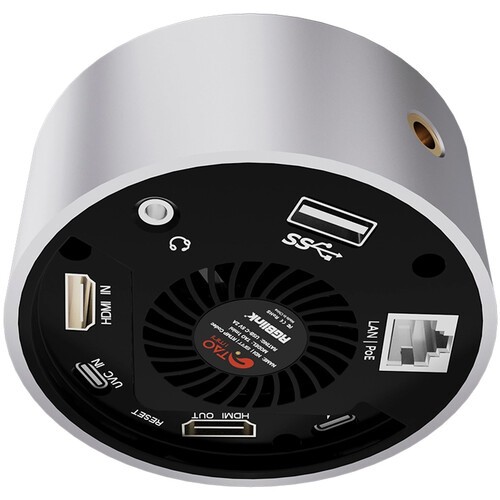

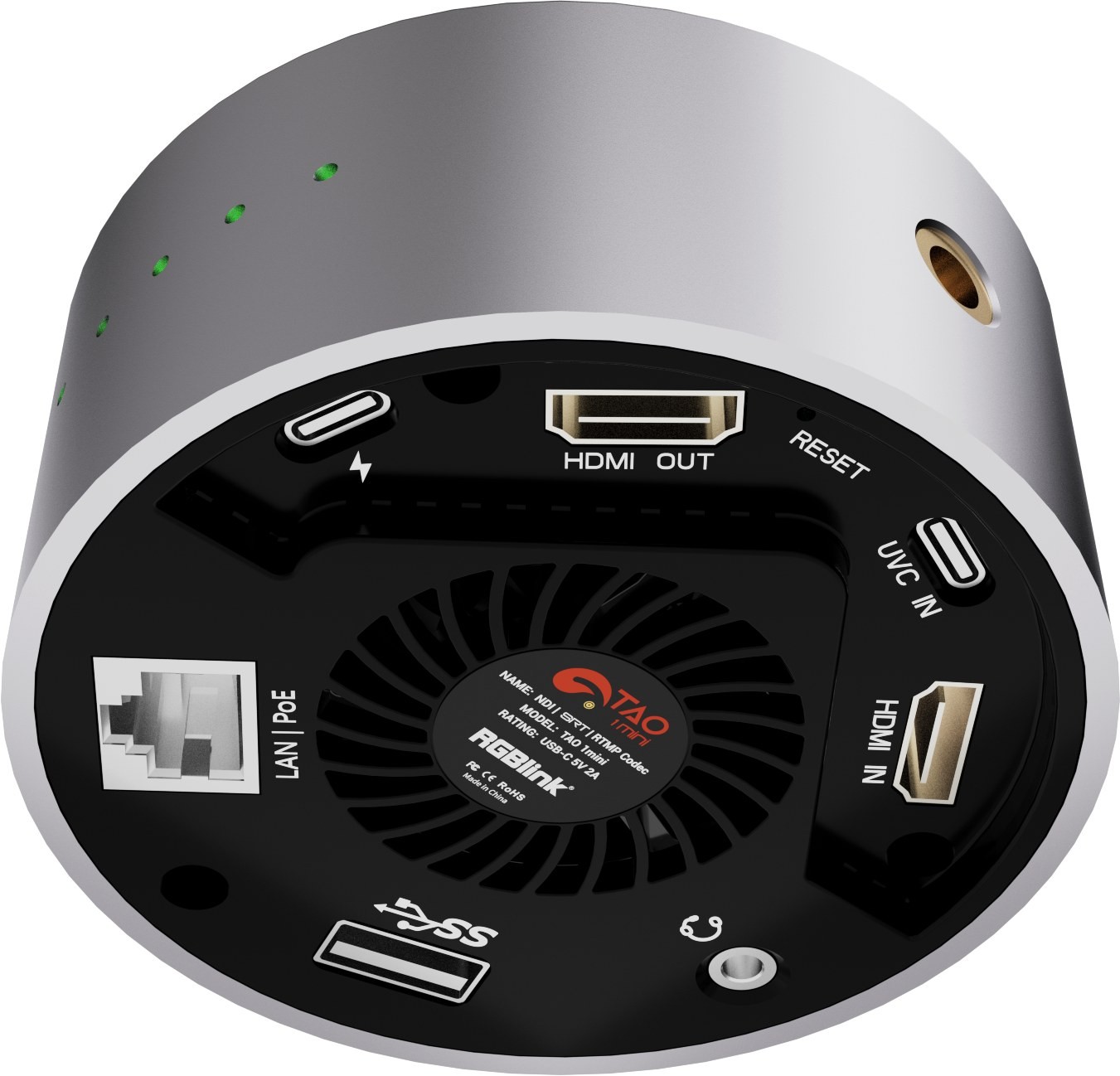

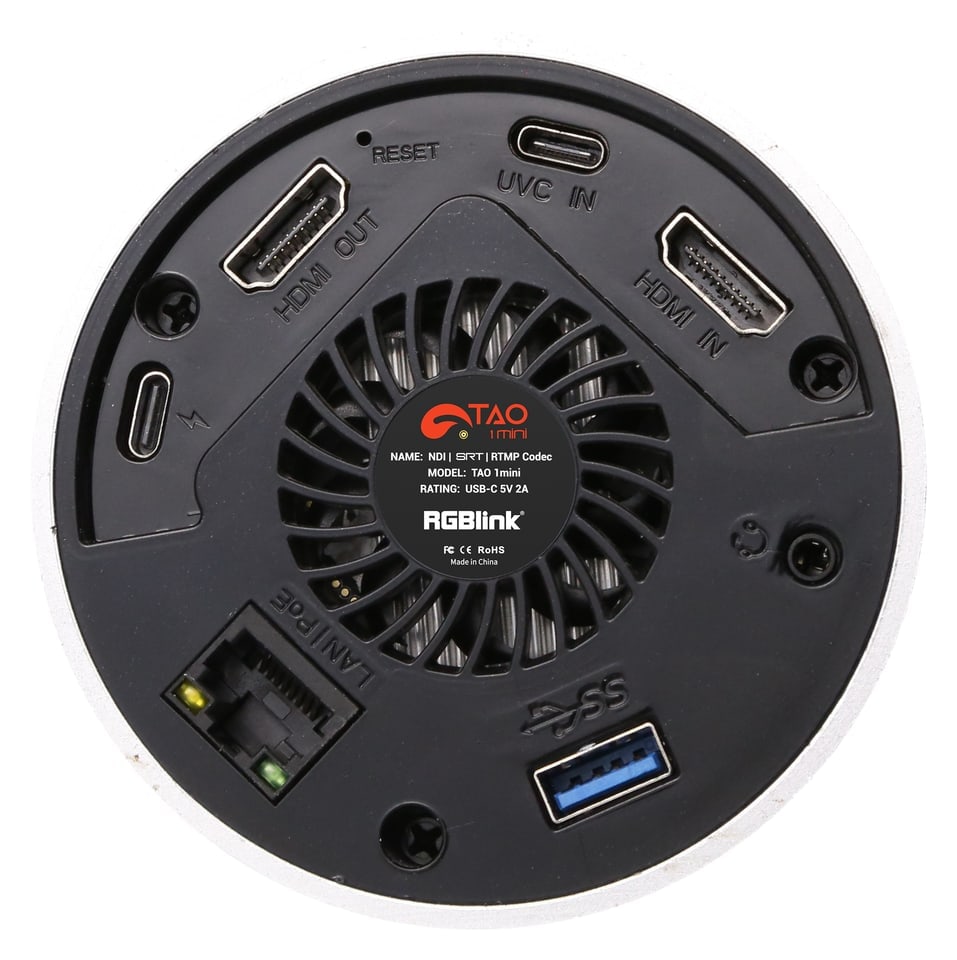

Connectors underneath

Underneath are the HDMI input and a USB-C input for a UVC camera (up to 1920 × 1080 at 60 fps), an HDMI output for clean pass-through, a 3.5 mm analog microphone input, USB-A 3.0 for a webcam or external storage (up to a 2 TB SSD or 64 GB USB flash drive), the USB-C power input and a LAN port with PoE.

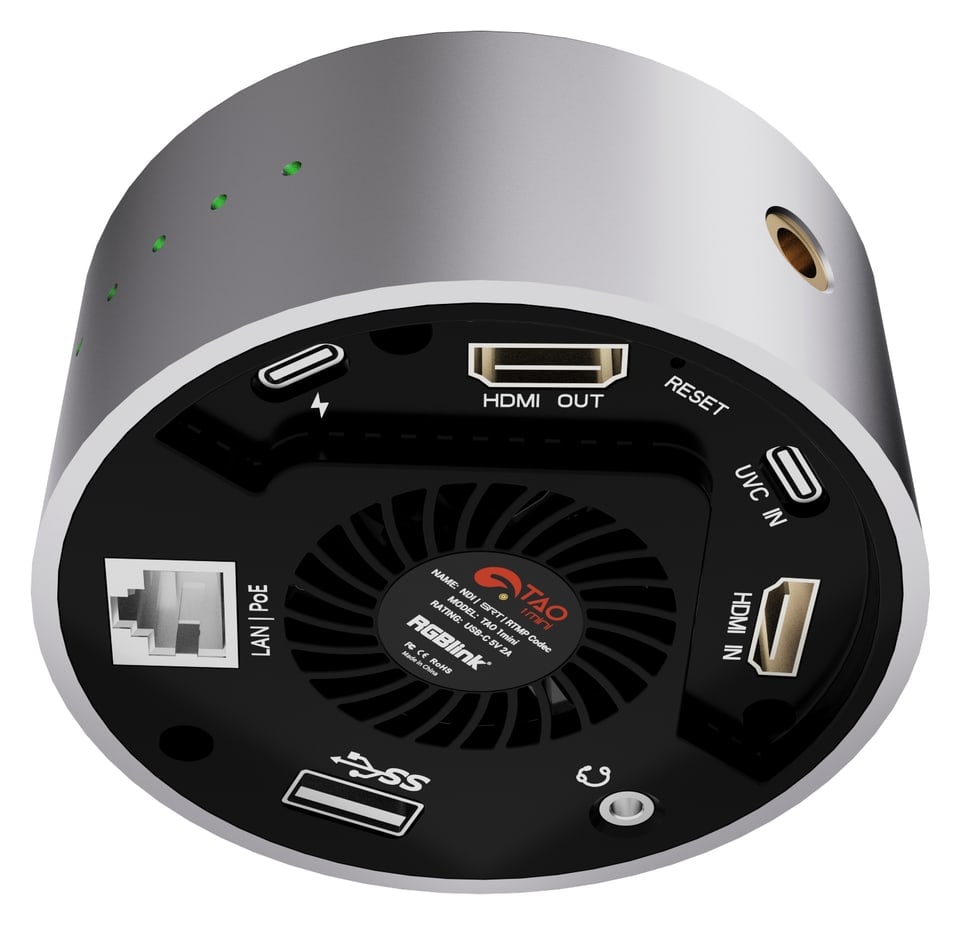

PoE or USB-C power, camera mounting

The unit is powered over PoE with a single network cable or via USB-C PD (5–12 V) and draws 10 W. It weighs 180 g and measures 91 × 40.8 mm. 1/4"-20 threads and a cold shoe adapter let you attach it to a camera, tripod or desk.

More information

The RGBlink TAO 1mini-HN is an ultracompact, circular streaming node that transforms your PTZ, DSLR, or USB camera into a professional live streaming setup. Its 2.1" touchscreen allows easy monitoring and control of LAN or NDI streaming signals. With HDMI 1.3 and USB-C UVC inputs, it supports 2K FHD video capture and encodes/decodes using H.264, H.265, or MJPEG codecs. An analog 3.5mm audio input enhances sound quality, while HDMI output ensures clean video pass-through.

The device supports simultaneous streaming to up to 4 platforms via the TAO mobile app and connects easily via LAN or USB-A 3.0. It can be powered via PoE or USB-C PD, and its integrated 1/4"-20 threads and cold shoe adapter allow flexible mounting on cameras or desks. Backwards compatible with HD/SD resolutions, the TAO 1mini-HN converts HDMI/UVC signals into NDI, RTMP, or SRT streams, making it perfect for professional live streaming, webcasts, or hybrid events.

Key Features:

• 2.1" touchscreen with real-time monitoring and control
• HDMI 1.3 and USB-C UVC input supporting 2K FHD
• HDMI output and LAN streaming support via NDI/RTMP/SRT
• 3.5mm analog audio input for microphone connection
• PoE and USB-C PD power support
• USB-A 3.0 port for webcam or external storage (up to 2TB SSD/64GB USB)
• Stream to up to 4 platforms simultaneously via mobile app
• 1/4"-20 threads and cold shoe adapter for flexible mounting
• Supports H.264/H.265/MJPEG encoding and decoding
• Backwards compatible with HD/SD resolutions
