RGBlink TAO 1mini (TAO 1mini-N)

  • New
SKU: 410-5513-05-1

The RGBlink TAO 1mini (TAO 1mini-N) is an ultra-compact 4K streaming and encoding node designed for modern IP and live streaming workflows. With HDMI and USB-C UVC inputs, NDI support, LAN streaming, touchscreen control, and simultaneous streaming to up to 32 platforms, it is an ideal solution for creators, broadcasters, and AV professionals…

More information

879 € with VAT 726.45 € without VAT
Add to Compare Price history
Availability
on request
SKU:
410-5513-05-1
Add to Compare Price history

RGBlink TAO 1mini-HN

659 €without VAT 544.63 €

RGBLinkTAO 1pro-SDI

Call us for pricing information

Top accessories for RGBlink TAO 1mini (TAO 1mini-N)

RGBlink TAO 1pro 2

  • New
The RGBlink TAO 1pro 2 is a compact and versatile broadcasting streaming decoder
Call us for pricing information
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The RGBlink TAO 1mini (TAO 1mini-N) is an ultra-compact 4K streaming and encoding node designed for modern IP and live streaming workflows. With HDMI and USB-C UVC inputs, NDI support, LAN streaming, touchscreen control, and simultaneous streaming to up to 32 platforms, it is an ideal solution for creators, broadcasters, and AV professionals needing powerful streaming in a portable form factor.

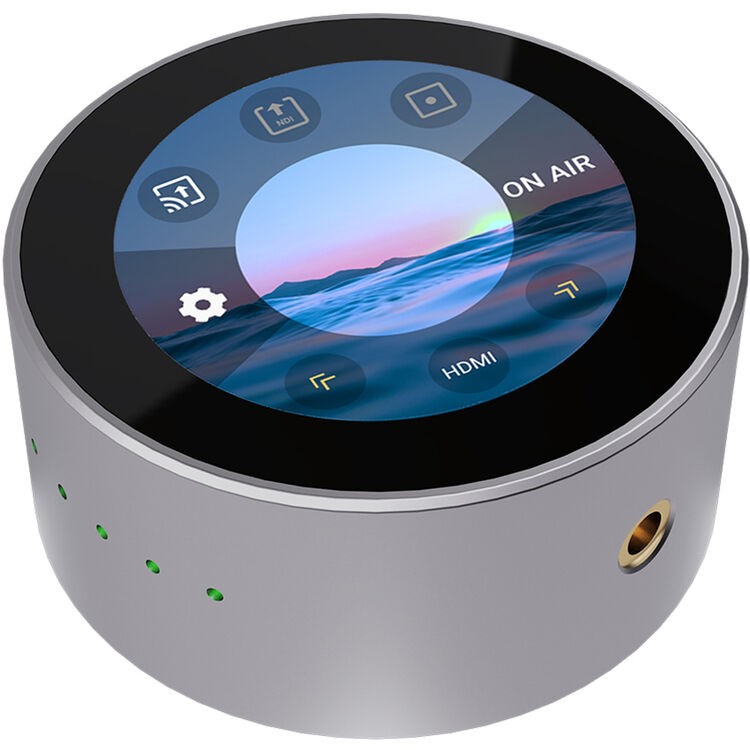

The RGBlink TAO 1mini is a professional-grade 4K streaming, encoding, decoding, and recording device built into an ultra-compact circular design. Featuring a 2.1" color touchscreen with LED tally lights, the TAO 1mini allows direct monitoring and control of streaming and encoding operations without the need for a computer. It supports HDMI and USB-C UVC video inputs up to DCI 4K60, making it compatible with PTZ cameras, DSLRs, webcams, and computers.

Designed for flexible IP workflows, the TAO 1mini supports H.264, H.265 (HEVC), MJPEG, and Full NDI, NDI|HX2, and NDI|HX3, along with delivery protocols such as RTMP, RTMPS, SRT, RTSP, RTP, and HLS. Users can stream to up to 32 destinations simultaneously using the TAO App or TAO Cloud integration. Picture-in-picture, side-by-side mixing, and up to eight customizable overlays (text, images, clock) enhance professional production quality.

The device supports simultaneous streaming and recording, saving files to external USB storage or networked storage (NFS, CIFS, SMB). Integrated USB-A and USB-C 3.0 ports allow webcam access or USB video output, extending NDI workflows into conferencing, education, and enterprise environments. Power is flexible via USB-C PD or PoE, and dual 1/4"-20 mounting threads enable easy mounting on cameras or rigs.

Key Features:
  • Ultra-compact 4K streaming and encoding node
  • HDMI & USB-C UVC inputs up to DCI 4K60

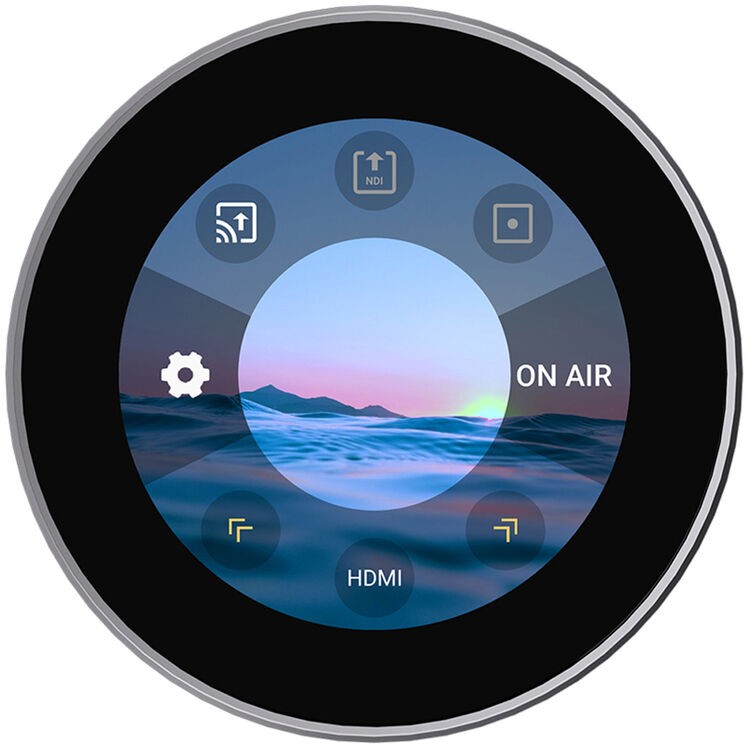

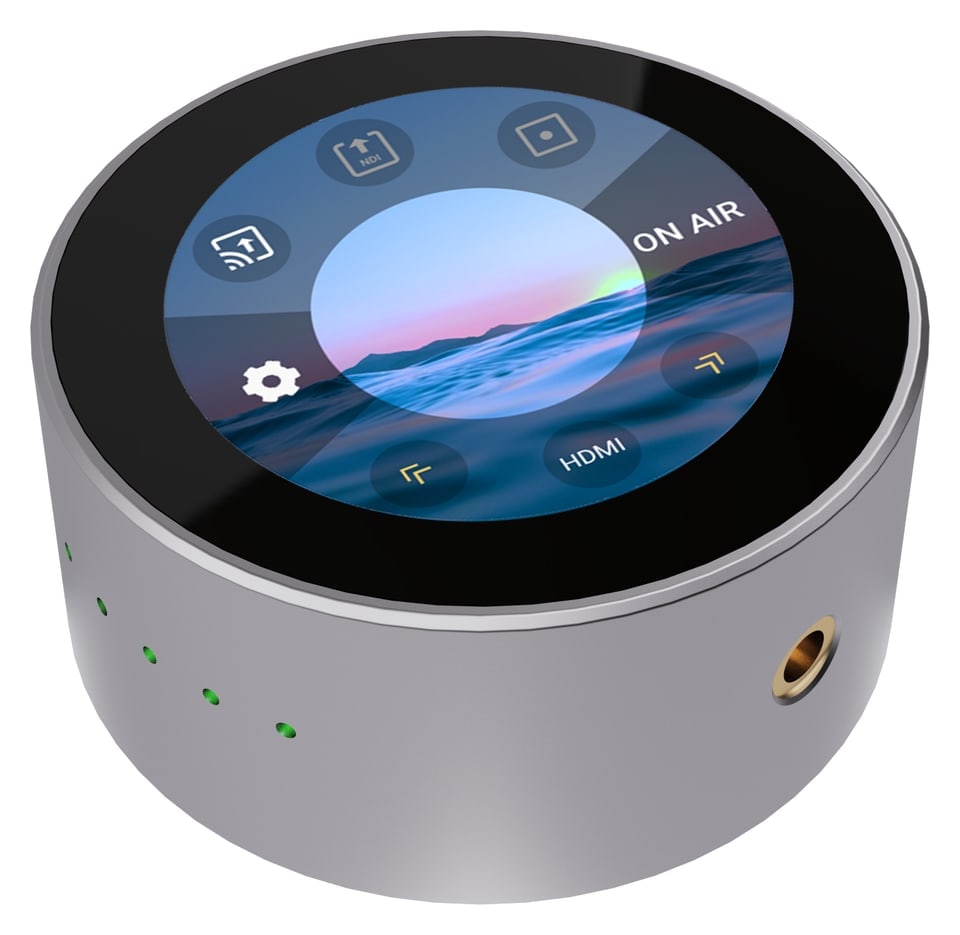

  • 2.1" color touchscreen with LED tally lights
  • Stream to up to 32 destinations simultaneously
  • Supports H.264, H.265 (HEVC), MJPEG
  • Full NDI, NDI|HX, NDI|HX2, NDI|HX3 support
  • RTMP, RTMPS, SRT, RTSP, RTP, HLS protocols
  • Picture-in-Picture and side-by-side video mixing
  • Up to 8 customizable overlays (text, image, clock)
  • Simultaneous streaming and external recording
  • USB-A & USB-C 3.0 for webcam and USB video
  • PoE and USB-C PD power support

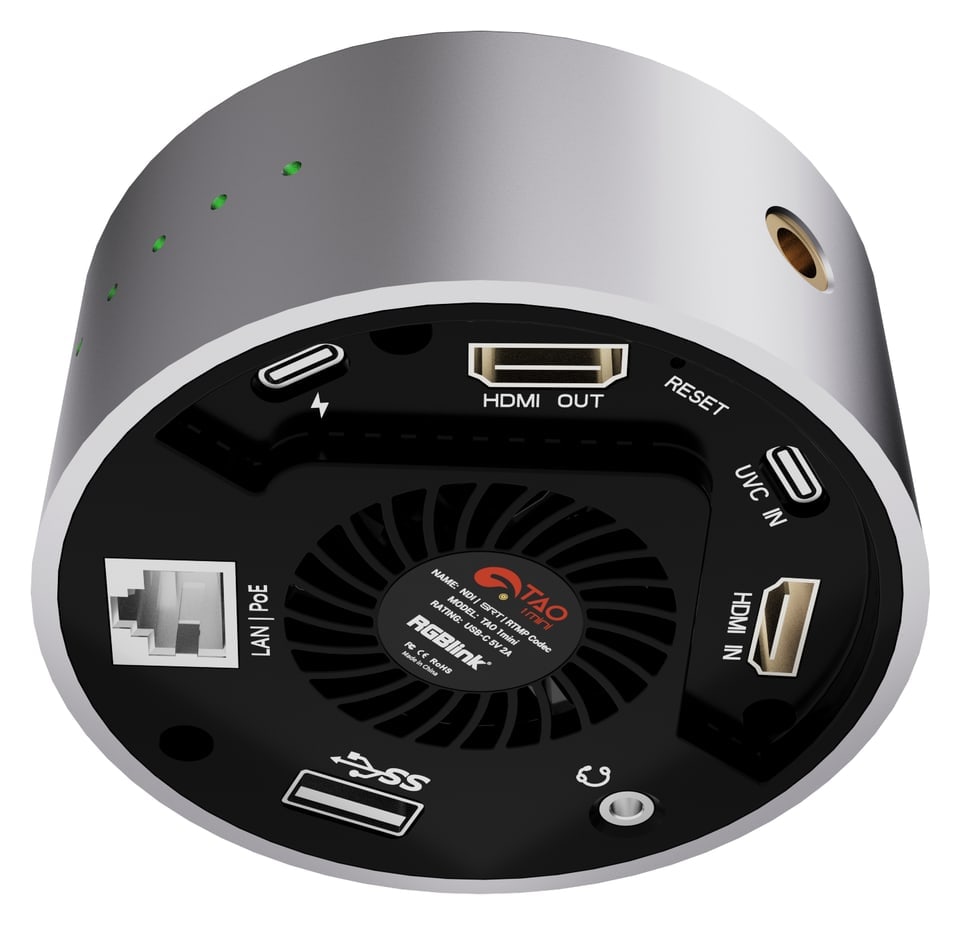

  • Dual 1/4"-20 mounting threads

PACKAGE CONTENT

  • RGBlink TAO 1mini Streaming Node
  • Power/USB-C Cable (region dependent)
  • User Documentation

SPECIFICATIONS

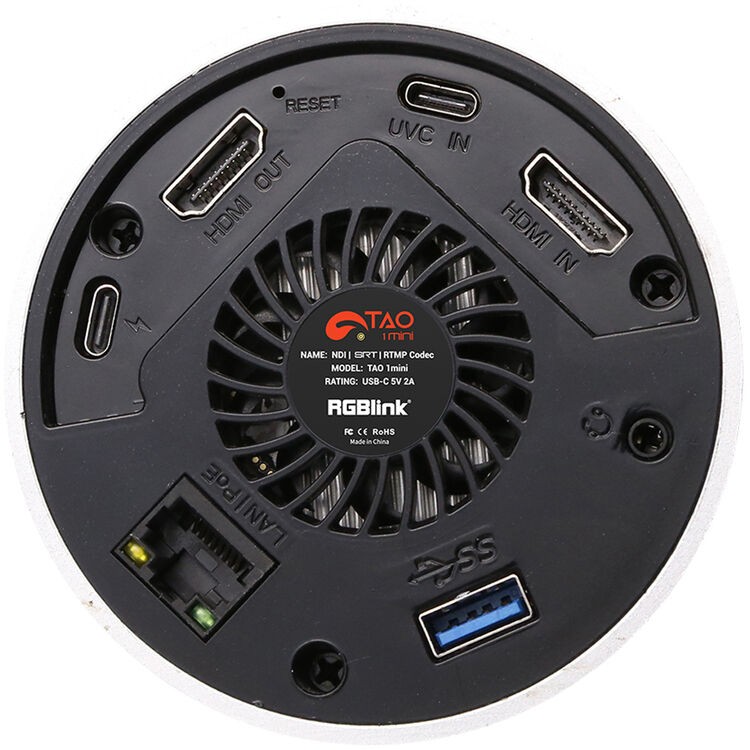

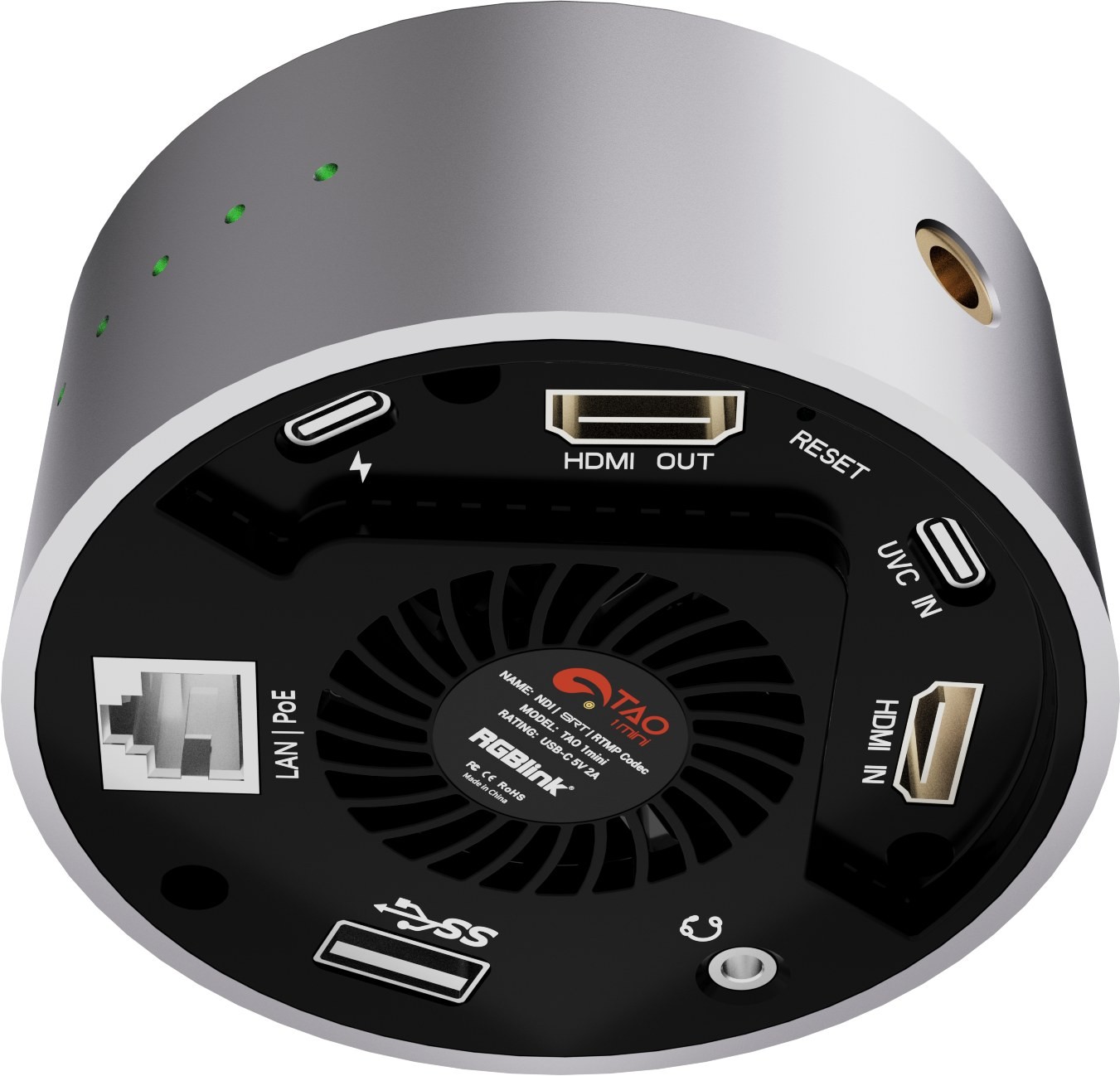

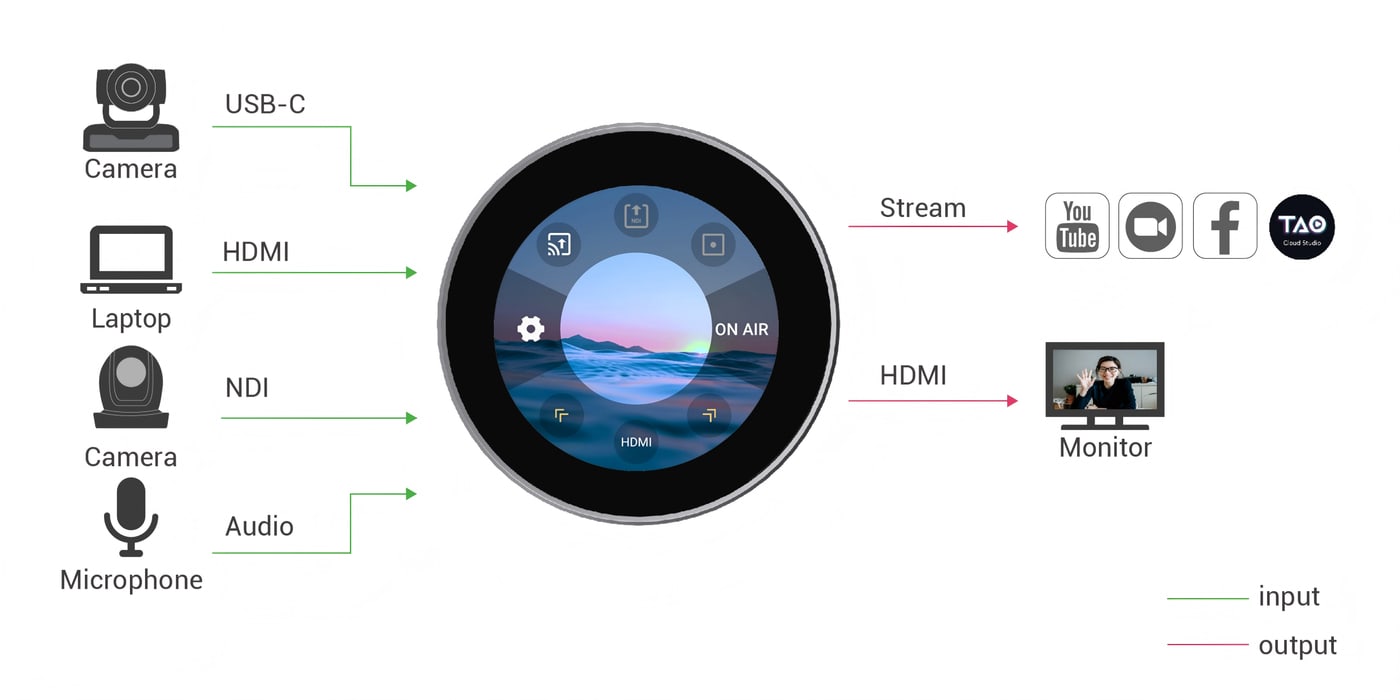

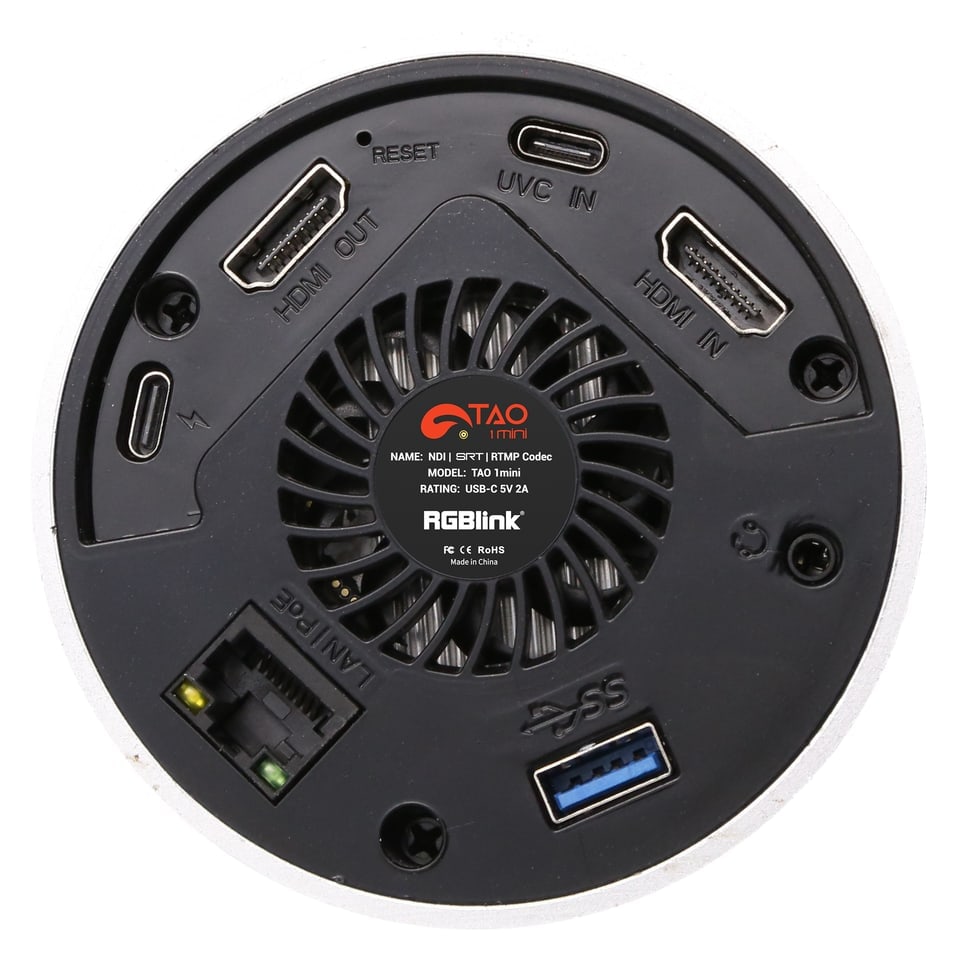

  • HDMI Video Input: 1 × HDMI (up to 4096 × 2160 @ 60)
  • USB-C Video Input: 1 × USB-C (UVC, up to 4096 × 2160 @ 30)
  • USB-A Video Input: 1 × USB-A 3.0 (webcam input)
  • HDMI Video Output: 1 × HDMI 2.0
  • Audio Input: 1 × 3.5 mm TRS analog
  • Embedded Audio: HDMI, LAN, USB, NDI
  • Video Encoding: H.264 / H.265 / MJPEG
  • IP Protocols: NDI, NDI|HX, NDI|HX2, NDI|HX3
  • Streaming Protocols: RTMP, RTMPS, RTP, RTSP, SRT, HLS
  • Streaming Capacity: Up to 32 simultaneous streams
  • Recording: External USB-A 3.0 storage
  • Network Storage Support: NFS / CIFS / SMB
  • Network Interface: 1 × RJ45 Fast Ethernet (NDI, PoE)
  • Power Options: USB-C PD (5–12 VDC), PoE via RJ45
  • Display: 2.1" color LCD touchscreen
  • Dimensions: 91 × 91 × 40.8 mm (3.6 × 3.6 × 1.6")
  • Weight: 180 g (6.3 oz)
Parameters

Parameters

Manufacturer: RGBlink
Category: Accessories

Main parameters

Video inputHDMI, USB-C UVC, USB-A (Webcam)
Streaming service typesRTMP, RTMPS, SRT, RTSP, RTP, HLS, NDI
