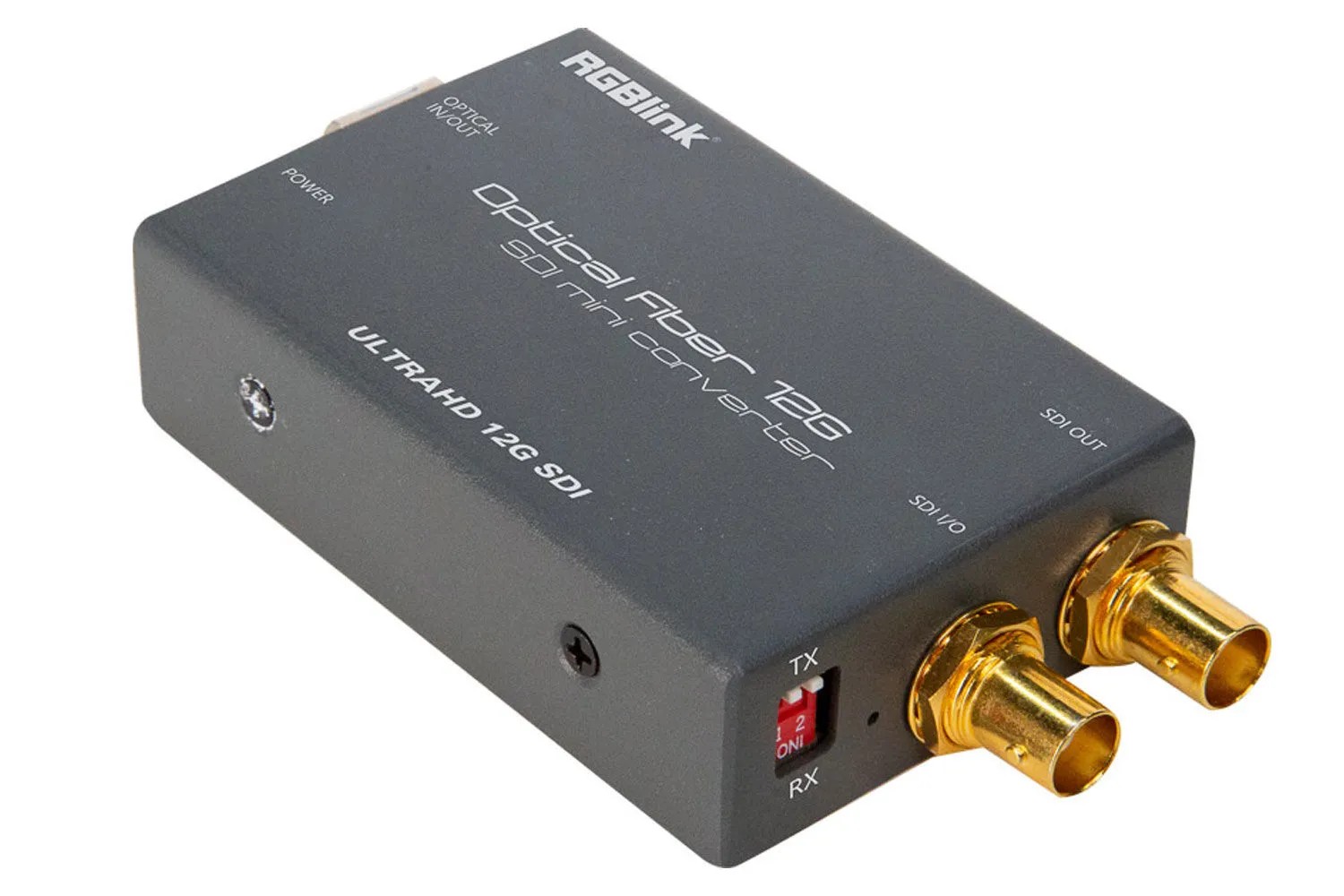

RGBlink MSP 317

The RGBlink MSP 317 is an all-in-one 12G SDI to optical fiber converter and vice versa, supporting ultra-high-definition 4K video up to 2160p @ 60Hz. Featuring a built-in SFP+ module with up to 10 km transmission distance, redundant power via USB-C or DC 5–12V, and synchronized audio/video, the MSP 317 provides stable, lossless 24/7 signal transmission for professional broadcast and live production applications.

The MSP 317 converts 12G-SDI to optical fibre and back – a TX/RX switch decides which. It carries 4K up to 2160p60 with audio over distances of up to 10 km; the 12G SFP+ module it needs is included.

Transmitter or receiver – the switch decides

A DIP switch on the front panel sets whether the MSP 317 converts 12G-SDI into the fibre or from the fibre back to SDI. As a transmitter it has an SDI input and a loop-through output for monitoring, as a receiver two SDI outputs. It handles 3G-SDI up to 1080p60, 6G-SDI up to 2160p30 and 12G-SDI up to 2160p60; it detects the source itself and keeps picture and sound in sync.

Power from two sources

The rear panel holds the slot with the supplied 12G SFP+ module (single-mode, 1310 nm, 12 Gb/s, up to 10 km) with two LC connectors. It can be powered over USB-C and from a DC 5–12 V supply at the same time – if one fails, the other keeps the conversion running. The unit is built for continuous operation without dropped frames.

More information

The RGBlink MSP 317 is a versatile 12G SDI ↔ fiber converter designed for professional AV, broadcast, and live event workflows. It allows seamless conversion between SDI and optical fiber signals using a DIP switch to select the operating mode. The unit comes standard with a 12G SFP+ module, enabling high-speed transmission up to 12 Gbps over distances up to 10 km.

Supporting resolutions from 1080i/p up to 2160p @ 60Hz, the MSP 317 ensures high-quality video and synchronized audio across long-distance connections. Its 7×24 stable transmission guarantees no frame loss, while redundant power input via USB-C or DC 5–12V ensures uninterrupted operation. The unit automatically detects the source signal and provides SDI loop-through for monitoring. Compact and lightweight, the MSP 317 is ideal for broadcast studios, OB vans, and stage productions where reliability and high-performance fiber/SDI conversion are essential.

Key Features:

• Bidirectional 12G SDI ↔ optical fiber conversion via DIP switch
• Supports 3G/6G/12G SDI with resolutions up to 2160p @ 60Hz
• Includes standard 12G SFP+ module with single-mode fiber
• Transmission distance up to 10 km
• 7×24 stable transmission without frame loss
• Synchronized audio and video
• Redundant power supply via USB-C or DC 5–12V
• Automatic source signal detection
• SDI loop-through for monitoring
