Lilliput RM-1731S-12G
SKU: RM-1731S-12G
The Lilliput RM-1731S-12G is a 17.3″ Full HD pull-out 1U rackmount monitor with four 12G-SDI inputs and HDMI 2.0, all with loop outputs. It shows four 12G-SDI signals at once in quad split, accepts 4K up to 60 Hz and offers HDR, 3D LUT and LAN remote control. The patented folding design suits broadcast cabinets, OB vans and control rooms.
2 299 € with VAT
1 900 € without VAT
Availability
on request
Top accessories for Lilliput RM-1731S-12G
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
Infinitek L-4.5CHWS 2m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
19 €
To be sent > 5 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Canare HDMI Cable 3 m
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput RM-1731S-12G is a 17.3″ Full HD pull-out 1U rackmount monitor with four 12G-SDI inputs and HDMI 2.0, all with loop outputs. It shows four 12G-SDI signals at once in quad split, accepts 4K up to 60 Hz and offers HDR, 3D LUT and LAN remote control. The patented folding design suits broadcast cabinets, OB vans and control rooms.

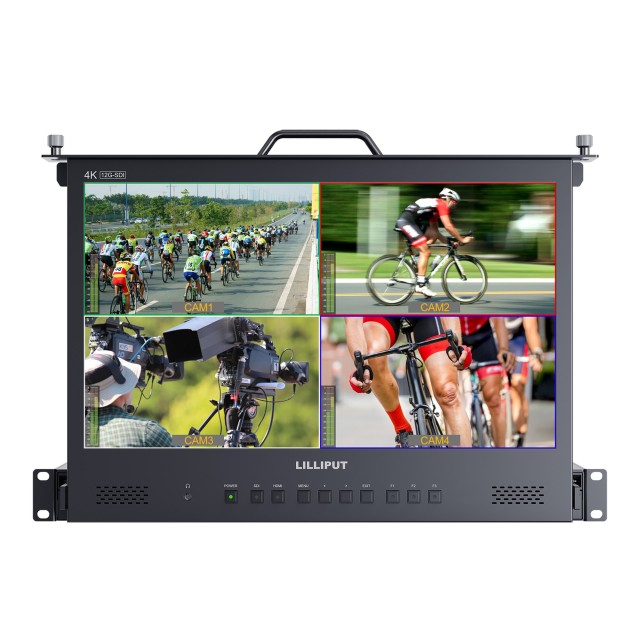

Four 12G-SDI cameras in a single rack unit
A 17.3" pull-out IPS panel with four 12G-SDI inputs and quad split view – multi-camera monitoring in 1U.
17.3" Full HD IPS4× 12G-SDIHDMI 2.0Quad split1U rackmount

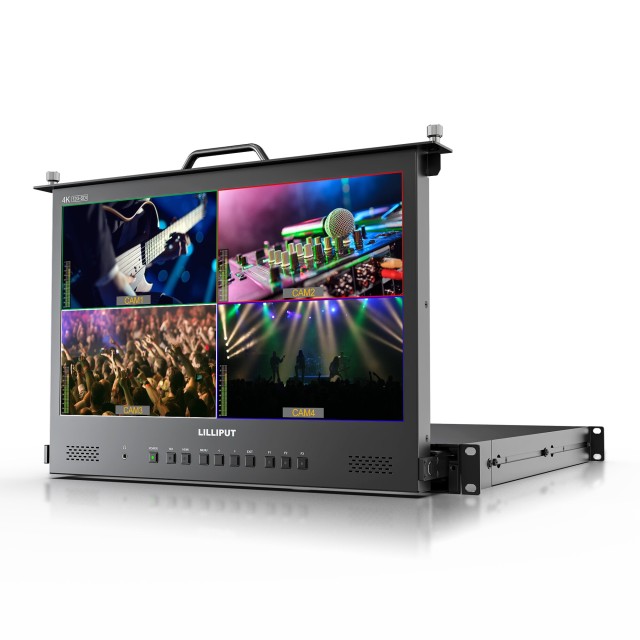

Multi-camera setup
Connect four different 12G-SDI signals and display them simultaneously in quad split. SDI and HDMI signals can be combined freely in four positions, and you choose which input feeds the speakers.
4K signals
HDMI and 12G-SDI accept up to 4K 60 Hz and loop it out.
Remote control
An app on a LAN-connected computer changes functions directly.
HDR & 3D LUT
HLG and ST2084, 100% Rec.709, 3D LUT via USB.

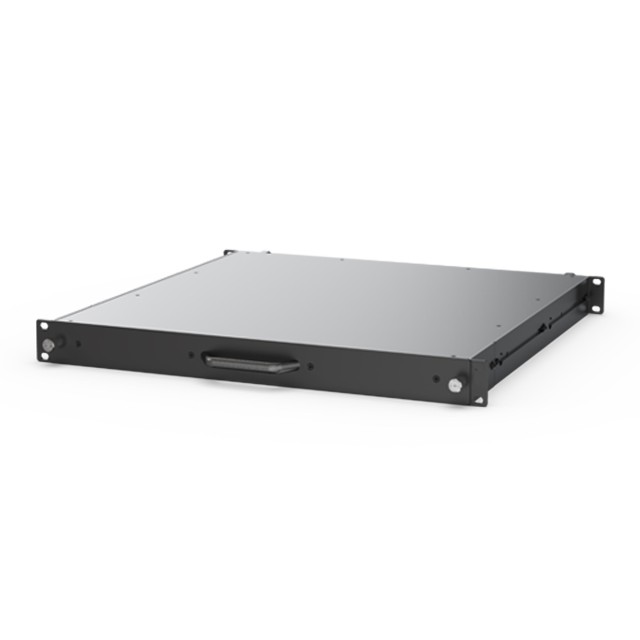

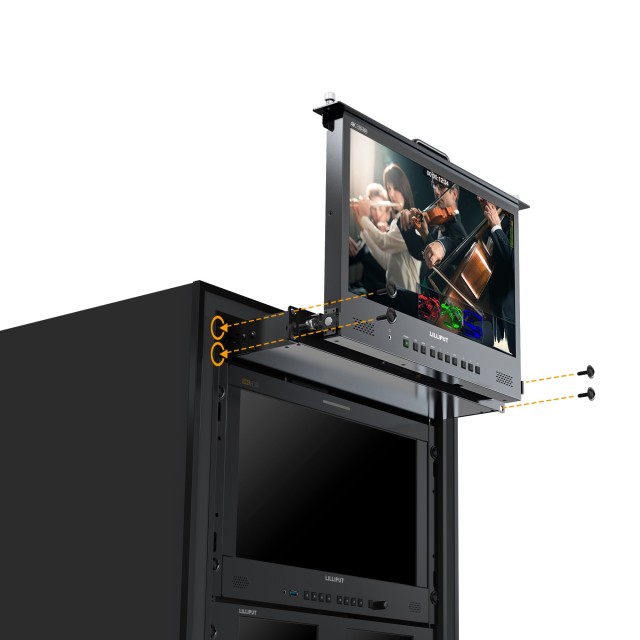

Patented drawer
Folding and storage in a single 1U unit.
More information
About the monitor
The RM-1731S-12G is a 17.3" monitor with 1920 × 1080 resolution and advanced 12G-SDI, HDMI 2.0 and LAN connectivity for easy integration into professional setups. The quad split multiview allows simultaneous monitoring of multiple sources, and HDR and 3D LUT support enhance color accuracy and dynamic range.
PACKAGE CONTENT
- 1× monitor Lilliput RM-1731S-12G
- 1× 12 V / 3 A DC power adapter
- 1× tally connector
- 1× e-user manual card
SPECIFICATIONS
- Brand: Lilliput
- Model: RM-1731S-12G
- Display: 17.3" IPS, 8-bit
- Resolution: 1920 × 1080 (Full HD), 16:9
- Brightness: 300 cd/m²
- Contrast: 1,200:1
- Viewing angle (H/V): 170° / 170°
- Color space: 100% Rec.709
- HDR: HLG, ST2084 300 / 1000 / 10000
- LUT: 3D LUT via USB
- Video inputs: 4× 12G-SDI, 1× HDMI 2.0
- Video outputs: 4× 12G-SDI, 1× HDMI 2.0 (loop)
- SDI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- Audio: SDI 16 ch 48 kHz/24-bit, HDMI 8 ch 24-bit, 2 speakers, 3.5 mm headphones

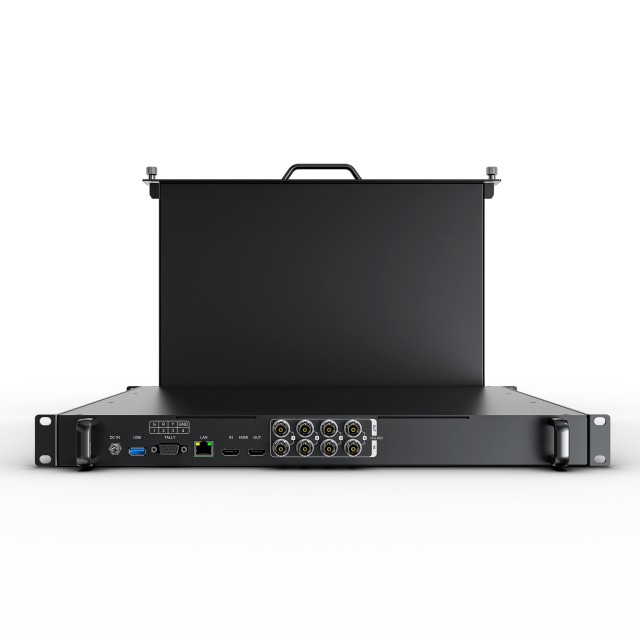

- Other interfaces: LAN (remote control), tally, USB (3D LUT)
- Functions: quad split multiview, video and audio selection, HDR, 3D LUT, waveform, histogram, false color, peaking, markers, tally
- Power: DC 12–24 V
- Power consumption: ≤ 19 W (12 V)
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Dimensions (L × W × D): 482.5 × 44 × 507.5 mm
- Weight: 10.1 kg
- Mounting: 1U 19" rack, pull-out design
ARTICLES
Parameters
![]()
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 17.3" |
| Monitor inputs | HDMI · SDI · 4K HDMI · 12G SDI · HDMI 2.0 |
| Luminosity | 300cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | DC 12–24 V |
Other parameters
| Tally | Yes |
| Other features | Quad split · HDR · Rack-mountable · Tally · 3D LUT correction · Multiview |
