Lilliput RM-1731S

The Lilliput RM-1731S is a 17.3″ Full HD IPS pull-out rackmount monitor that takes up just 1U when closed. It offers 3G-SDI and HDMI 2.0 inputs with loop outputs (HDMI up to 4K 60 Hz), HDR, 3D LUT and remote control from a computer over LAN. The metal housing with patented folding design suits broadcast cabinets, OB vans and control rooms where every…

More information

1 209 € with VAT 999.17 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput RM-1731S is a 17.3″ Full HD IPS pull-out rackmount monitor that takes up just 1U when closed. It offers 3G-SDI and HDMI 2.0 inputs with loop outputs (HDMI up to 4K 60 Hz), HDR, 3D LUT and remote control from a computer over LAN. The metal housing with patented folding design suits broadcast cabinets, OB vans and control rooms where every rack unit counts.

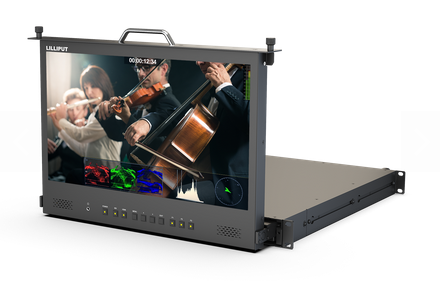

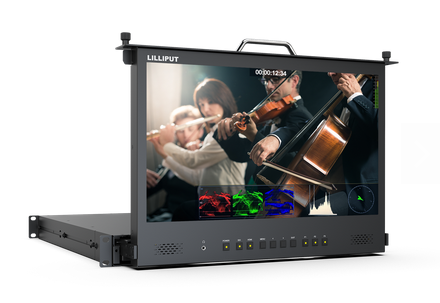

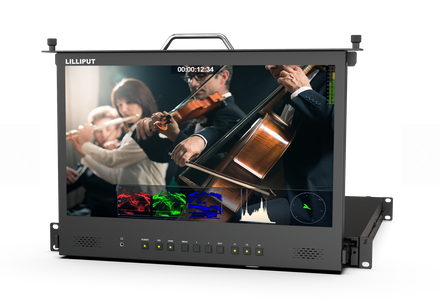

A 17.3" pull-out monitor in just 1U

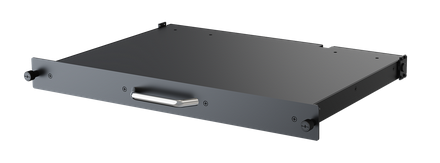

A Full HD IPS panel in a metal drawer for 19" racks – pull it out, fold it up and monitor; after work it disappears into a single unit.

Lilliput RM-1731S
17.3" Full HD IPS1U rackmount3G-SDI + HDMI 2.0HDR & 3D LUTLAN control

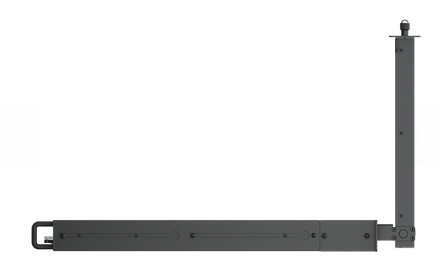

Patented folding design

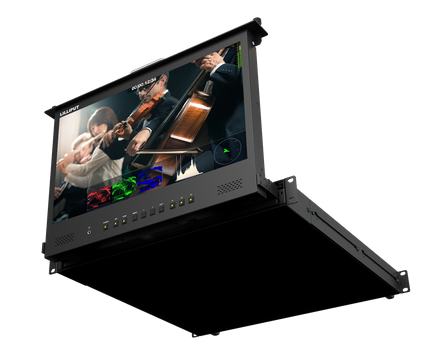

A clever folding and storage design uses only 1U of rack space and combines good looks with compactness. You can view the monitor from different angles and keep the rest of the rack free for other equipment.

Remote control

Change signal sources, functions and audio from a computer over LAN.

HDR & 3D LUT

ST2084 and HLG, 17 default and 6 user logs.

Scopes

Waveform, vectorscope, histogram, false color and peaking.

4K on HDMI input

HDMI 2.0 accepts up to 2160p 60 Hz and loops it out.

Lilliput RM-1731S – infographic 1Lilliput RM-1731S – infographic 2Lilliput RM-1731S – infographic 3Lilliput RM-1731S – infographic 4Lilliput RM-1731S – infographic 5Lilliput RM-1731S – infographic 6Lilliput RM-1731S – infographic 7

More information

About the monitor

The RM-1731S is a 17.3" pull-out 1U rackmount monitor for professional use. With a Full HD IPS screen, metal housing and 300 cd/m² brightness, it delivers crisp visuals in any environment and suits broadcasting, surveillance and multimedia applications.

For quick signal checks it offers assist tools including waveform, vectorscope, histogram, false color and peaking, plus a tally input and an application for control from a computer.

PACKAGE CONTENT

  • 1× monitor Lilliput RM-1731S
  • 1× 12 V / 2 A DC power adapter
  • 1× tally connector
  • 1× e-user manual card

SPECIFICATIONS

  • Brand: Lilliput
  • Model: RM-1731S
  • Display: 17.3" IPS
  • Resolution: 1920 × 1080 (Full HD), 16:9
  • Brightness: 300 cd/m²
  • Contrast: 800:1
  • Viewing angle (H/V): 170° / 170°
  • HDR: ST2084 300 / 1000 / 10000, HLG
  • LUT: 3D LUT (.cube) via USB, 17 default and 6 user logs
  • Video inputs: 1× 3G-SDI, 1× HDMI 2.0
  • Video outputs: 1× 3G-SDI, 1× HDMI 2.0 (loop)
  • SDI formats: 720p 50/60, 1080i 50/60, 1080PsF 24/25/30, 1080p 24/25/30/50/60
  • HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
  • Audio: SDI 12 ch 48 kHz/24-bit, HDMI 8 ch 24-bit, 2 speakers, 3.5 mm headphones

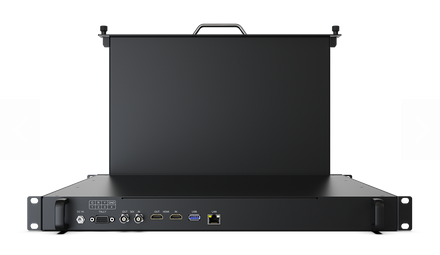

  • Other interfaces: LAN (remote control), tally, USB (3D LUT)
  • Functions: HDR, 3D LUT, waveform, vectorscope, histogram, audio level meter, peaking, false color, exposure, check field, color bar, pixel zoom, pixel to pixel, markers, freeze, H/V delay, image flip, time code (SDI only)
  • Power: DC 10–24 V
  • Power consumption: ≤ 14 W (12 V)
  • Operating temperature: 0 to 50 °C
  • Storage temperature: -20 to 60 °C
  • Dimensions (L × W × D): 482.5 × 44 × 507.5 mm
  • Weight: 8.9 kg
  • Mounting: 1U 19" rack, pull-out design

ARTICLES

Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 1080p up to 60p · 720p up to 60p · Ultra HD up to 60p
Size17.3"
Monitor inputs3G-SDI · 4K HDMI · HDMI · HDMI 2.0 · SDI
Luminosity300cd/m2
Panel resolution1920x1080
Monitor power supply12V

Other parameters

TallyYes
Other features3D LUT correction · HDR · Rack-mountable · Tally · Vectorscope
